Digitus DA-90357 TV wall mount 48,3 cm (19") - 106,7 cm (42") Tiltable, Swivelling Variable distance from wall, Folding
EAN:
Part number:
Item no:

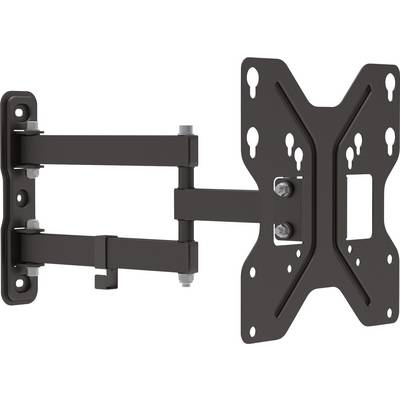

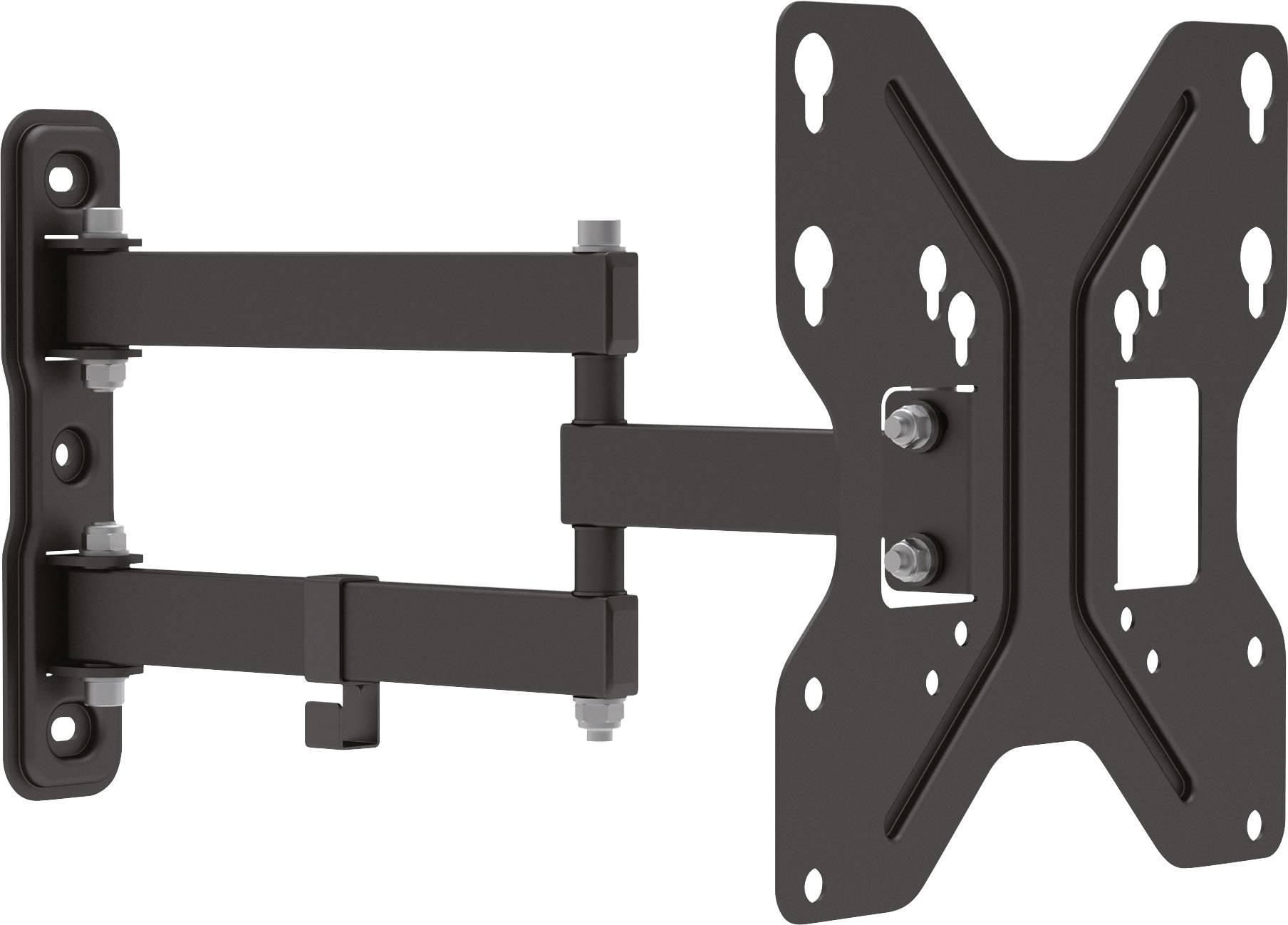

Digitus DA-90357 TV wall mount
Highlights & Details
- Holder type: Tiltable, Swivelling
- Supports VESA standards up to
- Suitable for displays sized (range): 48,3 cm (19") - 106,7 cm (42")
- Load capacity (max.) 30 kg
Technical specifications
- Product type
TV wall mount
- Suitable for
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
48,3 cm (19")
50,8 cm (20")
54,6 cm (21,5")
55,9 cm (22")
58,4 cm (23")
59,9 cm (23,6")
61 cm (24")
Show more
- Suitable for
48,3 cm (19") - 106,7 cm (42")
- Holder type
Tiltable
Swivelling
- Features
Variable distance from wall
Folding
- Max. load capacity
30 kg
No
75 x 75 mm
100 x 100 mm
200 x 100 mm
200 x 200 mm
- Tilt range (bottom)
7.5°
- Tilt range (top)
7.5°
- Swivel range (left)
90°
- Swivel range (right)
90°
- Width
230 mm
- Height
393 mm
- Depth
240 mm
- Factory colour
Black
- Weight
1900 g
- Dim
(W x H x D) 230 x 393 x 240 mm
- Screen size diagonal (inches)
1.0 inch
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1681248 Digitus DA-90357 TV wall mount 48,3 cm (19") - 106,7 cm (42") Tiltable, Swivelling Variable distance from wall, Folding
Description

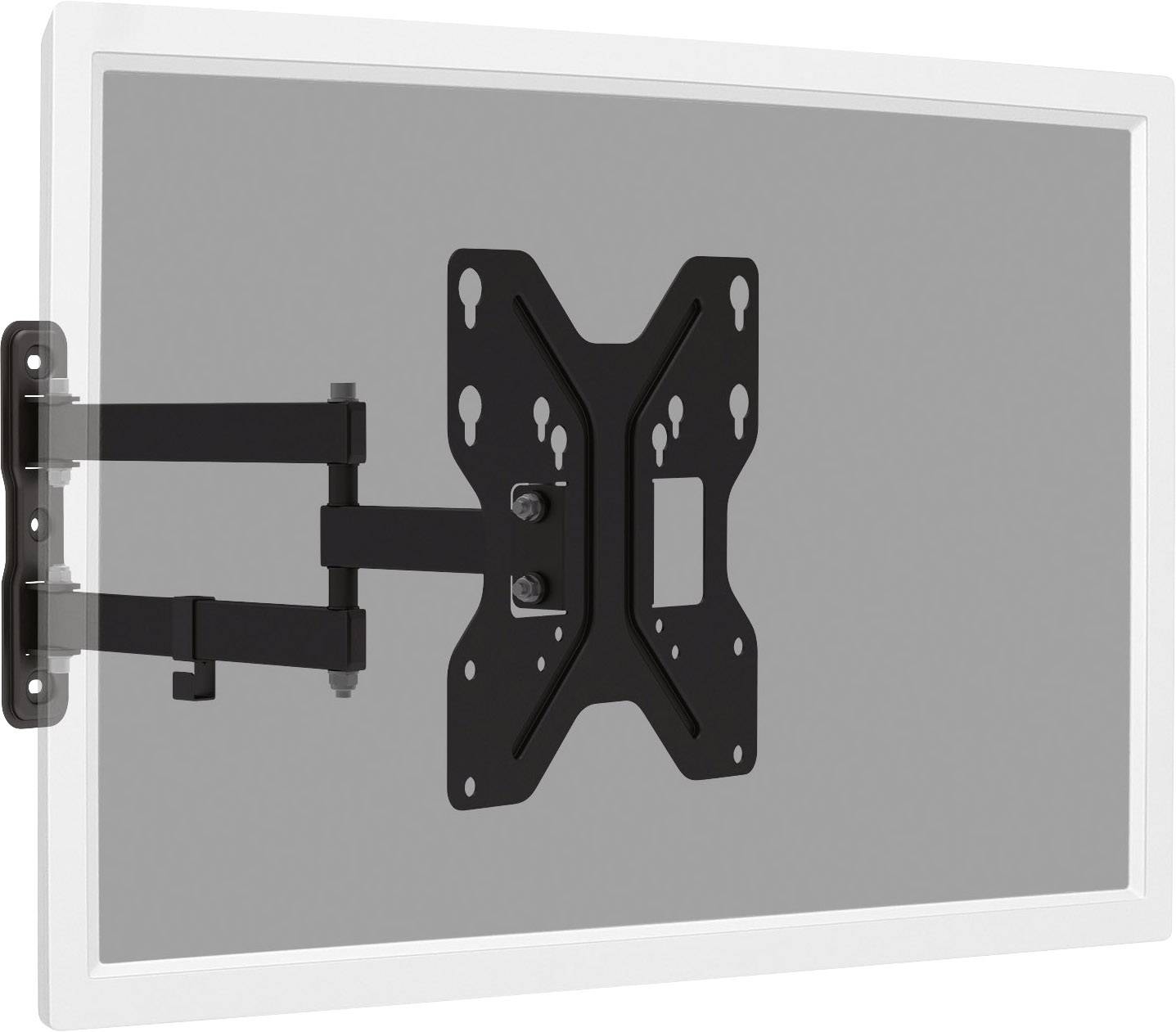

Universal wall mount for fully flexible alignment of the monitor according to their viewing position by three enstellbare levels. The universal wall mount allows the installation of LED and LCD monitors and televisions of all brands up to a size of 107 cm. Please note only the VESA dimensions as well as the weight of your monitor to a suitable wall bracket.
This text is machine translated.
This text is machine translated.
Scope of delivery
- TV wall mount
- Screws for monitor mounting
- User manual
