Buy Digitus DA-90396 Monitor wall mount 1 Display(s) 33,0 cm (13") - 81,3 cm (32") Black, Black (matt) Rotatable, Height-adj

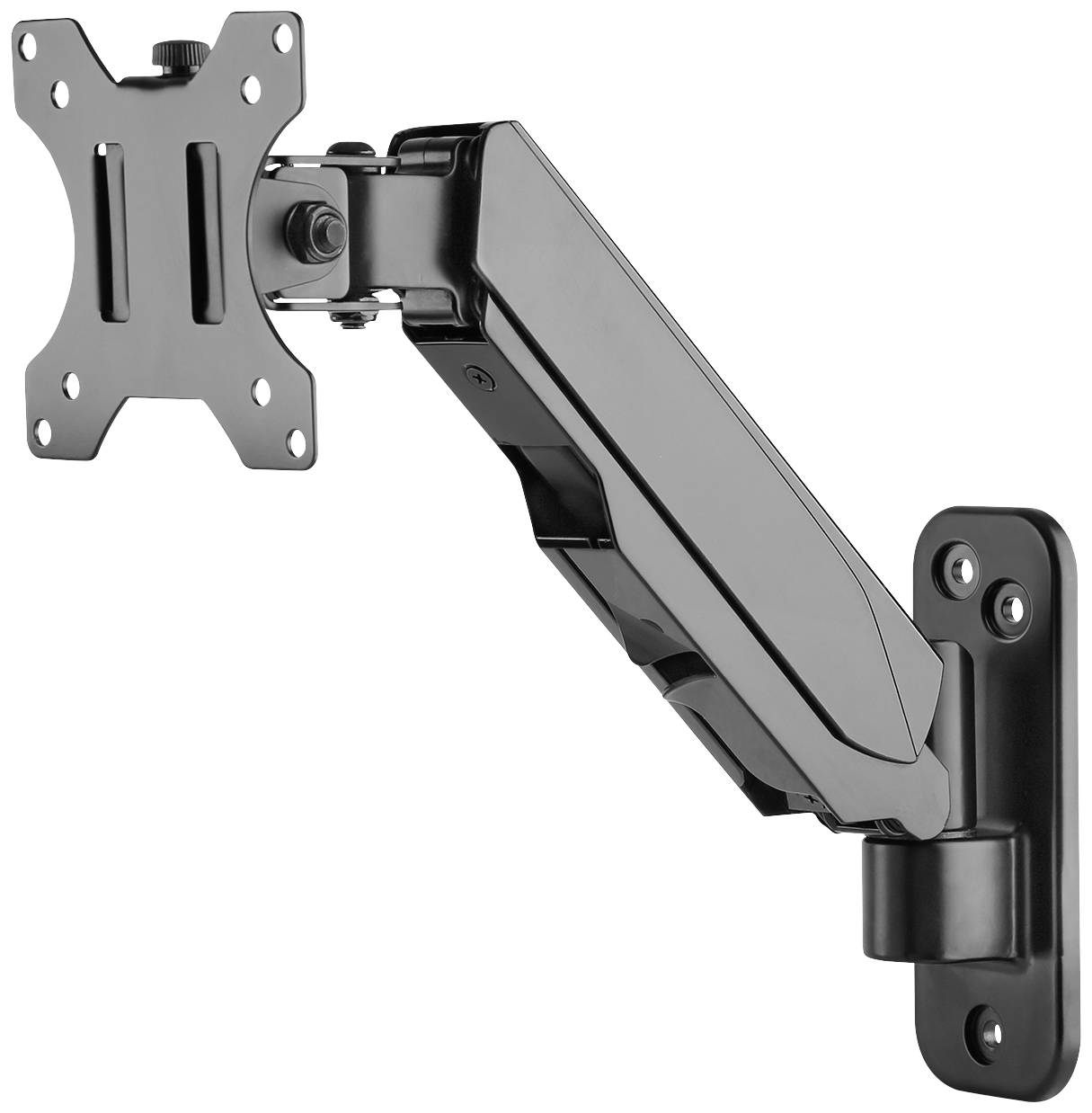

Wall mount for monitors, black, with swivel arm for flexible screen positioning. Ideal for ergonomic workspaces.

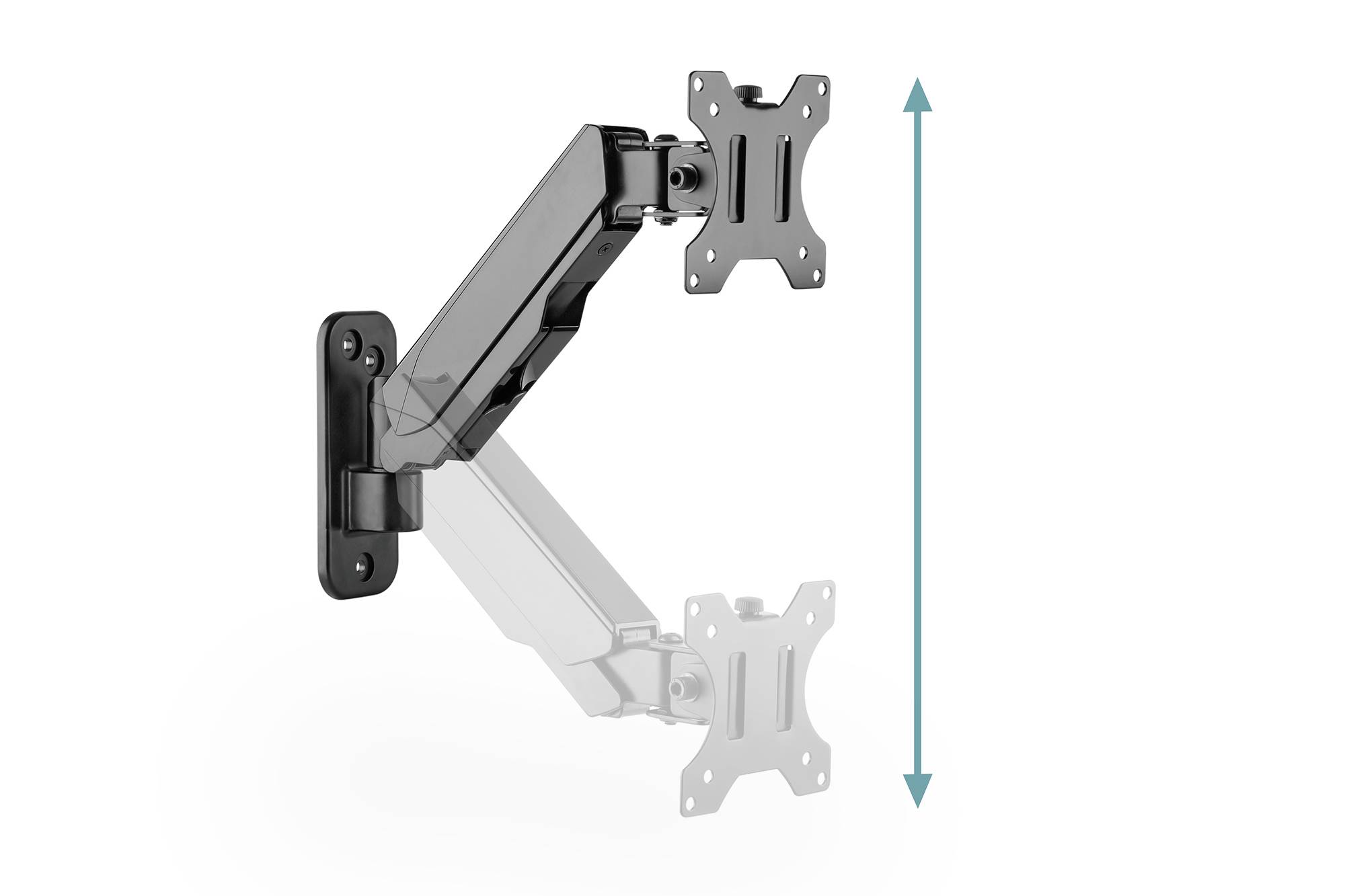

Image of a pivoting monitor arm with mounting screws and an arrow indicating vertical height adjustment.

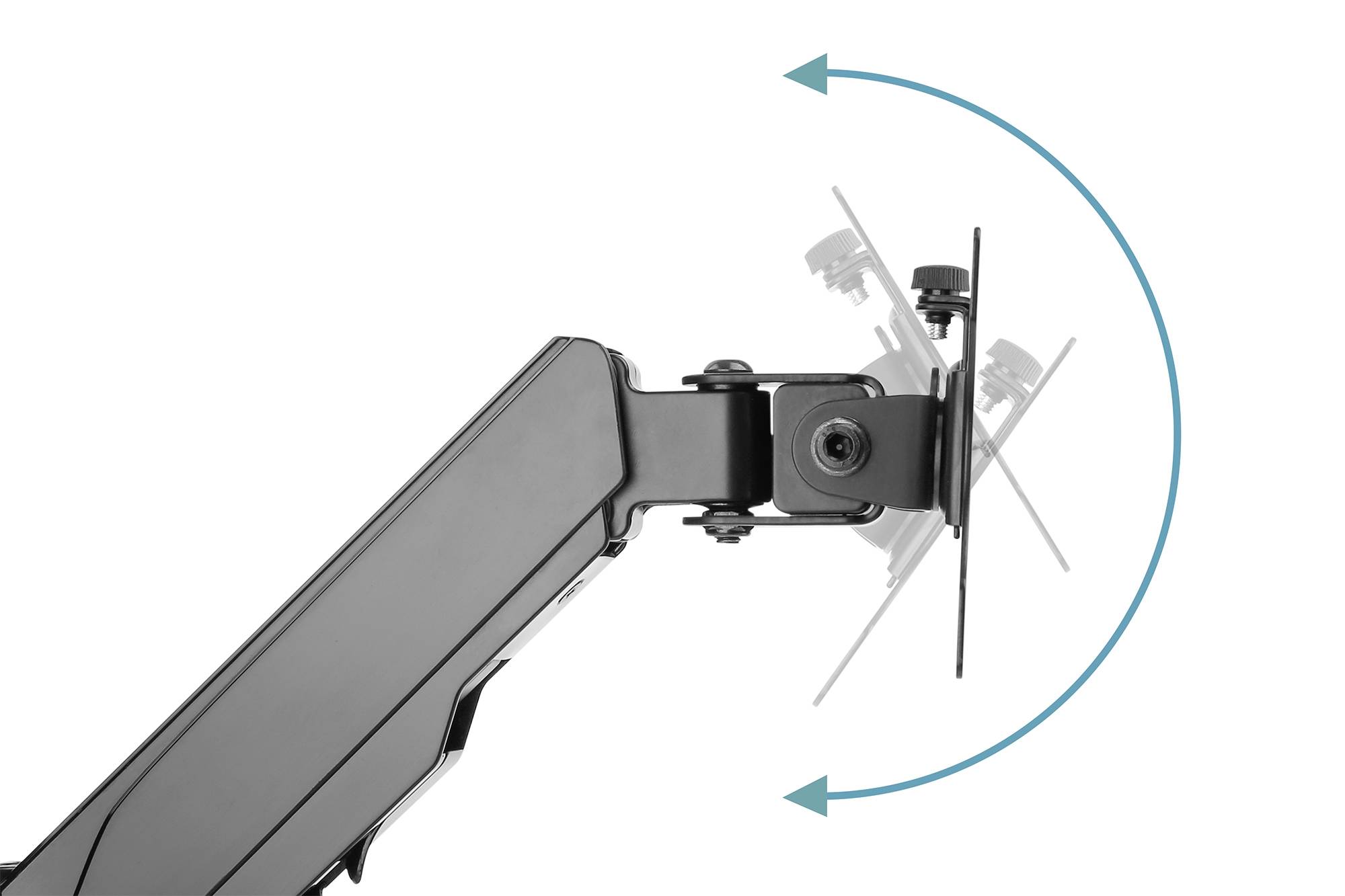

Monitor mount shown from the side, depicting a swivel arm and hinges, with arrows indicating possible tilt and rotation.

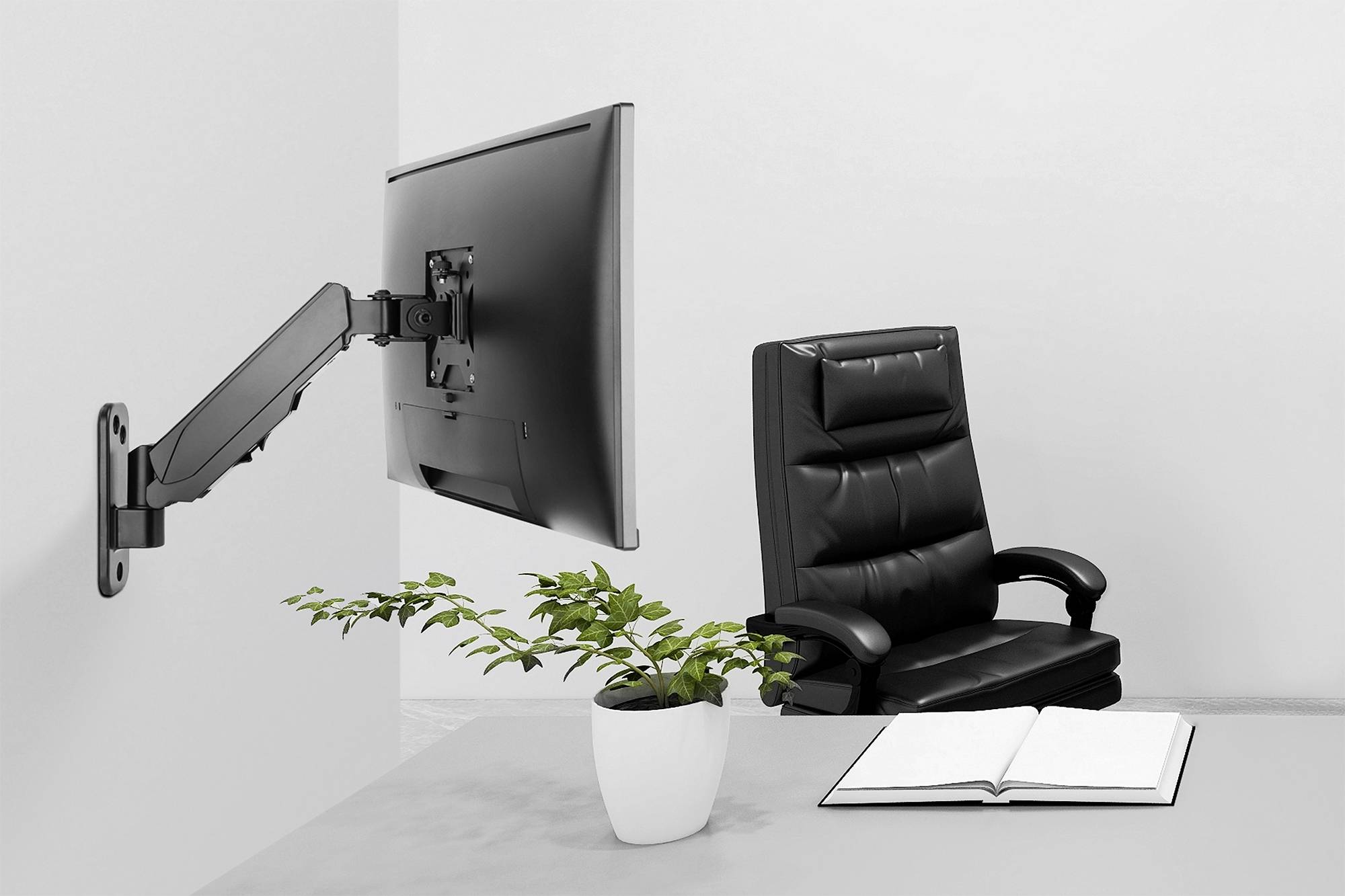

A clear desk with an open book and a potted plant. A monitor is mounted on a swivel arm on the wall. A black office chair stands behind it.

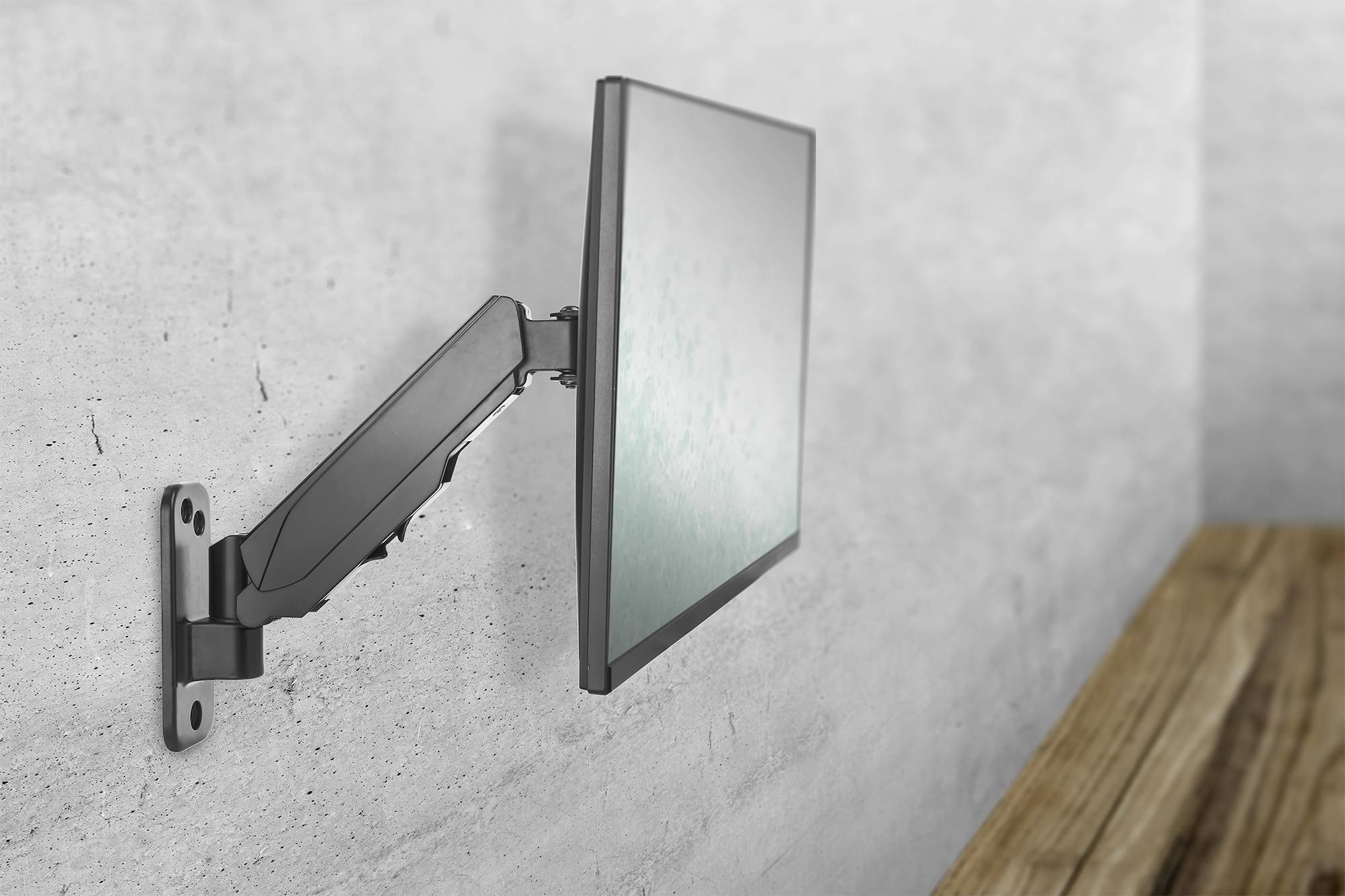

A flat screen is mounted on a grey wall. The screen is tilted to the left, next to a wooden surface.

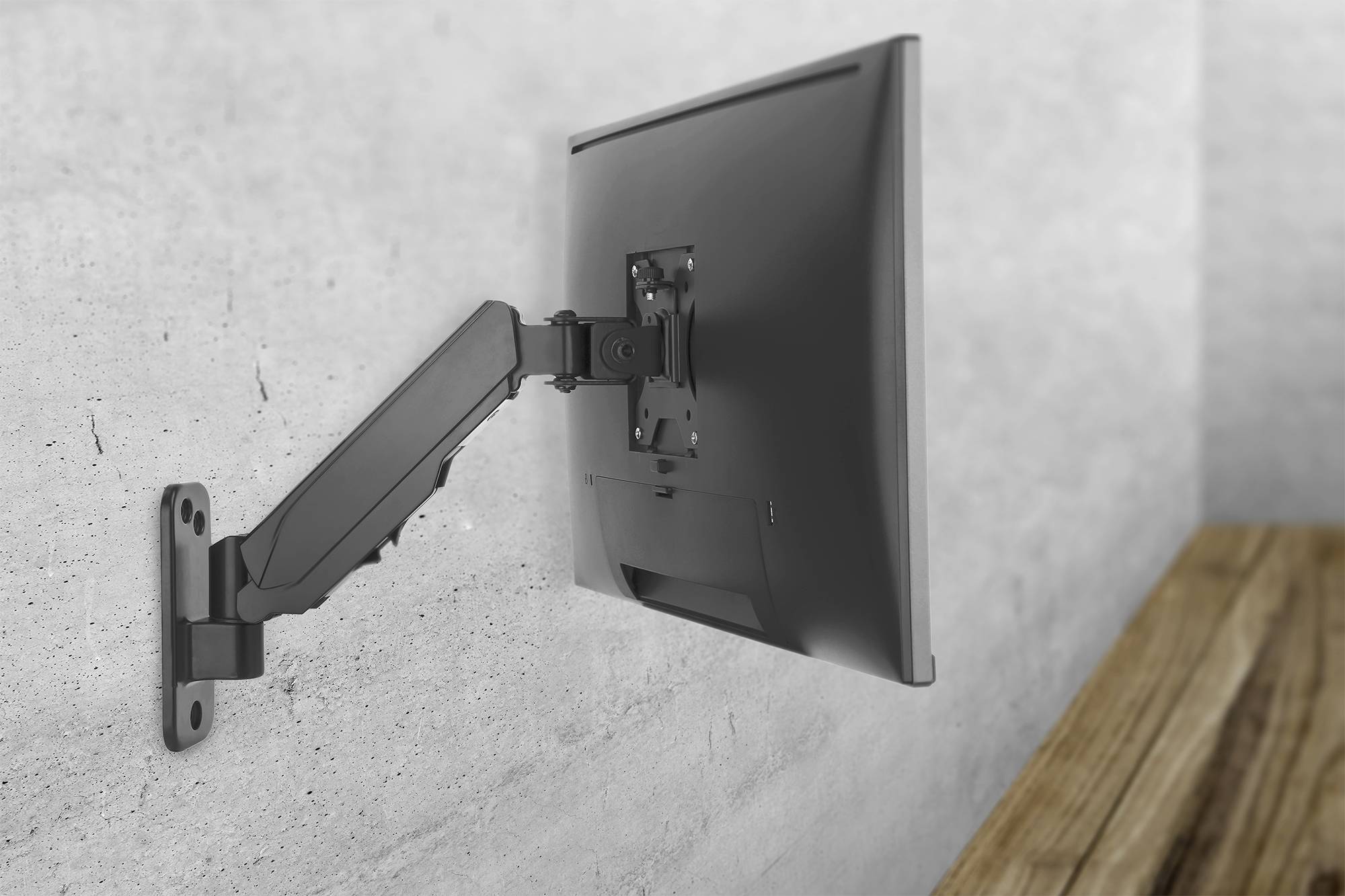

A black computer monitor is mounted on a movable arm against a grey wall. A wooden desk stands beside it.

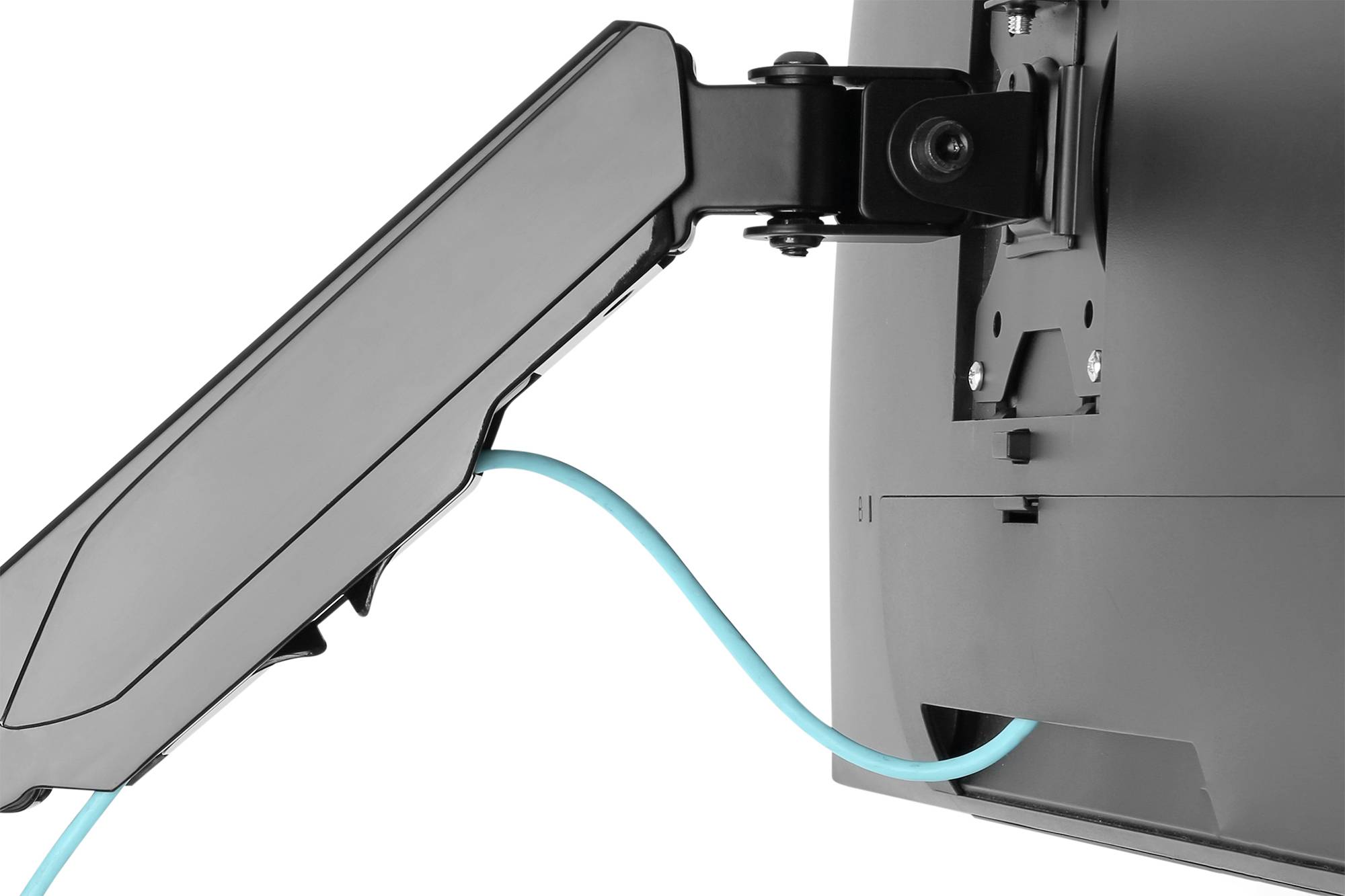

A cable management system organises a blue cable on a mounting arm attached to a monitor.

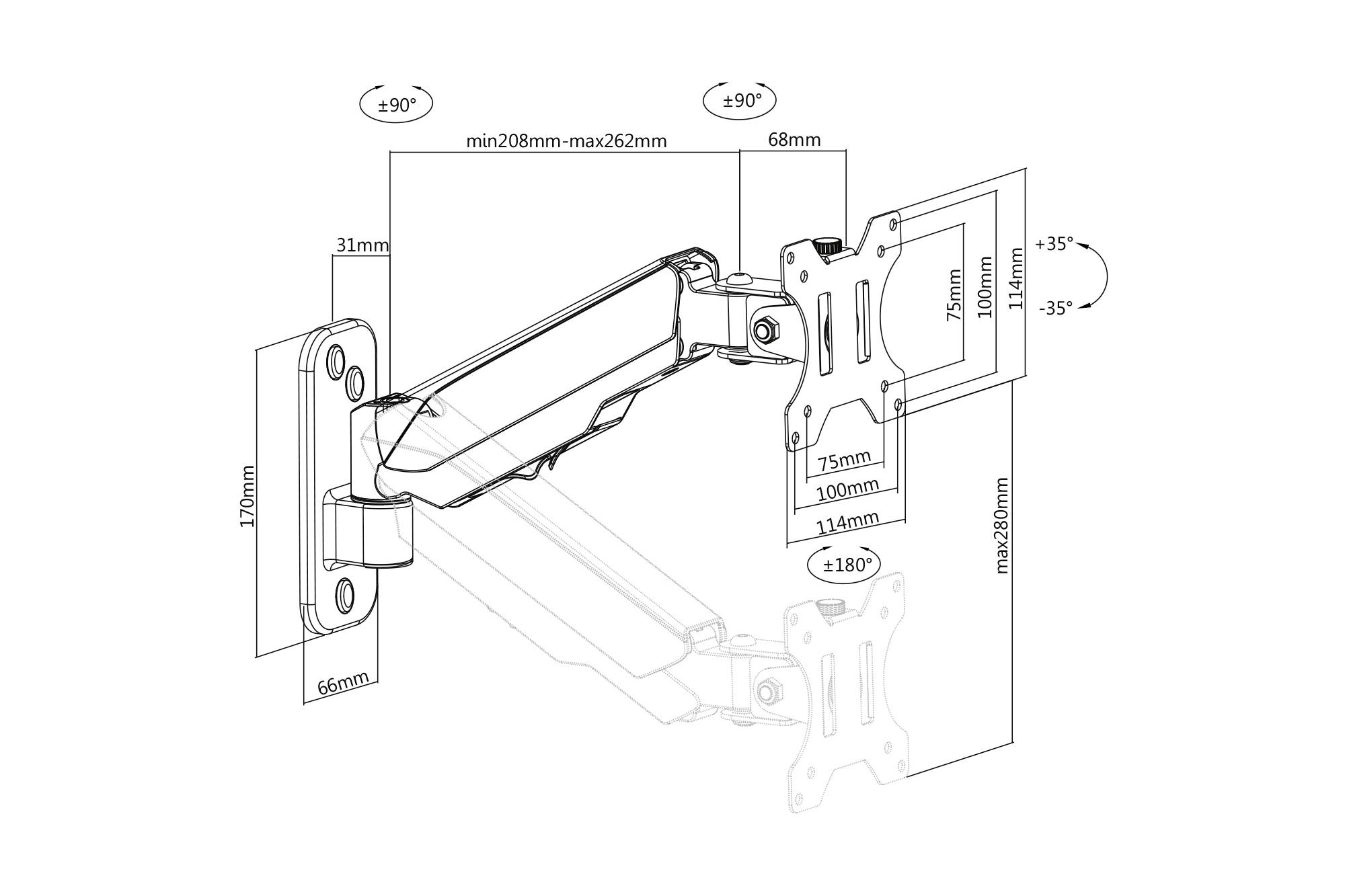

'Technical drawing of an adjustable monitor mount, with dimensions, angles, and adjustment ranges in mm for optimal adaptation.'

1/8

Unavailable

575 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus DA-90396 Single gas pressure spring monitor wall bracket 17-32", 8 kg (max.), black

Highlights & Details

Holder type: Rotatable, Height-adjustable, Tiltable, Swivelling, SwivellingSupports VESA standards up toSuitable for displays sized (range): 33,0 cm (13") - 81,3 cm (32")Load capacity (max.) 8 kg

Technical specifications

Maximum load capacity 8 kg
VESA dimensions 75 x 75, 100 x 100
Swiveling the VESA bracket: 180° (two hinges can be swiveled by 180°)
Tilt of the VESA bracket: 70°
Rotation of VESA mount: 360°
Maximum height adjustment: 28 cm
Material: Aluminum, plastic, steel

Product type: Monitor wall mount

Suitable for: 33,0 cm (13") - 81,3 cm (32")

Add-on displays: 1 Display(s)

Holder type: Rotatable
Height-adjustable
Tiltable
Swivelling
Swivelling

Features: Pneumatic
Suitable for Curved TVs

: No

Max. load capacity: 8 kg

: Yes / Yes

: 100 x 100 mm
100 x 75 mm
75 x 75 mm

Rotation: 180°

Tilt range (bottom): 35°

Tilt range (top): 35°

Swivel range (left): 90°

Swivel range (right): 90°

Width: 114 mm

Height: 301 mm

Depth: 307 mm

Factory colour: Black
Black (matt)

Material (details): Aluminum, plastic, steel

Weight: 1600 g

Dim: (W x H x D) 114 x 301 x 307 mm

Suitable for: 33,0 cm (13")
33,8 cm (13,3")
34,3 cm (13,5")
35,3 cm (13,9")
35,6 cm (14")
35,8 cm (14,1")
35,82 cm (14,1")
38,1 cm (15")
38,4 cm (15,1")
39,1 cm (15,4")
39,6 cm (15,6")
40,6 cm (16")
43,2 cm (17")
43,9 cm (17,3")
45,7 cm (18")
46,0 cm (18,1")
46,7 cm (18,4")
47 cm (18,5")
47,0 cm (18,5")
48 cm (18,9")
48,3 cm (19")
48,5 cm (19,1")
49,5 cm (19,5")
50,8 cm (20")
51,1 cm (20,1")
53,3 cm (21")
54,1 cm (21,3")
54,6 cm (21,5")
54,9 cm (21,6")
55,9 cm (22")
57,2 cm (22,5")
58,4 cm (23")
59,9 cm (23,6")
60,5 cm (23,8")
61 cm (24")
61 cm (24")
61,2 cm (24,1")
62,2 cm (24,5")
63,5 cm (25")
66 cm (26")
66,0 cm (26")
68,6 cm (27")
71,1 cm (28")
73,7 cm (29")
76,2 cm (30")
78,7 cm (31")
80 cm (31,5")
80,0 cm (31,5")
81,3 cm (32")
Show more

Screen size diagonal (inches): 1.0 inch

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2377903 Digitus DA-90396 Monitor wall mount 1 Display(s) 33,0 cm (13") - 81,3 cm (32") Black, Black (matt) Rotatable, Height-adj

Description

The Digitus Universal Monitor Wall Mount The Quick-Release function also simplifies the installation of the monitor. The VESA mount is simply pushed into the corresponding mount and fixed with a screw. You can easily adjust the monitor according to your needs and can swivel, tilt or rotate the monitor yourself, e.g. for portrait monitors. The support of the integrated gas pressure spring makes it easier for you to adjust the height of the monitor. Do something good for yourself and your health by optimally adjusting the monitor to your body and your sitting position. In addition, the cables of the monitors can be laid properly through the provided cable guides.

This text is machine translated.

Features

Suitable for flat and curved displays
Integrated cable management
Integrated gas pressure spring for easy height adjustment

Scope of delivery

Fitting Material
Installation instructions
