Digitus DIGITUS - 2,5"" SATA Festplattenadapter M.2 oder mSATA 2.5" HDD caddy
EAN:
Part number:
Item no:
2.5" SATA hard disk adapter M.2 or mSATA, SATA 3 - 6 Gbit/s, write speed 520 MB/s.
Highlights & Details
- Suitable for M.2 SSD (2230, 2242, 2260, 2280) with B-Key or B+M-Key
- Suitable for mSATA SSD (full size)
- Allows booting from the built-in SSD
Technical specifications
- Allows booting from the built-in SSD
- SATA III interface with 6 Gbit/s
- Reading speed up to 520 MB/s.
- SATA Rev. 3.2 with DEVSLP energy-saving mode
- PCI Express M.2 Spec. Revision 0.7, version 1.0
- PCI Express Mini Card Electromechanical Spec. 1.2
- Dimensions 100 x 70 x 7 mm
- Connection
M.2 or mSATA
- Product type
2.5" HDD caddy
- Material (details)
Aluminium
- Type
DIGITUS - 2,5"" SATA Festplattenadapter M.2 oder mSATA
- Content
1 pc(s)
- Weight
50 g
- Width
100 mm
- Height
10 mm
- Length
70 mm
- Factory colour
Multicolour
- Wireless charging
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162634 Digitus DIGITUS - 2,5"" SATA Festplattenadapter M.2 oder mSATA 2.5" HDD caddy
Description

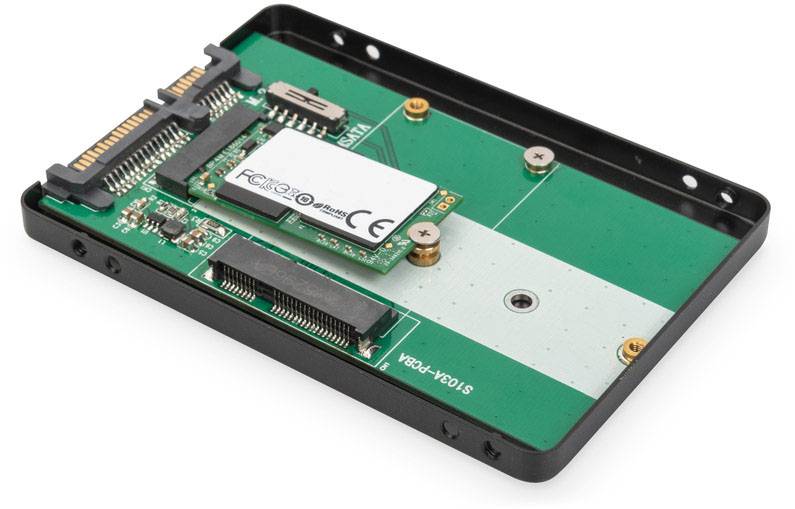

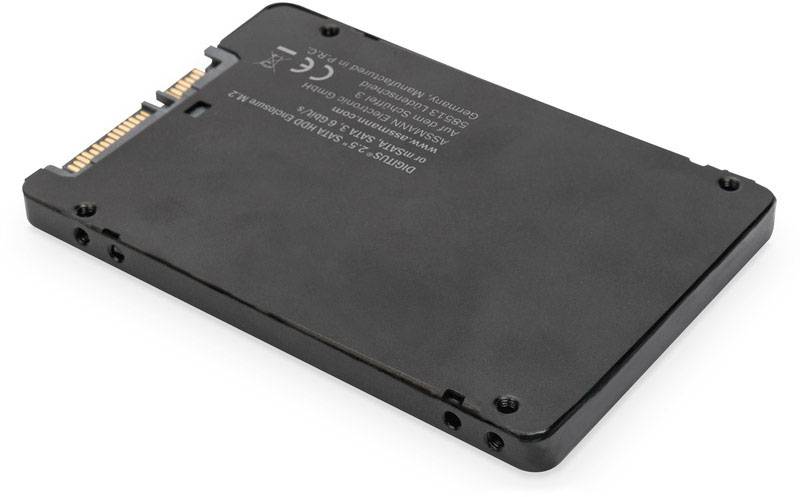

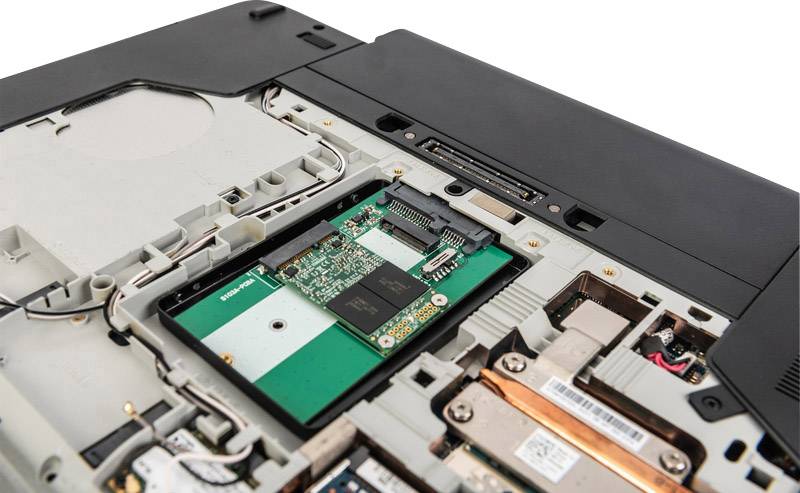

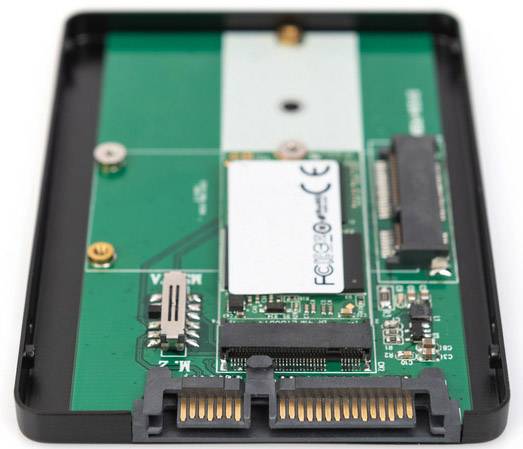

With the DIGITUS® 2.5" SATA hard disk adapter, you can increase the system speed and performance cost-effectively by installing a M.2 or mSATA SSD in your PC or notebook. The hard disk adapter is used like a standard 2.5" hard disk with SATA III connection. Due to the low installation height of only 7 mm, it can be installed in all common notebooks. M.2 (NGFF) SSDs of the following type are supported: M.2 type 2230, 2242, 2260, 2280 with B-Key and B+M-Key. Support for M.2 PCIe NVMe SSDs with M-Key is not available. Furthermore, mSATA SSDs with mini PCIe 52 PIN connection are supported as a full size version. The respective integrated SSD is selected via DIP switch on the board. Boot operations are supported by the adapter for all standard operating systems such as Windows, Mac OS or Linux. The internal SSD memory is protected against dust and damage by the completely closed aluminum casing. The SATA III interface offers a data transfer rate of 6 Gbit/s, the read speed can be up to 520 MB/s, depending on the SSD used. The adapter supports SATA Rev. 3.2 with DEVSLP power saving mode.
This text is machine translated.
This text is machine translated.
Features
- Closed aluminum casing
- Mode setting via DIP switch
Scope of delivery
- 2.5" SATA hard disk adapter M.2 or mSATA
- QIG
