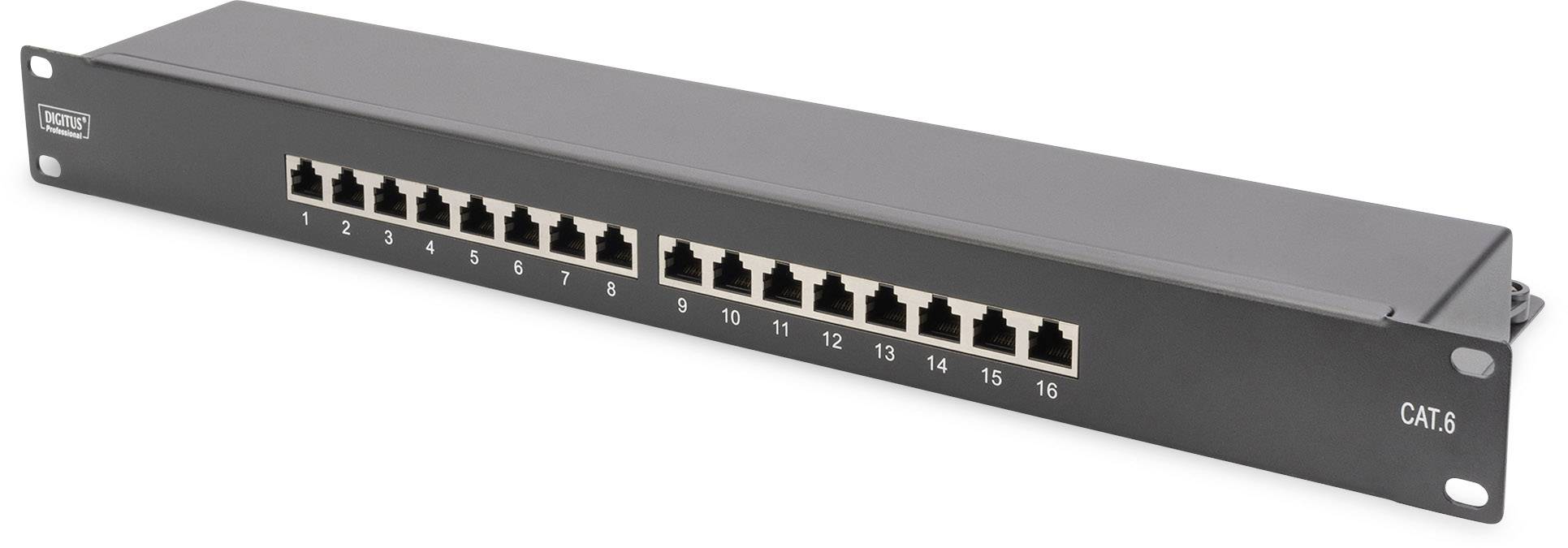

A 16-port patch panel for network cabling, CAT.6 model, in a black housing, suitable for racks.

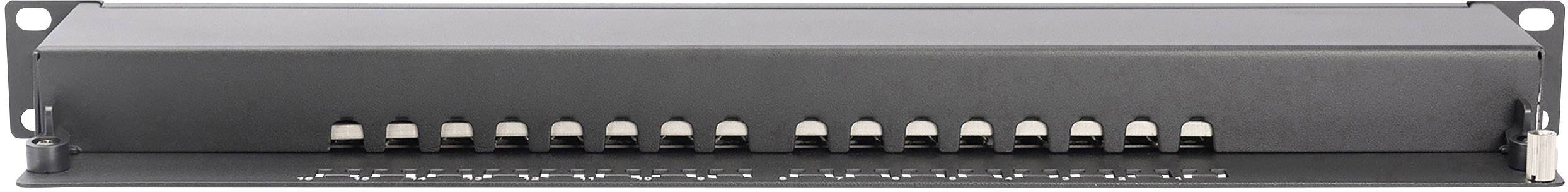

Black patch panel front view, showing multiple numbered connection points for network cabling in a server rack.

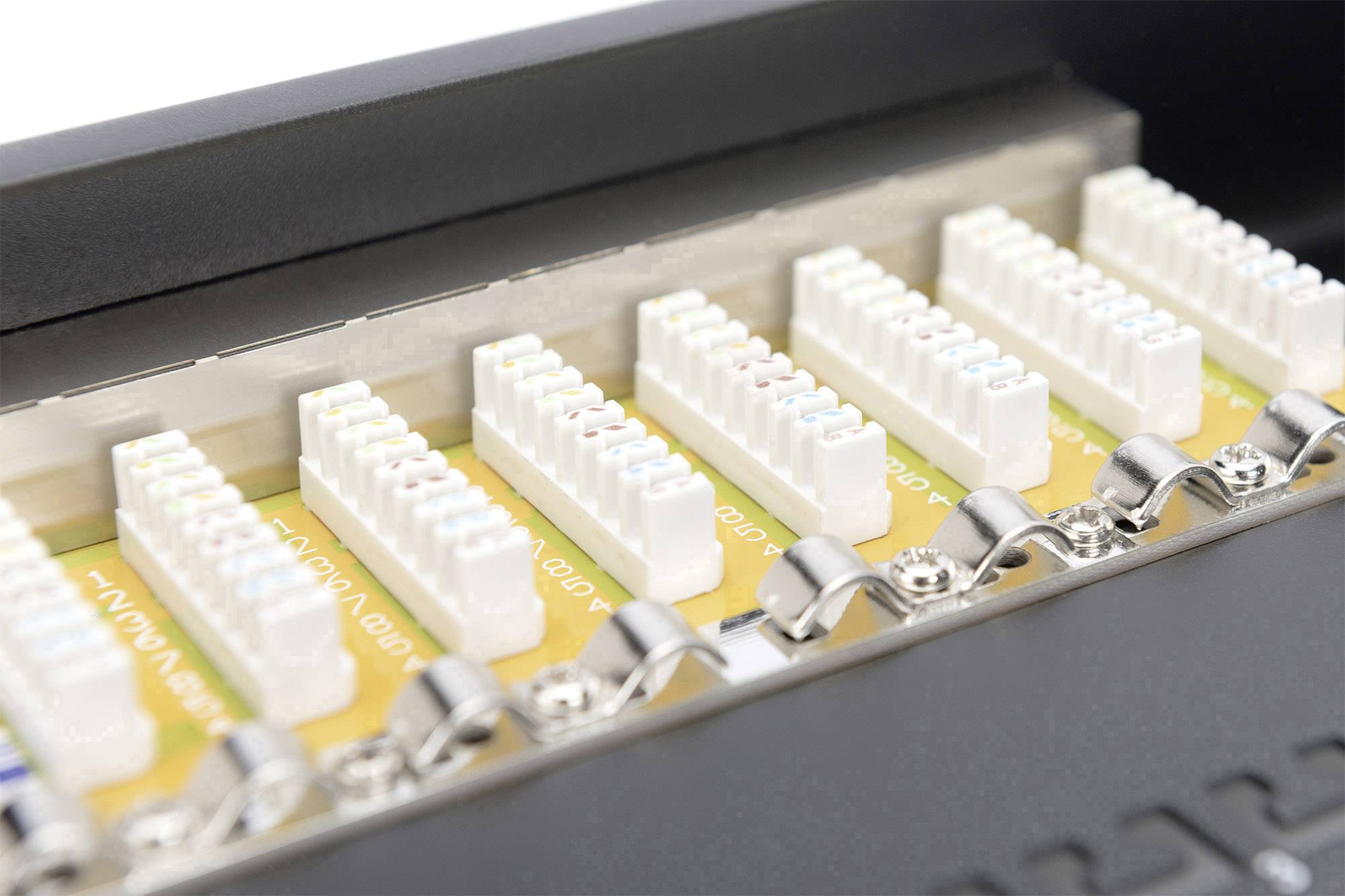

Close-up of a patch panel with multiple RJ45 ports and colour-coded wires used for network cable connections.

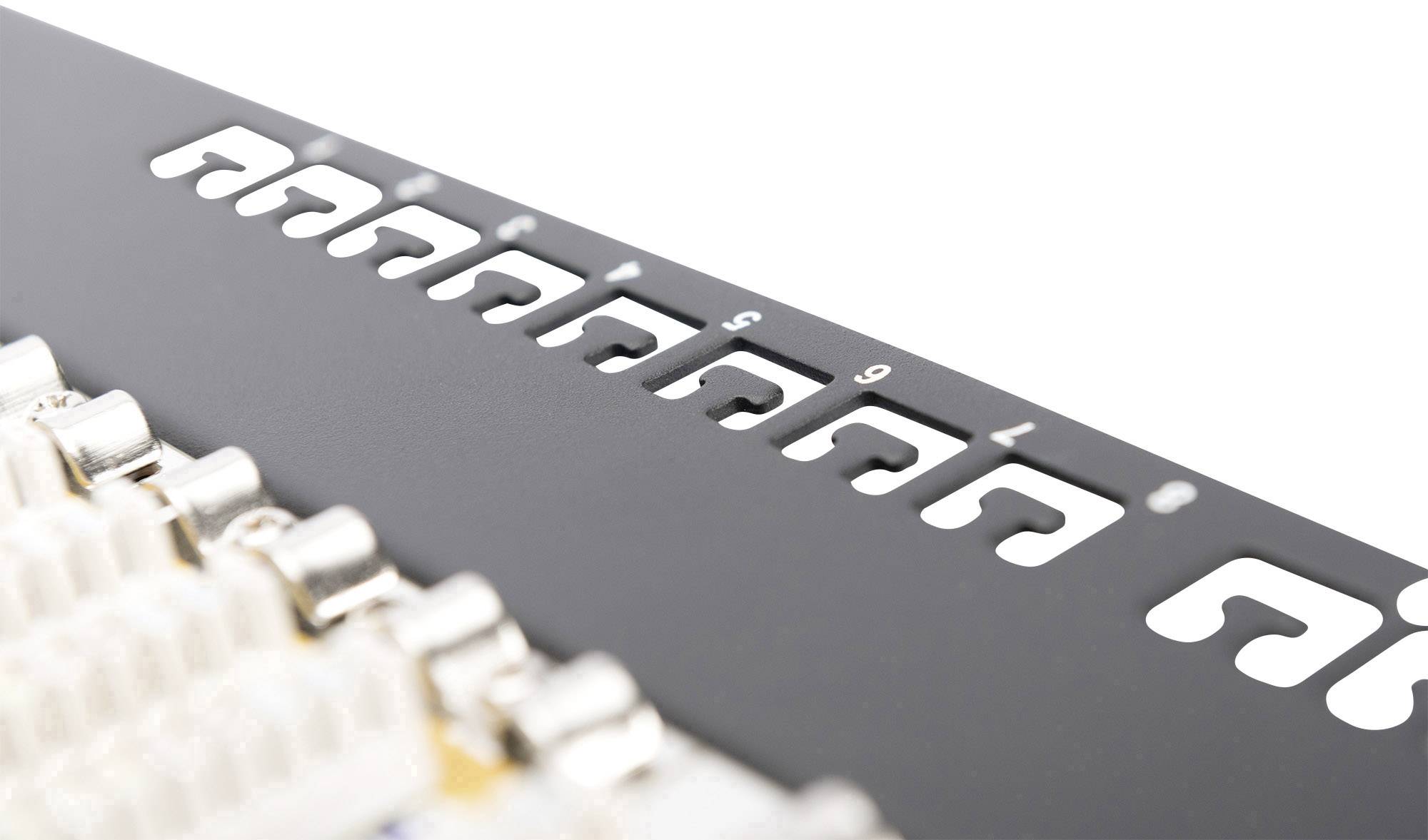

Close-up of a circuit board with visible white connectors and printed numbers from 3 to 9 on a black background.

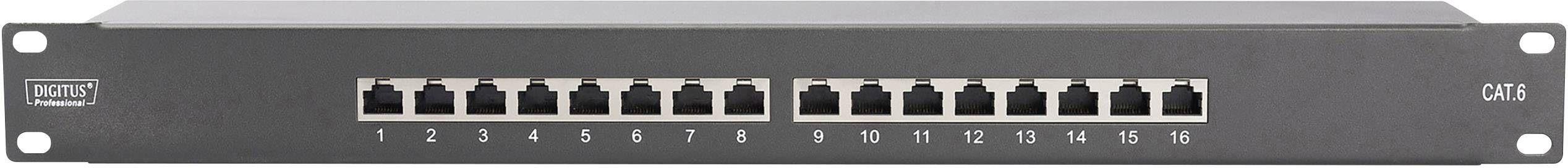

A grey Ethernet patch panel with 16 numbered LAN ports, suitable for network maintenance and organisation in IT racks.

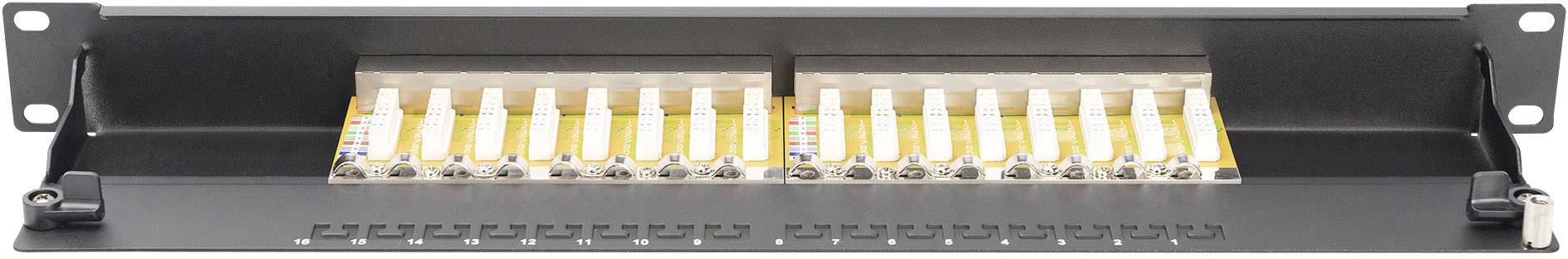

A patch panel with cable connections shows 12 colour-coded ports for network connections in a metallic enclosure.

1/6

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

19" LSA patch panel, 16-port, 1HE, CAT 6 class E, shielded, RJ45 (8P8C), black

Highlights & Details

Suitable for 19" (483 mm) cabinet mounting
Cable installation via LSA-strips, color-coded according to EIA/TIA 568 A & B.
Cable fixing by means of cable ties

Technical specifications

Transfer property: Category 6
Application areas: Up to 250 MHz, 1GBase-T.
Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C.
Material casing: 1.5 mm galvanized, cold-rolled steel according to EN 1.4301, US S30400, AISI 304 and LMSAD110
Material RJ45 socket: ABS UL 94V-0
Contact RJ45 socket: Nickel plated phosphor bronze, 0.5 μ gold plated contact
RJ-45 shielding: Nickel-plated bronze
LSA-cutting terminal: Krone LSA+, UL 94V-0, galvanized phosphor bronze
Grounding wire: Not included
PRINTED CIRCUIT BOARD FR4, UL 94V-0
Insertion force: 30N max. (IEC 60603-7-5)
Tensile load: 7.7 kg between socket and plug
OPERATING TEMPERATURE -20° C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Plug-in cycle socket: Greater than 750 in accordance with ISO/IEC 11801, IEC 60603-7-5
Terminal: Greater than 200 in accordance with ISO/IEC 11801, IEC 60603-7-5
Wire intake: 22-26 AWG solid and stranded conductor
Insulation resistance: Greater than 500 MOhm
Contact resistance: Less than 20 milliohms
Dielectric strength 1000VDC (contact/contact), 1500VDC (contact/ground)
Category: Cat 6

Product type: Network patch panel

Rack size: 483 mm (19")

: CAT 6

Rack unit: 1 U

Transfer rate: 10 / 100 / 1000 MBit/s

Port: 16 ports

Patch panel design: Equipped

Connection method: LSA+

Width: 483 mm

Height: 110 mm

Factory colour: Multicolour

Length: 45 mm

Weight: 1.06

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1909709 Digitus DIGITUS - CAT 6, Klasse E Patch Panel 16 ports Network patch panel 483 mm (19") CAT 6 1 U Multicolour Equipped

Description

The shielded CAT 6 patch panel from DIGITUS® is available as a 16- or 24-port version. It is manufactured according to the requirements according to Link Performance class E, for up to 250 MHz, ISO/IEC 11801 and EN 50173 and corresponds to the 802.3at PoE+and the 802.3af PoE standard. The housing is made of 1.5 mm galvanized cold-rolled steel and is thus perfectly suitable for the 19" cabinet mounting.
