Buy Digitus DIGITUS - CAT 6A, Klasse EA High Density Patch Panel, geschirmt 24 ports Network patch panel 483 mm (19") CAT 6A

A patch panel with 24 RJ45 network connection ports. It is mounted and designed for CAT 6A cables.

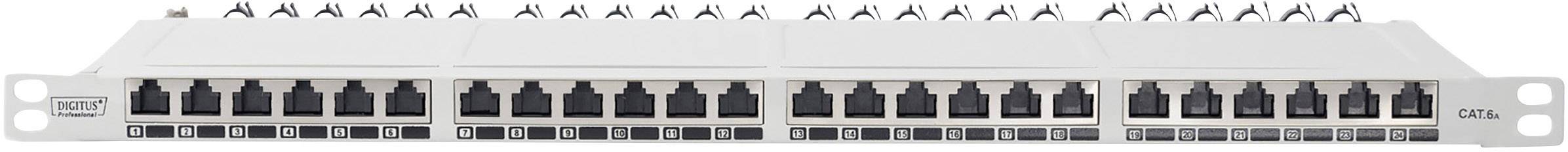

A patch panel with 24 Ethernet ports, mounted in a rack. Numbered cable ties are located above the ports.

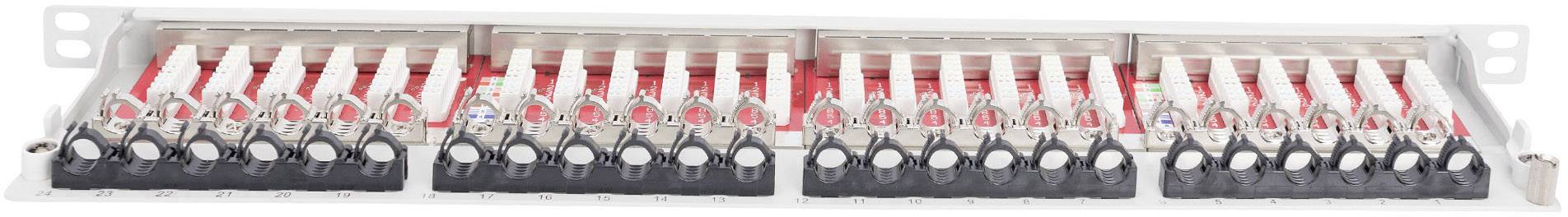

A 20-port fibre optic splice module with red-marked and numbered ports, designed for organising optical fibre cables.

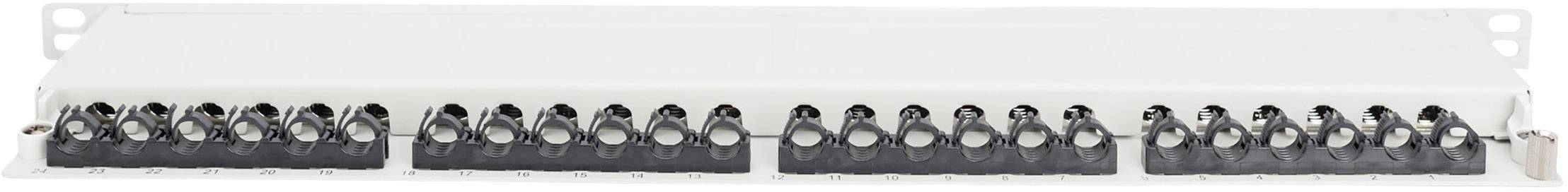

A white network patch panel with numerous ports, mounted for cable management and connectivity in a server room.

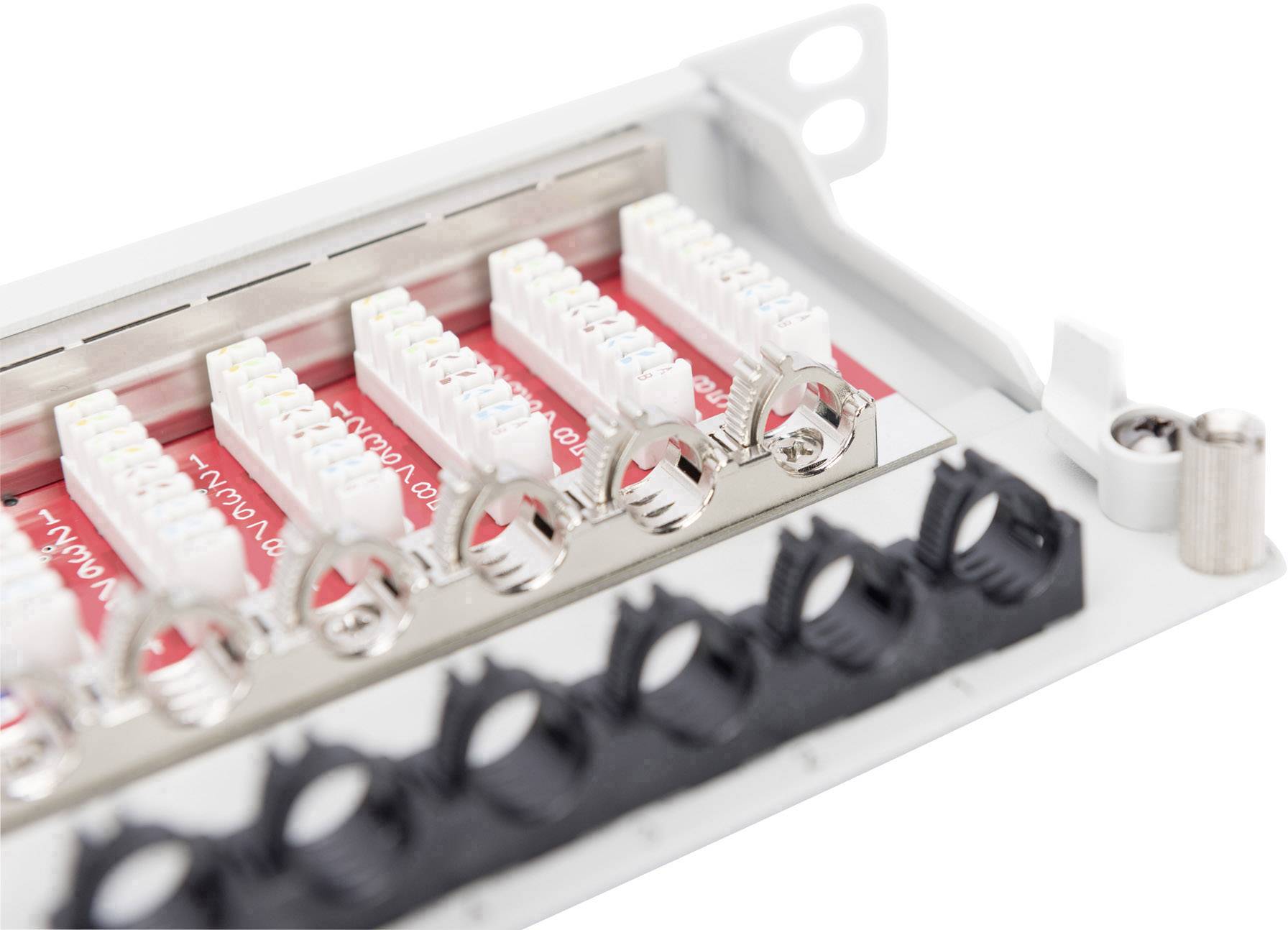

Telecommunications connection strip with multiple wire connections and slots, for organising network cable connections.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

19" LSA patch panel, 24-port, 0.5HE, CAT 6A class EA, shielded, RJ45 (8P8C), gray

Suitable for 19" (483 mm) cabinet mounting
Cable installation via LSA-strips, color-coded according to EIA/TIA 568 A & B.
Cable fixing by means of cable ties

Technical specifications

Transfer property: Category 6A, class EA
Application areas: Up to 500 MHz, 10GBase-T.
Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
Material casing: 1.5 mm galvanized, cold-rolled steel according to EN 1.4301, US S30400, AISI 304 and LMSAD110
Material RJ45 socket: ABS UL 94V-0
Contact RJ45 socket: Nickel plated phosphor bronze, 0.5 μ gold plated contact
RJ-45 shielding: Nickel-plated bronze
LSA-cutting terminal: Krone LSA+, UL 94V-2, galvanized phosphor bronze
Grounding wire: Not included
PRINTED CIRCUIT BOARD FR4, UL 94V-0
Insertion force: 30N max. (IEC 60603-7-5)
Tensile load: 7.7 kg between socket and plug
OPERATING TEMPERATURE -20° C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Plug-in cycle socket: Greater than 750 in accordance with ISO/IEC 11801, IEC 60603-7-5
Terminal: Greater than 200 in accordance with ISO/IEC 11801, IEC 60603-7-5
Wire intake: 22-26 AWG solid and stranded conductor
Insulation resistance: Greater than 500 MOhm
Contact resistance: Small 20 milliohms
Dielectric strength 1000VDC (contact/contact), 1500VDC (contact/ground)
Category: Cat 6A

Product type: Network patch panel

Rack size: 483 mm (19")

: CAT 6A
CAT 6a (CAT 7 cable)

Rack unit: 0.5 U

Transfer rate: 10 GBit/s

Port: 24 ports

Patch panel design: Equipped

Connection method: LSA+

Width: 483 mm

Height: 96 mm

Factory colour: Multicolour

Length: 22 mm

Weight: 0.98

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1909711 Digitus DIGITUS - CAT 6A, Klasse EA High Density Patch Panel, geschirmt 24 ports Network patch panel 483 mm (19") CAT 6A

User & Safety Instructions

User & Safety Instructions 1909711 Digitus DIGITUS - CAT 6A, Klasse EA High Density Patch Panel, geschirmt 24 ports Network patch panel 483 mm (19") CAT 6A

Information

Information 1909711 Digitus DIGITUS - CAT 6A, Klasse EA High Density Patch Panel, geschirmt 24 ports Network patch panel 483 mm (19") CAT 6A

Description

The DIGITUS® 24-Port 0.5HE Patch Panel offers you a high packing density. Since the panel is only 0.5U high, 48 ports (2 panels with 24 ports each) can be installed on 1HE.
