Name: Digitus DisplayPort Cable DisplayPort plug 3 m Black DB-340201-030-S triple shielding, Flexible, Halogen-free, Round Dis
Brand: Digitus
SKU: 2751171

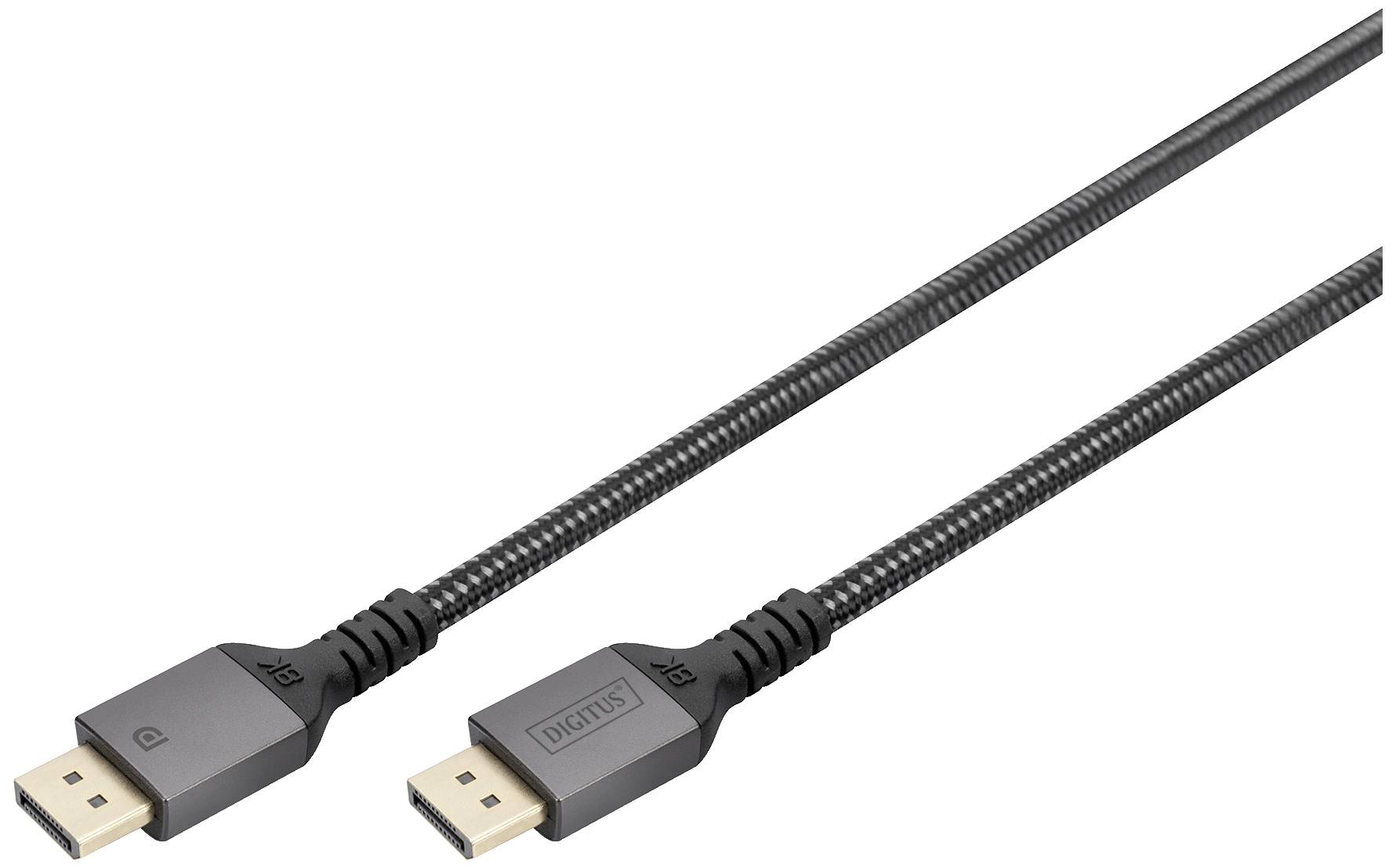

'DisplayPort cable with plugs at both ends, suitable for transmitting high-quality audio and video signals.'

Two DisplayPort 1.4 plugs side by side, labelled as an 8K DisplayPort connection cable. No further details visible.

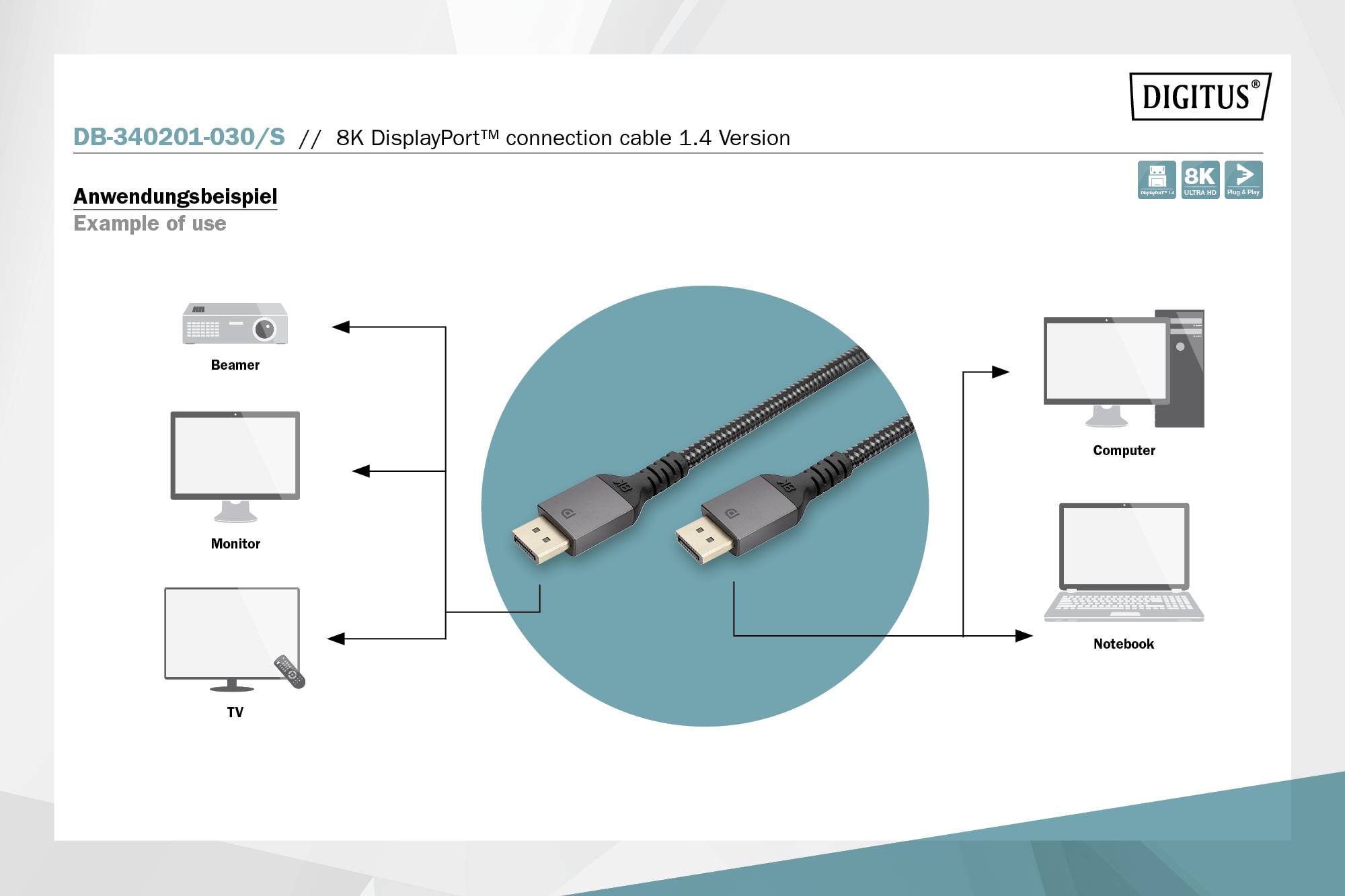

Application example: 8K DisplayPort cable connects projector, monitor and TV with computer and laptop.

1/4

Product type

DisplayPort cable

Connection type

DisplayPort

Version

Cable

Connection type

DisplayPort to DisplayPort

Connections

DisplayPort plug

Unavailable

25 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus 8K DisplayPort connection cable 1.4 version

DisplayPort connector to DisplayPort connectorConnects PC/computer, laptop, notebook or graphics card for gaming with DP-enabled devices such as television, screen, monitor, projector/projector, displaySupports 4K/2K@120Hz, 5K@60Hz or 8K@60Hz video formats and resolutions of 3840 x 2160p, 5120 x 2880p and 7680 x 4320p - also enables a color depth of 24-bit

Technical specifications

Resolution 7680 x 4320p / 60 Hz (UHD-2)Supports 8K 3DSignal transmission rate up to 32.4 Gbps (max. Bandwidth)Supports up to 120Hz at 4K & Full HD (1080p)Subsampling: YUV 4:4:4HDCP Version 2.2DisplayPort™ Version: 1.4Supported color depth: 16 bit Deep ColourSupports HDRSupports Consumer Electronic Control (CEC)Supports lip-sync (audio/video synchronization)Supports stereoscopic 3D videoSupports Display Stream Compression 1.2 (DSC)Supports EDID 2.0 (device recognition)Supports DVI Version 1.0 (in connection with adapters)Supports forward error correction (FEC)Multi Stream Audio/Video support21:9 Cinemascope support32 channel audio supportDolby TrueHD enabledSupports 8-channel LPCM, 192 kHz, 24-bit audio capabilitySupports DTS-HD Master Audio BitstreamSupports Super-Audio-CD (DSD)Supports DVD audioSupports Blu-Ray disc and HD-DVD audio and videocable diameter 6.8 mmOM version OM3Operating temperature: -20 – 60°COperating humidity 0 - 95% RHAWG 30DisplayPort standard DisplayPort 1.4Aluminium casingConnection 1: DP, plugConnection 2: DP, plugLocking: NoneDisplayPort standard DisplayPort 1.4Colour of cable: BlackFerrite filter: NoneHDTV standard ultra HD 8KContact surface: Gold-platedLength: 3 mAOC - Active optical cable: No.Shielding: Double shielded

Product type: DisplayPort cable

Connection type: DisplayPort

Version: Cable

Connection type: DisplayPort to DisplayPort

Connections: DisplayPort plug

DisplayPort version: DisplayPort 1.4

Connector version: straight

Video resolution: 7680 x 4320 Pixel
1920 x 1080 Pixel
3840 x 2160 Pixel
4096 x 2160 Pixel

Max. frequency: 60 Hz

Cable length: 3 m

Factory colour: Black

Cable features: triple shielding
Flexible
Halogen-free
Round

Signal flow: Bidirectional (A↔B)

Cable use: TV/monitor
PC
DisplayPort
Monitor
Laptop
VHS

Cable design: Round

: Copper

: 28

Shielding: Braid shielding/shielding film

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2751171 Digitus DisplayPort Cable DisplayPort plug 3 m Black DB-340201-030-S triple shielding, Flexible, Halogen-free, Round Dis

Description

With this cable standard, this DisplayPort cable supports all today's requirements - from playback of high-resolution UHD 8K content, over 8 channel audio transmission , up to support for HDCP and DPCP encryption. Mirror your laptop desktop on a large monitor or expand your desktop by an additional display with DisplayPort. Rapid data transfer is possible with this high-quality cable, no jerks, even with demanding graphics applications or games. Gold-plated contacts and the double shielding of the cable provide for highest conductivity and an interference-free transmission.

This text is machine translated.

Features

Compatible with DP standards 1.4, 1.3 and 1.2The gold-plated precision plugs ensure optimum signal quality and protection against corrosionWith the aluminum housing and the nylon braiding the cable offers highest quality and protection.

Description

Features

Compatible with DP standards 1.4, 1.3 and 1.2The gold-plated precision plugs ensure optimum signal quality and protection against corrosionWith the aluminum housing and the nylon braiding the cable offers highest quality and protection.
