Name: Digitus DisplayPort / Fibreglass Cable DisplayPort plug, DisplayPort plug 20.00 m Black AK-340107-200-S 8K UHD DisplayPo
Brand: Digitus
SKU: 2350554

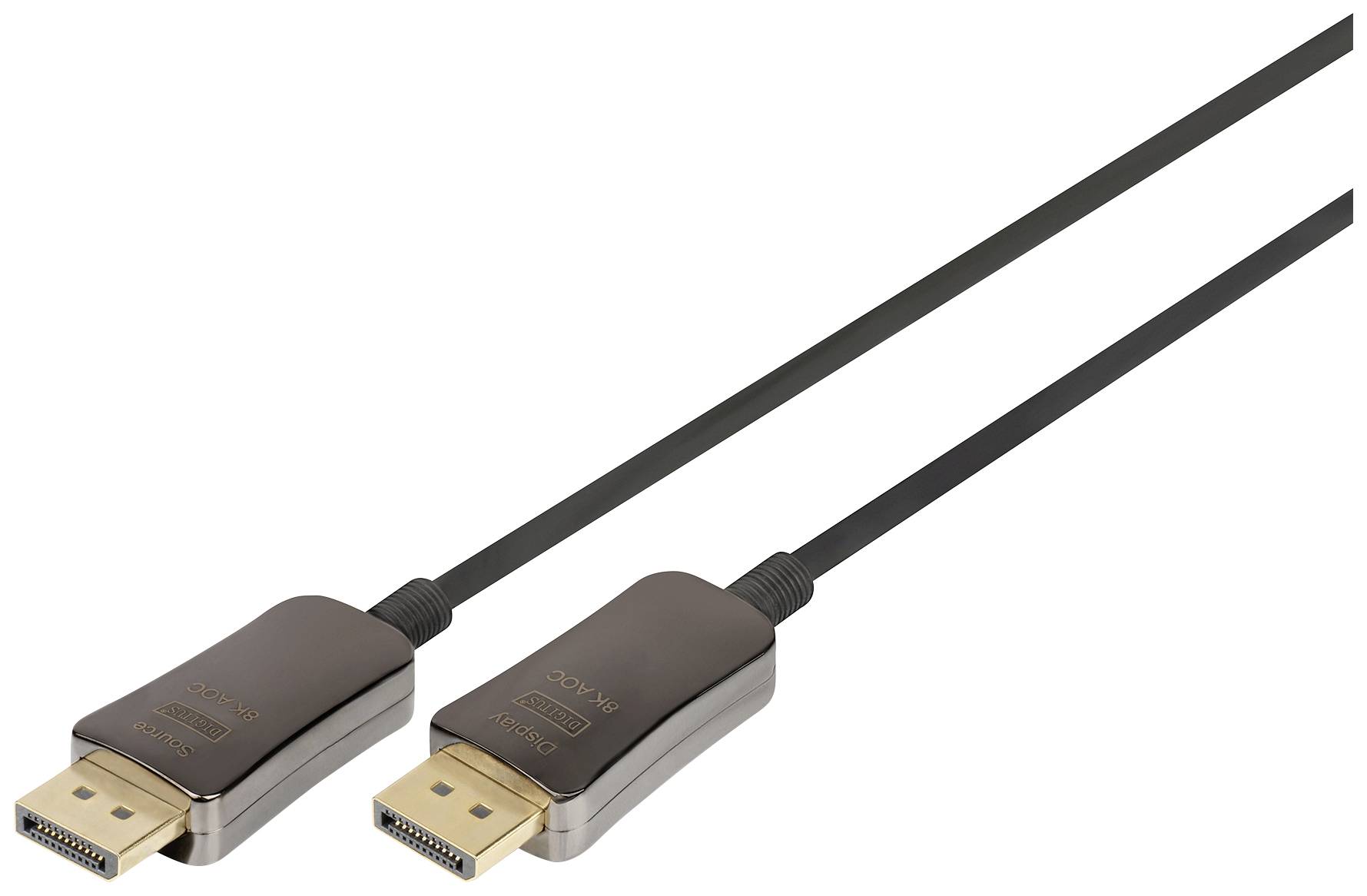

Two black DisplayPort cables with gold-coloured connectors, suitable for 8K video transmission.

Two black DisplayPort cables with flat connectors in close-up, positioned side by side.

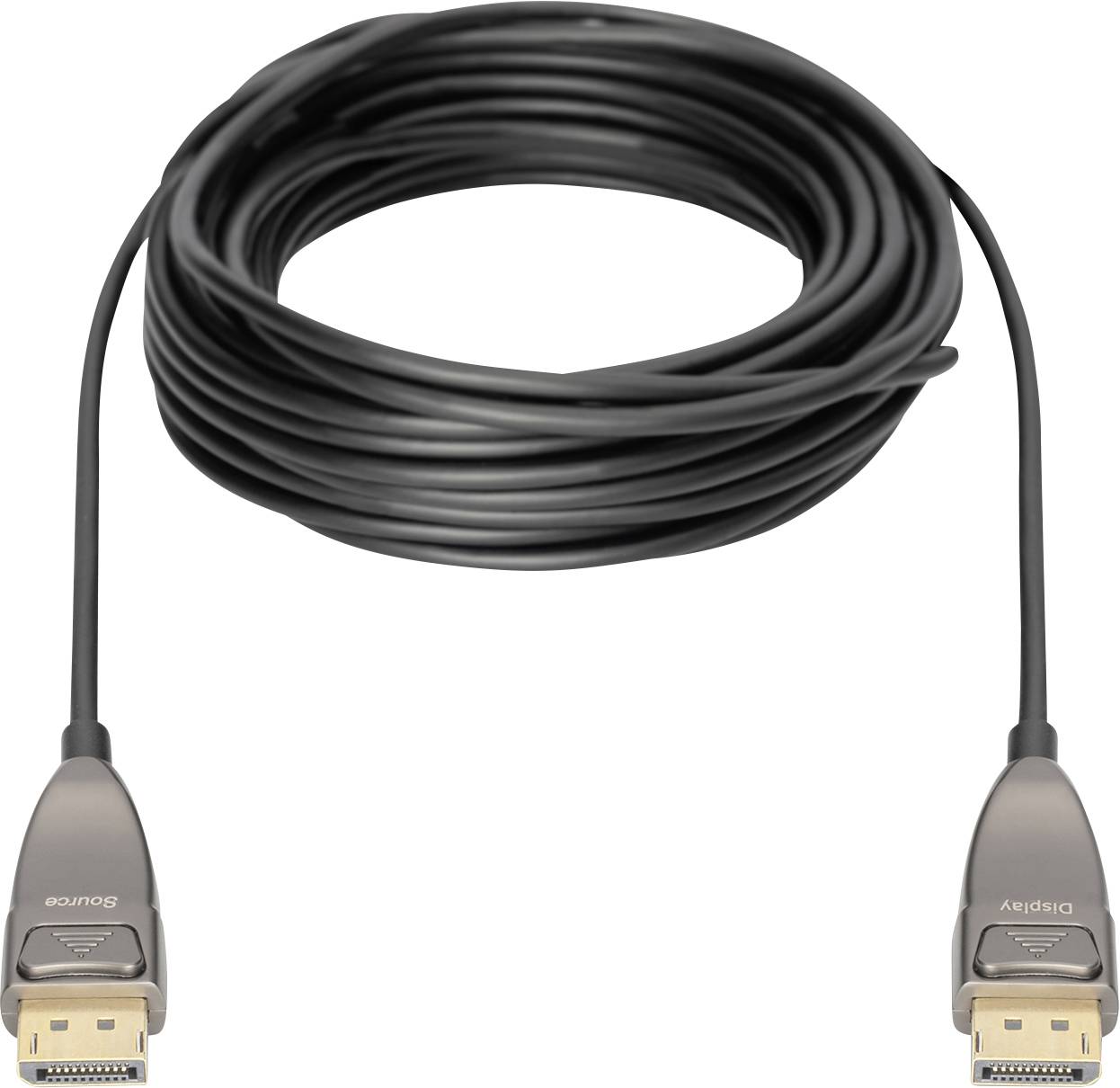

A long black cable with two plugs at the ends, labelled 'Source' and 'Display'.

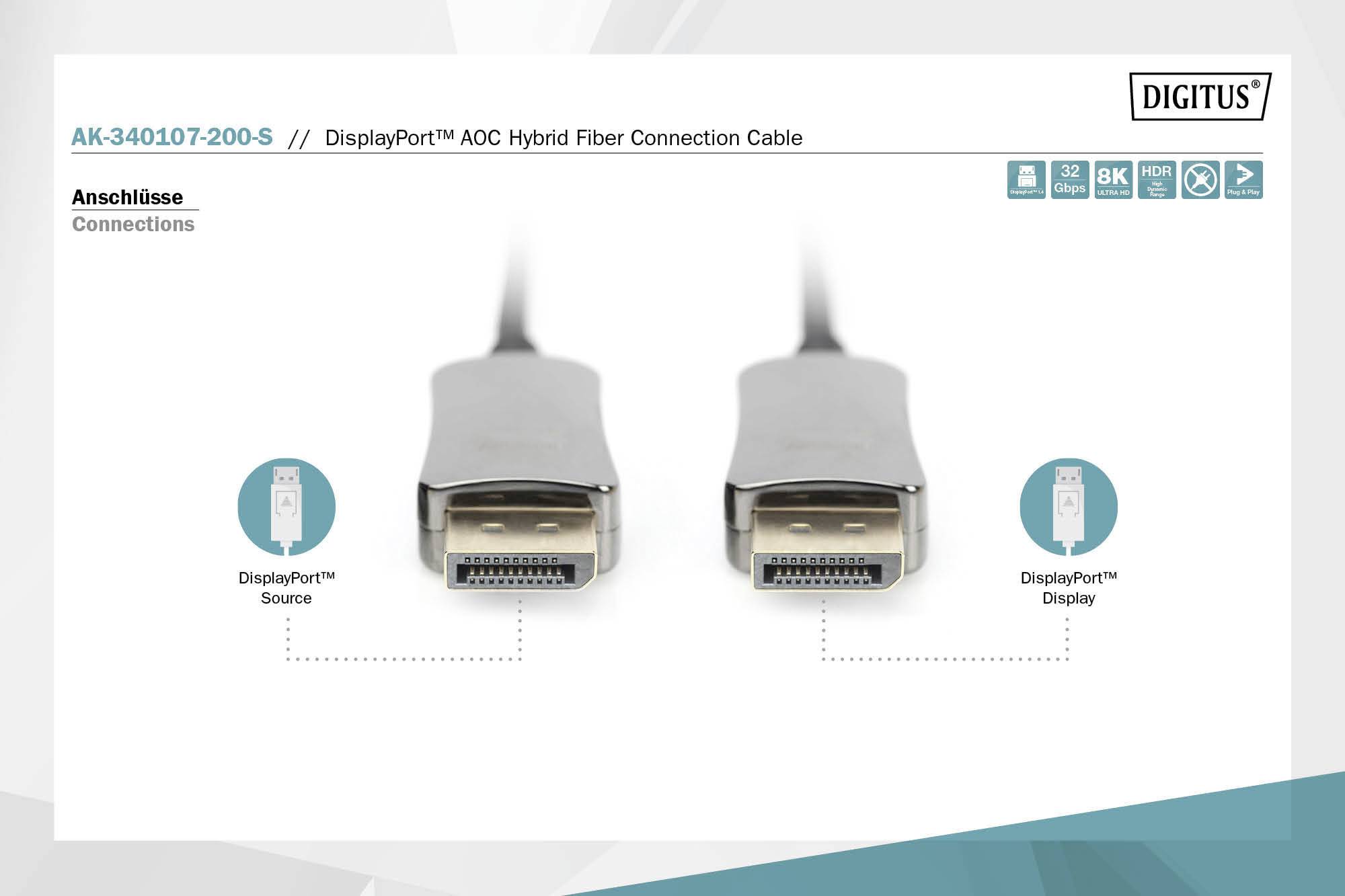

'DisplayPort AOC Hybrid Fibre Connection Cable' with two connections: on the left 'DisplayPort Source', on the right 'DisplayPort Display'.

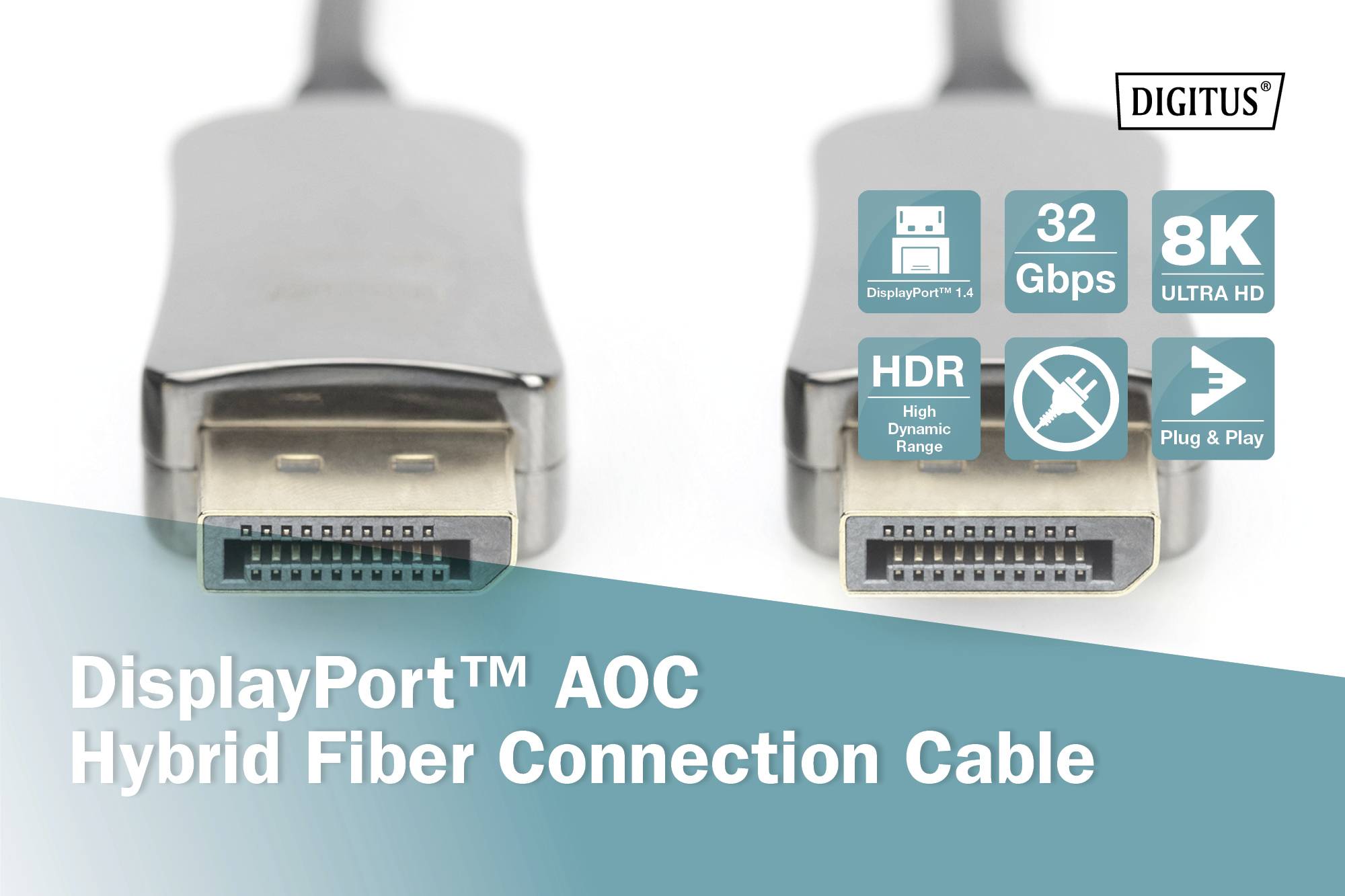

DisplayPort cable with 8K Ultra HD, 32 Gbps and HDR support. Hybrid fibre-optic technology, plug and play for optimal performance.

Two people cheer in front of a television showing a football match in high resolution. In the foreground, a DisplayPort cable, advertised with 8K, HDR, 32 Gbps.

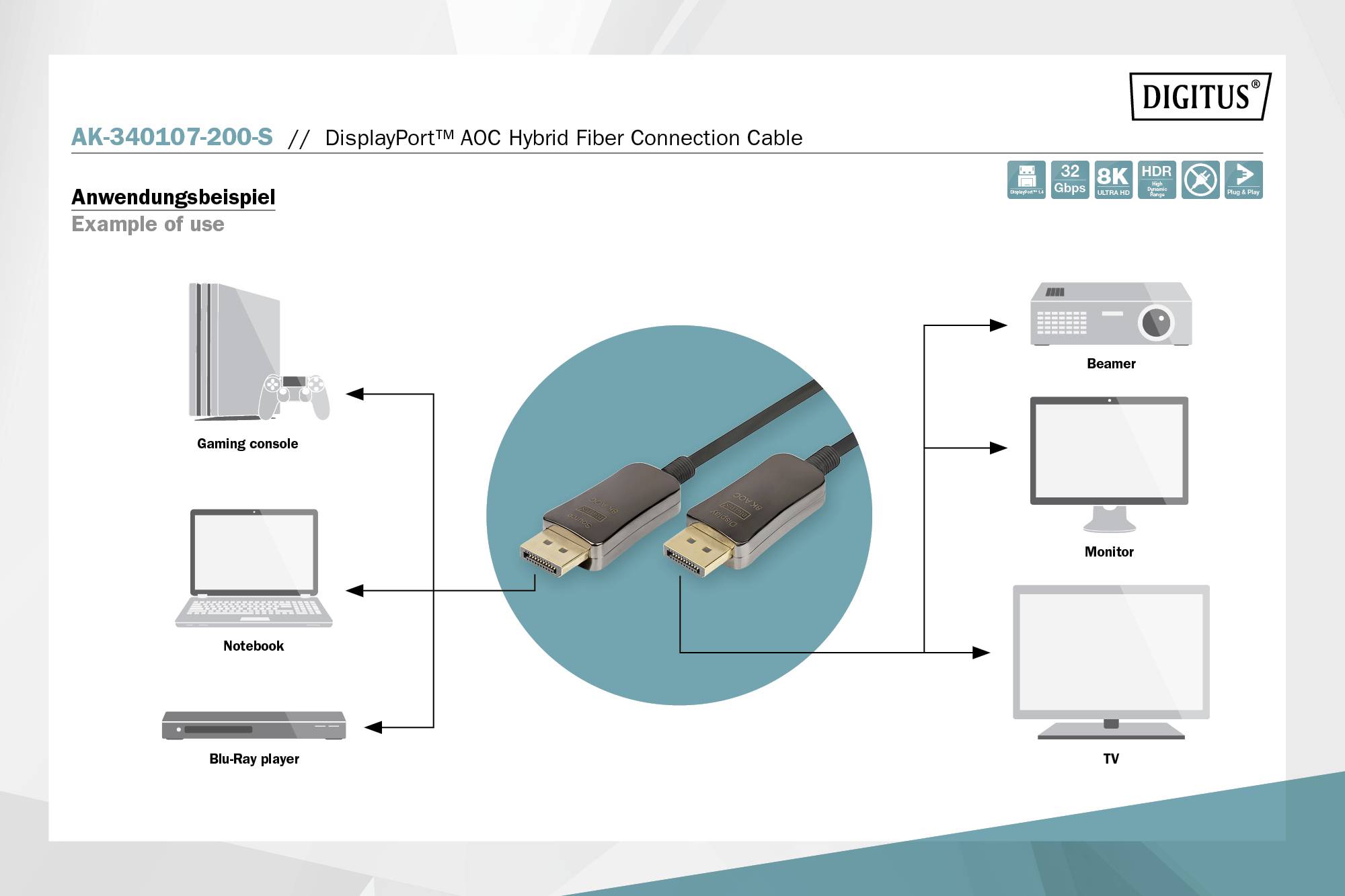

The Digitus DisplayPort Hybrid Fiber Connector can be connected from a gaming console, laptop, or Blu-ray player to a projector, monitor, or TV.

1/7

Product type

DisplayPort cable

Connection type

DisplayPort

Fibreglass

Version

Cable

Connection type

DisplayPort to DisplayPort

Connections

DisplayPort plug

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

DisplayPort AOC Hybrid fiber cable M/M, 20m, UHD 8K@60Hz, CE, gold, bl

Active fiber transmission with up to 32.4 Gbps - zero latency
Resolutions up to 8K@60Hz
Transmits uncompressed HDMI® video and audio signals over a distance of 20 m
Flexible to lay with very narrow bending radius of 25.4 mm
Compact cable with small diameter (OD 4.8 mm)
Insensitive to electromagnetic interference (EMI)
Supports HDR (High Dynamic Range)
SUPPORTS HDCP 2.2 / EDID / CEC
Hybrid construction of fiber optic and copper wires with gold-plated contacts
Loss-free signal transmission at high transmission speed

Technical specifications

AWG 24/28
Locking: Snap-on fastening
Contact surface: Gold-plated
Color cable: Black
Hood: Metallized housing
Track 1: ALP connector
Track 2: ALP connector
DisplayPort standard: DisplayPort 1.4
HDTV standard: Ultra HD 8K
Shielding: Simple shielding
USB-C products: false
AOC - Active Optical Cable: true
Resolution 7680 x 4320p / 60 Hz (UHD-2)
Subsampling: YUV 4:4:4
HDCP version: 2.2
DisplayPort™ Version: 1.4
Supported color depth: 16 bit Deep Color
Latency: Zero frame delay
Bending radius 25.4 mm
OM version: OM3
Operating temperature: -20 – 70°C
Operating humidity: 10 - 75% RH
Power consumption: 360 mW max.

Product type: DisplayPort cable

Connection type: DisplayPort
Fibreglass

Version: Cable

Connection type: DisplayPort to DisplayPort

Connections: DisplayPort plug
DisplayPort plug

Connector version: straight

Video resolution: 7680 x 4320 Pixel

Cable length: 20.00 m

Factory colour: Black

Cable features: 8K UHD

Signal flow: Unidirectional (A→B)

Cable use: TV/monitor

Cable design: Round

: FO

: 24/28

Shielding: Full shielding

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2350554 Digitus DisplayPort / Fibreglass Cable DisplayPort plug, DisplayPort plug 20.00 m Black AK-340107-200-S 8K UHD DisplayPo

Description

This active DisplayPort™ AOC Hybrid fiber cable is ideal for transferring high-bandwidth uncompressed video and audio over longer distances. The hybrid design of copper and fiber optic cables eliminates electromagnetic influences, ensuring lossless transmission over the entire cable length with UHD resolutions of up to 8K/60Hz and bandwidths of up to 32.4 Gbps. The use of optical conductors (glass fiber) makes the diameter of this active cable very small and is characterized by very small bending radii as well as a low net weight. The ideal application for home, meeting or conference rooms as well as inside buildings represent only a few of the areas of application. The user-friendly installation is done here by simple Plug and Play, plug in and enjoy the highest picture quality immediately. Numerous standards are supported, such as DisplayPort 1.4, HDCP 2.2 or HDR. In the audio field DTS-HD master audio or Dolby TrueHD as well as many other features are supported. The use of the latest chip technology enables the transmission of the full DisplayPort™ signal spectrum and thereby supports CED, EDID with very low latency and uncompressed.

This text is machine translated.
