Name: Digitus DisplayPort / USB-C® Cable DisplayPort plug, USB-C® plug 2.00 m Black AK-300334-020-S triple shielding, Flexible
Brand: Digitus
SKU: 2751168

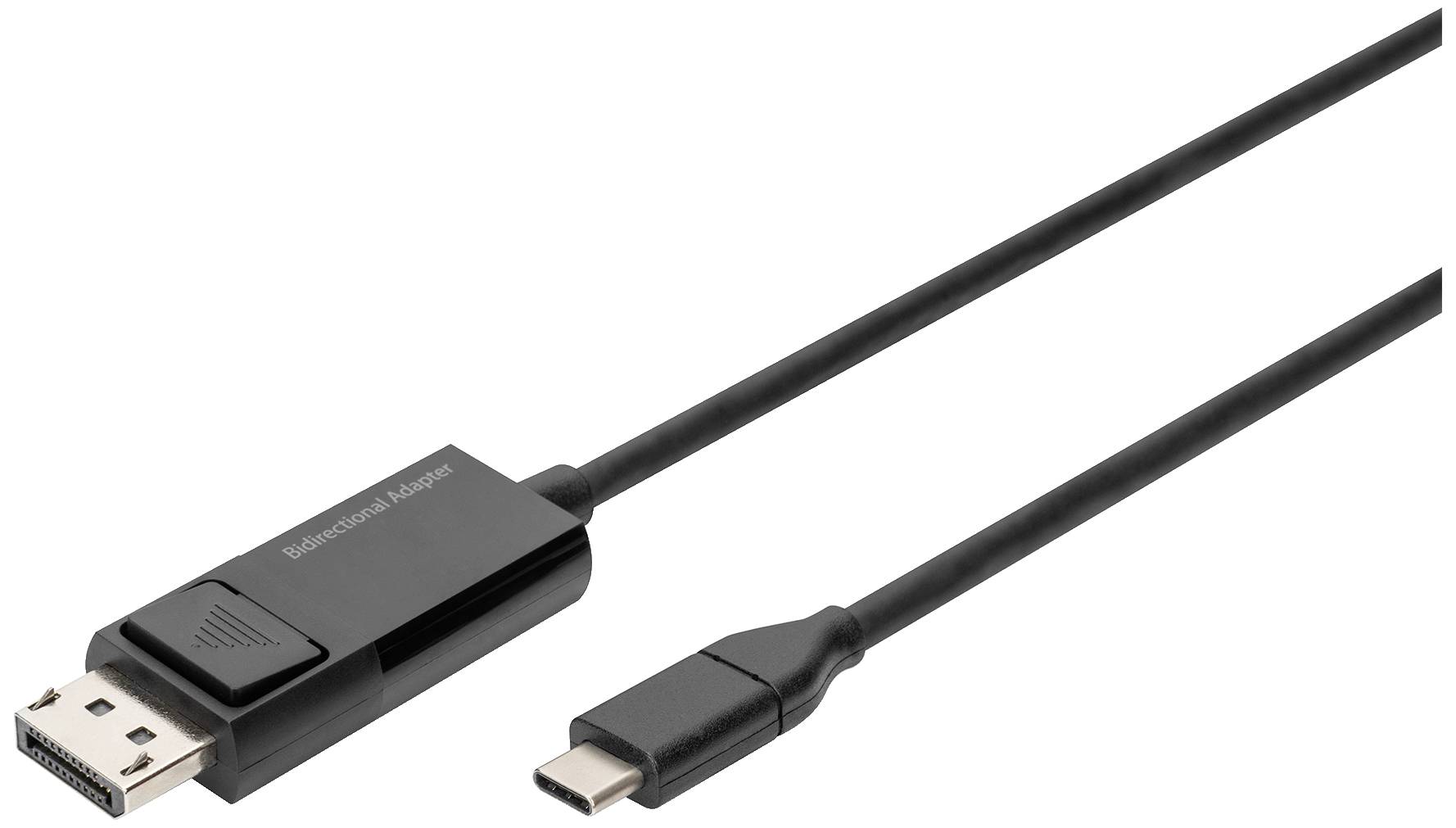

A black cable with a USB-C connector on one end and a DisplayPort connector on the other for connecting devices.

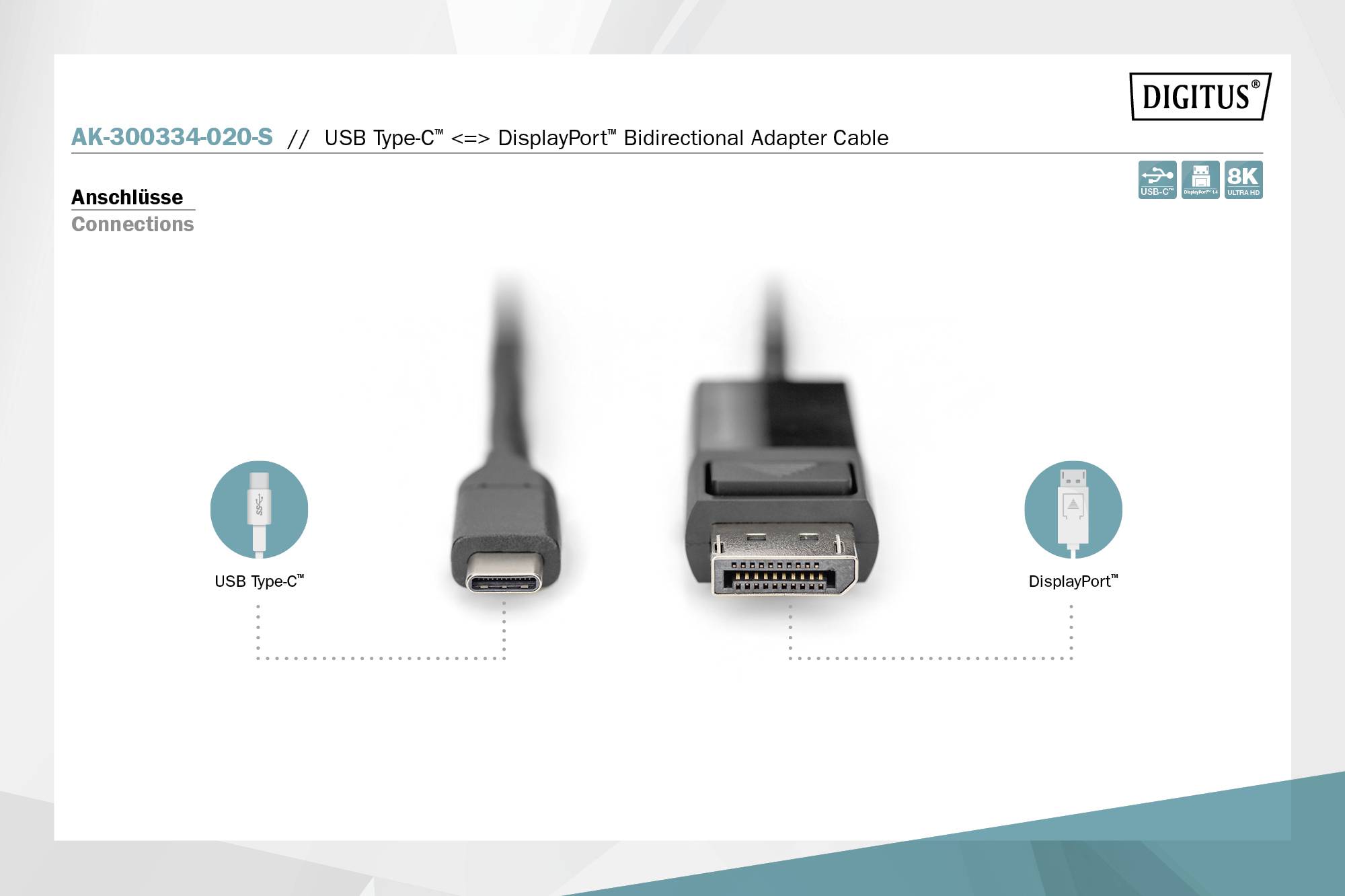

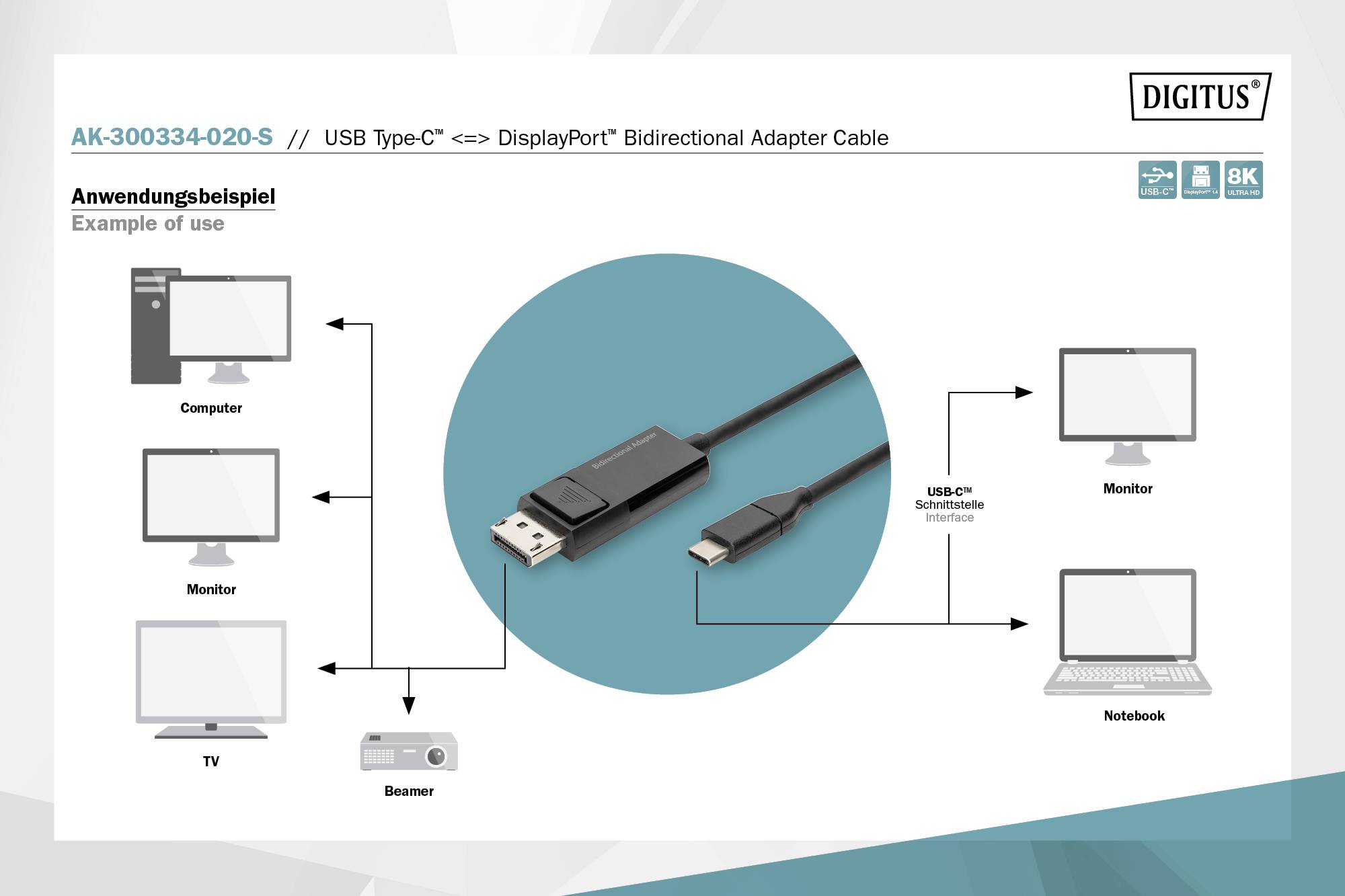

Two-lane adapter cable 'USB Type-C' to 'DisplayPort'. Product number top left. Bottom left 'USB Type-C', right 'DisplayPort'.

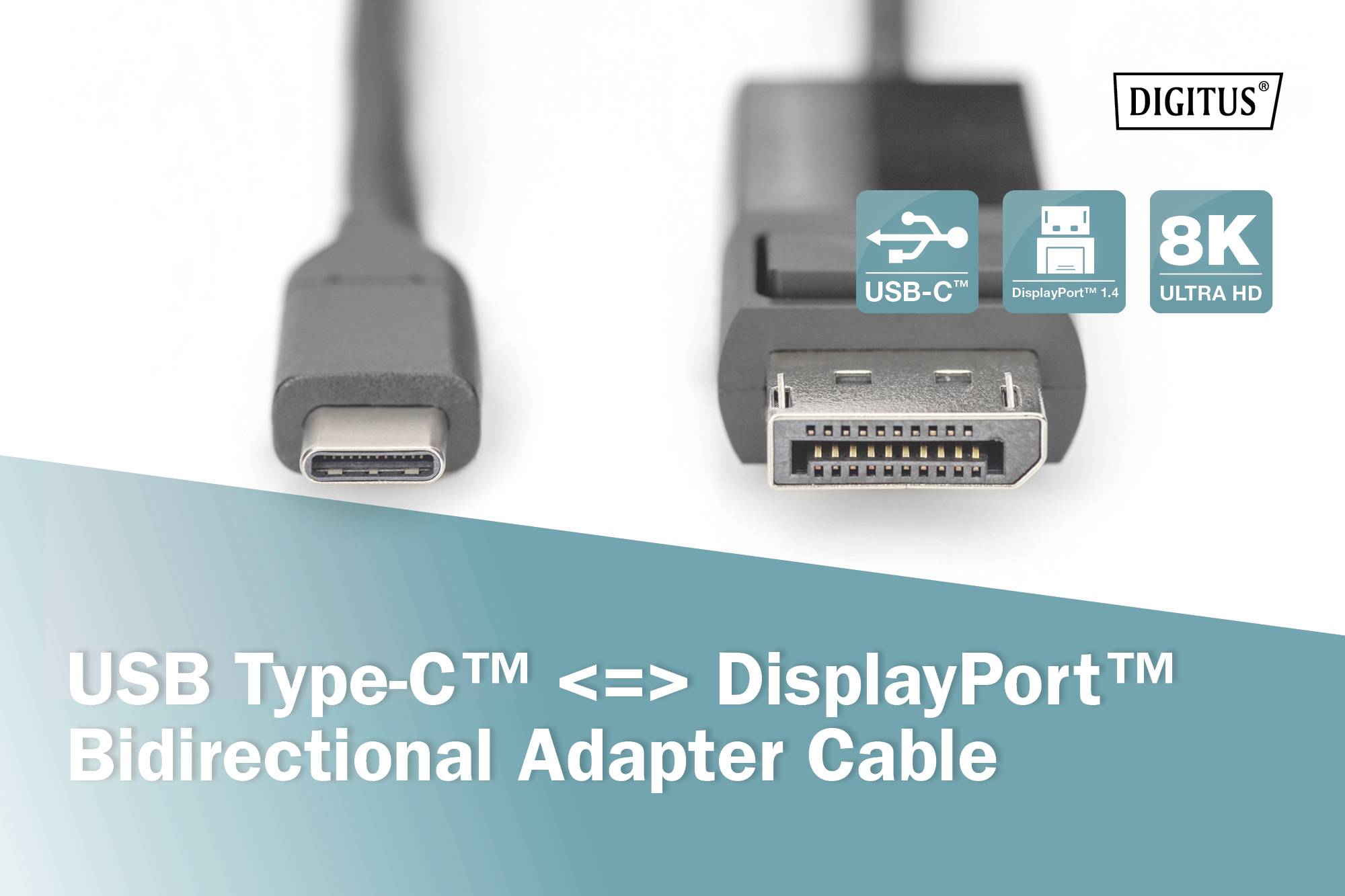

USB-C to DisplayPort Adapter Cable, Bidirectional, Supports 8K Ultra HD, Two Connector Types Shown.

1/4

Product type

USB-C® screen cable

Connection type

DisplayPort

USB-C®

Version

Cable

Connection type

USB-C® to DisplayPort

Connections

DisplayPort plug

USB-C® plug

Datasheet (PDF)

Unavailable

27 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

USB type C to DisplayPort bi-directional adapter cableSupports the transfer of USB Type C interface to DisplayPort interfaceSupports the transfer of DisplayPort interface to USB-Type C interface
This text is machine translated.

Technical specifications

Resolution 7680 x 4320p / 60 Hz (UHD-2)Supports 8K 3DSignal transmission rate up to 32.4 Gbps (max. Bandwidth)Supports up to 120Hz at 4K & Full HD (1080p)Subsampling: YUV 4:4:4HDCP Version 2.2DisplayPort™ Version: 1.4Supported color depth: 16 bit Deep ColourSupports HDRSupports Consumer Electronic Control (CEC)Supports lip-sync (audio/video synchronization)Supports stereoscopic 3D videoSupports Display Stream Compression 1.2 (DSC)Supports EDID 2.0 (device recognition)Supports DVI Version 1.0 (in connection with adapters)Supports forward error correction (FEC)Multi Stream Audio/Video support21:9 Cinemascope support32 channel audio supportDolby TrueHD enabledSupports 8-channel LPCM, 192 kHz, 24-bit audio capabilitySupports DTS-HD Master Audio BitstreamSupports Super-Audio-CD (DSD)Supports DVD audioSupports Blu-Ray disc and HD-DVD audio and videocable diameter 6.8 mmOM version OM3Operating temperature: -20 – 60°COperating humidity 0 - 95% RHAWG 30Aluminium casingConnection 1: DP, plugConnection 2: DP, plugLocking: NoneDisplayPort standard DisplayPort 1.4Colour of cable: BlackFerrite filter: NoneHDTV standard ultra HD 8KContact surface: Gold-platedLength: 1 mAOC - Active optical cable: No.Shielding: Double shielded

Product type: USB-C® screen cable

Connection type: DisplayPort
USB-C®

Version: Cable

Connection type: USB-C® to DisplayPort

Connections: DisplayPort plug
USB-C® plug

DisplayPort version: DisplayPort 1.4

Connector version: straight

Video resolution: 7680 x 4320 Pixel
1920 x 1080 Pixel
3840 x 2160 Pixel
4096 x 2160 Pixel

Max. frequency: 30 Hz

Cable length: 2.00 m

Factory colour: Black

Cable features: triple shielding
Flexible
Halogen-free
Round
incl. USB

Signal flow: Bidirectional (A↔B)

Cable use: TV/monitor
Apple MacBook
PC
DisplayPort
Monitor
Laptop
USB-C®
VHS

Cable design: Round

: Copper

: 32

Shielding: Braid shielding/shielding film

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2751168 Digitus DisplayPort / USB-C® Cable DisplayPort plug, USB-C® plug 2.00 m Black AK-300334-020-S triple shielding, Flexible

User & Safety Instructions

User & Safety Instructions 2751168 Digitus DisplayPort / USB-C® Cable DisplayPort plug, USB-C® plug 2.00 m Black AK-300334-020-S triple shielding, Flexible

Features

Supports DP Alt-ModeSupports DisplayPort 1.4 version and is downward compatibility (DP 1.3/1.2/1.1)Power supply via USB port (no external power necessary)Type C - plugs can be used on both sides

Description

Features

Supports DP Alt-ModeSupports DisplayPort 1.4 version and is downward compatibility (DP 1.3/1.2/1.1)Power supply via USB port (no external power necessary)Type C - plugs can be used on both sides
