Buy Digitus DK-1531-P-1-1 Network cable CAT 5e SF/UTP Grey 100 m

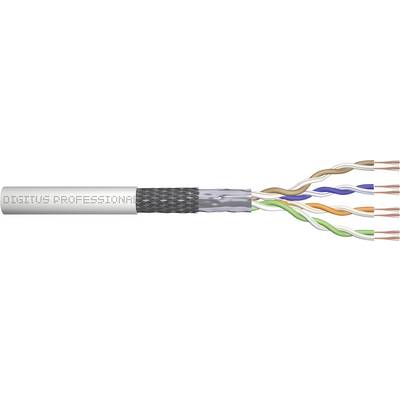

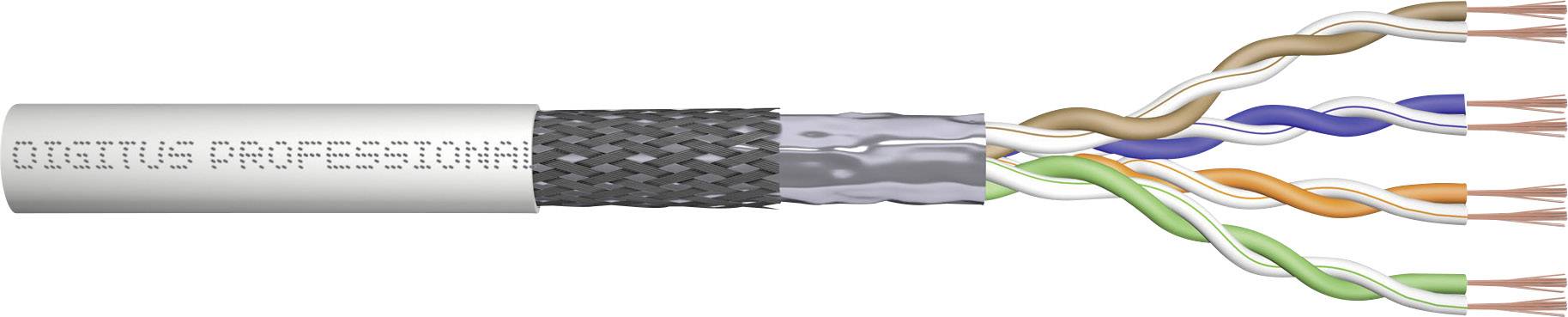

A network Ethernet cable consisting of eight twisted wire pairs, encased in a shielding.

Product type

Network cable

Specification

CAT 5e

Shielding

SF/UTP

Cable type

PVC geschirmt

No. of leads

8 x

Unavailable

21 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

CAT 5e SF-UTP Roh-Patchkabel, length 100 m, Box, AWG 26/7, PVC, simplex, color gray

Highlights & Details

Cat 5e SF-UTP cable installation-foil and braid shielding
Pappbox with 100 m laying cable
Excellent Power and connection quality for your network.

Technical specifications

Insulation: HD-PE
Outer sheath thickness: 0.55 mm nominal
Outer diameter: 5.6 mm nominal
Strain relief: 150 N max.
Dynamic Bending radius: 8 x AD mm min.
Static bending radius: 4 x AD mm min.
Transport and storage temperature range: -10°C up to +75 °C
Operating temperature range: -10°C up to +60 °C
Installation temperature range 0 °C to +50 °C
Loop resistance: ≤ 280 Ω km
Resistance unbalance: ≤ 2%
Insulation resistance: ≥ 2000 MΩ/km@ 500V
Capacity: nom. 48 nF/km @ 800 Hz
Capacity asymmetry (pair): ≤ 1500 nF/km
Impedance: 100 ± 15 Ohm @ 10-100 MHz
NVP: 67%
Running Time Delay: nom. ≤ 555 ns/100m
Signal run difference: nom. ≤ 50 ns/100m
Test voltage (DC 1 min) core/core: 1000 V
Coupling damping: ≥ 40 dB

Product type: Network cable

: CAT 5e

: SF/UTP

Cable type: PVC geschirmt

No. of leads: 8 x

No. of leads (part 2): 8 x

Cable features: Metal foil shield
Braided shield
twisted pairs

Outside Ø: 5.6 mm

Width: 260 mm

Height: 260 mm

Factory colour: Grey

Content: 100 m

AWG max.: 26

Packaged: Yes

Sold per metre: No

Manufacturer part #: DK-1531-P-1-1

Type: DK-1531-P-1-1

Insulation material: Polyvinyl chloride

Min. temperature range (flexible installation): -10 °C

Max. temperature range (flexible installation): +75 °C

Min. temperature range (fixed installation): -10 °C

Max. temperature range (fixed installation): +60 °C

Standards: ISO/IEC 11801
DIN EN 50173

Halogen-free: No

Max. length sold by the metre: 100 m

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1604378 Digitus DK-1531-P-1-1 Network cable CAT 5e SF/UTP Grey 100 m

Description

The Roh-Patchkabel are manufactured and tested according to ISO/IEC 11801 and DIN EN 50173 standard. You guarantee that the cable installation of ISO and EN channel specification and thus offer an excellent performance for your wiring. The Roh-Patchkabel are suitable for direct installation of RJ45 connectors to patch cable.

This text is machine translated.
