Buy Digitus DK-1613-A-P-305 Network cable CAT 6A U/UTP Grey 305 m

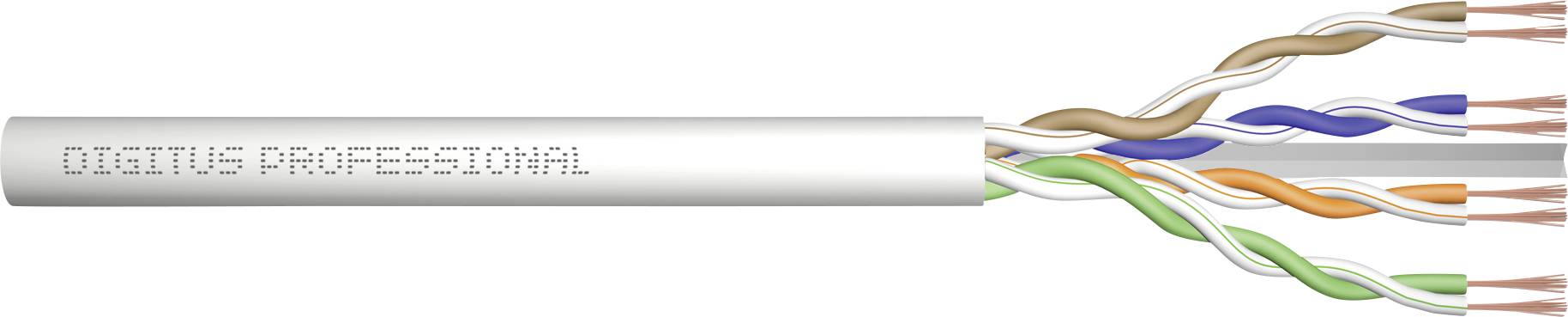

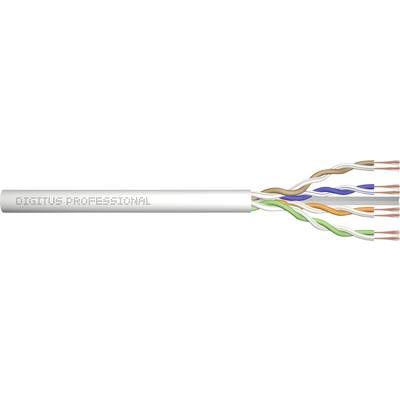

An illustration of an open Ethernet cable labelled 'DIGITUS PROFESSIONAL', showing twisted pair wires.

Product type

Network cable

Specification

CAT 6A

Shielding

U/UTP

Cable type

U/UTP

No. of leads

8 x

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus CAT 6A U-UTP Raw patch cable length 305 m, box, AWG 26/7, LSZH, SX, Gray

Highlights & Details

Suitable for direct installation of RJ45 connectors for manufacturing of patch cables
For building class EA, 500 MHz cabling links
According to the standards ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: EN 50288-11-1
Inner conductor: Copper (Cu)
PoE+ compatible

Technical specifications

Insulation: HD-PE
Outer sheath thickness: 0.55 mm nominal
Outside diameter 5.5 mm nominal
Strain relief 150 N max.
Dynamic bending radius: 8x OD mm min.
Static bending radius: 4x OD mm min.
Transport and storage temperature range: -10 °C to +75 °C.
Operating temperature range: -10 °C to +60 °C.
Installation temperature range 0 °C to +50 °C.
Loop resistance: ≤ 280 Ω km.
Resistance unbalance: ≤ 2%
Insulation resistance: ≥ 2000MΩ/km @500V
Capacity: nom. 48 nF/km @ 800 Hz
Capacitance unbalance (pair ground): ≤ 1500 nF/km.
Impedance 100 ± 15 Ohm @ 10-100 MHz
NVP: 67%
Runtime delay: nom. ≤ 555 ns/100 m
Signal difference: nom. ≤ 50 ns/ 100 m
Test voltage (DC 1 min) core/core: 1000V
Coupling damping ≥ 40 dB
Capacity 40 pF/m nominal @ 800 Hz
Capacitance unbalance (pair ground): 1.5 pF/m max. @ 1 kHz
Insulation resistance: 2 GOhm x km min.
Loop resistance: 147 ohms/km max. (2% max. resistance imbalance)
Operating voltage 72 Vdc max.
Insertion loss 40 dB
Phase delay 450 NS/100 m max.
Runtime delay: 20 NS/100 m max.

Product type: Network cable

: CAT 6A

: U/UTP

Cable type: U/UTP

No. of leads: 8 x

Cable features: Halogen-free
Flame-retardant
Flexible
Unshielded

Outside Ø: 5.5 mm

Factory colour: Grey

Content: 305 m

AWG max.: 26

Packaged: Yes

Sold per metre: No

Manufacturer part #: DK-1613-A-P-305

Type: DK-1613-A-P-305

Insulation material: PE

RoHS-compliant: Yes

Min. temperature range (flexible installation): -10 °C

Max. temperature range (flexible installation): 60 °C

Min. temperature range (fixed installation): -10 °C

Max. temperature range (fixed installation): 60 °C

Halogen-free: Yes

Max. length sold by the metre: 305 m

Twisted pair cabling (part 1): Yes (1)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2378025 Digitus DK-1613-A-P-305 Network cable CAT 6A U/UTP Grey 305 m

Description

The raw patch cables are manufactured and tested according to ISO/IEC 11801 and DIN EN 50173 standard. They guarantee that the cable installation meets the ISO & EN Channel specification and thus offer an excellent performance for your cabling. The raw patch cables are suitable for the direct mounting of RJ45 connectors to produce patch cables.
