Digitus DK-1613-VH-5-OD Network cable CAT 5, CAT 6 U/UTP Black, Violet 500 m
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 5
CAT 6
Shielding
U/UTP
Cable type
U/UTP
No. of leads
8 x
Highlights & Details
cat 6 U-UTP Installation Cable, Outdoor, 250 MHz Internal ECA (LSZH-1), AWG 23/1, 500m, SX, SW&VI.
- 1Gbit Ethernet
- 250 MHz transmission frequency
- Permanent link certified
- PoE power over Ethernet support
- PE outer sheath, BauPVO class ECA inner sheath
Technical specifications
- Product type
Network cable
CAT 5
CAT 6
U/UTP
- Cable type
U/UTP
- No. of leads
8 x
- Cable features
Shielded
Halogen-free
double shielding
- Outside Ø
6.8 mm
- Factory colour
Black
Violet
- Content
500 m
- AWG max.
23
- Packaged
Yes
- Sold per metre
Yes
- Manufacturer part #
DK-1613-VH-5-OD
- Type
DK-1613-VH-5-OD
- Insulation material
PE
- Min. temperature range (flexible installation)
-20 °C
- Max. temperature range (flexible installation)
75 °C
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
75 °C
- Halogen-free
Yes
- Max. length sold by the metre
500 m
- Twisted pair cabling (part 1)
Yes (1)
- Cable length
500.00 m
Copper
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2356803 Digitus DK-1613-VH-5-OD Network cable CAT 5, CAT 6 U/UTP Black, Violet 500 m
Description

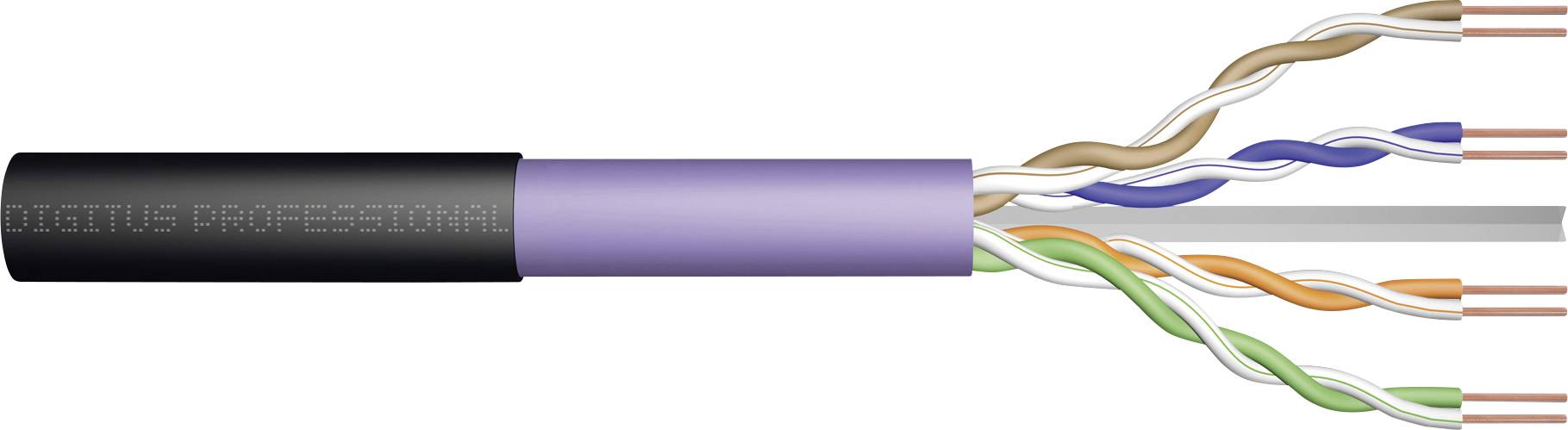

Digitus Category 6 U-UTP installation cables have been developed and tested according to ISO/IEC 11801, DIN EN 50173 and DIN EN 50288-5-1 category 6 specifications. Each cable consists of 8 color-coded AWG 23 polyethylene insulated conductors. The conductors are twisted to 4 pairs varying in length. Print details on the outer cover include the brand name, article number and the cable length 0 - 350 meters. The cable is packed in a cardboard pull-out box, which simplifies the installation.
This text is machine translated.
This text is machine translated.
Features
- • Category: cat 6
- • Shielding: U-UTP, unshielded
- • BauPVO: ECA
- • Length: 500 m.
- • Color: Violet
- • Coat: LSOH
- • Cable construction: 4 x 2 AWG 23/1, solid twisted pair
- • Physical properties:
- • conductor: Bare copper wire, AWG 23/1
- • High Density Polyethylene (HD-PE) insulation
- • Total number of insulated conductors: 8, twisted into 4 pairs
- • Color code: Blue-white, orange-white, green-white, brown-white
- • Shielding of the individual pairs: None
- • Overall shielding: None
- • Outer sheath: ECA according to EN 50575; LSZH
- • Nominal outer sheath thickness 0.5 mm (ECA)
- • Outer sheath color: Violet (ECA sheath); black (PE sheath)
- • Mechanical properties:
- • Strain relief: 150N max.
- • Dynamic bending radius: 8x OD mm min.
- • Static bending radius: 4x OD mm min.
- • Transport and storage temperature range: -20 °C to +60 °C.
- • Operating temperature range -20 °C to +75 °C.
- • Installation temperature range 0 °C to +50 °C.
- • Outer diameter (nominal) 6.8 mm (ECA)
- • Weight (kg/km): 48 kg (ECA)
- • Impedance: 100 ± 5 ohms @ 1-250 MHz
- • Capacity: 40 pF/m nominal @ 800 MHz
- • Capacitance unbalance (pair earth): 1.5 pF/m max. @ 1 kHz
- • Insulation resistance: 5 GOhm x km min.
- • DC resistance: 72 ohms/km max. (2% max. unbalanced resistance)
- • Loop resistance: 147 ohms/km max. (2% max. unbalanced resistance)
- • Operating voltage 72 Vdc max.
- • Coupling attenuation: Ca-Type 3
- • Phase delay 535 NS/100 m max.
- • Runtime delay: 20 NS/100 m max.
- • Separation class: ",b" in accordance with EN 50174-2
- • NVP: 69%
