Digitus DK-1618-020S-B-10 RJ45 Patch cable CAT 6 U/UTP 2 m Blue 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Only 6 Piece(s) available
Highlights & Details

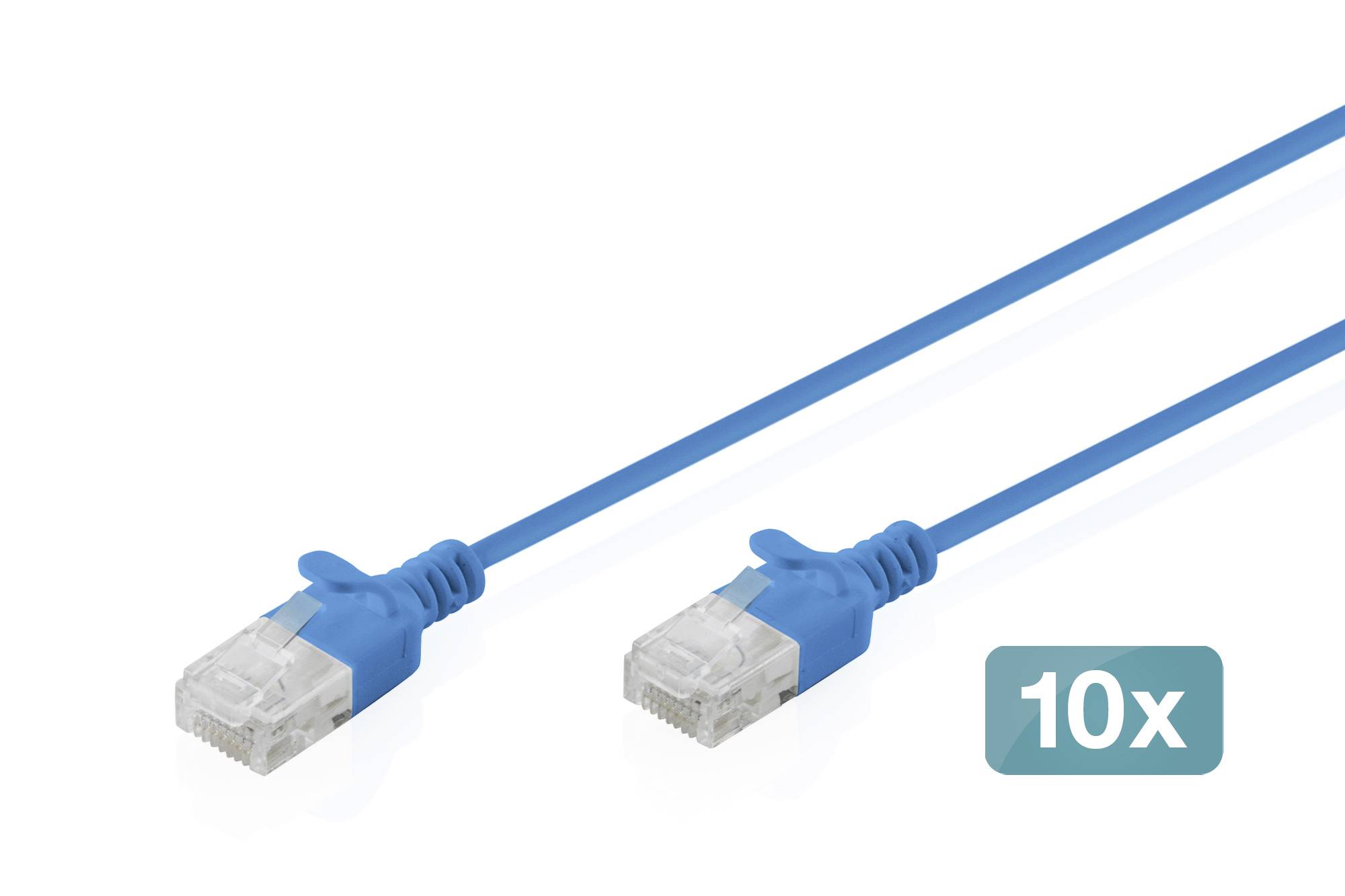

Digitus CAT 6 U-UTP slim patch cable, 2 m, blue, 10 pieces
- The advantage: A slim cable diameter of 2.7 mm with high flexibility for easy installation in confined spaces
- Features: Transfer speed up to 1 Gbit/s and frequency 250 MHz
- Ideal for office, home, patch and high density environments
- PoE-enabled: Supports PoE and PoE+ applications with pure copper wires
Technical specifications
- Outer sheath: LSZH (Low Smoke Zero Halogen)
- Total diameter 2.7 mm ± 0.15 mm
- AWG 32/7 plain copper, 0.08 ± 0.005 mm
- Insulation: HD-PE (high density polyethylene)
- Bend radius 15x outer diameter
- Plug RJ45-Plug
- Colour code: Orange x white, green x white, blue x white, brown x white
- EIA/TIA 568B WIRING STANDARD
- Pin assignment 1:1
- Contact resistance: Maximum 376.96 Ω/km at 20 °C.
- Resistance imbalance: Maximum 3%
- Operating temperature: -20°C to +60°C
- Flame retardant IEC 60332-1
- Smoke generation IEC 61034
- TYPICAL APPLICATIONS: IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
- STANDARDS: ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-4
- Dielectric strength: 500 V AC for 1 minute without punch (TIA/EIA-364-21)
- Lifetime 750 mating cycles
- Packaging: Digitus hang tag
- 10 pieces
- Cable design
Round
- Cable length
2 m
- Version
Cable
- Factory colour
Blue
- Type A
RJ45 plug
- Type B
RJ45 plug
- Max. frequency
250 MHz
- Halogen-free
Yes
- No. of A connectors
1 x
- No. of B connections
1 x
- Cable use
Networks
Copper
- LAN transfer rate
1000 MBit/s
U/UTP
- Connection type
RJ45
CAT 6
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3773241 Digitus DK-1618-020S-B-10 RJ45 Patch cable CAT 6 U/UTP 2 m Blue 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3773241 Digitus DK-1618-020S-B-10 RJ45 Patch cable CAT 6 U/UTP 2 m Blue 10 pc(s)
Description
Digitus® CAT 6 U-UTP slim patch cables with a transmission frequency of up to 250 MHz are equipped with a reduced external diameter of only 2.7 mm and a flexible sheath, allowing WAS space-saving and versatile use in any network. The cables feature stranded AWG 32/7 copper conductors and an unshielded twisted-pair structure (U-UTP), which ensures flexibility and durability. They are manufactured according to the standards ISO/IEC 11801 and DIN EN 50173 CAT 6 and thus ensure the reliable compliance with international specifications. Each cable is equipped with a molded bend relief sleeve with strain relief and a locking lever protection, which prevents cable damage and locking breaks. These slim patch cables come in a Digitus® hangtag package and are the ideal solution for structured cabling in offices, homes or high-density environments.
