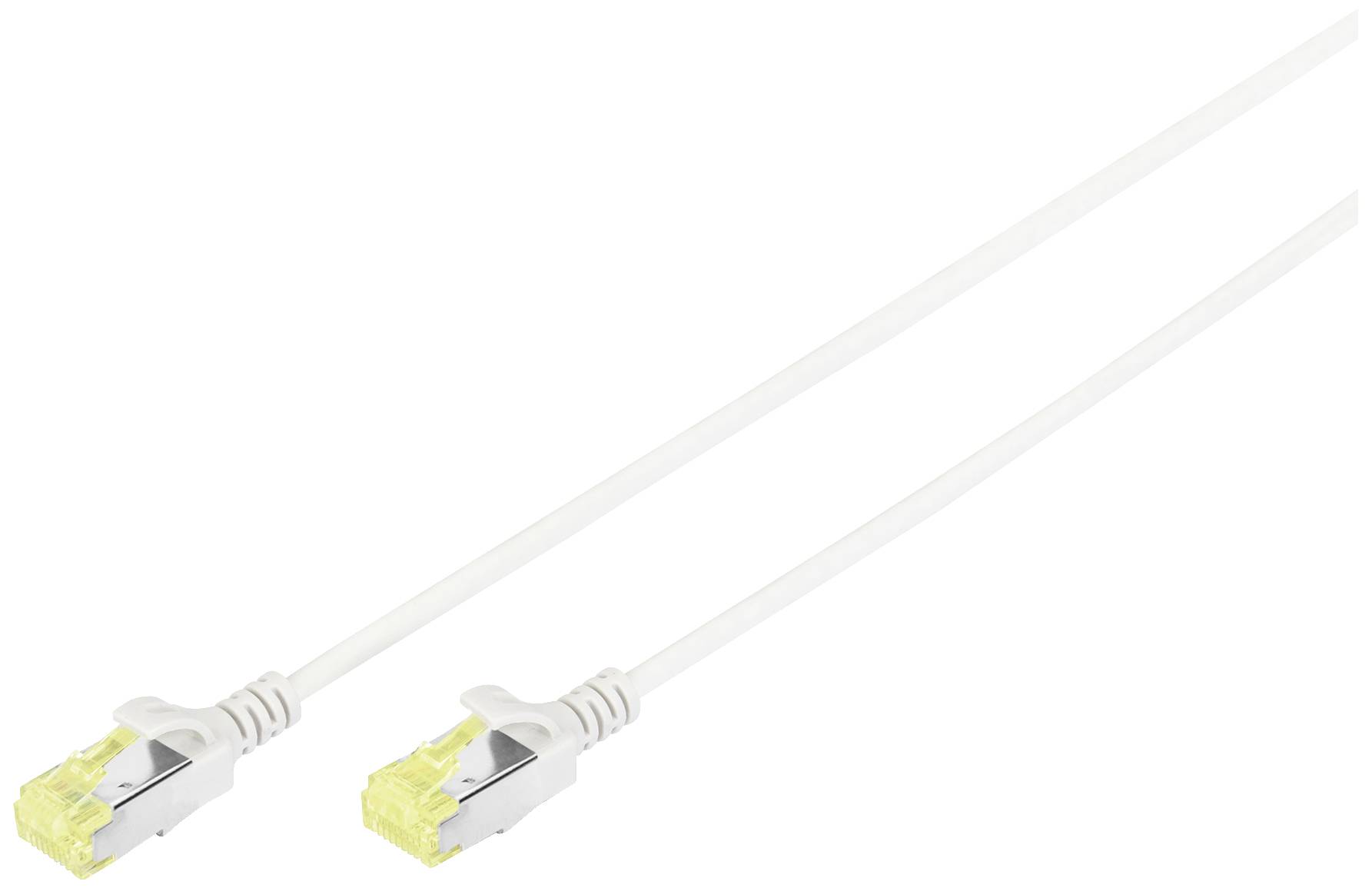

Digitus DK-1624-A-010S RJ45 Patch cable CAT 6A U/FTP 1.00 m Grey Shielded, Halogen-free, double shielding 1 pc(s)
EAN:
Part number:
Item no:
Product type
Patch cable
Specification
CAT 6A
Shielding
U/FTP
Connection type
RJ45
Cable length
1.00 m
cat 6A U-FTP Slim Patch Cable, Cu, LSZH AWG 28/7, Length 1 m, Color gray
Highlights & Details

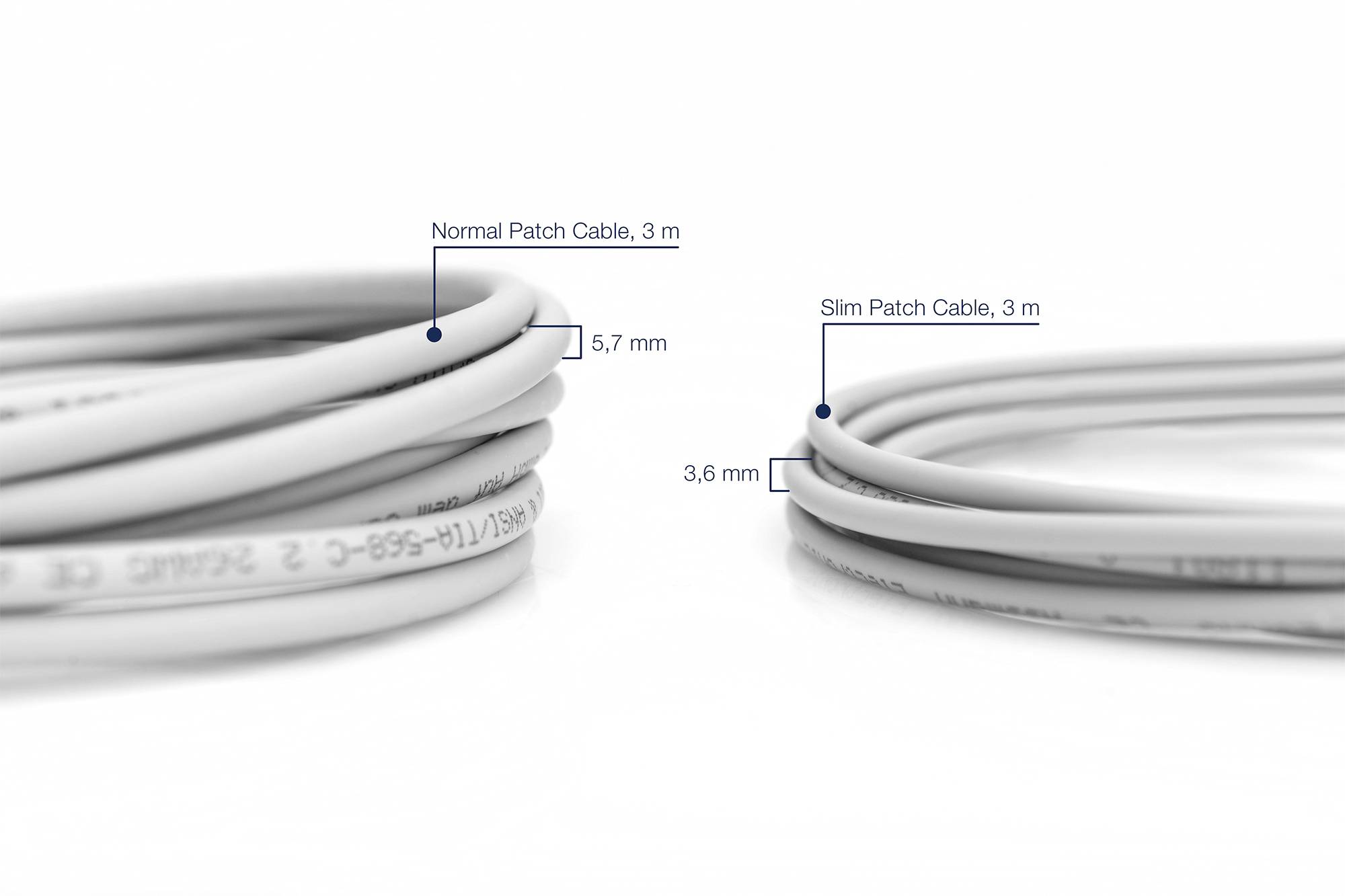

- Small external diameter of 3.65 mm is suitable for a flexible Application
- With LSZH (Low Smoke Zero Halogen) outer sheath For best fire behavior and low smoke emission
- Transparent yellow colored plug for easy identification of the category 6a (500 MHz)
- Inner conductor: Copper (Cu)
Technical specifications
- Allocation 1:1
- cat 6A
- Shielding: U-FTP, pairs in metal foil
- Length: 1 m
- Colour: grey
- Slim version: true
- USB-C products: false
- Sheath: LSOH
- Cable setup: 4 x 2 AWG 28/7, twisted pair
- Inner conductor: Copper (Cu)
- Kink protection sleeve: Molded
- Connector type terminal 1:RJ45 8(8)
- Connector type track 2: RJ45 8(8)
- Flame-resistant design: Yes
- Locking mechanism: Yes
- NVP value 76
- Oil resistant according to EN 60811-404: no.
- Bending radius 4D (outer diameter x 4)
- Product type
Patch cable
CAT 6A
U/FTP
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 plug
- No. of B connections
1 x
- Type B
RJ45 plug
- Cable length
1.00 m
- Factory colour
Grey
- Connector version
straight
- Cable features
Shielded
Halogen-free
double shielding
28/7
- Cable use
Networks
- Version
Cable
- Cable design
Round
Copper
- Max. frequency
500 MHz
- LAN transfer rate
100 MBit/s
1000 MBit/s
2500 MBit/s
10000 MBit/s
- Halogen-free
Yes
- Connections
RJ45 connector
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2350560 Digitus DK-1624-A-010S RJ45 Patch cable CAT 6A U/FTP 1.00 m Grey Shielded, Halogen-free, double shielding 1 pc(s)
Description
The Digitus DIGITUS® Slim patch cables are characterized by their small outer diameter and flexible sheath. Thanks to the thin design, a versatile use in your network is possible. Furthermore, the DIGITUS® category 6A class EA patch cables are manufactured and tested according to ISO/IEC 11801 and DIN EN 50173 cat 6A standard. Digitus cable is manufactured in accordance with the requirements of the standard. They guarantee that the cable installation meets the ISO & EN Channel specification and offer an excellent performance in the DIGITUS® cat 6A cabling. Digitus cable installation is also possible with the DIGITUS® CAT cable. The performance has been tested up to 500 MHz, including performance features such as near-talk ("NEXT"). The Digitus DIGITAL® patch cables are specially developed to meet all requirements in the various application areas. Each cable is equipped with a molded kink protection sleeve with strain relief. In addition, the grommet has a locking lever protection, which prevents the wiring from being hooked up and the break-off of the locking lever of the plug. A simple identification of category 6A is made possible by the yellow coloring of the connectors.
This text is machine translated.
This text is machine translated.
Features

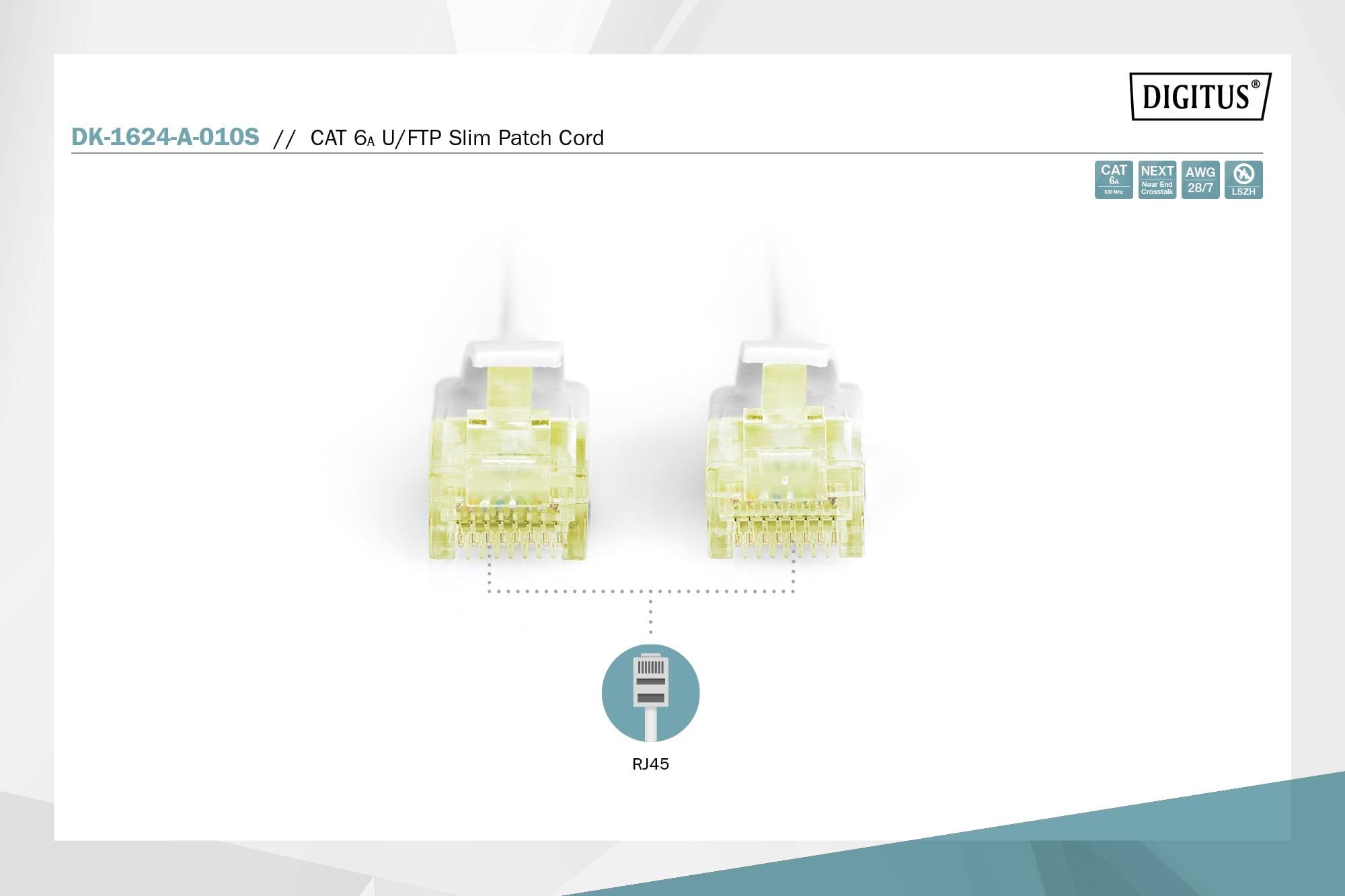

- 2x RJ45 plug (8P8C)
- Hoods with kink protection, strain relief and locking protection
- Length designation on the hoods
