Digitus DK-1632-A-010S-R-10 RJ45 Patch cable CAT 6A 1 m Red 1 pc(s)
EAN:
Part number:
Item no:
Product type
Patch cable
Specification
CAT 6A
Connection type
RJ45
Cable length
1 m
No. of A connectors
1 x
Highlights & Details

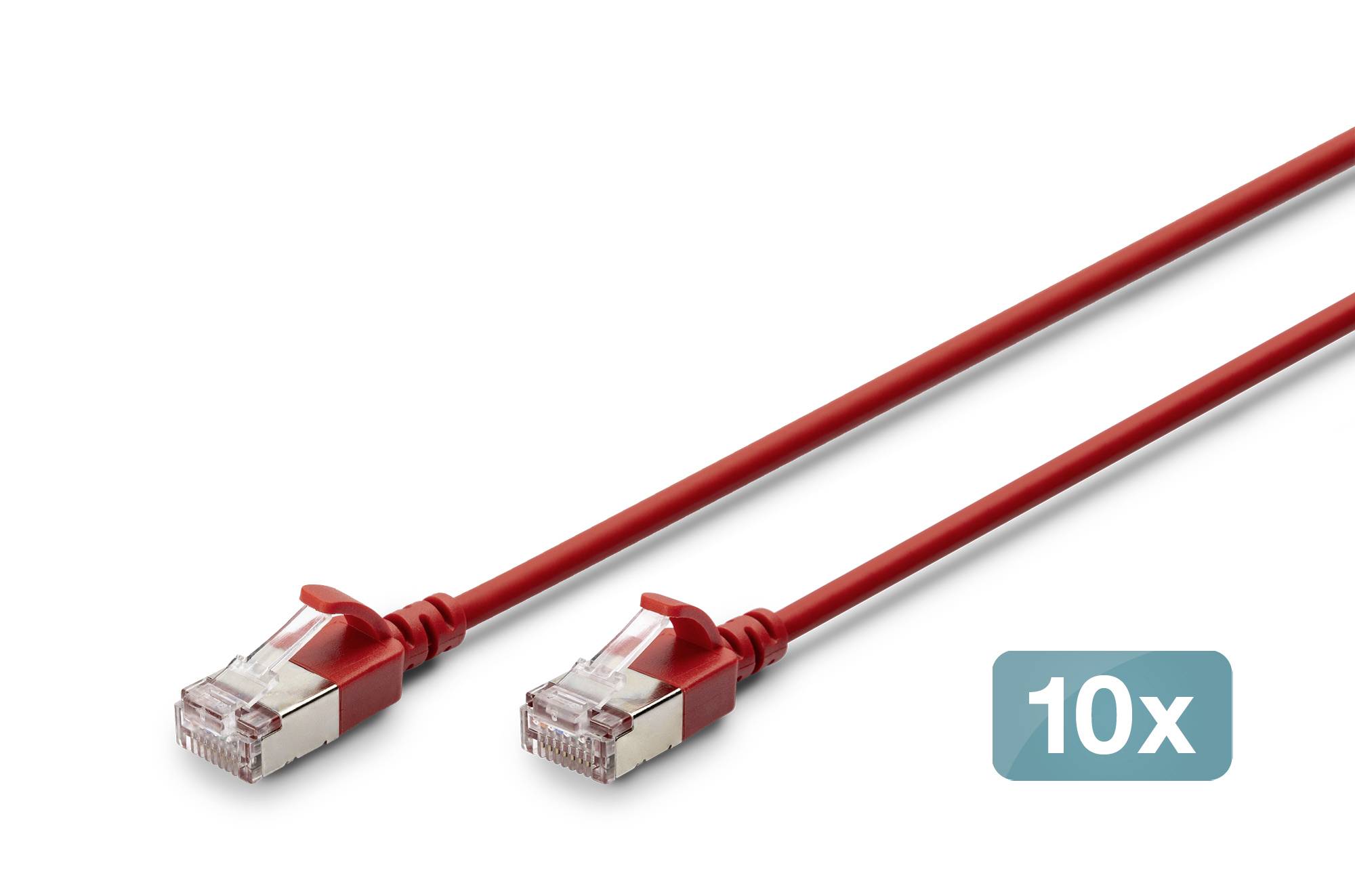

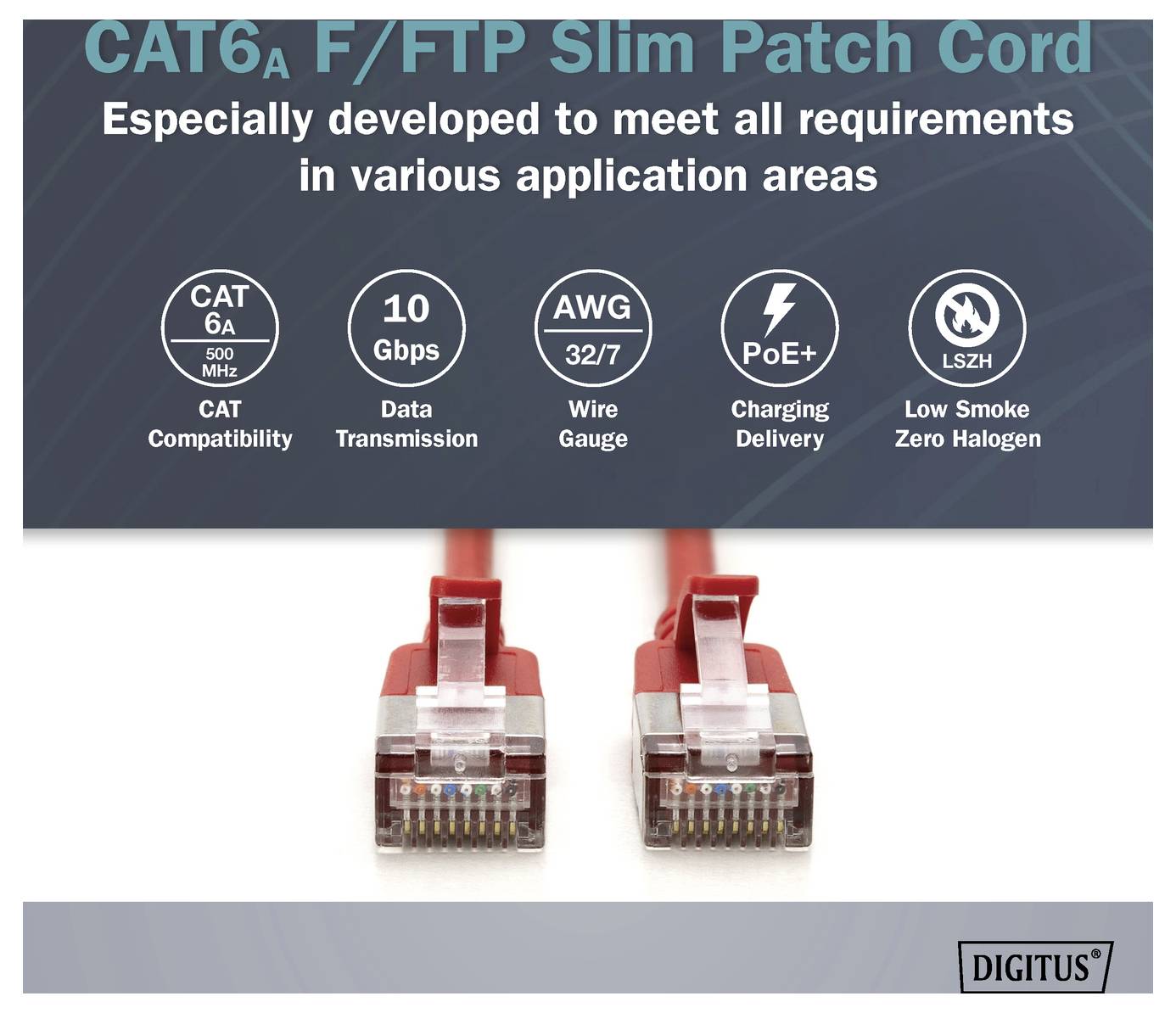

Digitus CAT 6A F-FTP slim patch cable, 1 m, red, 10 pieces

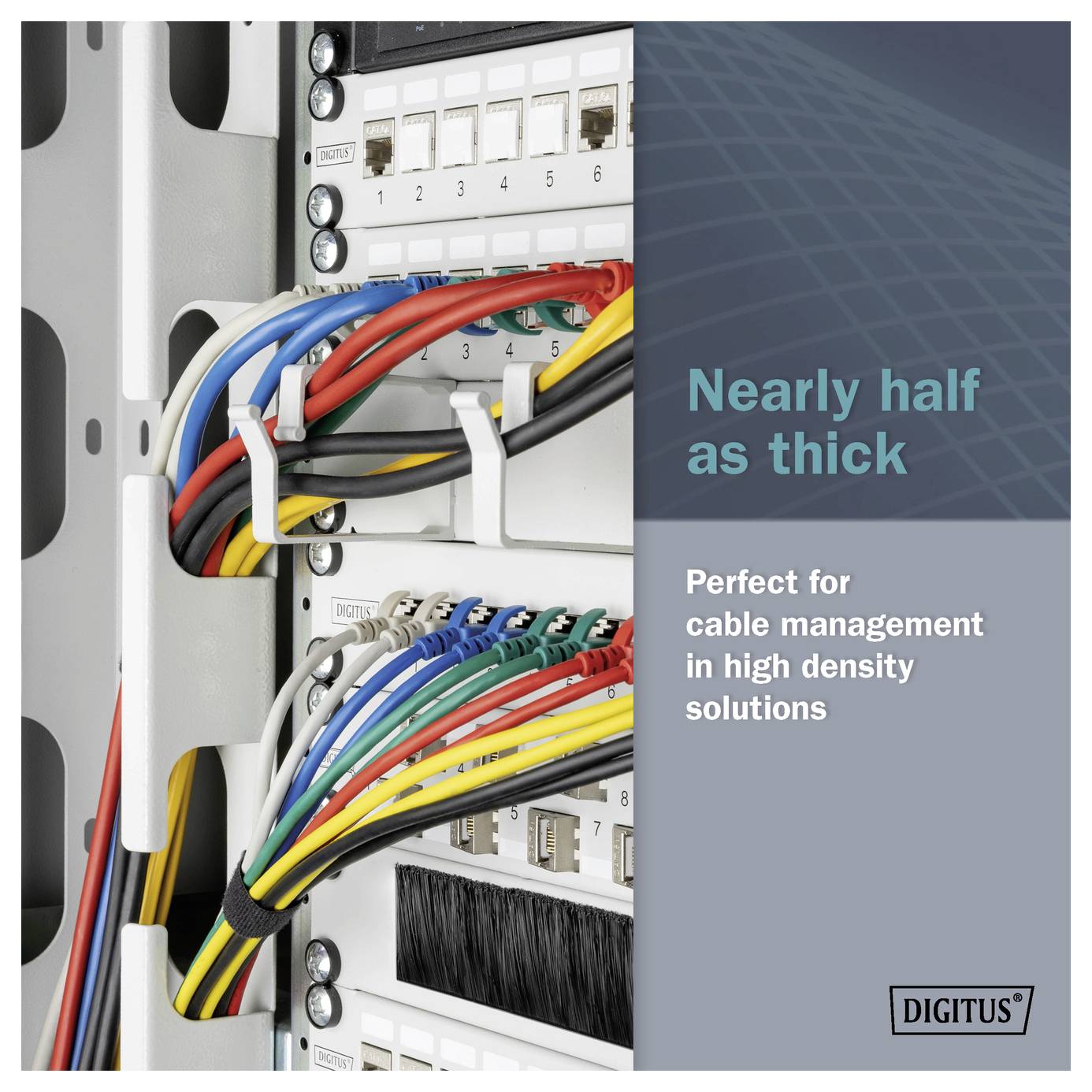

- • Advantage: Slim and flexible design, the cable can be easily laid in confined spaces
- • Features: Transfer speed 10 Gbps and frequency 500 MHz

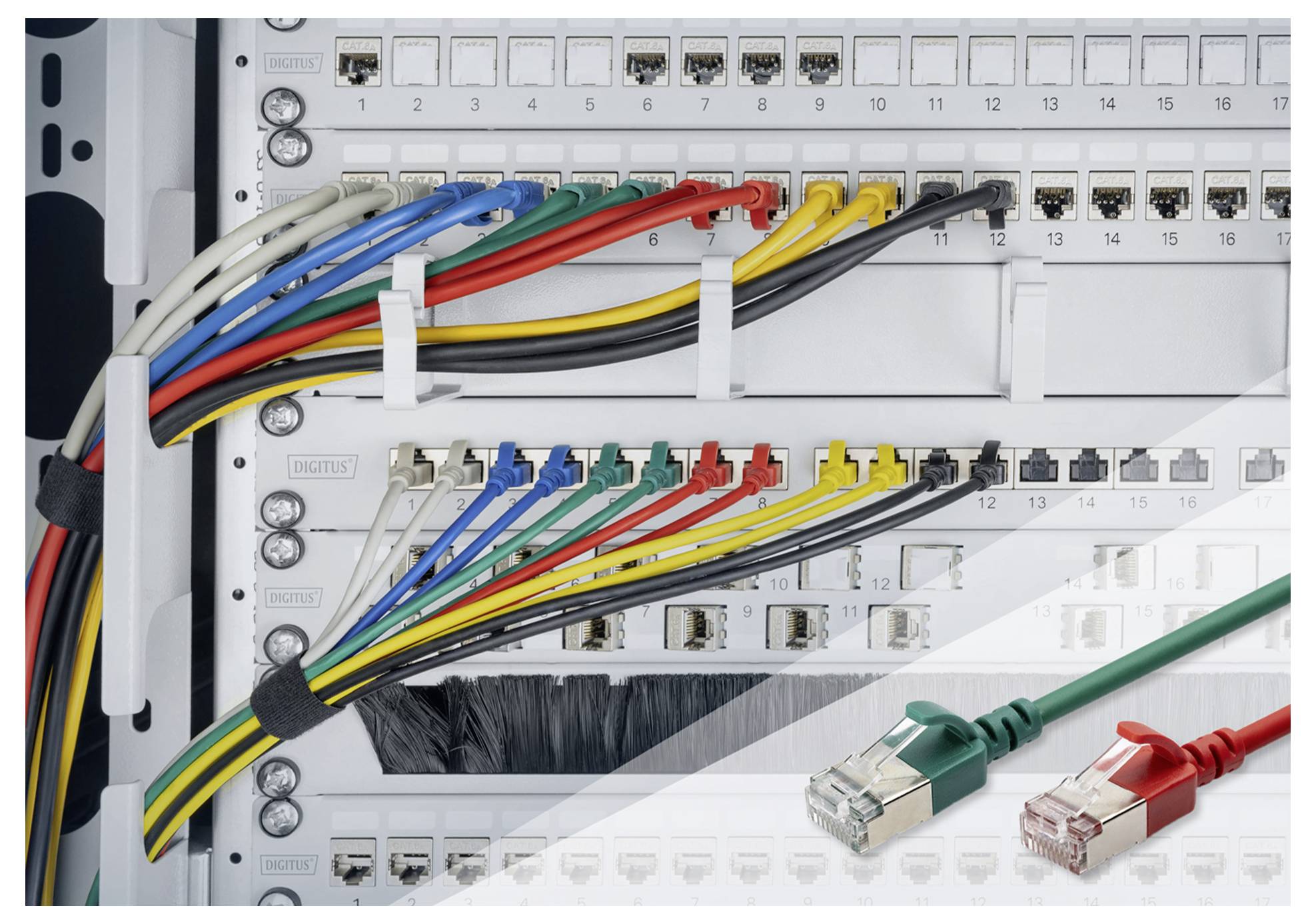

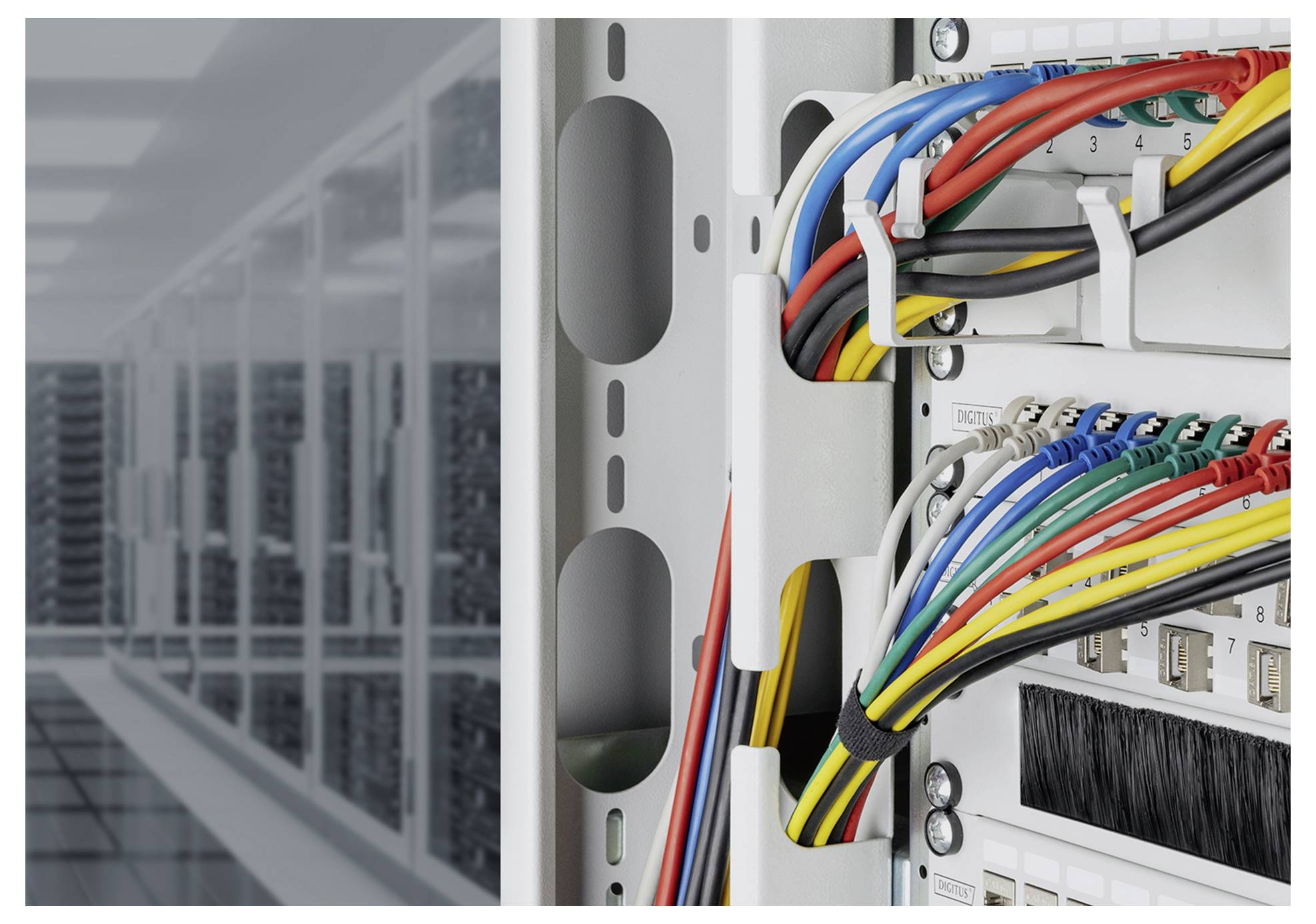

- • Application area: Ideal for data centers, high-density solutions and home offices
- • PoE+ ready
- This text is machine translated.
Technical specifications
- • Assignment: 1:1
- • Category: CAT 6A
- • Shielding: F-FTP - foil shielding and pairs in metal foil
- • Length: 1 m.
- • Colour: Red
- • Slim Version: True
- • Flat version: False

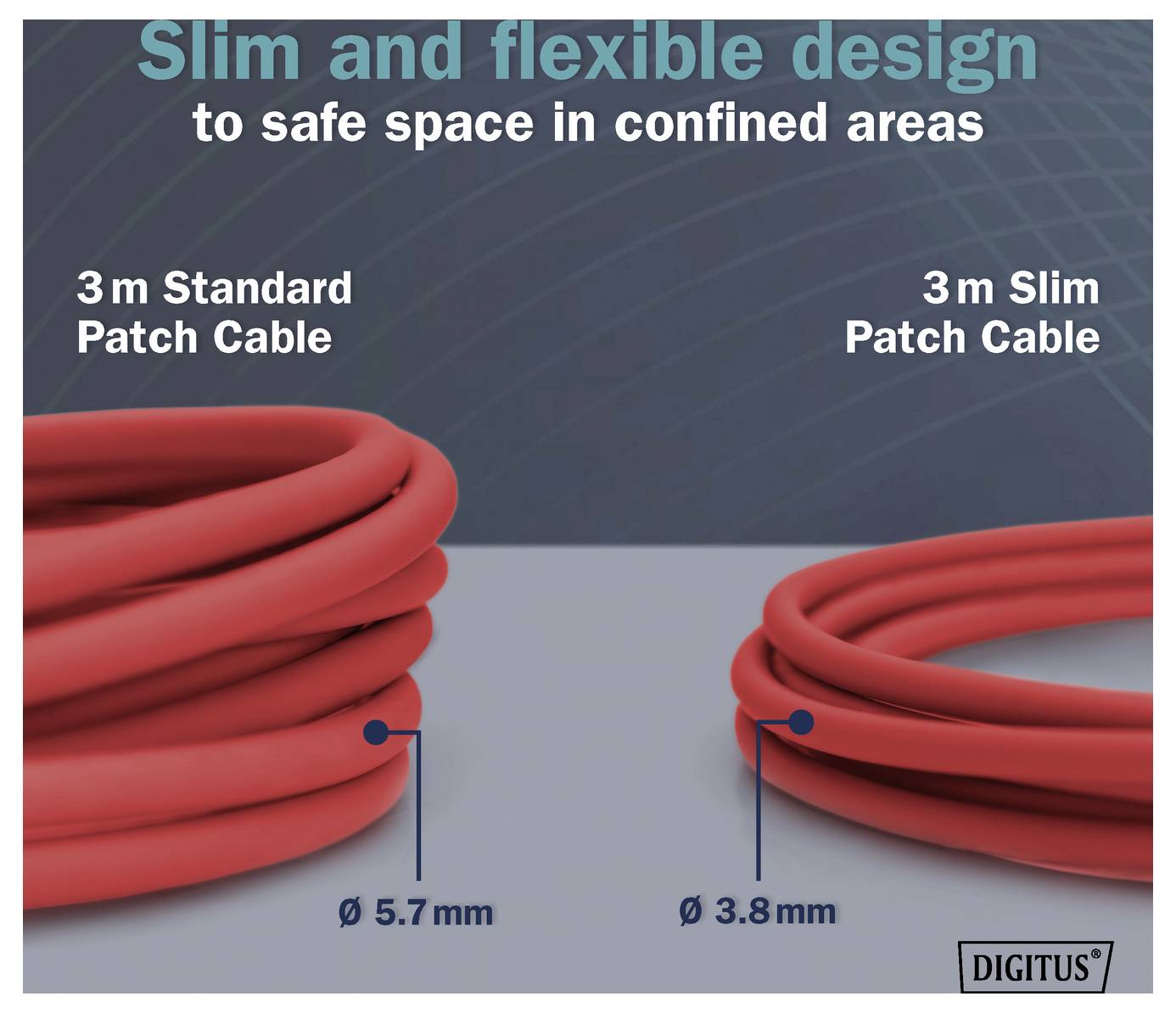

- • Overall diameter: 3.8 mm ± 0.15 mm
- • Conductor stranded: AWG 32/7 plain copper, 0.12 ± 0.005 mm
- • Insulation: HD-PE (high-density polyethylene)

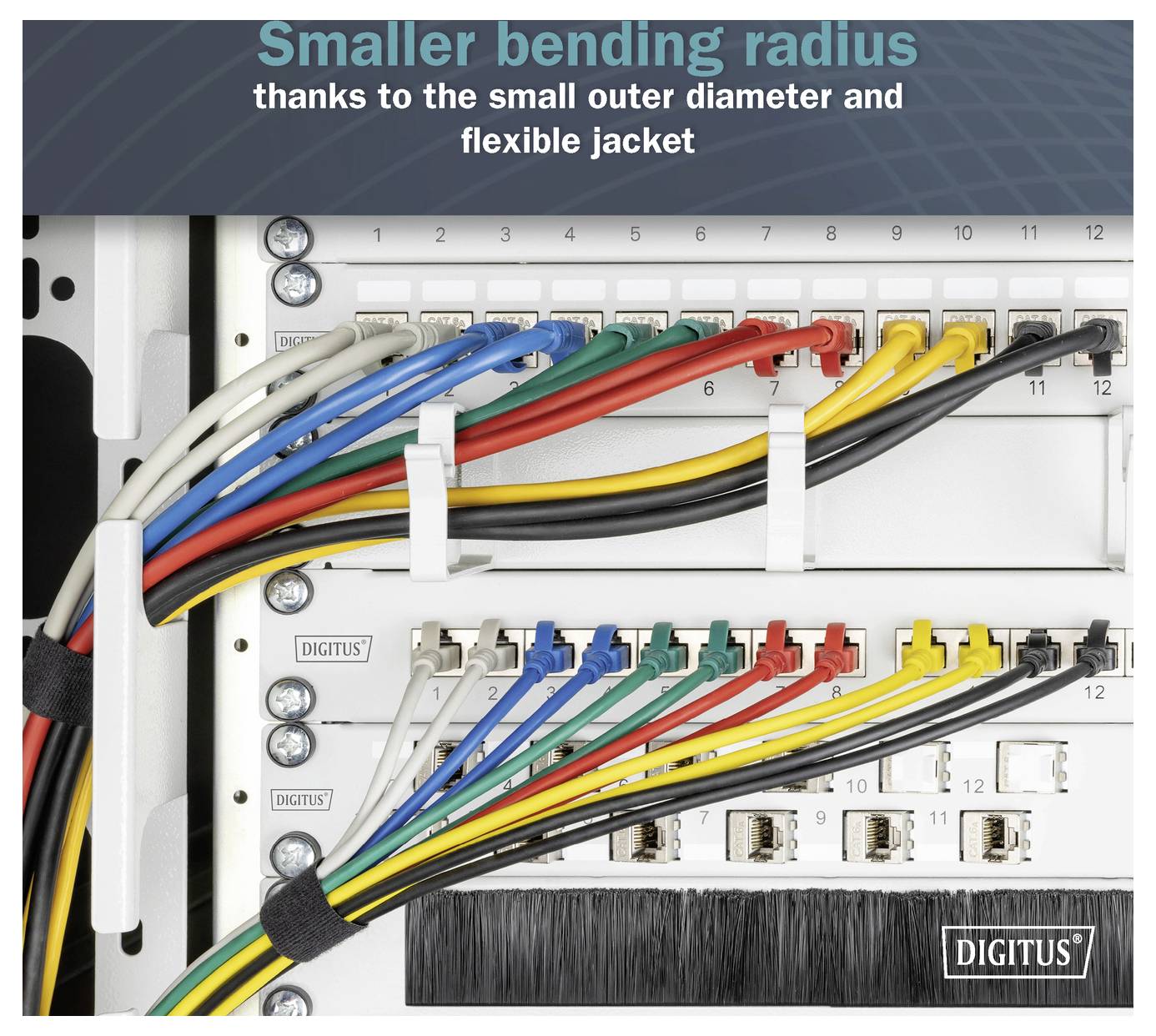

- • Bend radius 15x OD

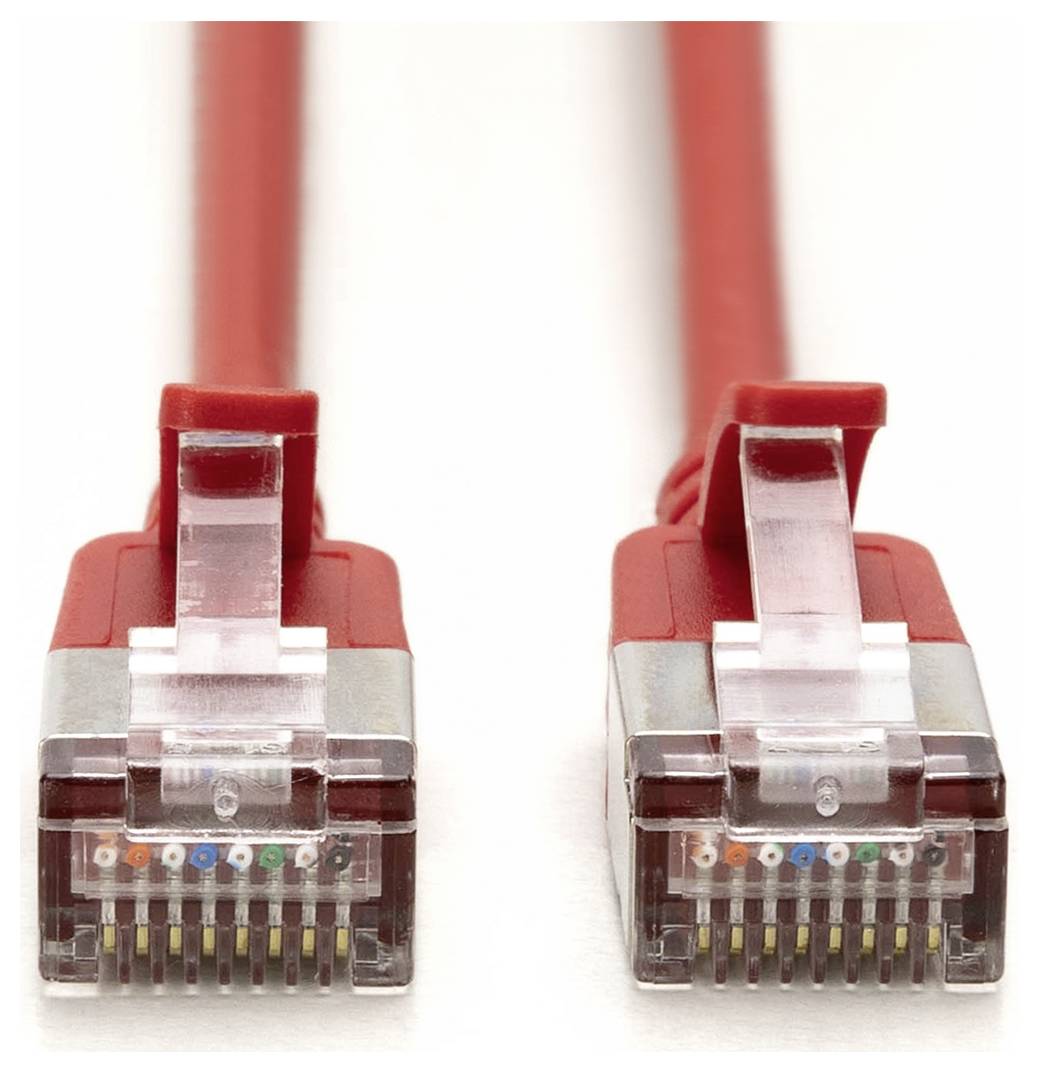

- • Plug: RJ45 connector
- • Colour code: Orange x white, green x white, blue x white, brown x white
- • WIRING STANDARD: EIA/TIA 568B
- • PIN assignment: 1:1
- • Forward resistance: 376,96Ω/km maximum at 20 °C.
- • Resistance imbalance: Maximum 3%
- • Operating temperature: -20 °C to +60 °
- • Flame retardant: IEC 60332-1
- • Smoke emission: IEC 61034
- • TYPICAL APPLICATIONS: IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
- • STANDARDS: ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-4
- • Breakdown voltage: AC 500V for 1 minute without impact (TIA/EIA-364-21)
- • Lifetime: 750 mating cycles
- • Packaging: Digitus Polybag

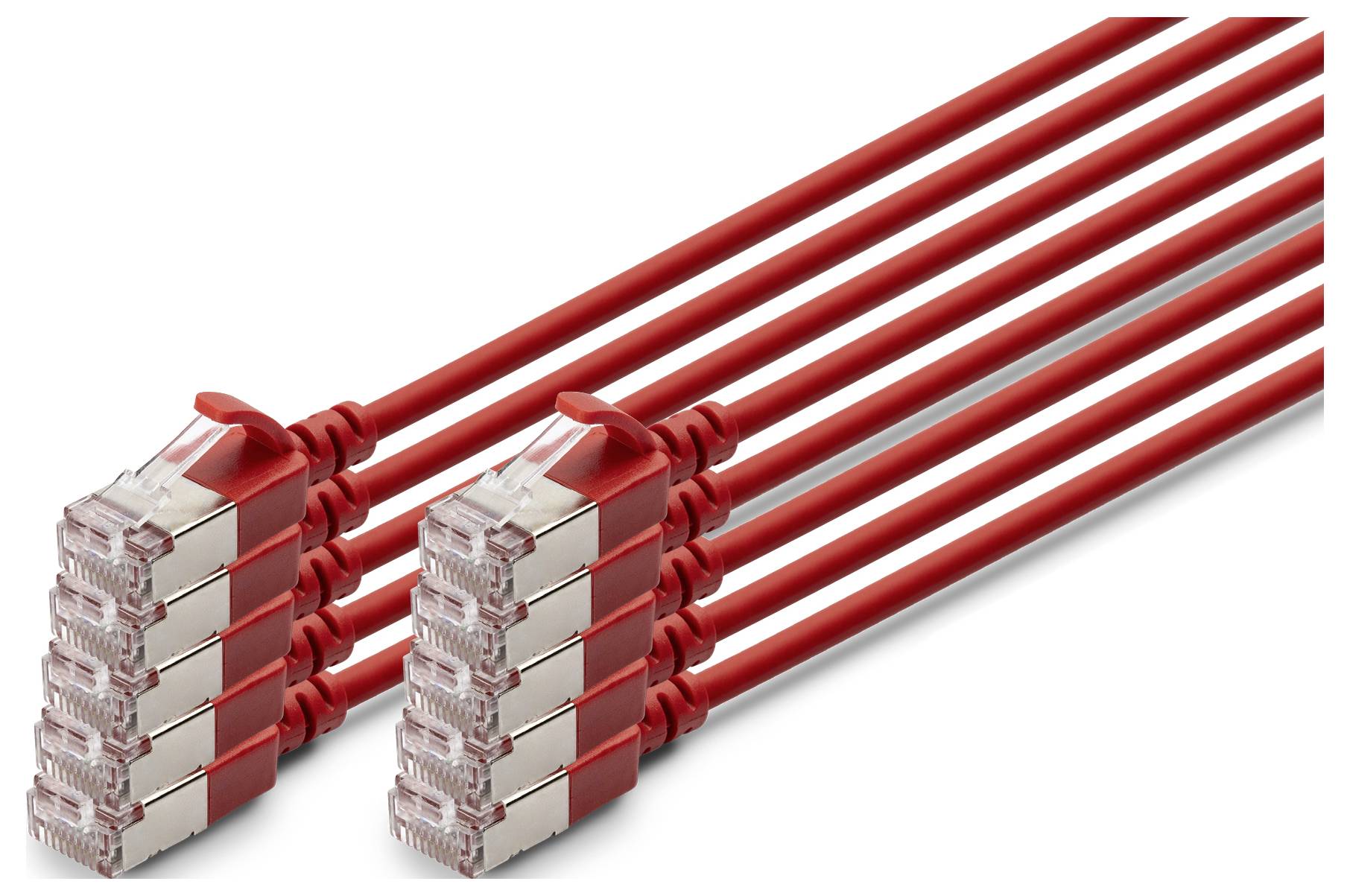

- • 10 pieces
- Product type
Patch cable
CAT 6A
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 plug
- No. of B connections
1 x
- Type B
RJ45 plug
- Cable length
1 m
- Factory colour
Red
- Connector version
straight
- Cable use
Networks
RJ45
- Version
Patch cable
- Cable design
Round
- UKCA
not relevant
