Buy Digitus DK-1632-A-015S-B RJ45 Patch cable CAT 6A F/FTP 1.5 m Blue Colour-coded, Shielded, multi-core, incl. bend relief

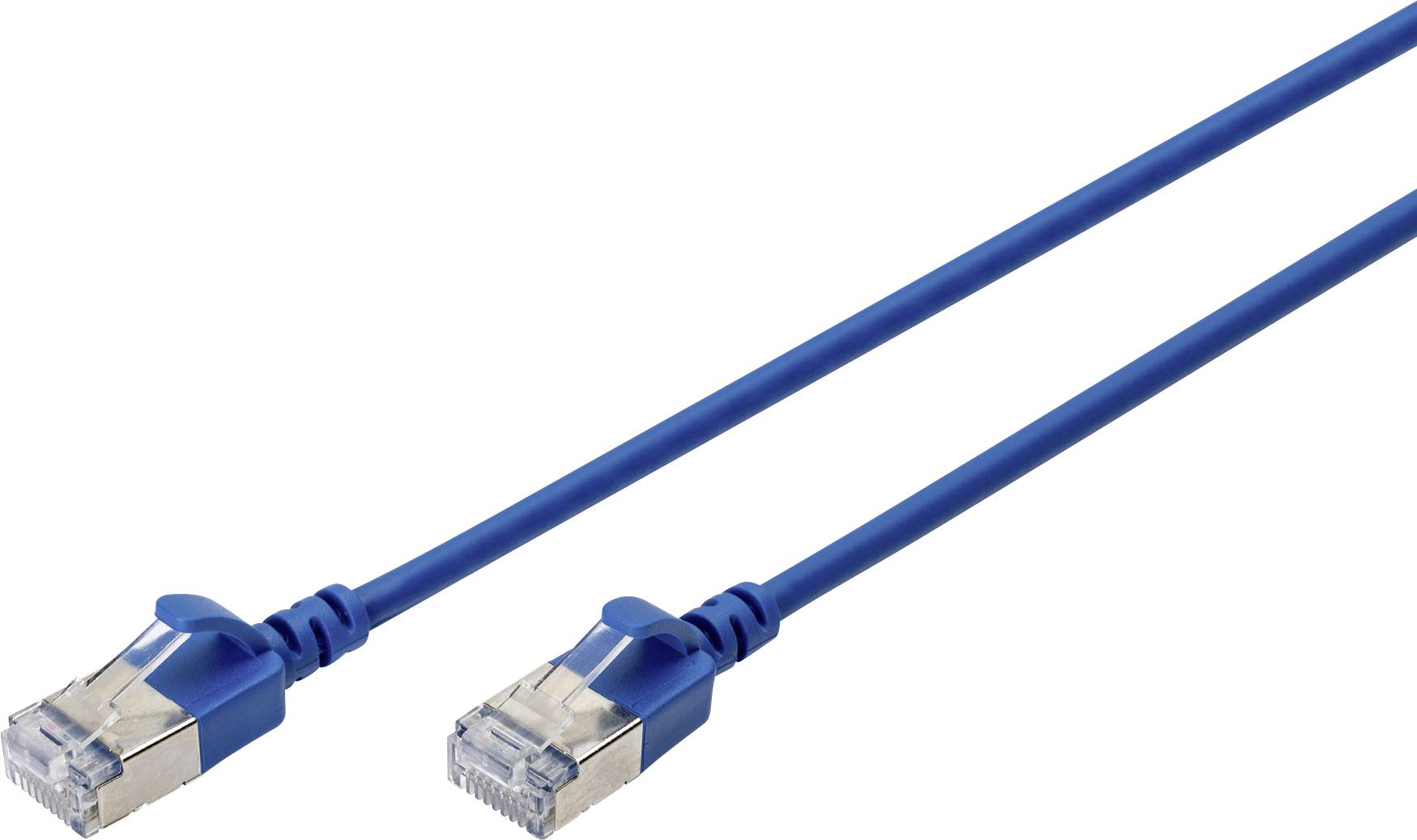

Blue Ethernet cable with two RJ45 connectors, used for network connections.

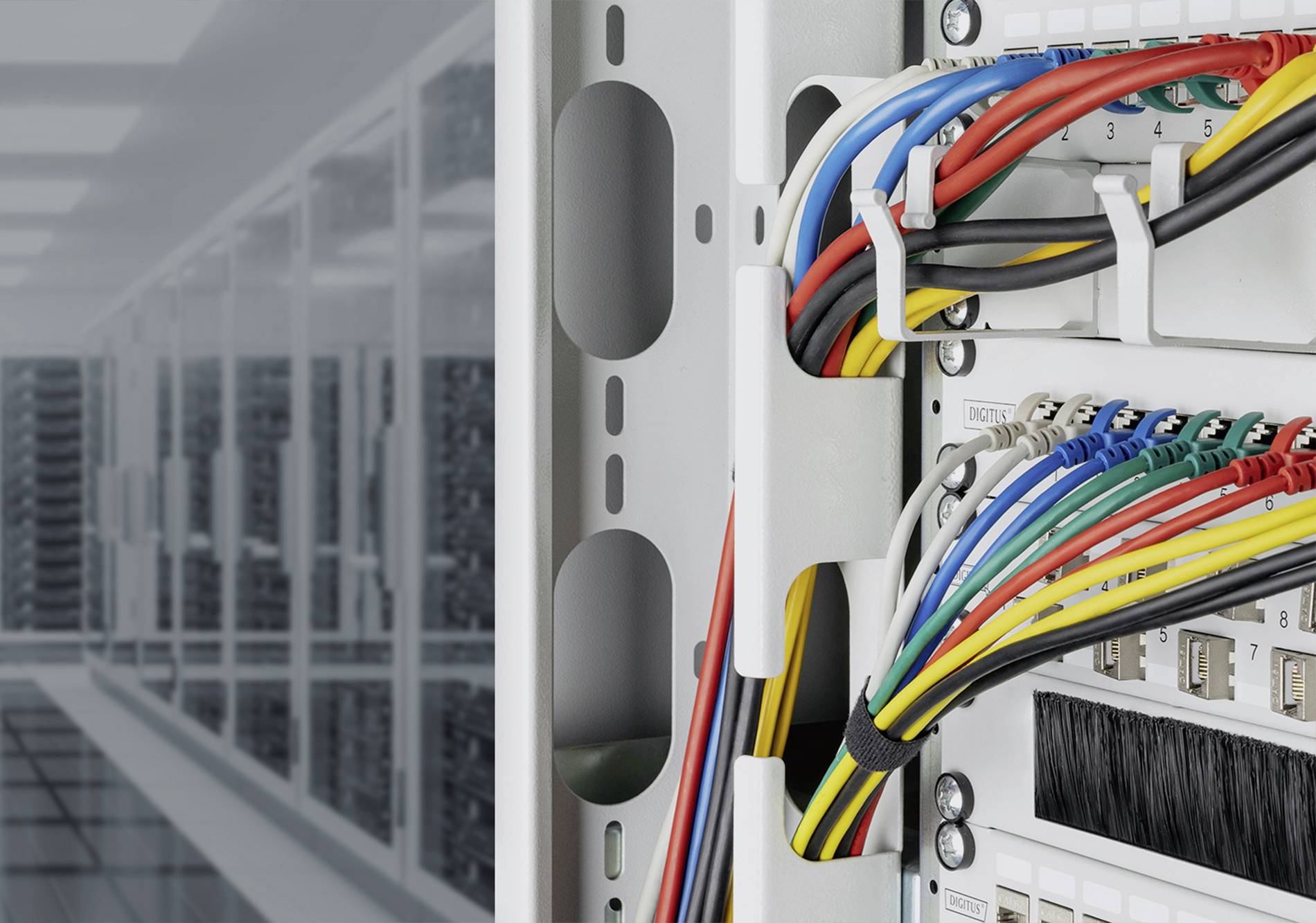

A server room with multiple data cables in various colours, plugged into a patch panel. Server racks are visible in the background.

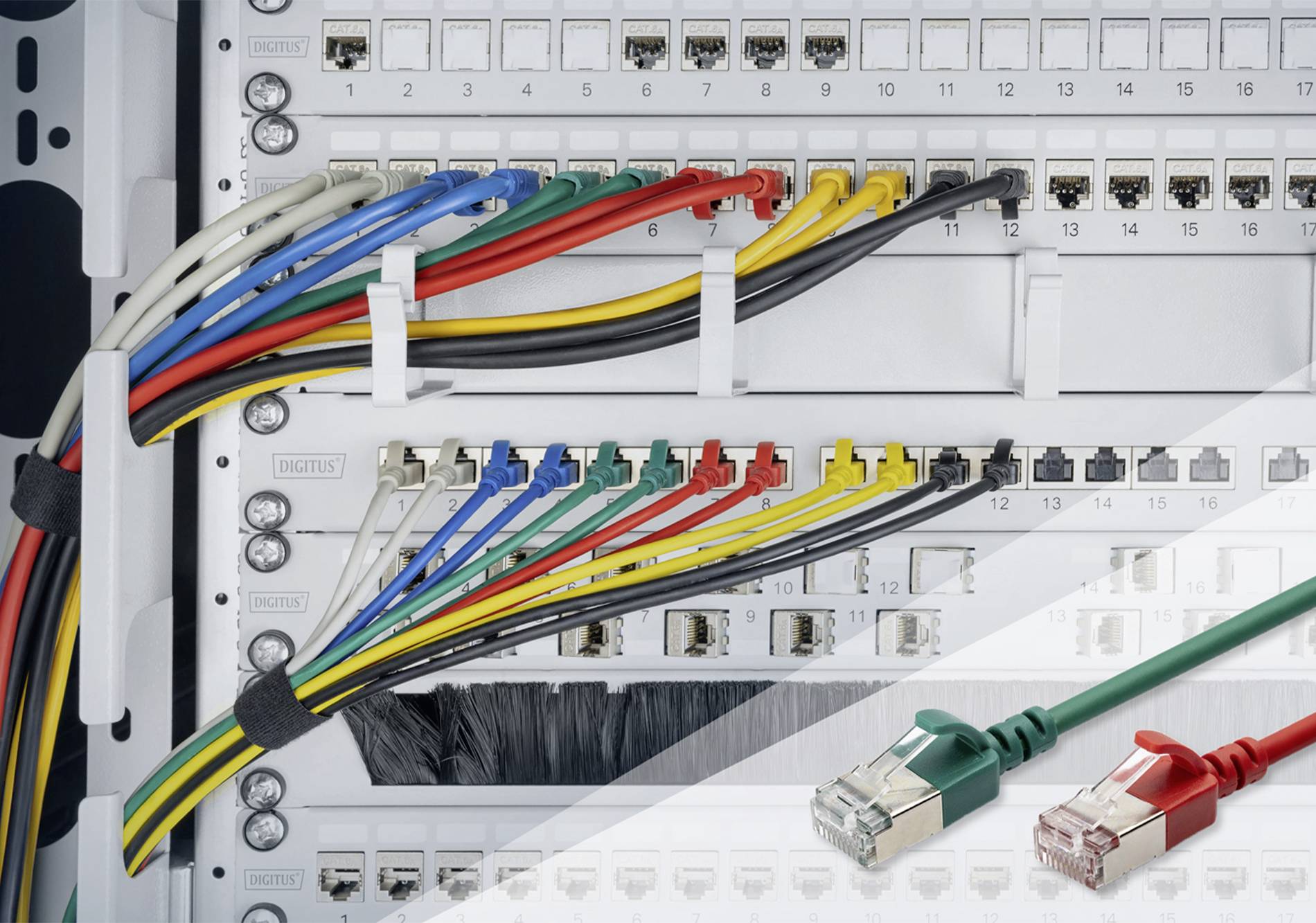

A network panel with multiple plugged-in, coloured Ethernet cables. Two separate cables at the bottom, green and red, with connectors.

Digitus DK-1632-A-015S-B RJ45 Patch cable CAT 6A F/FTP 1.5 m Blue Colour-coded, Shielded, multi-core, incl. bend relief -3

Digitus DK-1632-A-015S-B RJ45 Patch cable CAT 6A F/FTP 1.5 m Blue Colour-coded, Shielded, multi-core, incl. bend relief -4

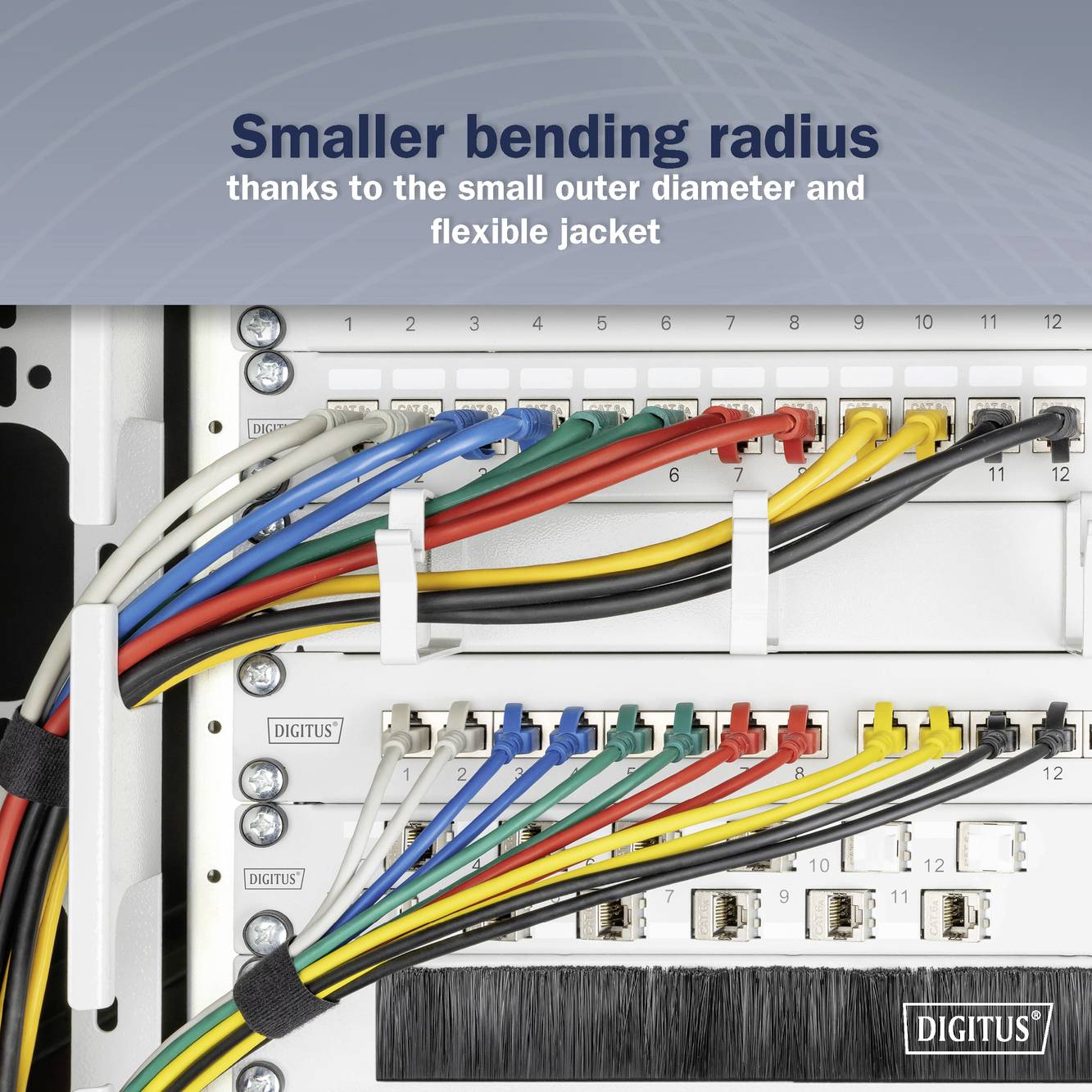

A network junction box with colourful cables plugged into sockets. Text in English: "Smaller bending radius thanks to the small outer diameter and flexible jacket."

Digitus DK-1632-A-015S-B RJ45 Patch cable CAT 6A F/FTP 1.5 m Blue Colour-coded, Shielded, multi-core, incl. bend relief -6

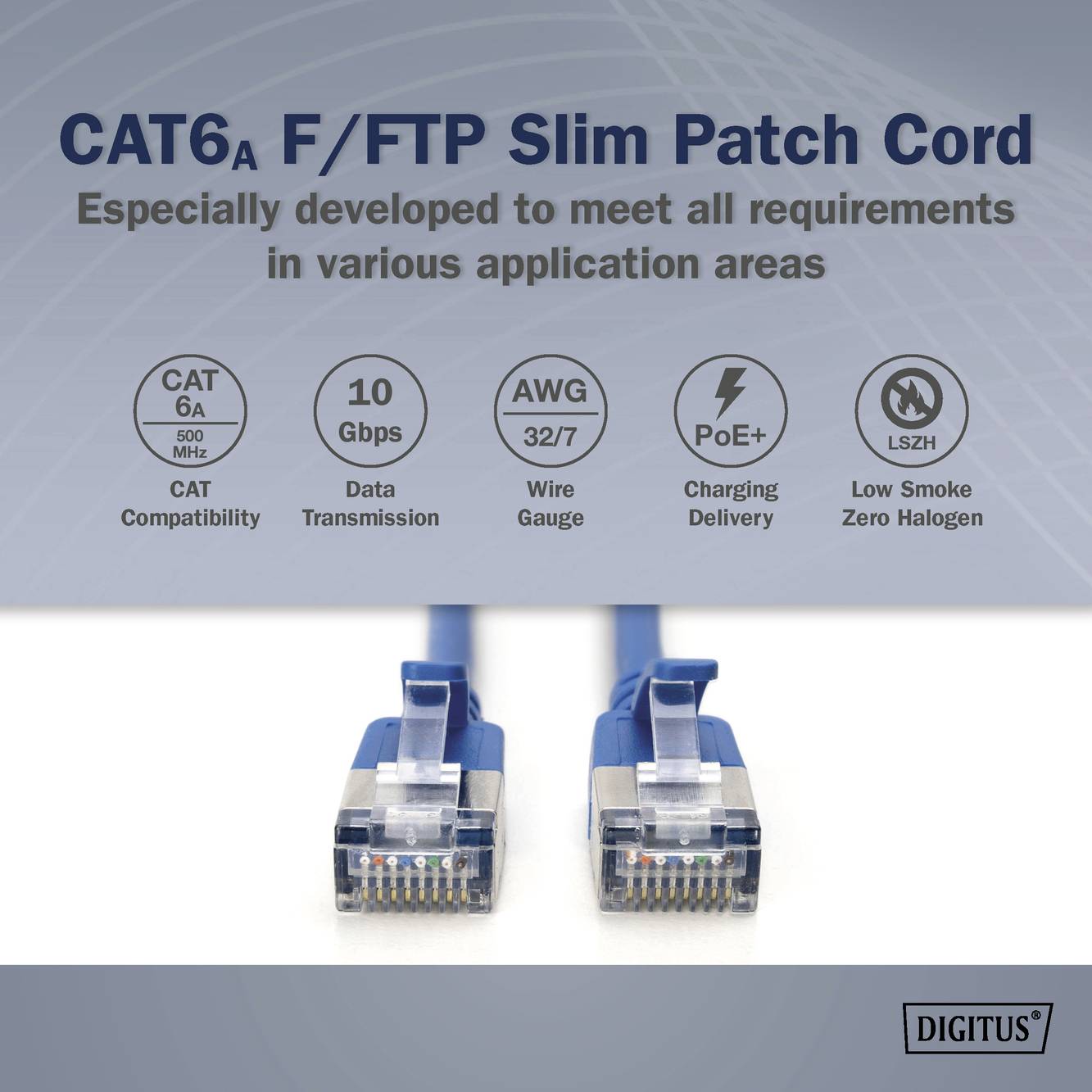

'Two blue CAT6A F/FTP network cables with RJ45 plugs. Text elements emphasise features: 600 MHz, 10 Gbps, AWG 32/7, PoE+, low smoke emission.'

1/8

Product type

Patch cable

Specification

CAT 6A

Shielding

F/FTP

Connection type

RJ45

Cable length

1.5 m

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus CAT 6A F-FTP slim patch cable, copper, LSZH AWG 32/7, length 1.5m, blue

Highlights & Details

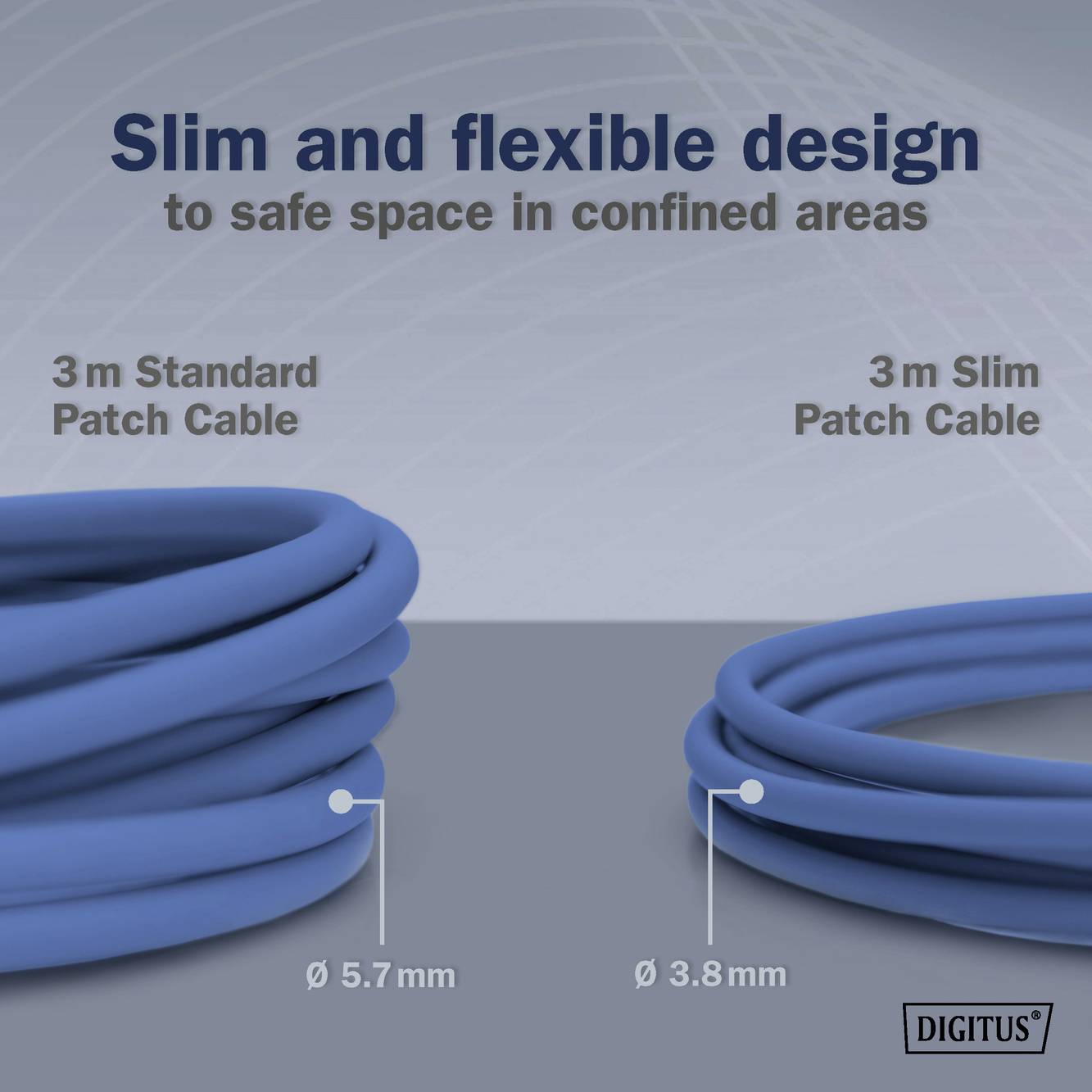

The advantage: Slim and flexible design, the cable can be easily laid in cramped spaces
Features: Transmission speed 10 Gbit/s and frequency 500 MHz
Application area: Ideal for data centers, high density solutions and home offices
PoE+ is ready

Technical specifications

Total diameter 3.8 mm ± 0.15 mm
Stranded conductor: AWG 32/7 plain copper, 0.12 ± 0.005 mm
Contact resistance: 376.96 Ω/km maximum at 20 °C.
Imbalance of resistance: Maximum 3%
Operating temperature -20 °C up to +60 °C
Flame retardant IEC 60332-1
Smoke emission IEC 61034
Dielectric strength: AC 500 V for 1 minute without punch (TIA/EIA-364-21)
Lifetime 750 mating cycles

Product type: Patch cable

: CAT 6A

: F/FTP

Connection type: RJ45

No. of A connectors: 1 x

Type A: RJ45 plug

No. of B connections: 1 x

Type B: RJ45 plug

Cable length: 1.5 m

Factory colour: Blue

Connector version: straight

Cable features: Colour-coded
Shielded
multi-core
incl. bend relief

Cable use: Networks

Version: Cable

Cable design: Round

: Copper

LAN transfer rate: 10000 MBit/s

Halogen-free: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3409851 Digitus DK-1632-A-015S-B RJ45 Patch cable CAT 6A F/FTP 1.5 m Blue Colour-coded, Shielded, multi-core, incl. bend relief

User & Safety Instructions

User & Safety Instructions 3409851 Digitus DK-1632-A-015S-B RJ45 Patch cable CAT 6A F/FTP 1.5 m Blue Colour-coded, Shielded, multi-core, incl. bend relief

Description

Digitus® slim patch cables are characterized by their small outer diameter and the flexible sheath. The slim design enables a versatile use in your network. In addition, Digitus® slim patch cables are manufactured according to the standards ISO/IEC 11801 and DIN EN 50173 CAT 6A. They guarantee that the cable installation complies with the ISO & EN channel specification and offer excellent performance in the Digitus® CAT 6A cabling. The power has been tested up to 500 MHz, including features such as close-up crosstalk ("NEXT"). Digitus® patch cables have been specially developed to meet all requirements in various applications. Each cable is equipped with a molded bend protection sleeve with strain relief. The sleeve also has a locking lever protection to prevent the cable from kinking and the locking lever from the plug from breaking.

This text is machine translated.
