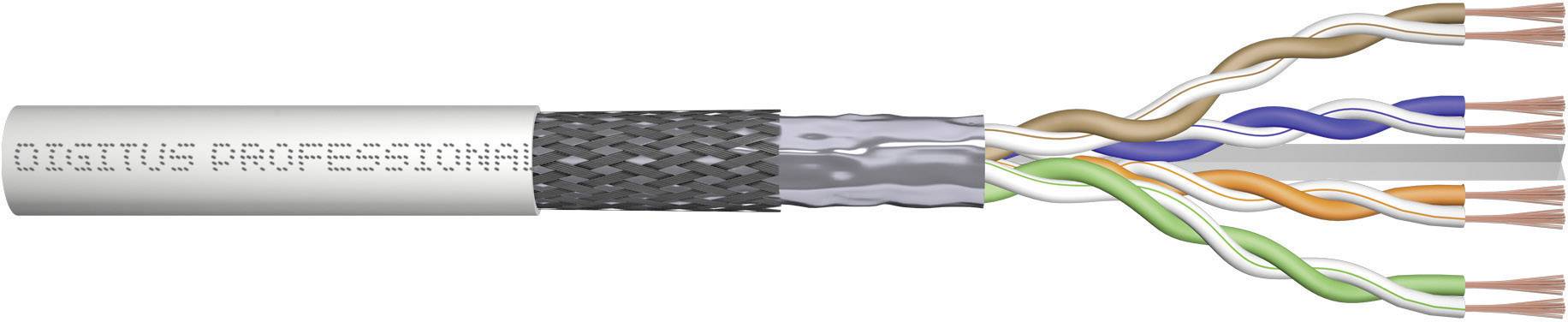

Digitus DK-1633-P-1 Network cable CAT 6 SF/UTP Grey 100 m
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 6
Shielding
SF/UTP
Cable type
SF/UTP
Cable features
Flame-retardant
Metal foil shield
Common shield
Shielded
Halogen-free
Round
Simplex
double shielding
Datasheet (PDF)
Highlights & Details
Cat 6 SF-UTP Raw patch cable, length 100 m, box, AWG 26/7, LSZH, Simplex, color gray
- Suitable for direct installation of RJ45 connectors for manufacturing of patch cables
- For building class E, 250 MHz cabling links
- According to the standards ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: En 50288-6-1
- Inner conductor: Copper (Cu)
- PoE+ compatible
Technical specifications
- Outer sheath thickness: 0.55 mm nominal
- External diameter 6.3 mm nominal
- Strain relief 150 N max.
- Dynamic bending radius: 8x OD mm min.
- Static bending radius: 4x OD mm min.
- Transport and storage temperature range: -10 °C to +75 °C.
- Operating temperature range: -10 °C to +60 °C.
- Installation temperature range 0 °C to +50 °C.
- Loop resistance: ≤ 280 Ω km.
- Resistance unbalance: ≤ 2%
- Insulation resistance: ≥ 2000MΩ/km @500V
- Capacity: NOM. 48 nF/km @ 800 Hz
- Capacitance unbalance (pair ground): ≤ 1500 nF/km.
- Impedance 100 ± 15 Ohm @ 10-100 MHz
- NVP: 67%
- Runtime delay: NOM. ≤ 555 ns/100 m
- Signal difference: NOM. ≤ 50 ns/ 100 m
- Test voltage (DC 1 min) core/core: 1000V
- Coupling damping ≥ 40 dB
- Connector type terminal 1: None
- Connector type terminal 2: None
- Sheath color: Gray
- Kink protection sleeve: Without
- Bumper: No.
- Flame-resistant design: Yes
- Halogen-free: Yes
- Oil resistant according to EN 60811-404: No.
- Cable construction: 4x2
- AWG cross-section 26
- NVP: 67%
- Product type
Network cable
CAT 6
SF/UTP
- Cable type
SF/UTP
- Cable features
Flame-retardant
Metal foil shield
Common shield
Shielded
Halogen-free
Round
Simplex
double shielding
- Outside Ø
6.3 mm
- Factory colour
Grey
- Content
100 m
- AWG max.
16
- Sold per metre
Yes
- Manufacturer part #
DK-1633-P-1
- Type
DK-1633-P-1
- Insulation material
PE
- Halogen-free
Yes
- Max. length sold by the metre
100 m
- Twisted pair cabling (part 1)
Yes (1)
- Cable design
Round
- Cable length
100.00 m
Copper
26/7
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1934443 Digitus DK-1633-P-1 Network cable CAT 6 SF/UTP Grey 100 m
User & Safety Instructions
User & Safety Instructions 1934443 Digitus DK-1633-P-1 Network cable CAT 6 SF/UTP Grey 100 m
Description
The raw patch cables are manufactured and tested according to ISO/IEC 11801 and DIN EN 50173 standard. They guarantee that the cable installation meets the ISO & EN Channel specification and thus offer an excellent performance for your cabling. The raw patch cables are suitable for the direct mounting of RJ45 connectors to produce patch cables.
This text is machine translated.
This text is machine translated.
Features
- Insulation: HD-PE
- Cable type SF/UTP
- Category: 6
- Length 100 m
