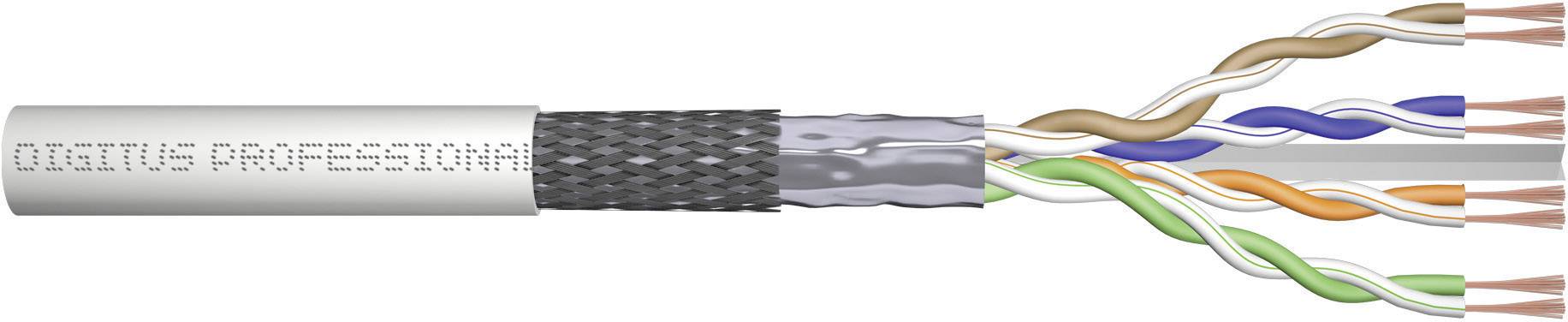

Digitus DK-1633-P-305 Network cable CAT 6 SF/UTP Grey 305 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Cat 6 SF-UTP Raw patch cable, length 305 m, box, AWG 26/7, LSZH, Simplex, color gray
Highlights & Details
- Suitable for direct installation of RJ45 connectors for manufacturing of patch cables
- For building class E, 250 MHz cabling links
- According to the standards ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: En 50288-6-1
- Inner conductor: Copper (Cu)
- PoE+ compatible
Technical specifications
- Dynamic bending radius: 8x OD mm min.
- Static bending radius: 4x OD mm min.
- Transport and storage temperature range: -10 °C to +75 °C.
- Operating temperature range: -10 °C to +60 °C.
- Installation temperature range 0 °C to +50 °C.
- Loop resistance: ≤ 280 Ω km.
- Resistance unbalance: ≤ 2%
- Insulation resistance: ≥ 2000MΩ/km @500V
- Capacity: NOM. 48 nF/km @ 800 Hz
- Capacitance unbalance (pair ground): ≤ 1500 nF/km.
- Impedance 100 ± 15 Ohm @ 10-100 MHz
- NVP: 67%
- Runtime delay: NOM. ≤ 555 ns/100 m
- Signal difference: NOM. ≤ 50 ns/ 100 m
- Test voltage (DC 1 min) core/core: 1000V
- Coupling damping ≥ 40 dB
- Cable type SF/UTP
- Category: 6
- Length 305 m
- Connector type terminal 1: None
- Connector type terminal 2: None
- Sheath color: Gray
- Kink protection sleeve: Without
- Bumper: No.
- Flame-resistant design: Yes
- Halogen-free: Yes
- Oil resistant according to EN 60811-404: No.
- Cable construction: 4x2
- AWG cross-section 26
- NVP: 67%
- Cable design
Round
- Cable length
305.00 m
- Cable type
SF/UTP
- Version
Mains cable
- Factory colour
Grey
- Halogen-free
Yes
- Insulation material
PE
- Cable use
Networks
Copper
- Cable features
Flame-retardant
Metal foil shield
Common shield
Shielded
Halogen-free
Round
Simplex
double shielding
SF/UTP
- Twisted pair cabling (part 1)
Yes (1)
CAT 6
- AWG max.
26
- Outside Ø
6.3 mm
- Max. length sold by the metre
305 m
- No. of leads
8 x
26/7
- Sold per metre
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1934487 Digitus DK-1633-P-305 Network cable CAT 6 SF/UTP Grey 305 m
User & Safety Instructions
User & Safety Instructions 1934487 Digitus DK-1633-P-305 Network cable CAT 6 SF/UTP Grey 305 m
Description
The raw patch cables are manufactured and tested according to ISO/IEC 11801 and DIN EN 50173 standard. They guarantee that the cable installation meets the ISO & EN Channel specification and thus offer an excellent performance for your cabling. The raw patch cables are suitable for the direct mounting of RJ45 connectors to produce patch cables.
This text is machine translated.
This text is machine translated.
Features
- Insulation: HD-PE
- Outer sheath thickness: 0.55 mm nominal
- External diameter 6.3 mm nominal
- Strain relief 150 N max.
