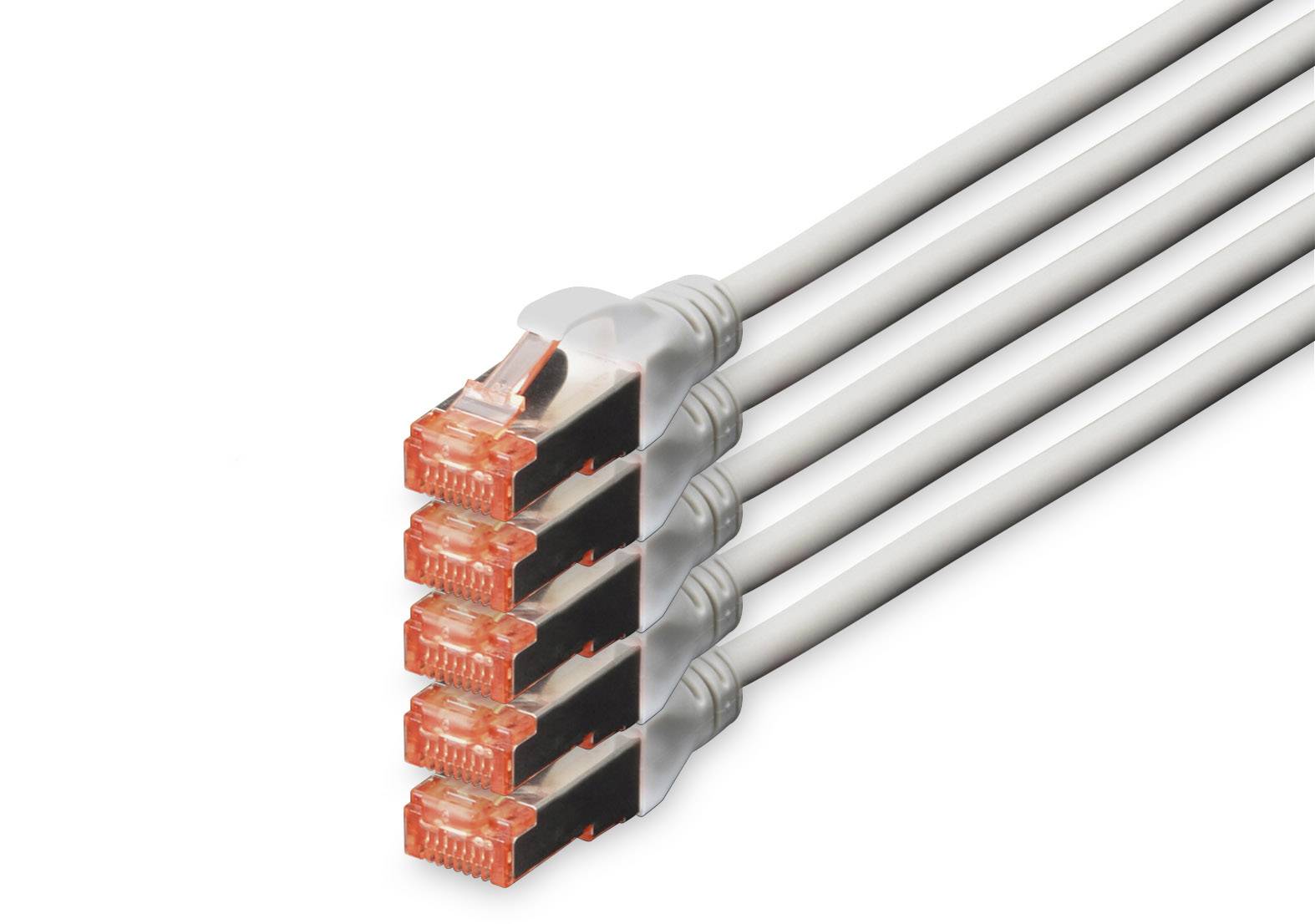

Digitus DK-1644-070-5 RJ45 Patch cable CAT 6 S/FTP 7.00 m Grey Metal foil shield, Common shield, Shielded, Halogen-free,
EAN:
Part number:
Item no:
Product type
Patch cable
Specification
CAT 6
Shielding
S/FTP
Connection type
RJ45
Cable length
7.00 m
Cat 6 S-FTP Patch cable, Cu, LSZH, AWG 27/7, length 7 m, 5 pieces, color gray
Highlights & Details
- With LSZH (Low Smoke Zero Halogen) outer sheath for best fire behavior and low smoke emission.
- Transparent Red colored plug with metal shielding for easy identification of category 6 (250 MHz)
- Inner conductor: Copper (Cu)
- PoE+ compatible
Technical specifications
- Category: Cat 6
- Shielding: S-FTP, pairs in metal foil and braid shielded
- Cable setup 4 x 2 AWG 27/7 twisted pair
- Colour: grey
- Length 7 m
- Allocation 1:1
- Sheath: LSOH
- Packaging: Digitus Polybag
- Track 1: Modular RJ45 (8/8) connector
- Track 2: Modular RJ45 (8/8) connector
- Product type
Patch cable
CAT 6
S/FTP
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 plug
- No. of B connections
1 x
- Type B
RJ45 plug
- Cable length
7.00 m
- Factory colour
Grey
- Connector version
straight
- Cable features
Metal foil shield
Common shield
Shielded
Halogen-free
Simplex
double shielding
twisted pairs
27/7
- Cable use
Networks
- Version
Cable
- Cable design
Round
Copper
- Max. frequency
250 MHz
- LAN transfer rate
100 MBit/s
1000 MBit/s
2500 MBit/s
- Halogen-free
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1934442 Digitus DK-1644-070-5 RJ45 Patch cable CAT 6 S/FTP 7.00 m Grey Metal foil shield, Common shield, Shielded, Halogen-free,
Description
The DIGITUS® Category 6 Class E patch cables are manufactured and tested according to ISO/IEC 11801 and DIN EN 50173 CAT 6 standard. They guarantee that the cable installation meets the ISO & EN Channel specification and offer an excellent performance in the DIGITUS® CAT 6 cabling. The performance has been tested up to 250 MHz, including performance features such as near-talk ("NEXT"). The DIGITUS® patch cables have been specially developed to meet all requirements in the various application areas. Each cable is equipped with a molded kink protection sleeve with strain relief. In addition, the grommet has a locking lever protection, which prevents the wiring from being hooked up and the break-off of the locking lever of the plug. A simple identification of category 6 is made possible by the red coloring of the connectors.
This text is machine translated.
This text is machine translated.
Features
- 2x RJ45 plug (8P8C)
- Hoods with kink protection, strain relief and locking protection
- Length designation on the hoods
- Inner conductor: Copper (Cu)
- 5 pieces
