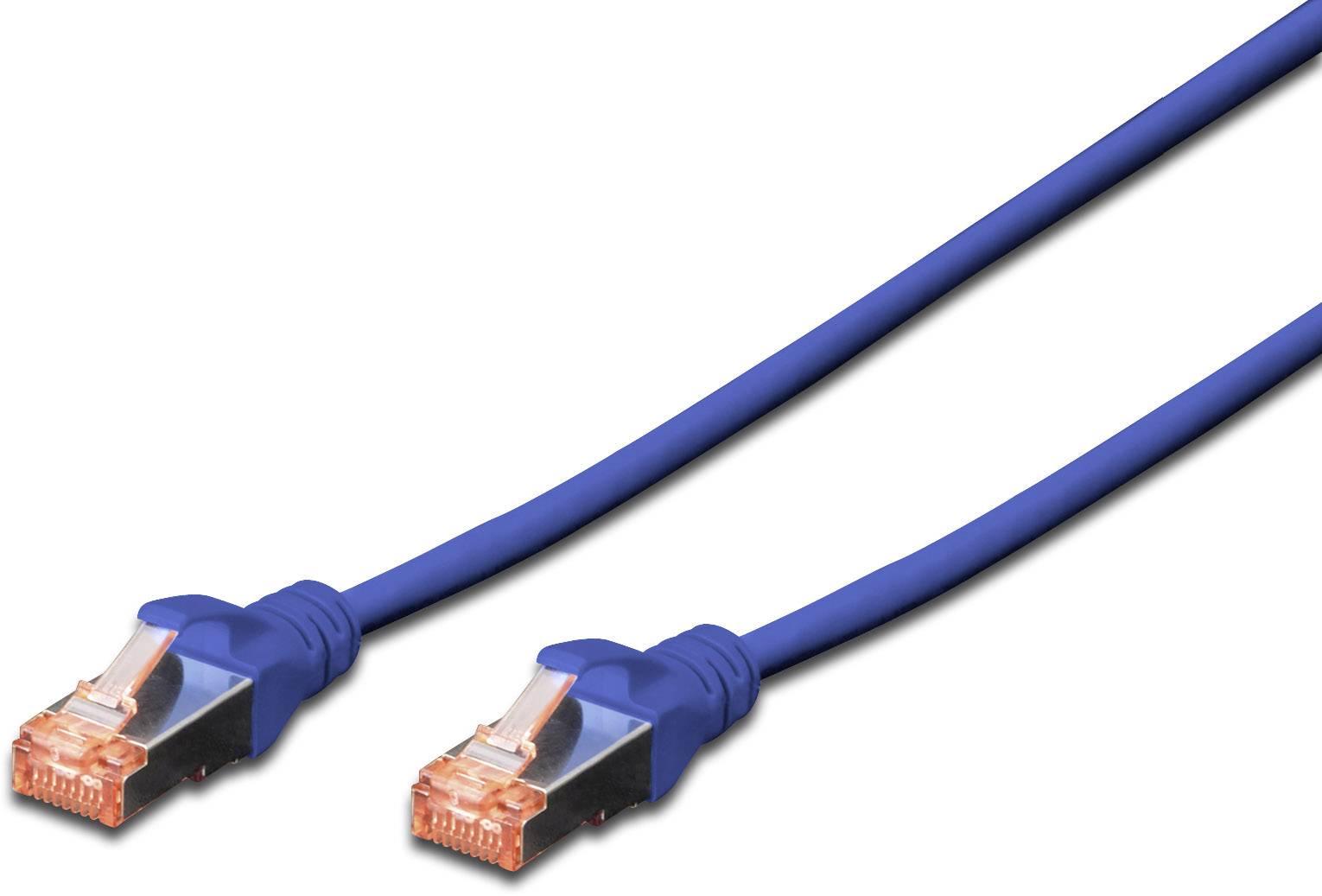

Digitus DK-1644-100/B RJ45 Patch cable CAT 6 S/FTP 10.00 m Blue Braided shield, Halogen-free, Flame-retardant, Metal foi
EAN:
Part number:
Item no:
Product type
Patch cable
Specification
CAT 6
Shielding
S/FTP
Connection type
RJ45
Cable length
10.00 m
Digitus CAT 6 S-FTP Patch Cable, LSZH, AWG 27/7, Twisted Pair, 10 m long, blue
Highlights & Details
- Excellent Power and connection quality for your network.
- Hoods with bend protection, strain relief and locking lever protection
- Long term on the hoods
- Shielding: S-FTP, pairs in metal foil and braid shielding
Technical specifications
- Inner conductor: Copper (Cu)
- Category: CAT 6
- Shielding: S-FTP, pairs in metal foil and braid shielding
- Cable setup: 4 x 2 x AWG 27/7, Twisted Pair
- Colour : blue
- Product type
Patch cable
CAT 6
S/FTP
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 plug
- No. of B connections
1 x
- Type B
RJ45 plug
- Cable length
10.00 m
- Factory colour
Blue
- Connector version
straight
- Cable features
Braided shield
Halogen-free
Flame-retardant
Metal foil shield
Shielded
twisted pairs
27/7
- Cable use
Networks
- Version
Cable
- Cable design
Round
Copper
- Max. frequency
250 MHz
- LAN transfer rate
100 MBit/s
1000 MBit/s
2500 MBit/s
- Halogen-free
Yes
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1601041 Digitus DK-1644-100/B RJ45 Patch cable CAT 6 S/FTP 10.00 m Blue Braided shield, Halogen-free, Flame-retardant, Metal foi
Certificate
Certificate 1601041 Digitus DK-1644-100/B RJ45 Patch cable CAT 6 S/FTP 10.00 m Blue Braided shield, Halogen-free, Flame-retardant, Metal foi
Description
The DIGITUS® Category 6 Class E patch cable are manufactured and tested according to ISO/IEC 11801 and DIN EN 50173 CAT 6 Standard. You guarantee that the cable installation of ISO and EN channel specification and offer an outstanding performance in the DIGITUS ® CAT6 cabling. The performance was up to 250 MHz tested, including performance characteristics, such as the Nahnebensprechen ("NEXT"). The DIGITUS® Patch cables were specially developed for all requirements in the various areas of application in full. Each cable is equipped with a molded strain relief sleeve with strain relief. In addition, the sleeve a locking lever protection which is the sticking-up of the cable and the breaking of the stop lever from the plug-in. A simple identification of the category 6 is indicated by the red coloring of the plug.
