Digitus DK-1741-VH-5-OD Network cable CAT 7 S/FTP Black (RAL 9005) 500 m
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 7
Shielding
S/FTP
Cable type
S/FTP
No. of leads
8 x

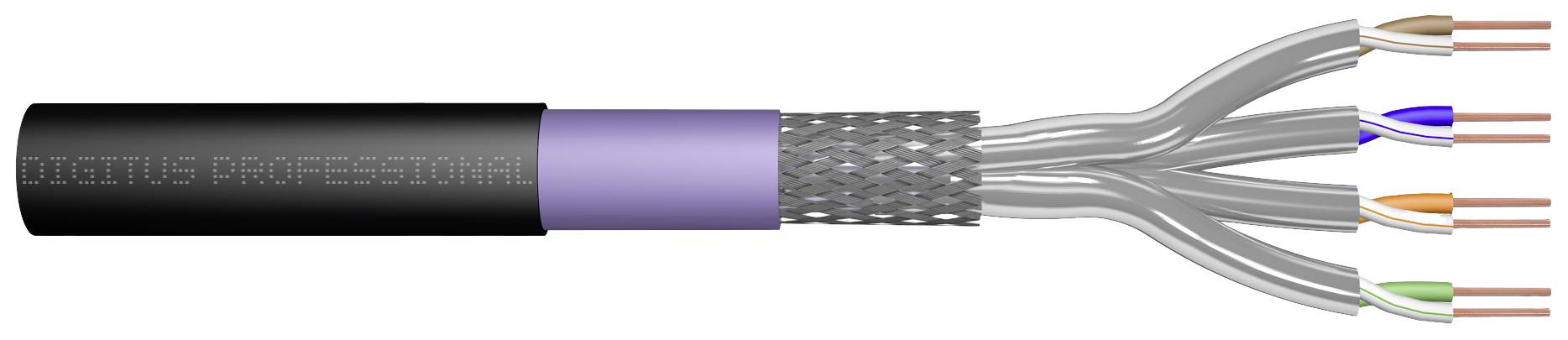

Digitus Cat. 7 S/FTP underground cable, 500 m, simplex, PE
Highlights & Details
- 10Gbit Ethernet
- 1200 MHz transmission frequency
- Permanent Link certified
Technical specifications
- Physical properties:
- Conductor: Plain copper wire, AWG 23/1
- Insulation: SFS-PE (foamed polyethylene sheath)
- Total number of insulated conductors: 8, twisted to 4 pairs
- Colour code: Blue-white, orange-white, green-white, brown-white
- Shielding of individual pairs: Aluminium laminated polyester film, covers 100%
- Overall shielding: Copper braid
- Outer sheath: PE (polyethylene); UV-resistant
- Outer sheath thickness (nominal): 0.50 mm nominal
- Outer sheath color: Black (RAL 9005)
- Mechanical properties:
- Strain relief max. 150N
- Dynamic bend radius 8x AD mm min.
- Static bending radius 4x AD mm min.
- Transport and storage temperature range -20 °C to +60 °C.
- Operating temperature range: -50 °C to +60 °C
- Installation temperature range -0°C to +60°C.
- External diameter Simplex (nominal): 8.5 mm (ECA)
- Weight (kg/km): 66.5 kg/km
- Electrical properties:
- Impedance 100±5 ohms @ 4-100 MHz; 100±25 ohms @ 100-600 MHz
- Capacity: 45 pF/m nominal @ 1 KHz
- Unbalance of capacity (pair ground): 1.6 pF/m max. @ 1 KHz
- Insulation resistance 5 GOhm x km min.
- DC resistance: Max. 95 Ohm/km (2% max. unbalanced resistance)
- Loop impedance: 190 x ohm/km (2% max. unbalanced resistance)
- Operating voltage 72 Vdc max.
- CA-Type 1b coupling damping
- Phase delay 450 nS/100 m max.
- Delay time 10 nS/100 m max.
- Separation class "d" after EN 50174-2
- NVP 79%
- Product type
Network cable
CAT 7
S/FTP
- Cable type
S/FTP
- No. of leads
8 x
- Cable features
double shielding
Flexible
Metal foil shield
Shielded
- Outside Ø
8.5 mm
- Factory colour
Black (RAL 9005)
- Content
500 m
- Sold per metre
Yes
- Manufacturer part #
DK-1741-VH-5-OD
- Type
DK-1741-VH-5-OD
- Insulation material
Polyethylene (PE)
- Min. temperature range (fixed installation)
-50 °C
- Max. temperature range (fixed installation)
+60 °C
- Halogen-free
Yes
- Max. length sold by the metre
500 m
- Twisted pair cabling (part 1)
Yes (1)
- Cable length
500 m
- Version
Cable
- Cable use
Networks
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2900280 Digitus DK-1741-VH-5-OD Network cable CAT 7 S/FTP Black (RAL 9005) 500 m
Description
The Digitus® Professional Cat.7 S/FTP earth cable is characterized by the following cable construction made up of 4x2x AWG23/1 and achieves a transmission frequency of up to 1200 MHz. The cable has a PE outer sheath and a halogen-free inner sheath and is compliant with the standard IEC 60332-1, FRNC-B, LSZH-1 and the BauPVO Euroclass ECA.
This text is machine translated.
This text is machine translated.
Features
- PoE Power over Ethernet support
- PE outer sheath, BauPVO class ECA inner sheath
