Digitus DK-1743-A-VH-05-OD Network cable CAT 7a S/FTP Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 7a
Shielding
S/FTP
Factory colour
Black
Max. frequency
1500 MHz
Highlights & Details

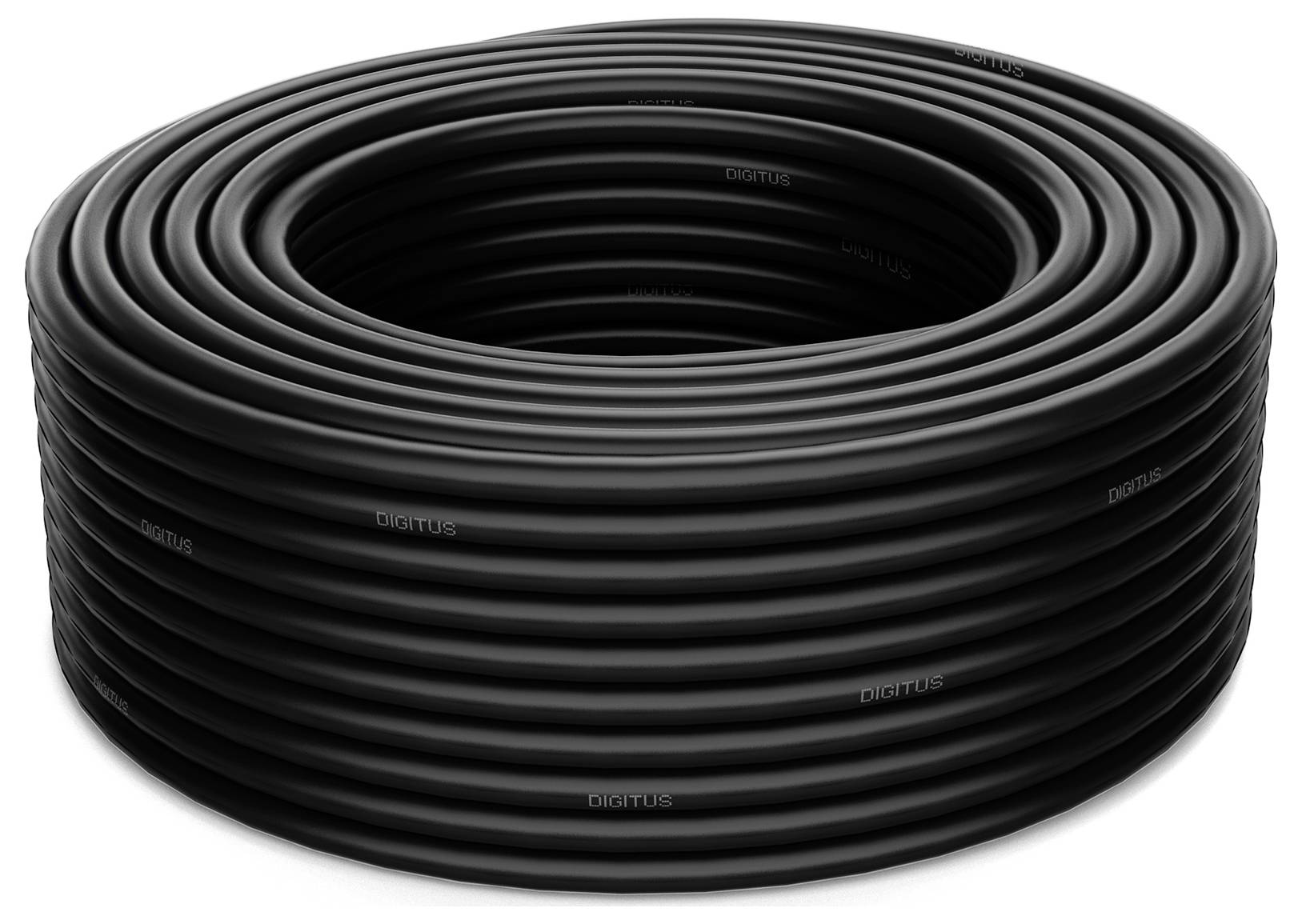

Digitus CAT 7A S/FTP data cable - underground laying cable, 50 m ring, simplex, PE
- Dual universal cable jacket: PE-outer sheath and LSZH DCA-inner cable sleeve
- PE sheath light by means of a thread, removable over several meters
- 10Gbit Ethernet
- 1500 MHz transmission frequency
- PoE, PoE+, 4-pin (IEEE 802.3af;3AT;3BT)
- Inner sheath: BauPVO class DCA

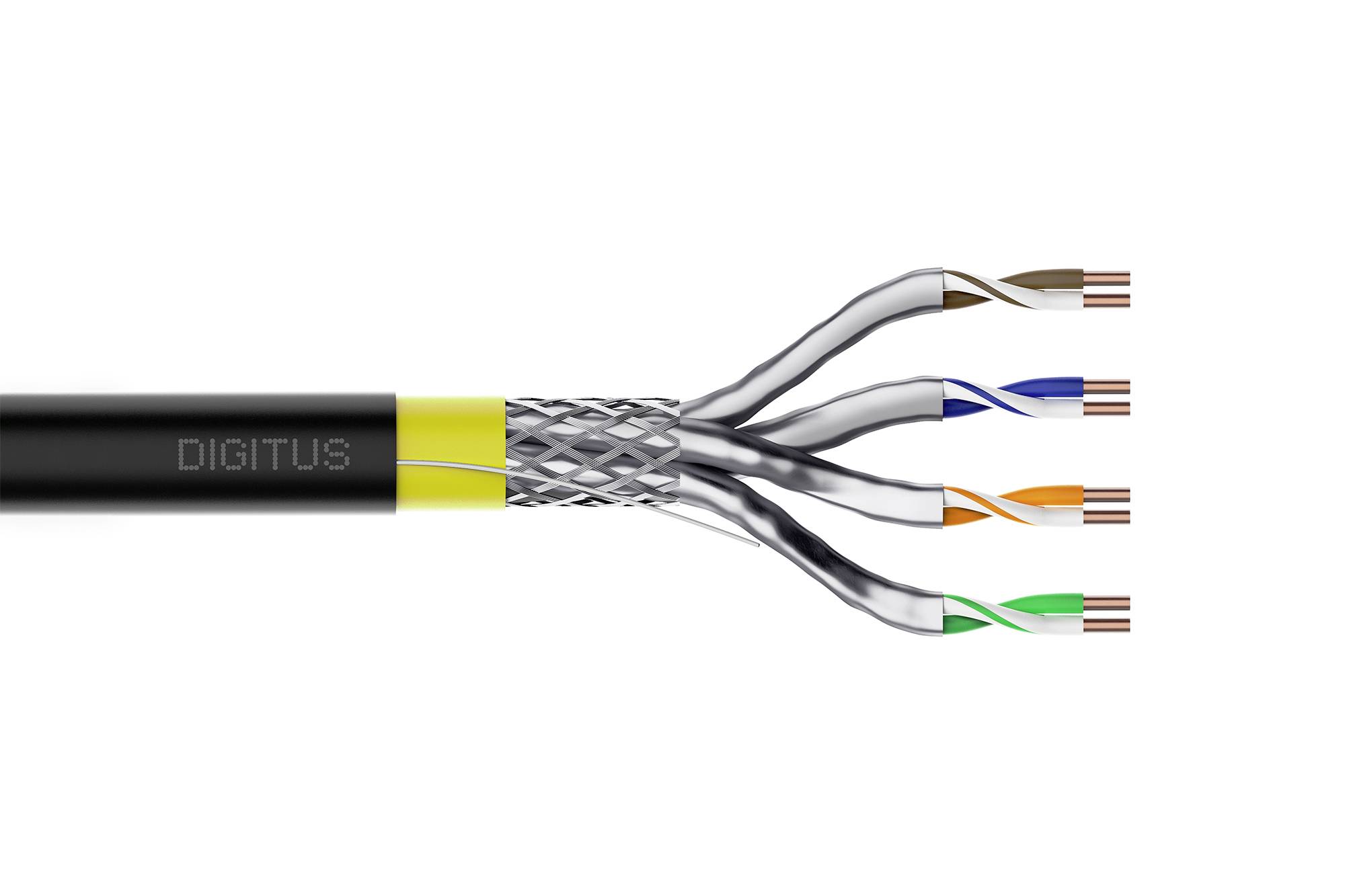

Technical specifications
- Physical properties:
- Conductor: Plain copper wire, AWG 22/1
- Insulation: SFS-PE (foamed polyethylene sheath)
- Total number of insulated conductors: 8, twisted to 4 pairs
- Colour code: Blue-white, orange-white, green-white, brown-white
- Shielding of individual pairs: Aluminium laminated polyester film, covers 100%
- Overall shielding: Copper braid
- Outer sheath: PE (polyethylene); UV-resistant
- Outer sheath thickness (nominal): 0.50 mm nominal
- Outer sheath color: Black (RAL 9005)
- Mechanical properties:
- Strain relief max. 150N
- Dynamic bend radius 8x AD mm min.
- Static bending radius 4x AD mm min.
- Transport and storage temperature range -20 °C to +60 °C.
- Operating temperature range: -50 °C to +60 °C
- Installation temperature range -0°C to +60°C.
- External (nominal) diameter: 9.0 mm (PE); 7.8 mm (LSZH -DCA)
- Product type
Network cable
CAT 7a
S/FTP
- Factory colour
Black
- Max. frequency
1500 MHz
- Content
1 pc(s)
- Sold per metre
No
- Manufacturer part #
DK-1743-A-VH-05-OD
- Type
DK-1743-A-VH-05-OD
- Cable length
50 m
- Version
Cable
- Cable use
Networks
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3791057 Digitus DK-1743-A-VH-05-OD Network cable CAT 7a S/FTP Black 1 pc(s)
Description

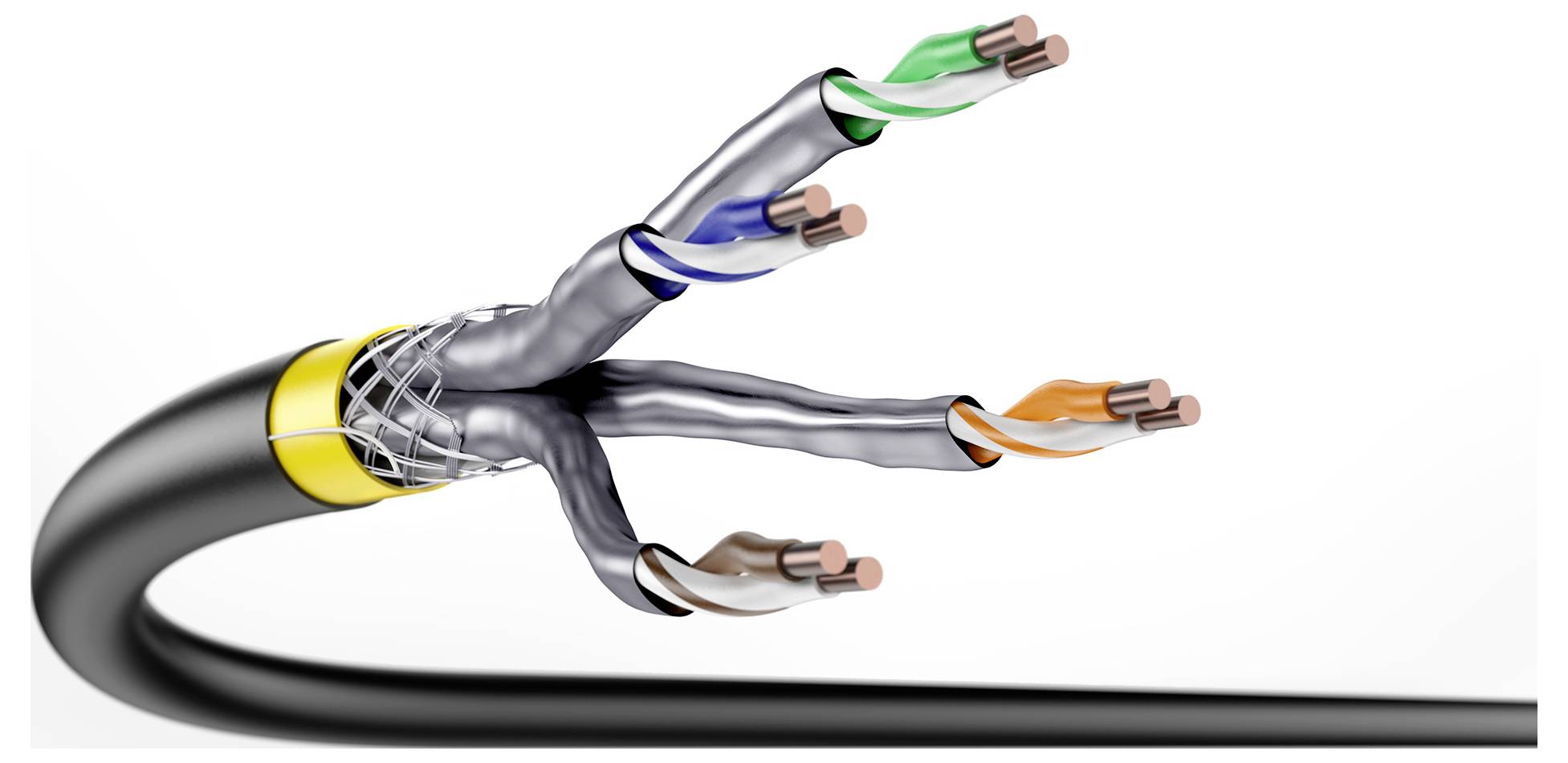

The Digitus® Professional CAT 7A S/FTP earth cable is characterized by the following cable structure made of 4x2x AWG22/1 and achieves a transmission frequency of up to 1500 MHz. The cable has a PE outer sheath and a halogen-free inner sheath and is compliant with standard IEC 60332-1, FRNC-B, LSZH-1 and the BauPVO Euroclass DCA. The cable is suitable for installations in dry or damp rooms, outdoors or in the ground. Conforms to the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.
