Digitus DK-1743-A-VH-10-LD Network cable CAT 7a S/FTP Yellow 1000 m
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 7a
Shielding
S/FTP
Cable type
S/FTP
No. of leads
8 x
Datasheet (PDF)
Highlights & Details

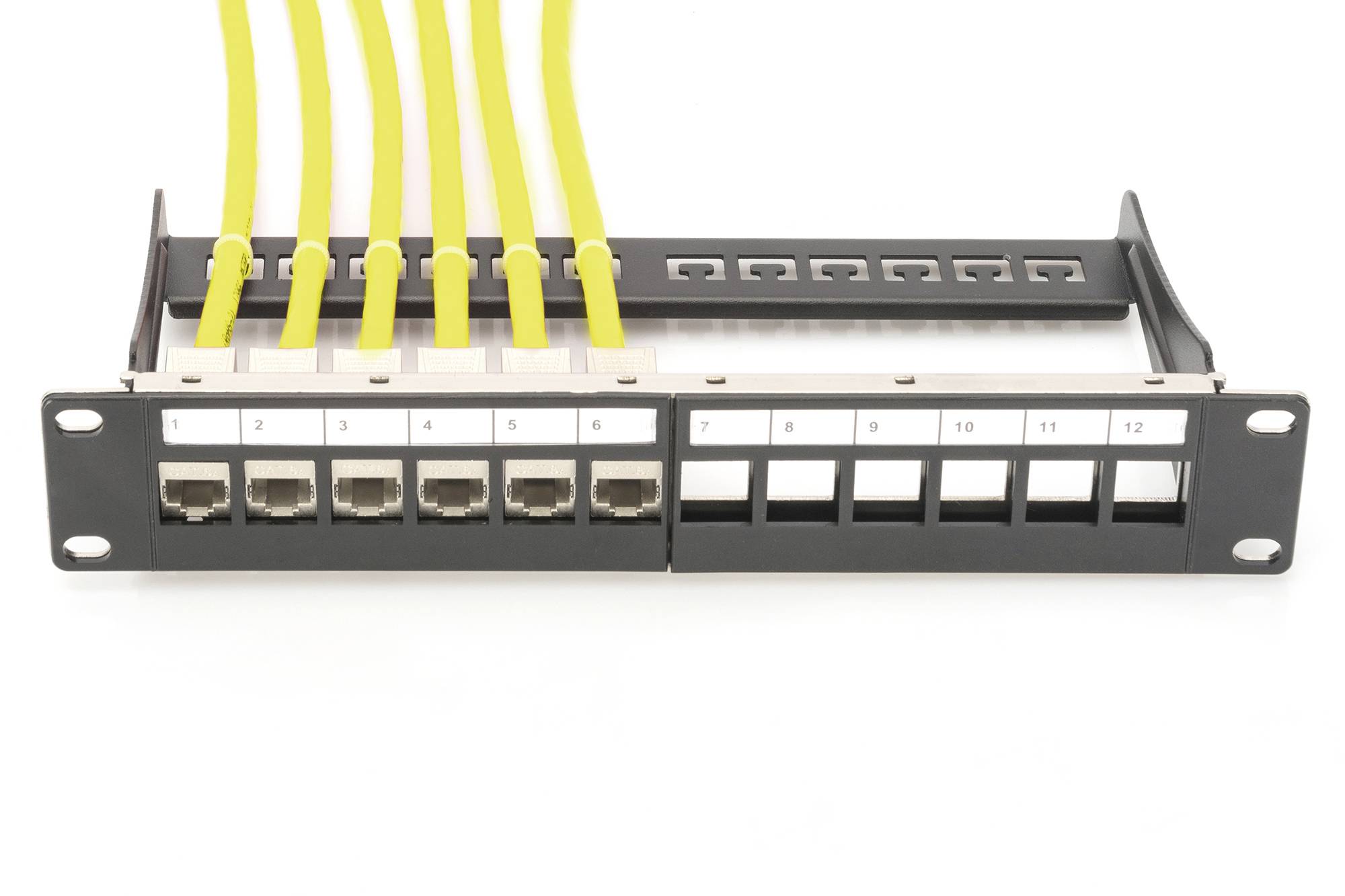

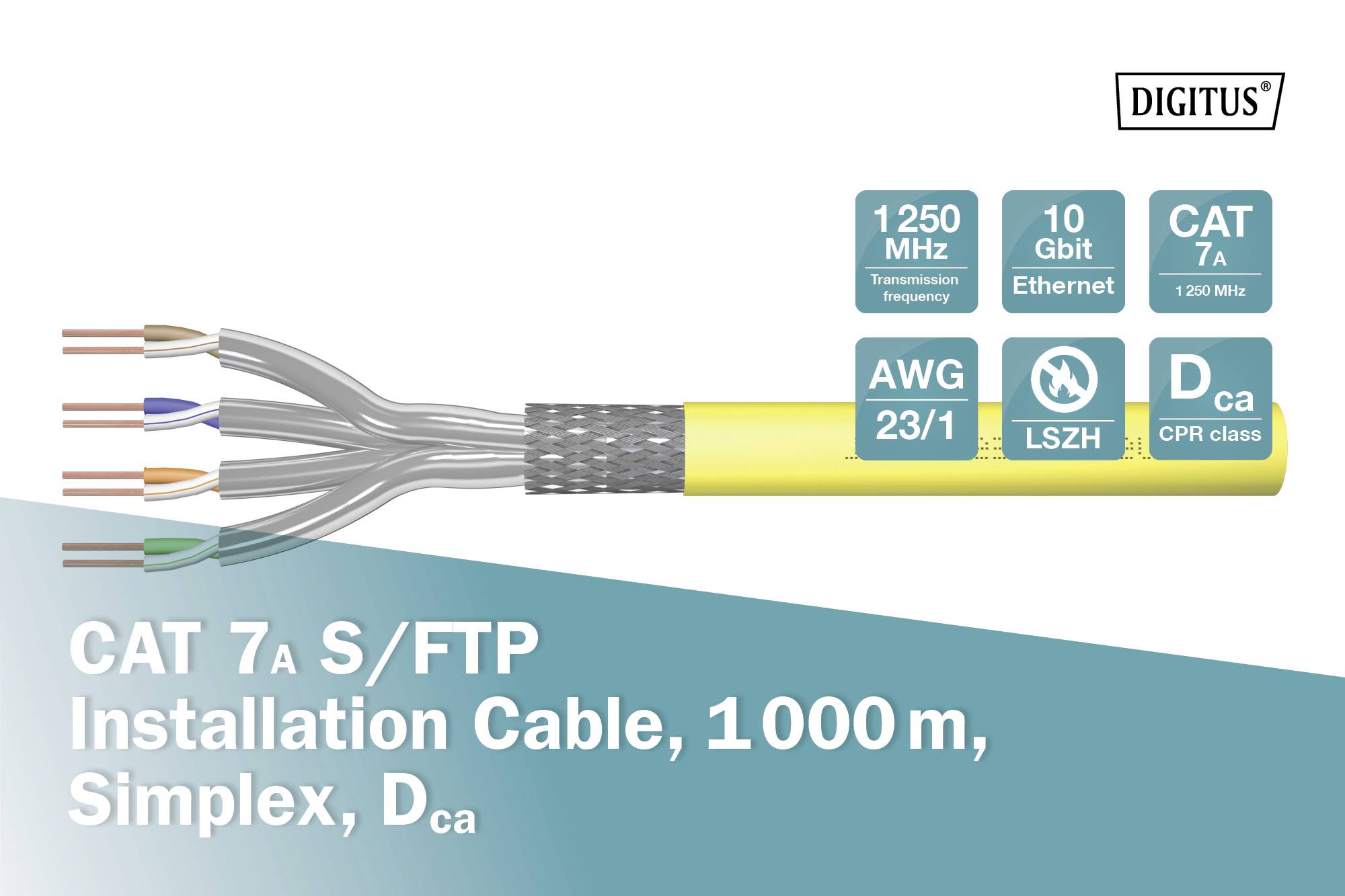

Digitus CAT 7A S/FTP laying cable, 1000 m, simple, DCA-S1A d1
- 10Gbit Ethernet
- 1250 MHz transmission frequency
- Permanent Link certified
Technical specifications

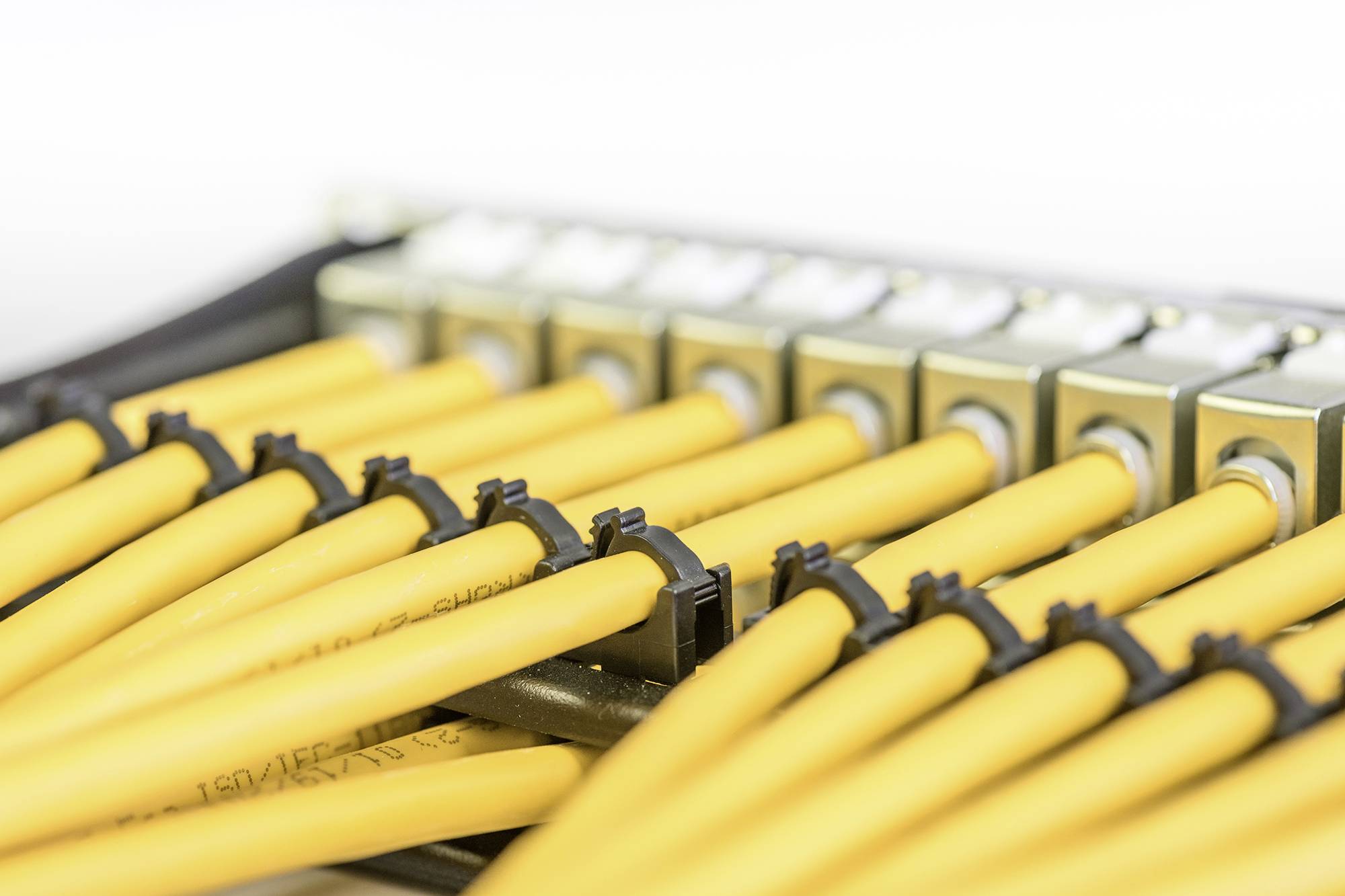

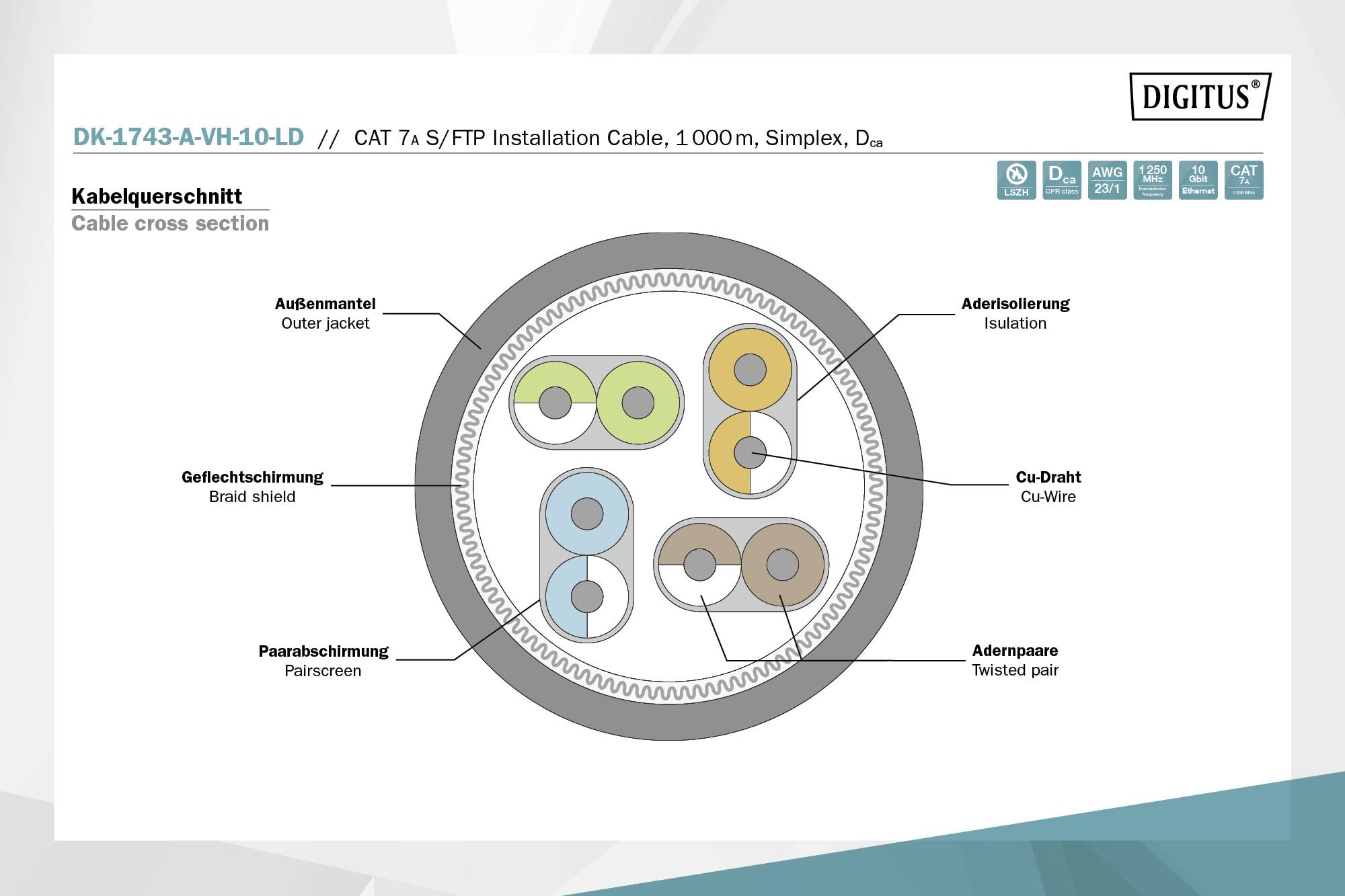

- Physical properties:
- Conductor: Plain copper wire, AWG 23/1
- System(s) for the evaluation and verification of performance stability: System 3
- Insulation: SFS-PE (foamed polyethylene sheath)
- Total number of insulated conductors: 8, twisted to 4 pairs
- Colour code: Blue-white, orange-white, green-white, brown-white
- Shielding of individual pairs: Aluminium laminated polyester film, covers 100%
- Overall shielding: Tin-plated copper braid
- Outer sheath: DCA-S1A d1 gem EN 50575; LSZH
- Outer sheath thickness (nominal): 0.60 mm (DCA); 0.60 mm (CCA)
- Outer sheath color: Yellow (RAL 1028)
- Mechanical properties:
- Tensile load: 150N max.
- Dynamic bend radius 8x AD mm min.
- Static bending radius 4x AD mm min.
- Operating temperature range: -20 °C to +60 °C
- Installation temperature range 0 to +50C
- External diameter (nominal): 7.8 mm (DCA); 7.8 mm (CCA)
- Weight (kg/km): 65 kg (DCA); 65 kg (Cca)
- Electrical properties:
- Impedance 100±5 Ohm @ 1-1250 MHz
- Capacity: 40 pF/m nominal @ 1 KHz
- Unbalance of capacity (pair ground): 1.6 pF/m max. @ 1 KHz
- Insulation resistance 5 GOhm x km min.
- Loop impedance: 147 x ohm/km (2% max. unbalanced resistance)
- Operating voltage 72 Vdc max.
- CA-Type 1b coupling damping
- Phase delay 450 nS/100 m max.
- Delay time 10 nS/100 m max.
- Separation class "d" after EN 50174-2
- NVP 75%
- FLAME RETARDANT IN EN 60332-1-2 (LSOH-PVC
- Halogen-free, corrosiveness EN 60754-1/2 (LSOH)
- Smoke density EN 61034-2
- Assortment: Twisted pair installation cable
- Category: CAT 7A
- Shielding: S-FTP, pairs in metal film and braid shielded
- BauPVO DCA

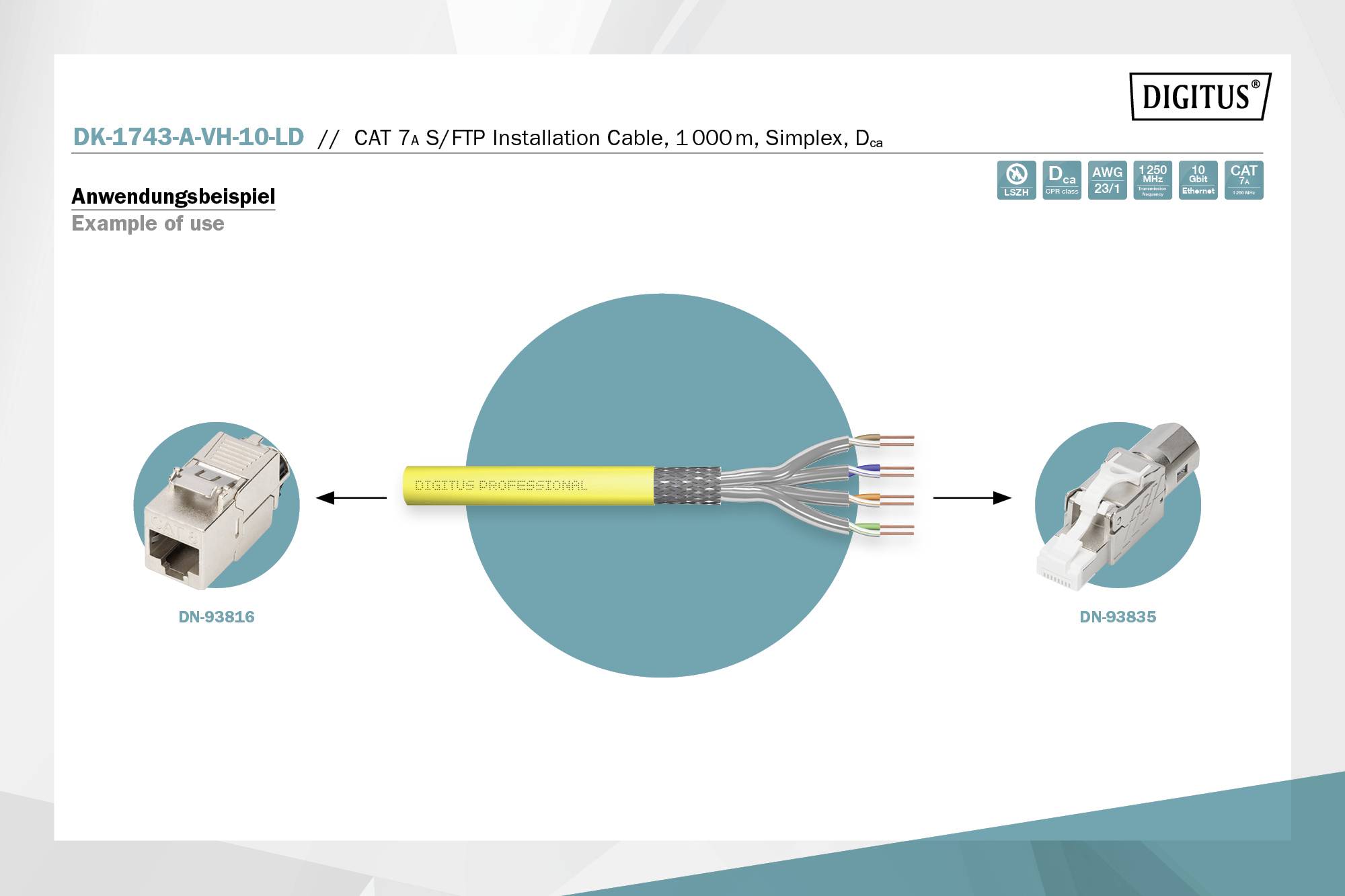

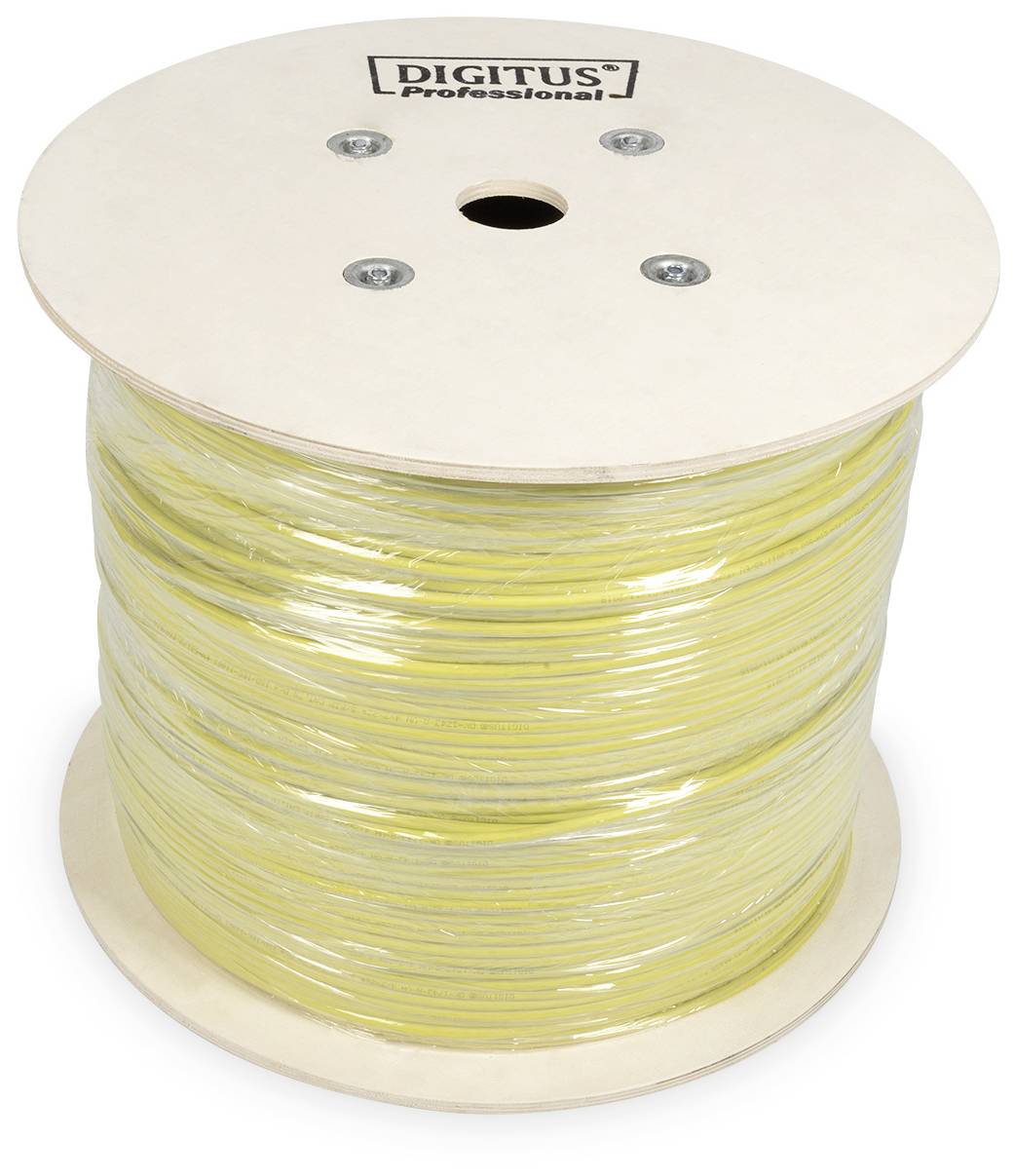

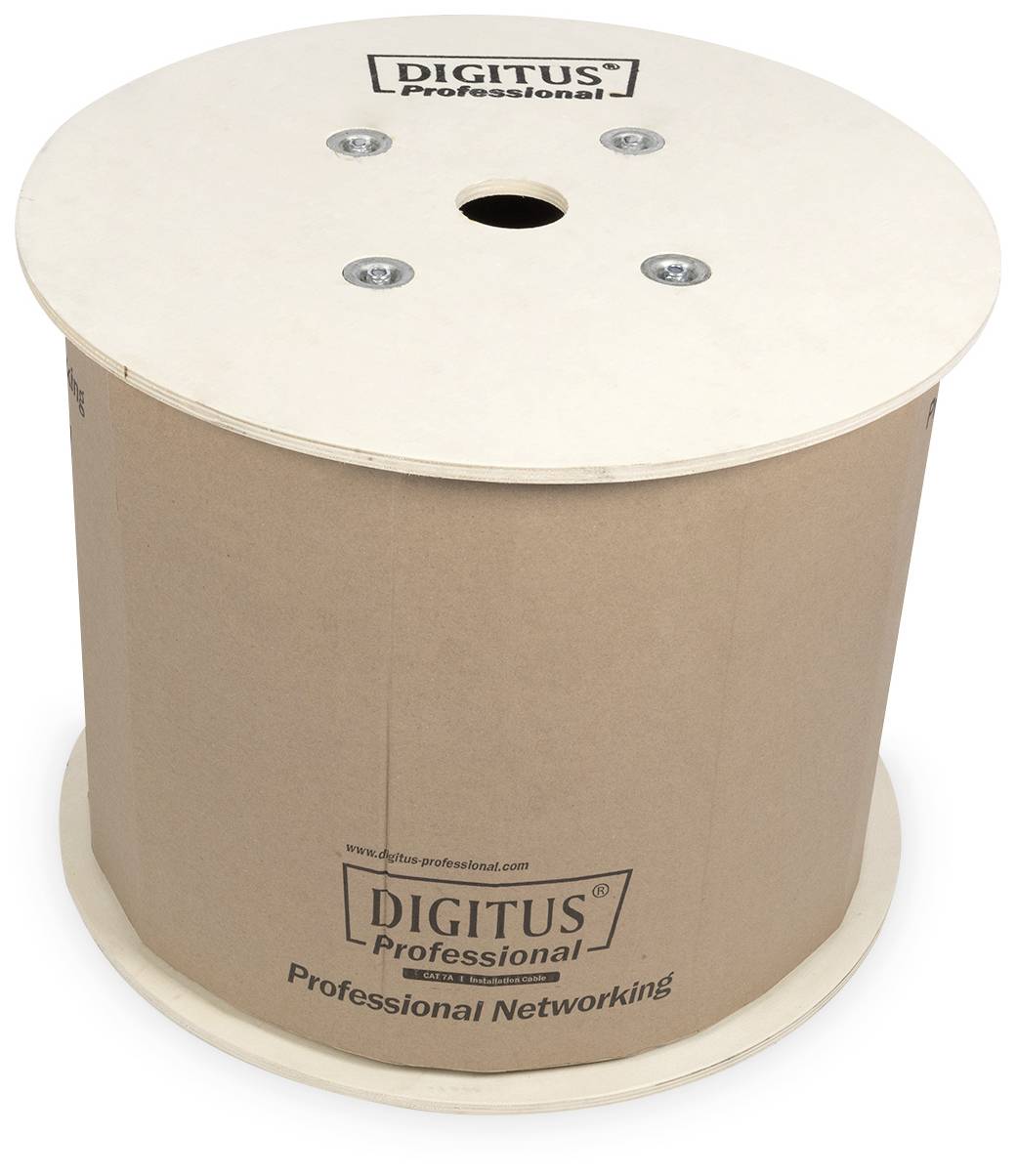

- Length: 1000 m
- Colour: Yellow

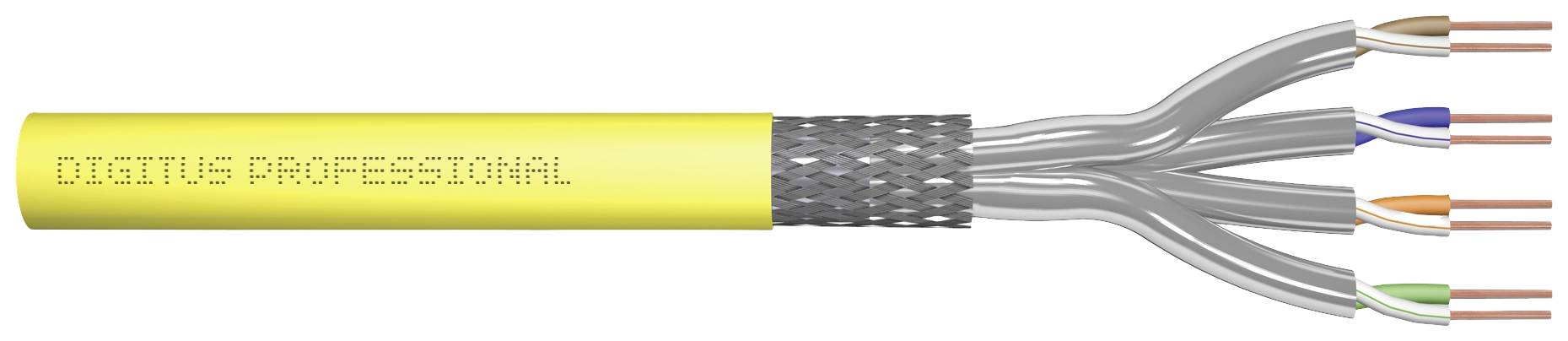

- Cable setup 4 x 2 AWG 23/1, solid twisted pair
- Sheath LSOH
- Product type
Network cable
CAT 7a
S/FTP
- Cable type
S/FTP
- No. of leads
8 x
- Cable features
Shielded
- Outside Ø
7.8 mm
- Factory colour
Yellow
- Content
1000 m
- AWG max.
23
- Packaged
No
- Sold per metre
Yes
- Manufacturer part #
DK-1743-A-VH-10-LD
- Type
DK-1743-A-VH-10-LD
- Insulation material
Aluminium
- Min. temperature range (flexible installation)
-20 °C
- Max. temperature range (flexible installation)
+60 °C
- Min. temperature range (fixed installation)
0 °C
- Max. temperature range (fixed installation)
+50 °C
- Halogen-free
Yes
- Max. length sold by the metre
1000 m
- Twisted pair cabling (part 1)
Yes (1)
Documents & Downloads

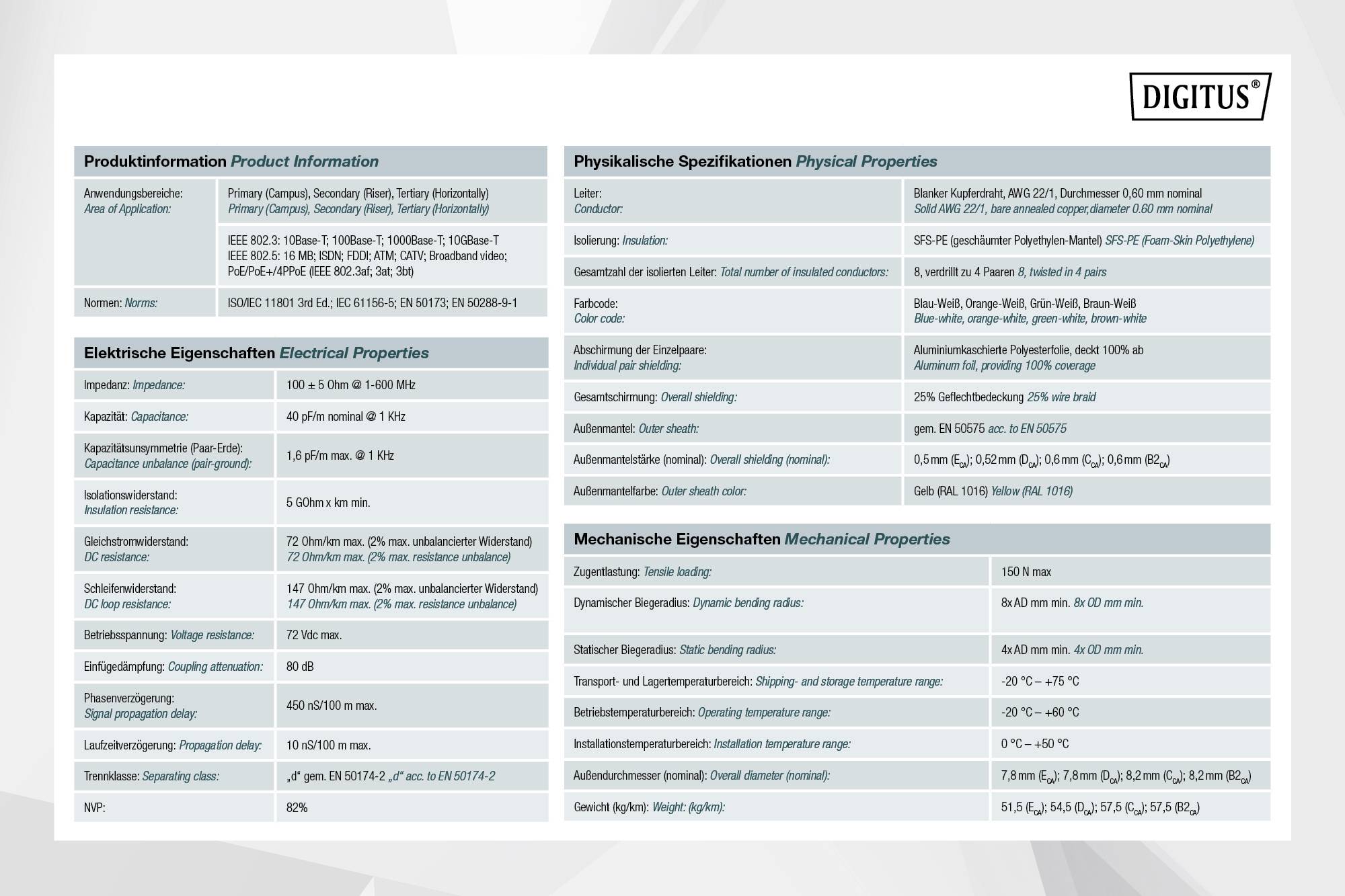

Datasheet
Datasheet 3028465 Digitus DK-1743-A-VH-10-LD Network cable CAT 7a S/FTP Yellow 1000 m
User & Safety Instructions
User & Safety Instructions 3028465 Digitus DK-1743-A-VH-10-LD Network cable CAT 7a S/FTP Yellow 1000 m
Description
The Digitus CAT 7A laying cable is designed for use in structured data processing center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is extremely suitable for the transmission of analogue and digital data and supports POE and POE+. The shield structure is made up of single shielded pairs with a tin-plated copper braid, which ensures excellent shielding and electrical values
This text is machine translated.
This text is machine translated.
Features
- PoE, PoE+, Power over Ethernet support
- BauPVO class DCA-S1A d1 a1
