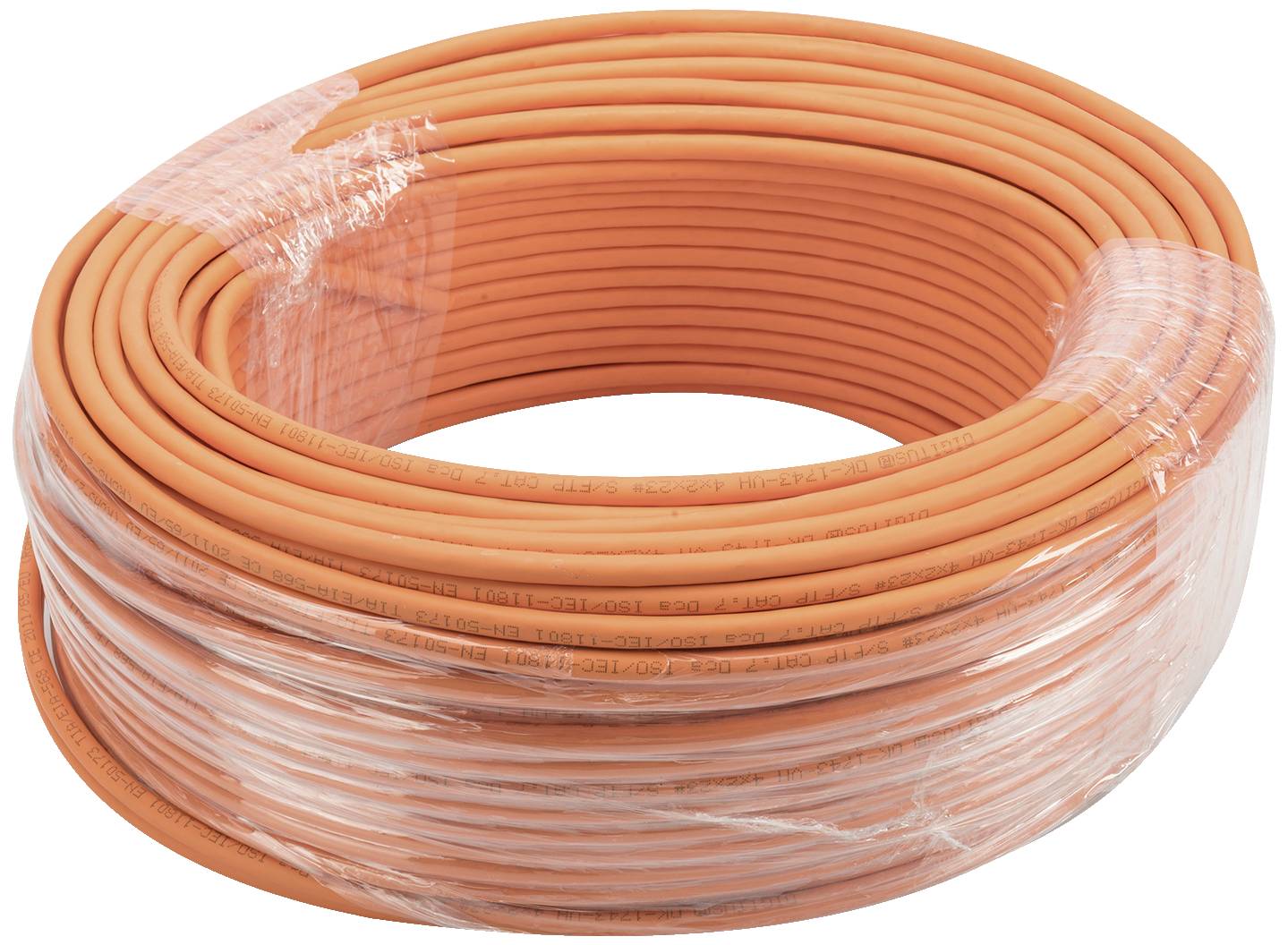

Digitus DK-1743-VH-025 Electrical wiring CAT 7 S/FTP Orange 25 m
EAN:
Part number:
Item no:
Product type
Electrical wiring
Specification
CAT 7
Shielding
S/FTP
No. of leads
8 x
Cable features
Flame-retardant
Simplex
twisted pairs
Halogen-free
Braided shield
Common shield
rigid core
Datasheet (PDF)

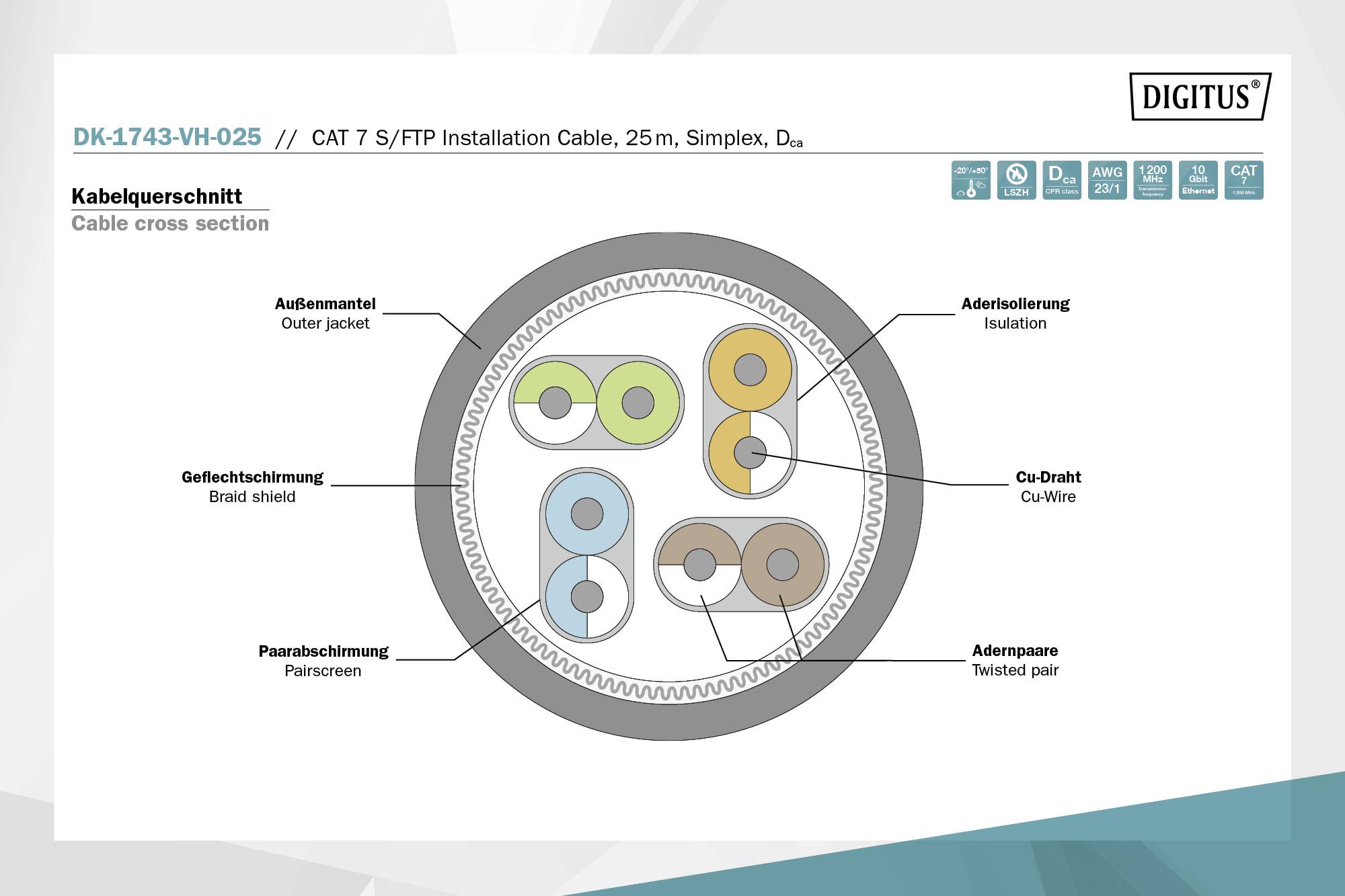

Digitus cat.7 S/FTP installation cable, 25 m, simplex, DCA-S1A, d0, a1
Highlights & Details

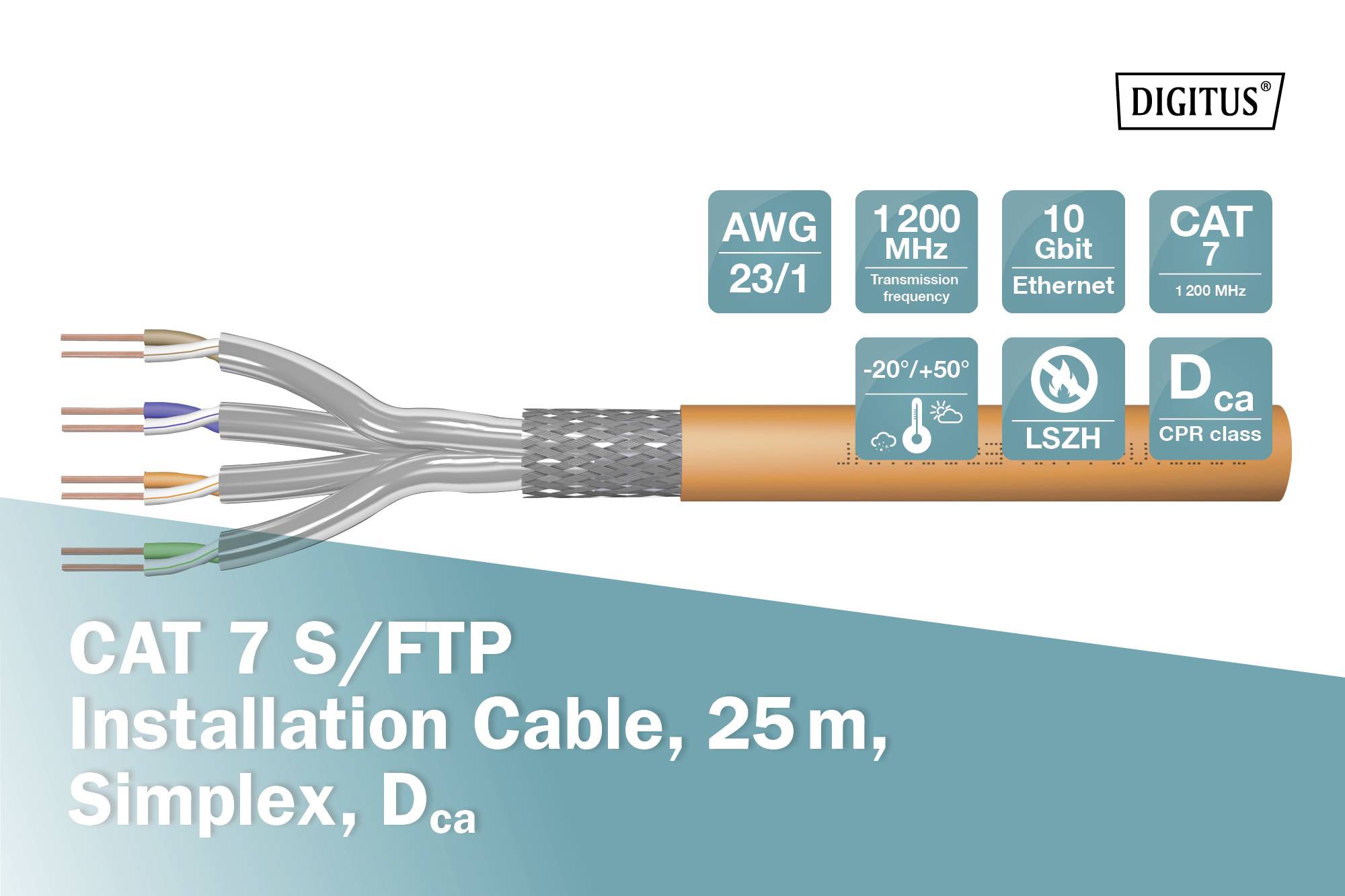

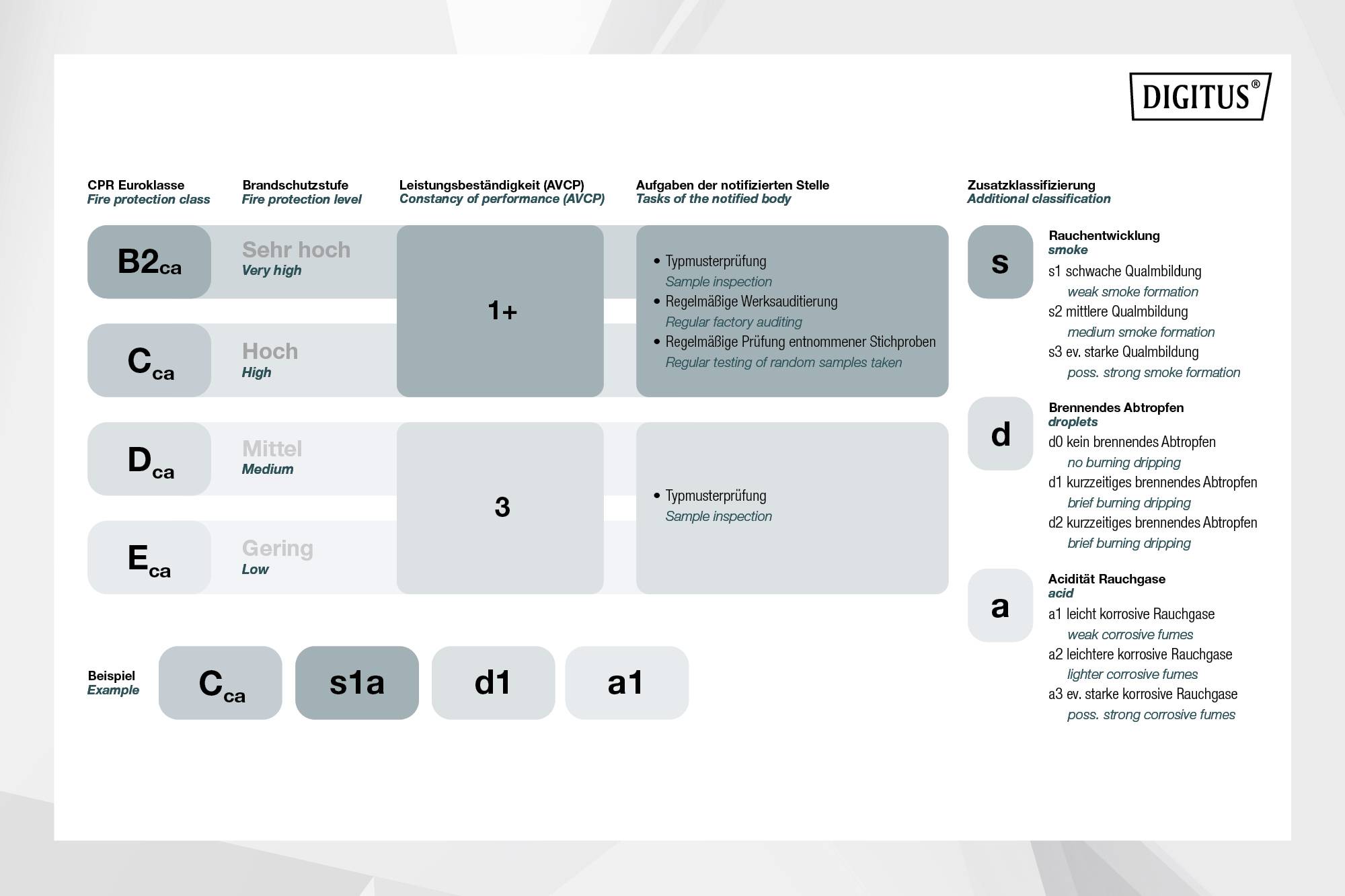

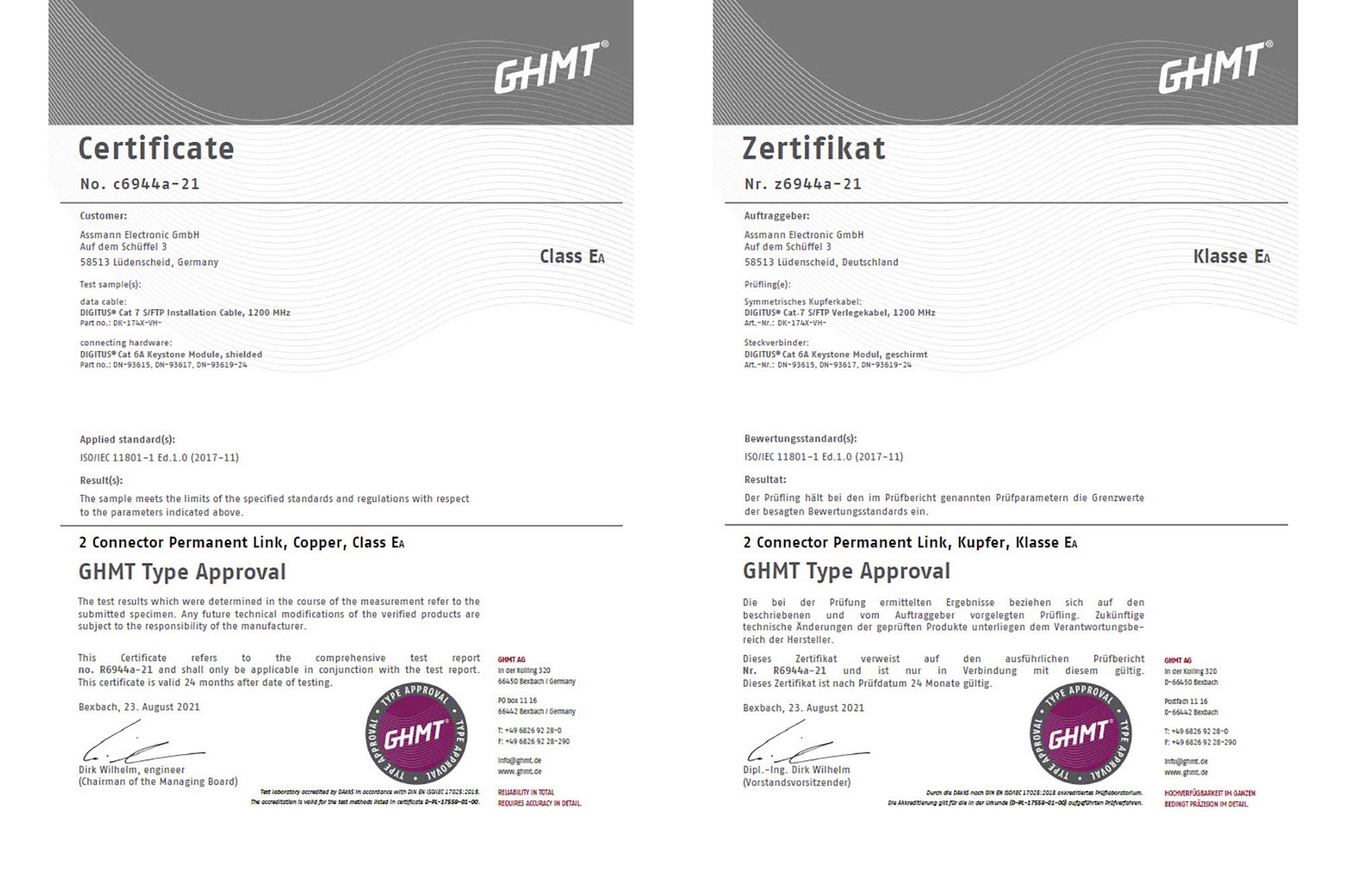

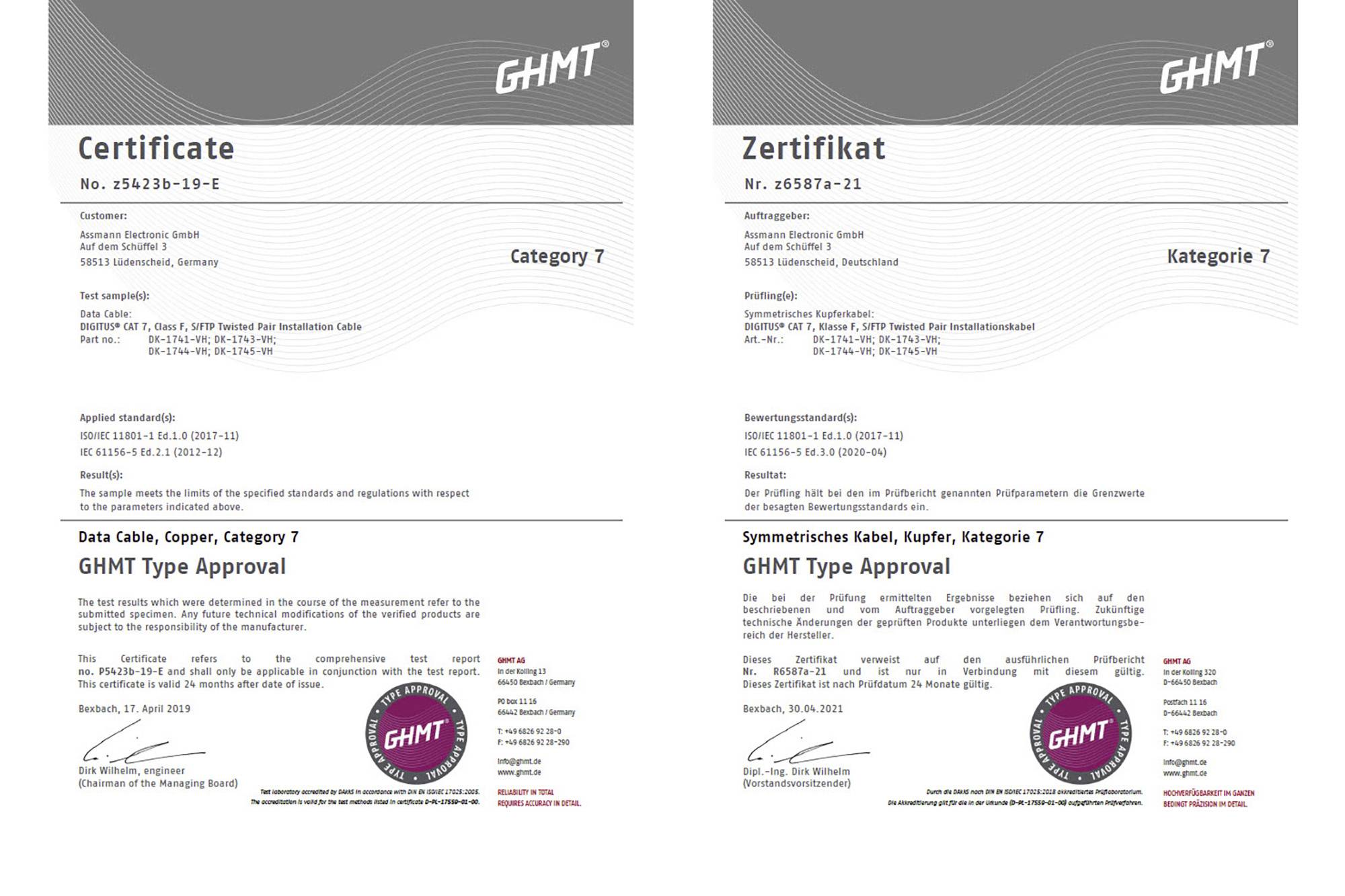

- FEATURES: Cat7 cable with 4x2 AWG 23/1 wire diameter 0.57 mm twisted pair copper conductors (Cu) - 1200 MHz bandwidth up to 10 Gb/s 10GBASE-T according to IEEE 802.3 - outside diameter 7.2 mm - Power over Ethernet (PoE, PoE+)QUALITY FEATURES: LAN cable is shielded (S/FTP shielding with PiMF, pair in metal foil) – Permanent Link GHMT certified – Standards: ISO/IEC 11801, IEC 61156-5, DIN EN 50173-1/4, DIN EN 50288-4-1, EN 60332-1-2, EN 60754-1/2, EN 61034-2, EN 50174-2FIRE PROTECTION: Data cable complies with the CPR Euroclass BAUPVO DCA S1A d1 according to EN 50575 – LSZH Halogen-free Flame-resistant Low smoke – With SFS-PE outer sheath polyethylene (0.52 mm thickness) Colour orange (RAL 2000)

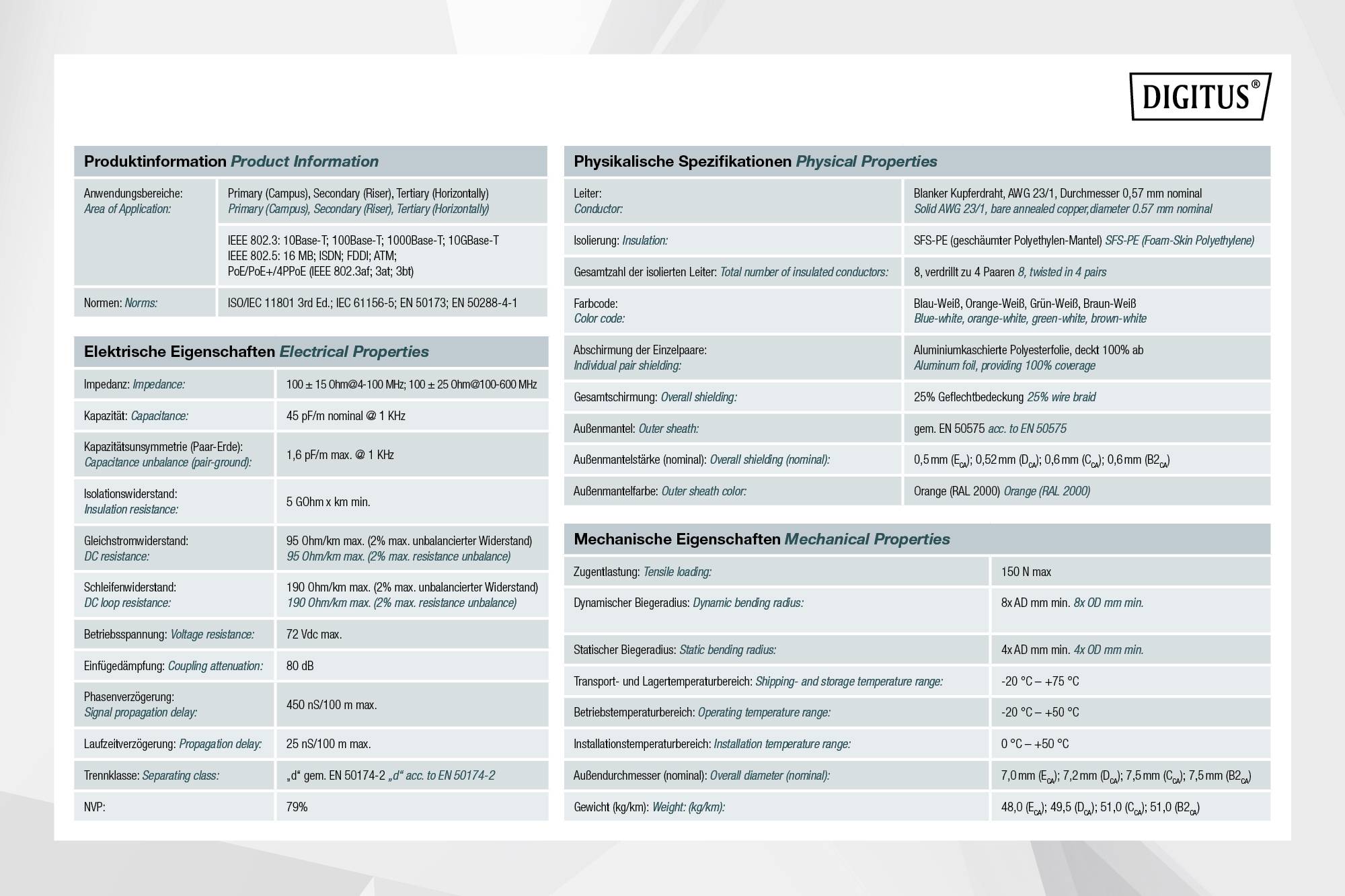

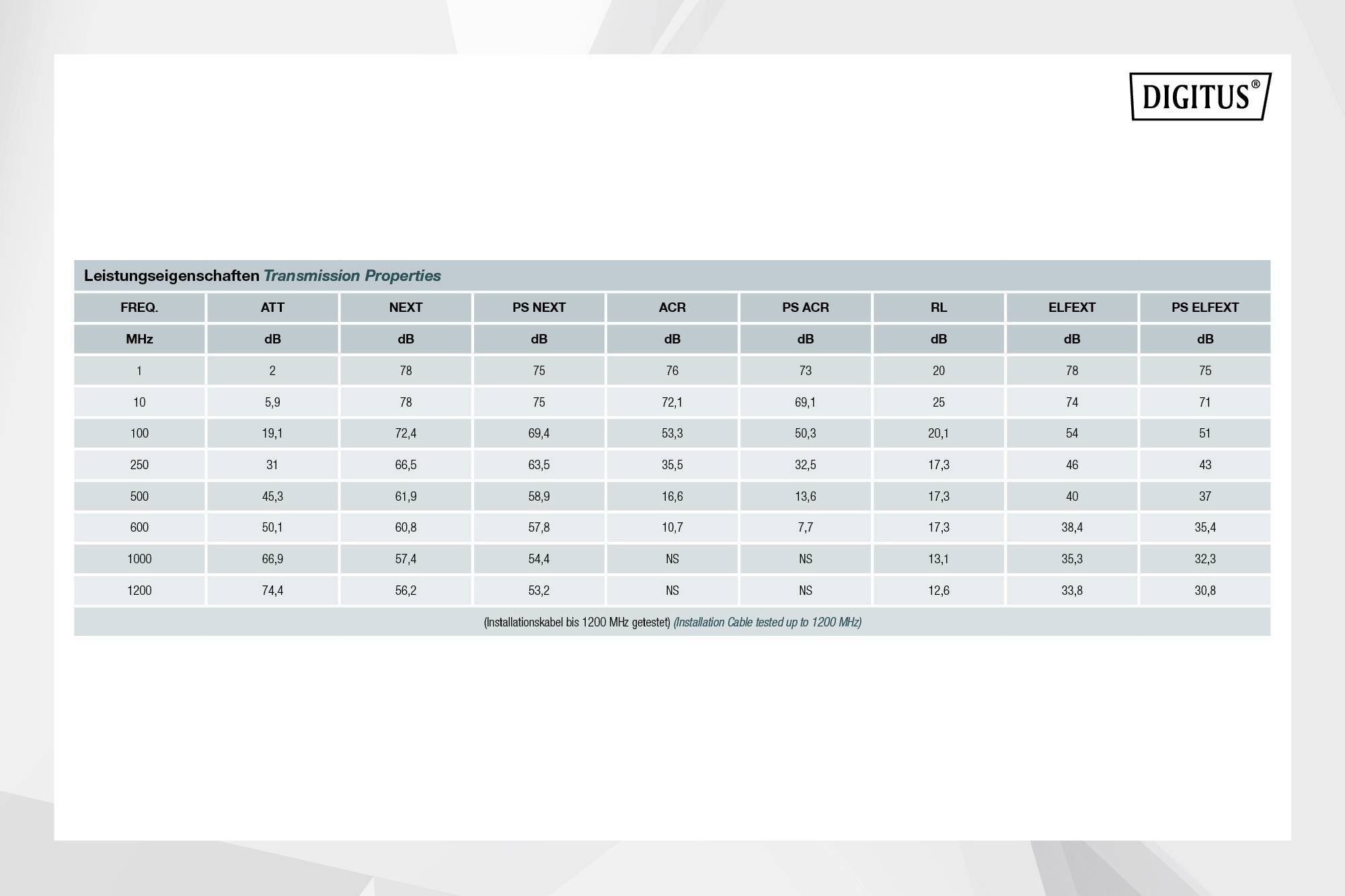

Technical specifications

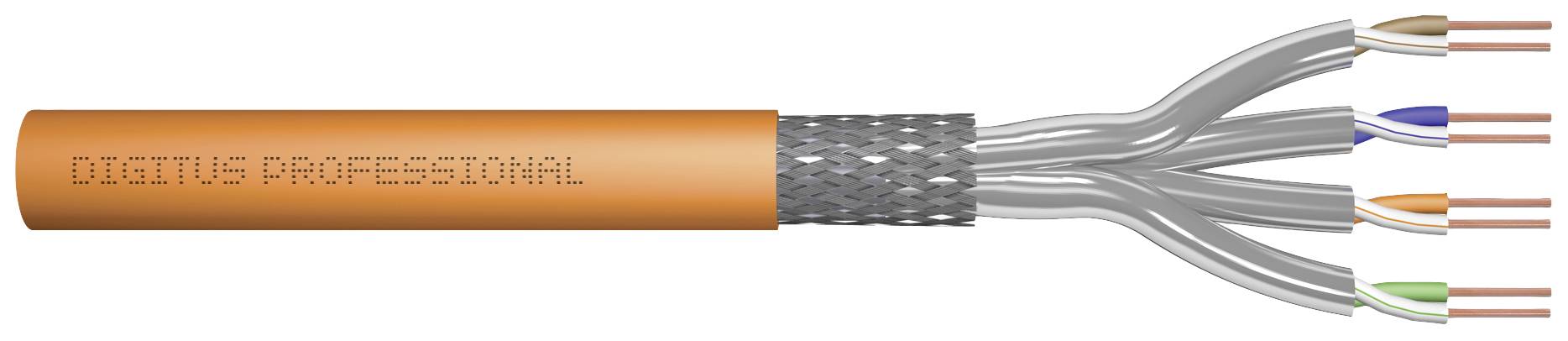

- Conductor: Plain copper wire, AWG 23/1Insulation: SFS-PE (foamed polyethylene sheath)Total number of insulated conductors: 8, twisted to 4 pairsColour code: Blue-white, orange-white, green-white, brown-whiteShielding of individual pairs: Aluminium laminated polyester film, covers 100%Overall shielding: Copper braidOuter sheath: ECA to B2ca gem EN 50575; LSZHOuter sheath thickness (nominal): 0.50 mm (ECA); 0.52 mm (DCA); 0.60 mm (Cca); 0.60 (B2ca)Colour orange (RAL 2000)Mechanical properties:Strain relief max. 150NDynamic bend radius 8x AD mm min.Static bending radius 4x AD mm min.Transport and storage temperature range --20°C to +75°C.Operating temperature range: -20 °C to +50 °CInstallation temperature range -0°C to +50°C.External Diameter Simplex (nominal): 7.0 mm (ECA); 7.2 mm (DCA); 7.5 mm (Cca); 7.5 mm (B2ca)Weight (kg/km): 49.5 kg (ECA); 51 kg (DCA), 53 kg (Cca); 53 kg (B2ca)Electrical properties:Impedance: 100±15 ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHzCapacity: 45pF/m nom. At 1 kHzCapacity: 40 pF/m nominal @ 1 KHzInsulation resistance 5 GOhm x km min.DC resistance: Max. 95 Ohm/km (2% max. unbalanced resistance)Loop impedance: 190 x ohm/km (2% max. unbalanced resistance)Operating voltage 72 Vdc max.CA-Type 1b coupling dampingPhase delay 450 nS/100 m max.Delay time 10 nS/100 m max.Separation class "d" after EN 50174-2NVP 79%Assortment: Twisted pair installation cableLength: 25 mCategory: CAT 7Colour: orange.CPR DCASheath LSOHShielding: S-FTP, pairs in metal film and braid shieldedCable setup 4 x 2 AWG 23/1, solid twisted pairAssortment: Twisted pair installation cableCategory: CAT 7Shielding: S-FTP, pairs in metal film and braid shieldedBauPVO DCALength: 25 mColour: orange.Cable setup 4 x 2 AWG 23/1, solid twisted pairSheath LSOH
- Product type
Electrical wiring
CAT 7
S/FTP
- No. of leads
8 x
- Cable features
Flame-retardant
Simplex
twisted pairs
Halogen-free
Braided shield
Common shield
rigid core
- Outside Ø
72 mm
- Factory colour
Orange
- Content
25 m
- AWG max.
23
- Sold per metre
No
- Manufacturer part #
DK-1743-VH-025
- Type
DK-1743-VH-025
- Insulation material
Film
- Halogen-free
Yes
- Twisted pair cabling (part 1)
Yes (1)
Documents & Downloads
Datasheet
Datasheet 2734671 Digitus DK-1743-VH-025 Electrical wiring CAT 7 S/FTP Orange 25 m
User & Safety Instructions
User & Safety Instructions 2734671 Digitus DK-1743-VH-025 Electrical wiring CAT 7 S/FTP Orange 25 m
Description
The Digitus® Cat.7 S/FTP laying cable is characterized by the following cable structure of 4x2x AWG23/1 and achieves a transmission frequency of up to 1200 MHz. This halogen-free cable jacket complies with the standards IEC 60332-3-24, FRNC-C, LSZH-3 and BauPVO Euroclass DCA. The cable is suitable for the structured building wiring in the secondary and tertiary area. Conforms to the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.
This text is machine translated.
This text is machine translated.

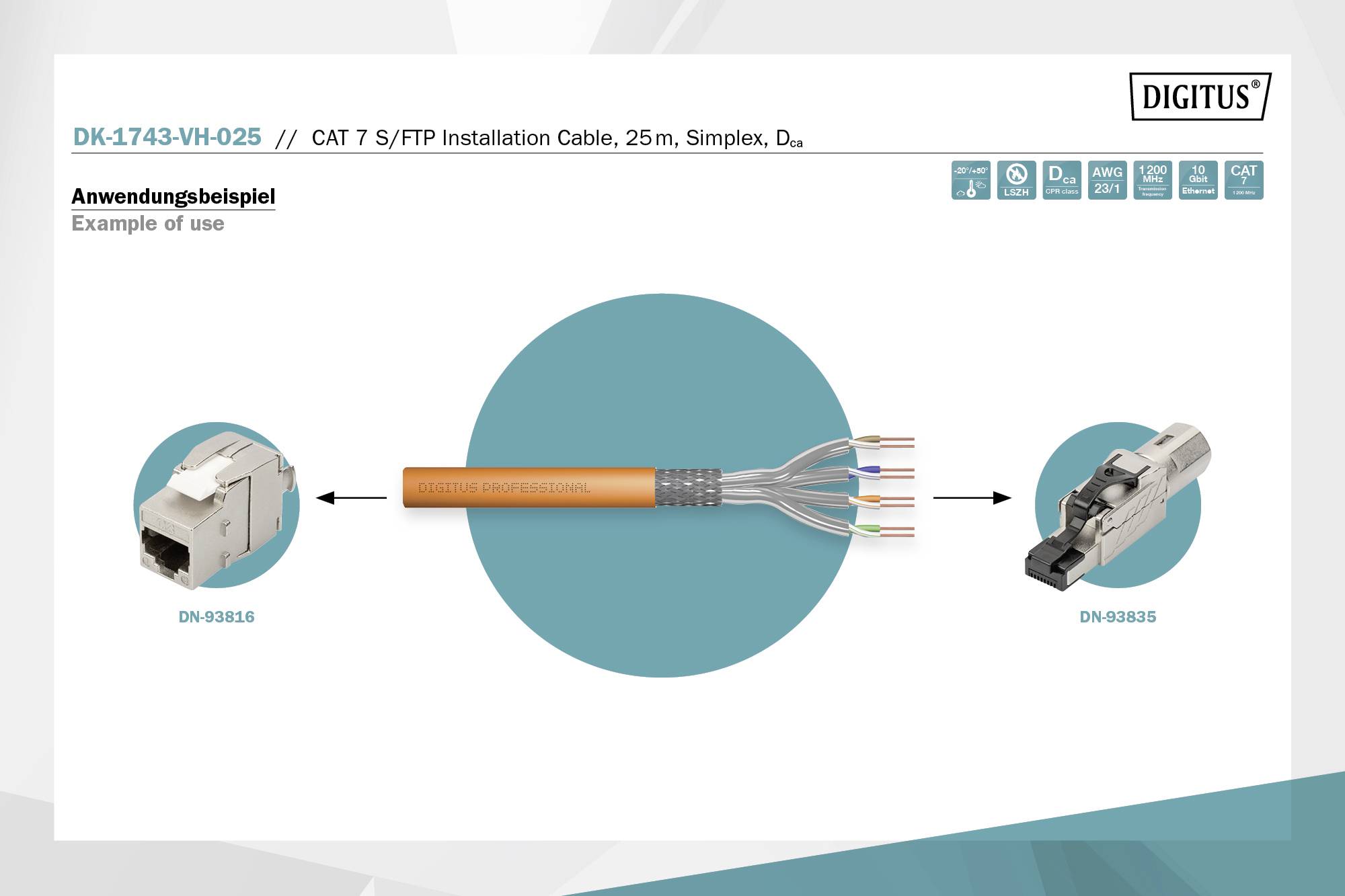

Features
