Buy Digitus DK-1745-VH-10 Electrical wiring CAT 7 S/FTP Orange 1000 m

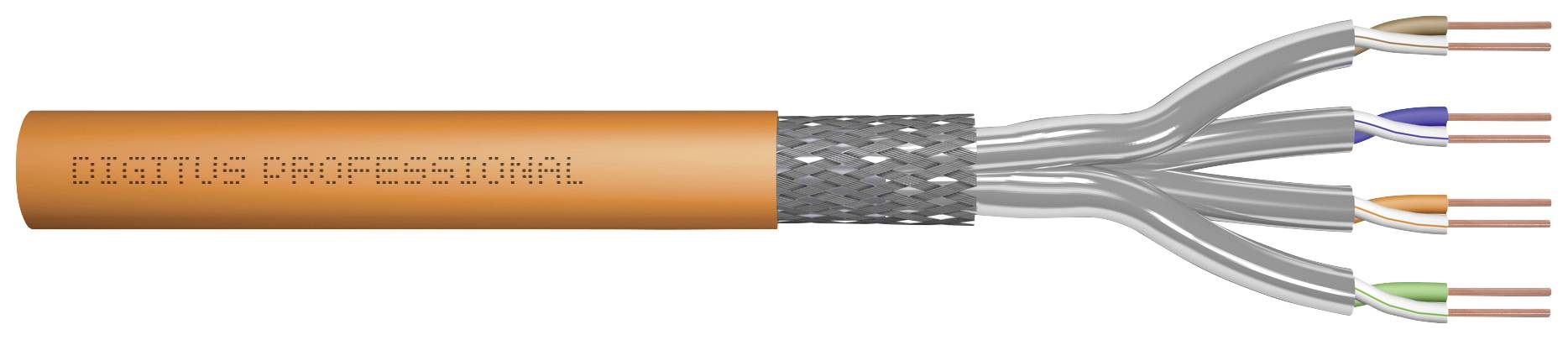

An orange cable labelled 'Digitus Professional', containing four shielded wires in green, blue, white and brown.

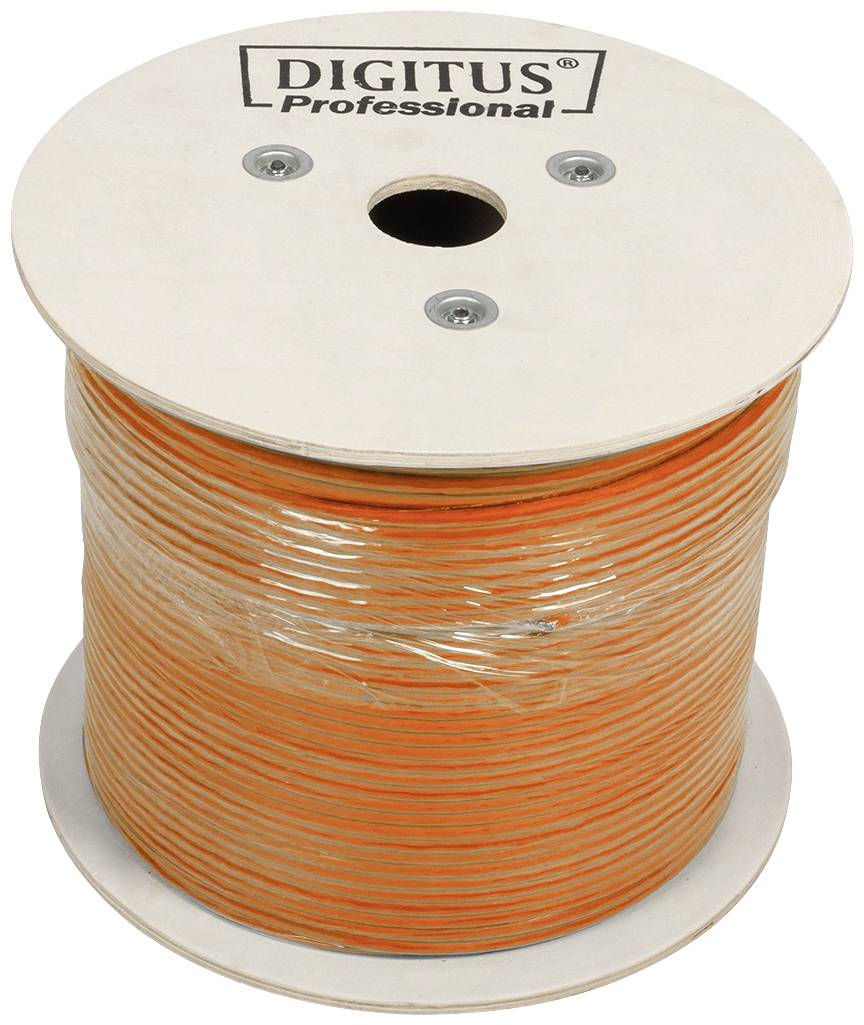

A large, round cable reel with orange cable; marked with 'Digitus Professional' on the top surface.

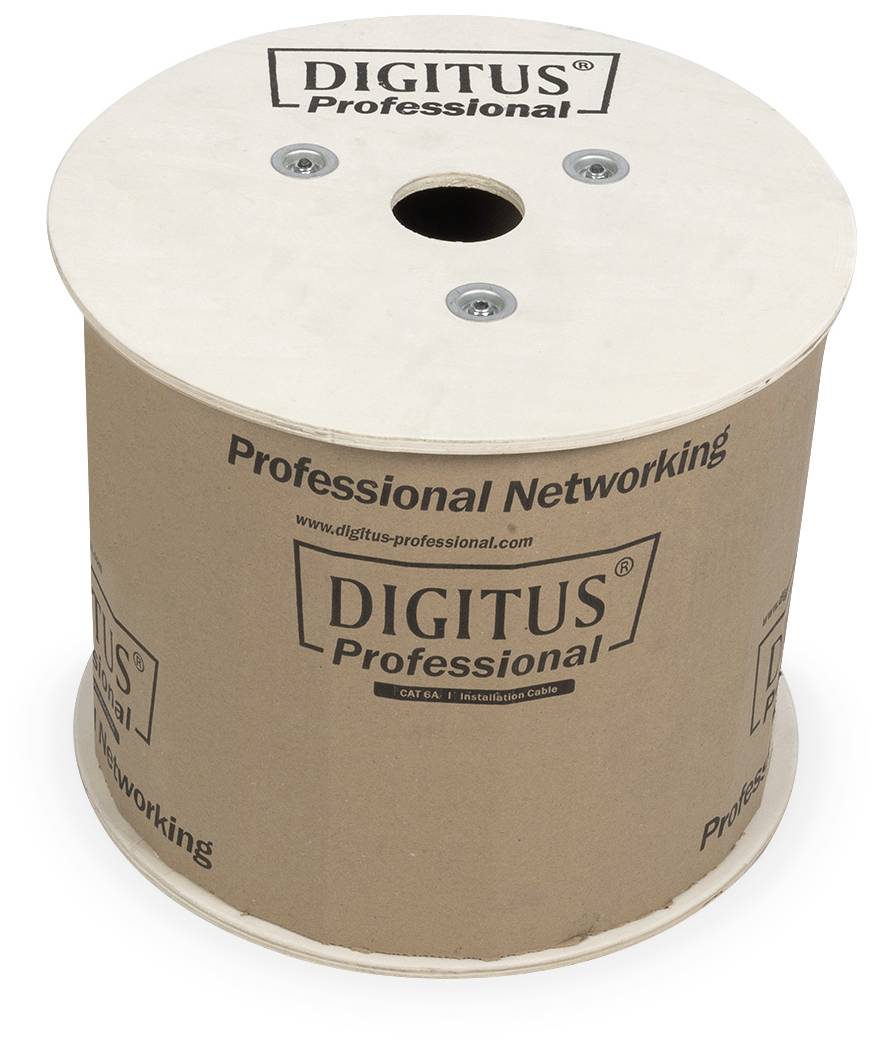

A large cable reel with the inscription 'DIGITUS Professional' and 'Professional Networking', manufactured from wood and cardboard.

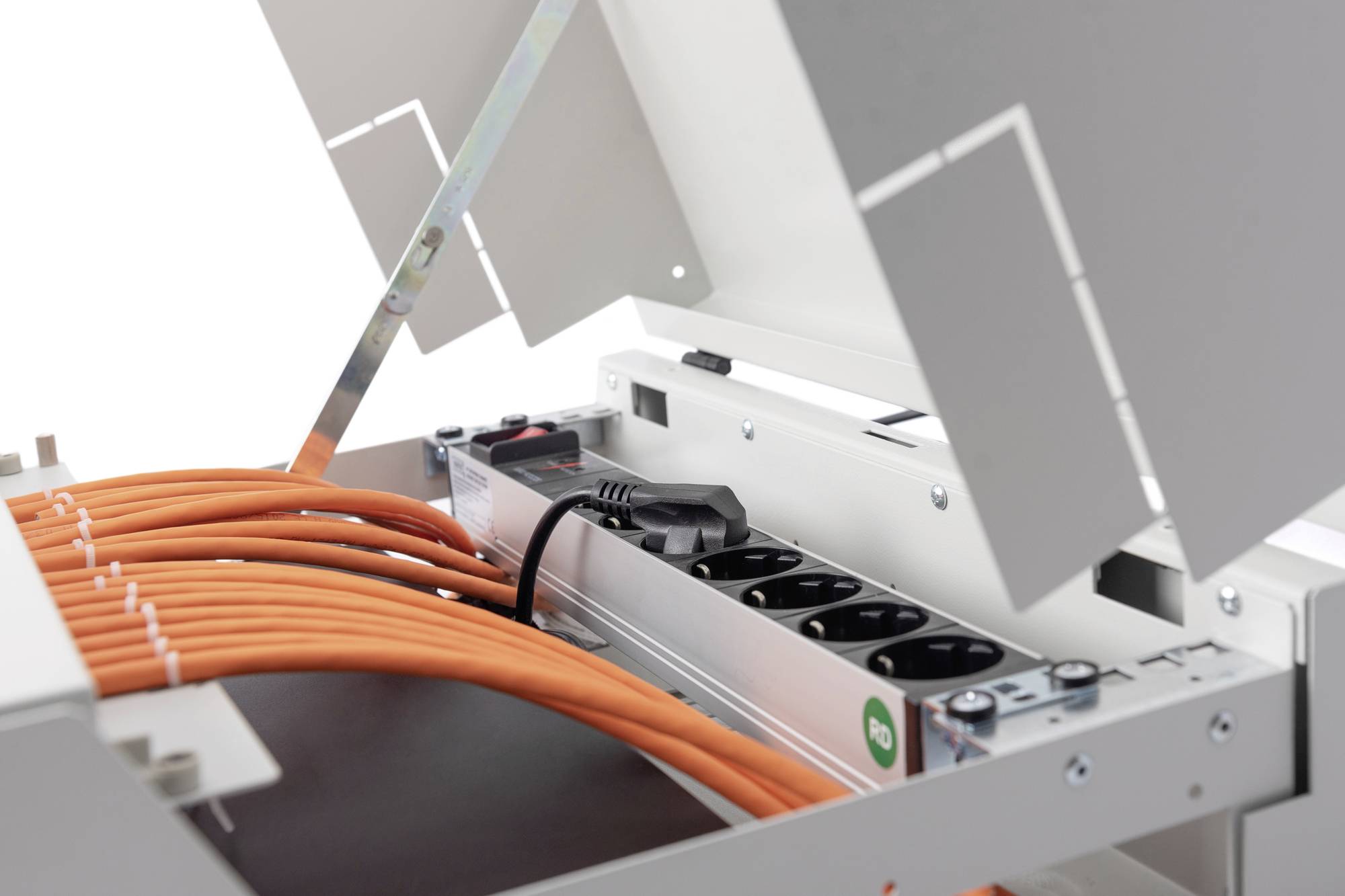

An open cable trunking with several orange cables leading into a multi-socket power strip.

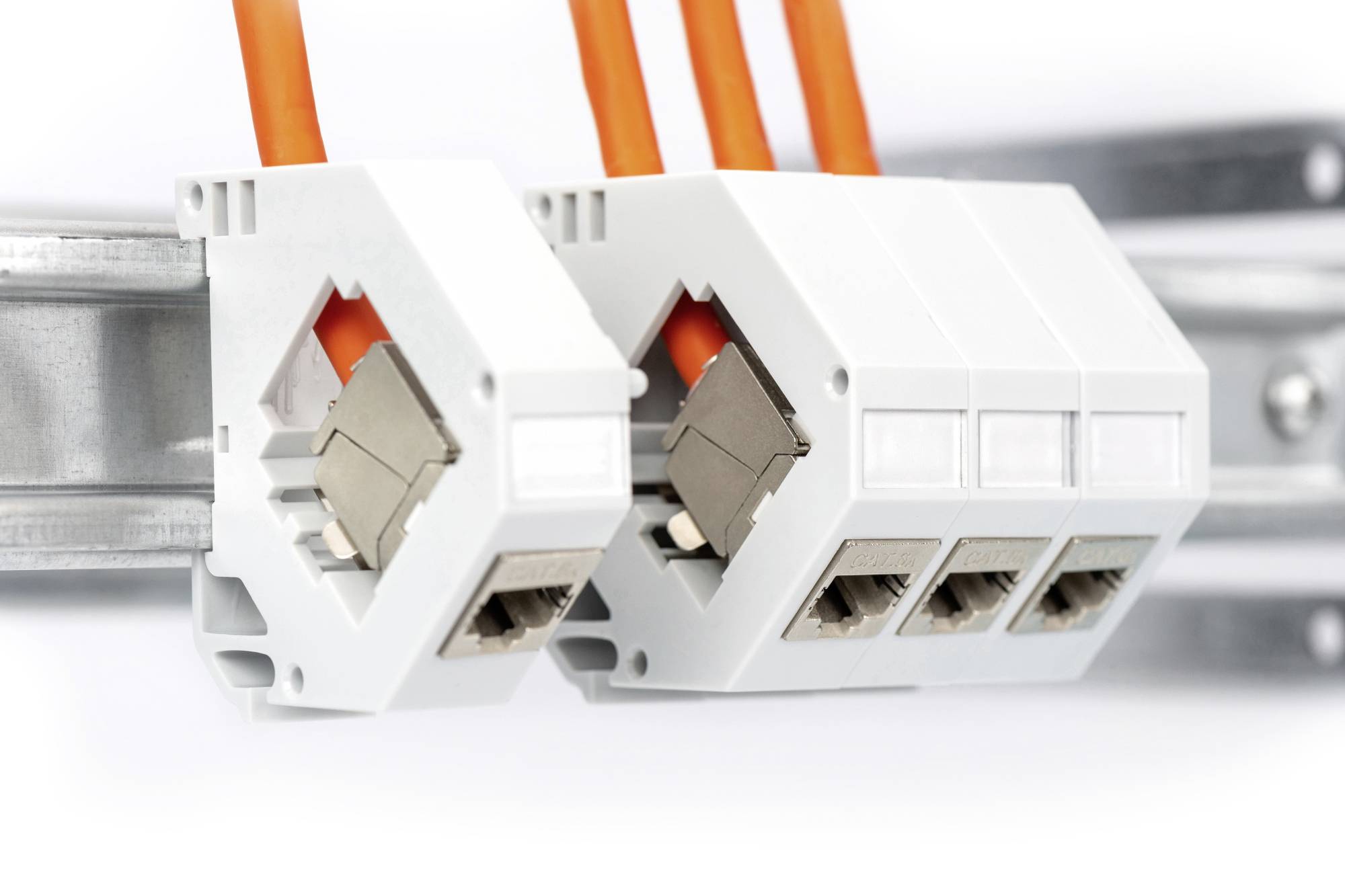

Two electrical plug connections with orange cables mounted on a metal rail.

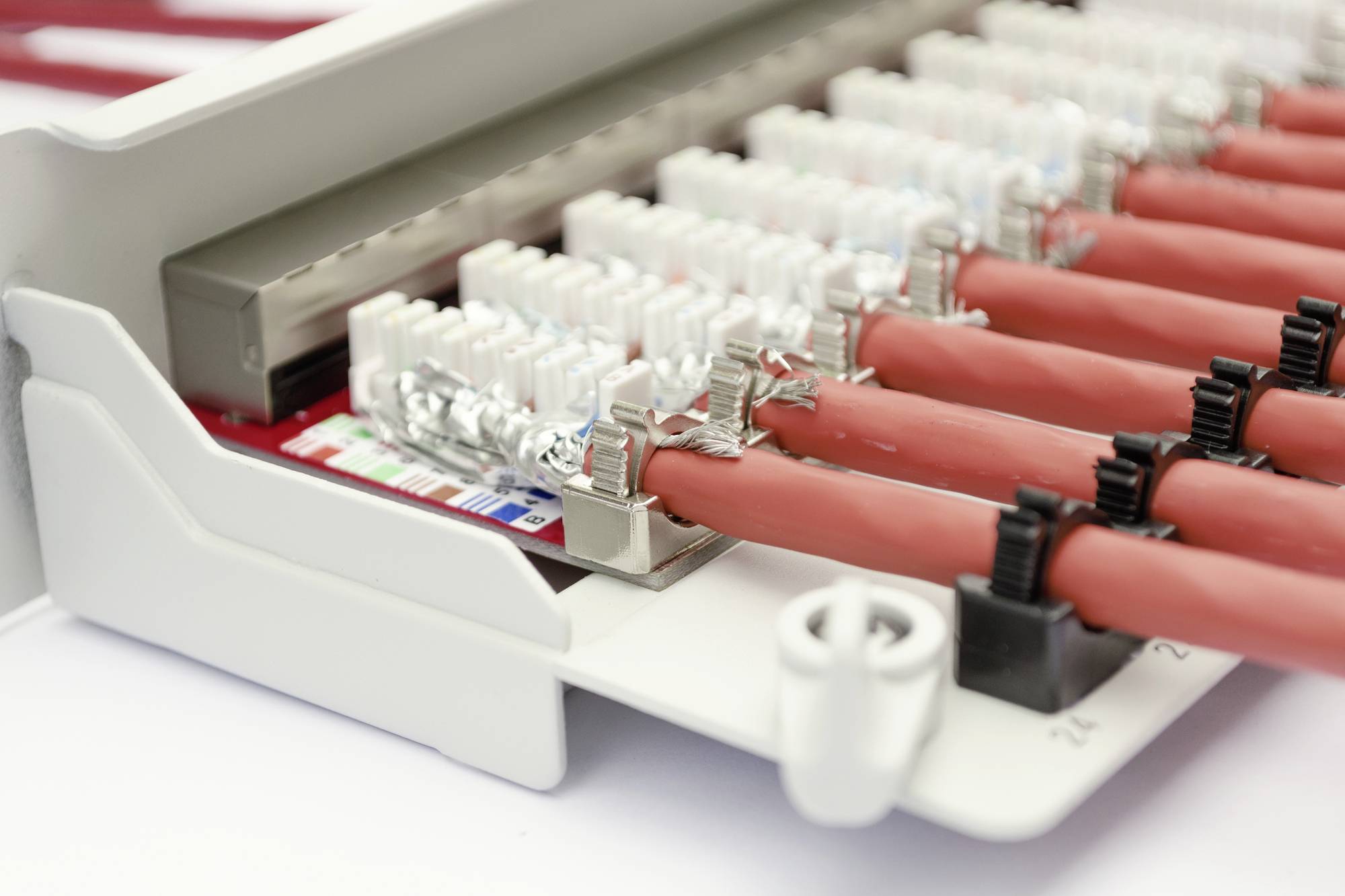

A telecommunications distributor with red cables and white connection terminals shows the wiring for network connections.

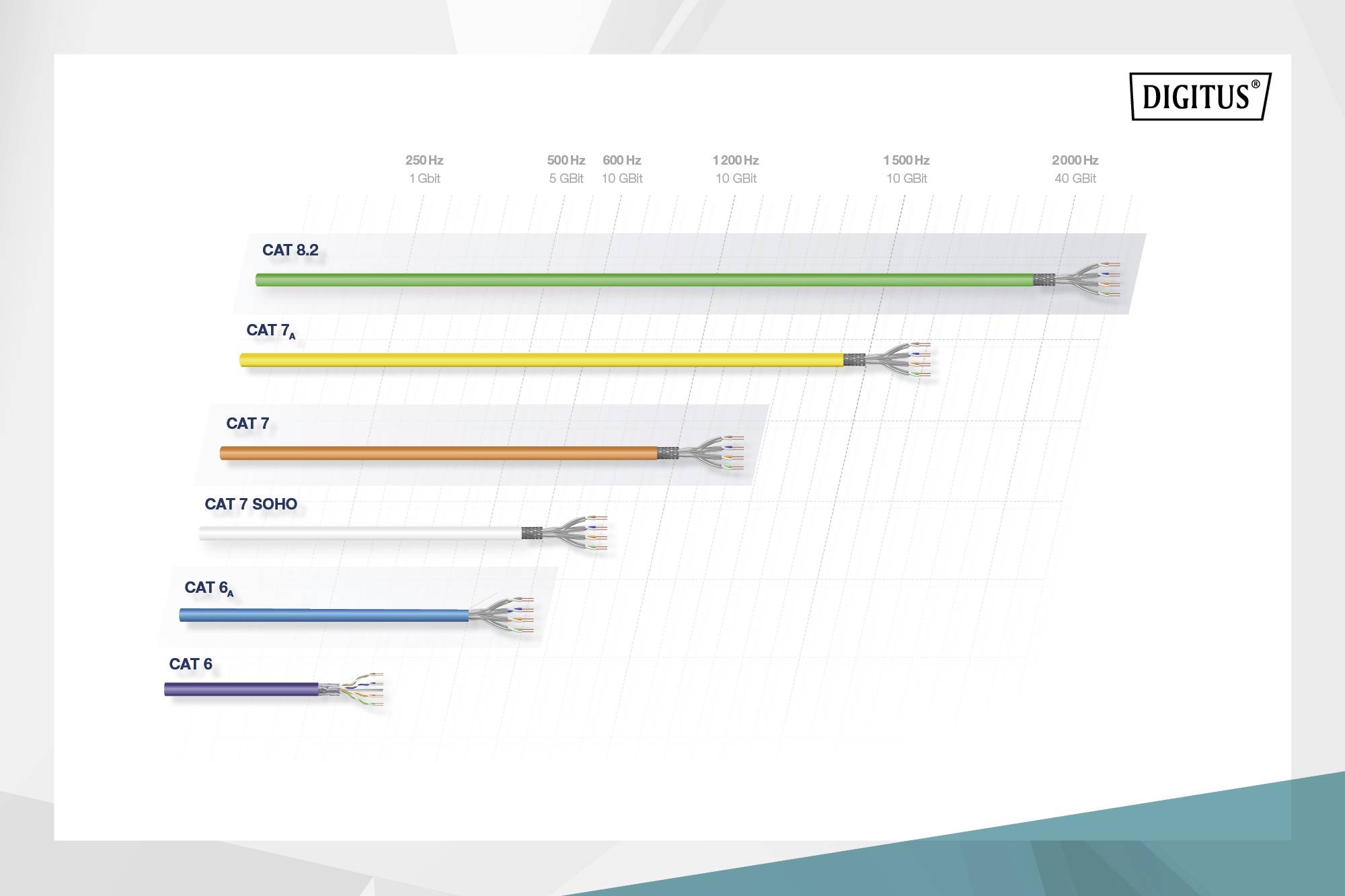

'Diagram shows various network cables: CAT 8.2 to CAT 6. Length and frequencies range from 250MHz to 2000MHz, bandwidth: 1 Gbps to 40 Gbps.'

CAT 7 S/FTP Installation Cable, 1000m, Simplex, B2ca, Suitable for Ethernet with 1200 MHz and 10 Gbit, -20°C to 50°C, Halogen-Free.

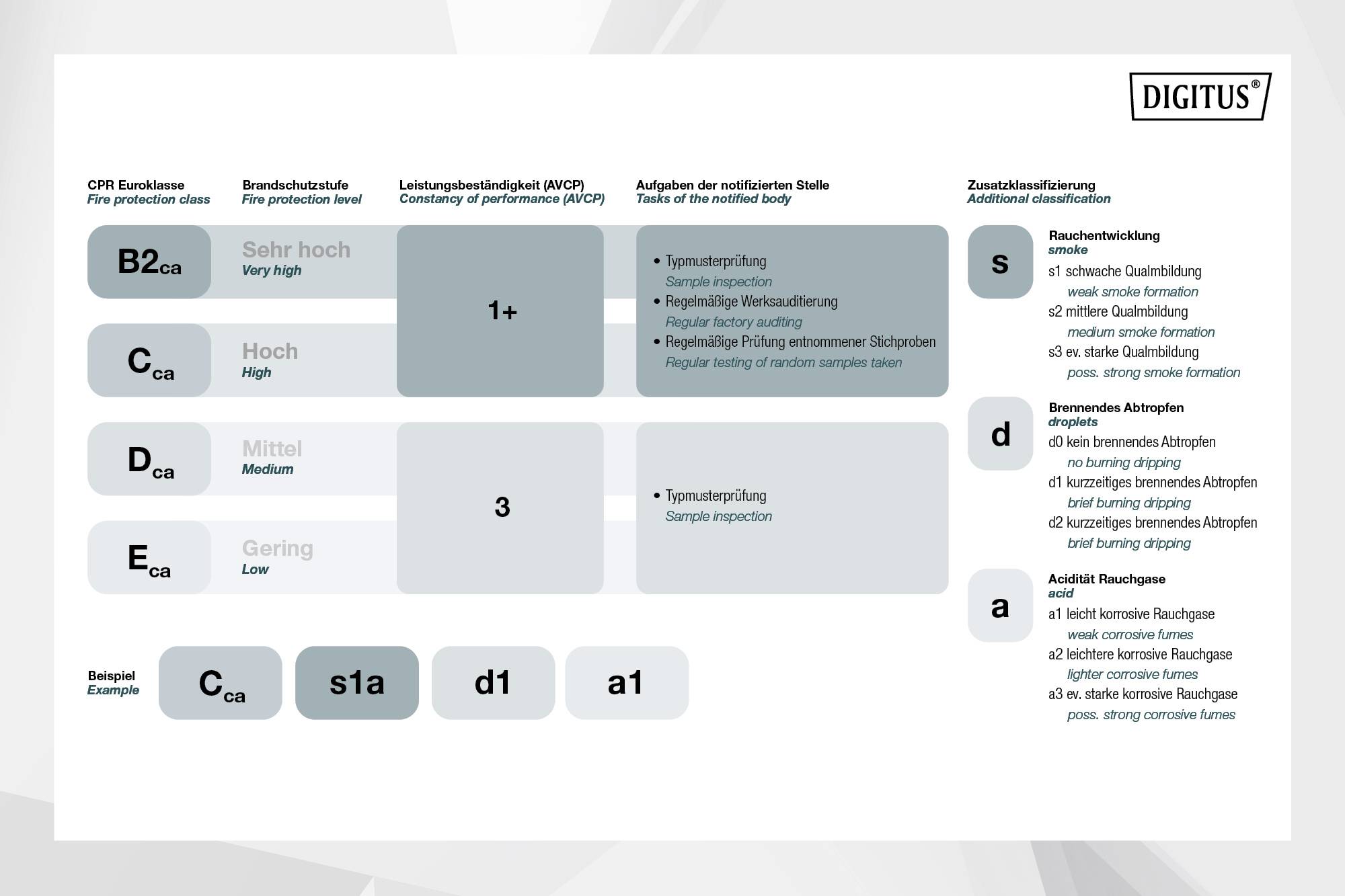

Protection Class Table: Class B2 'Very High', Type Testing Required. Classes C and D Have Lower Requirements.

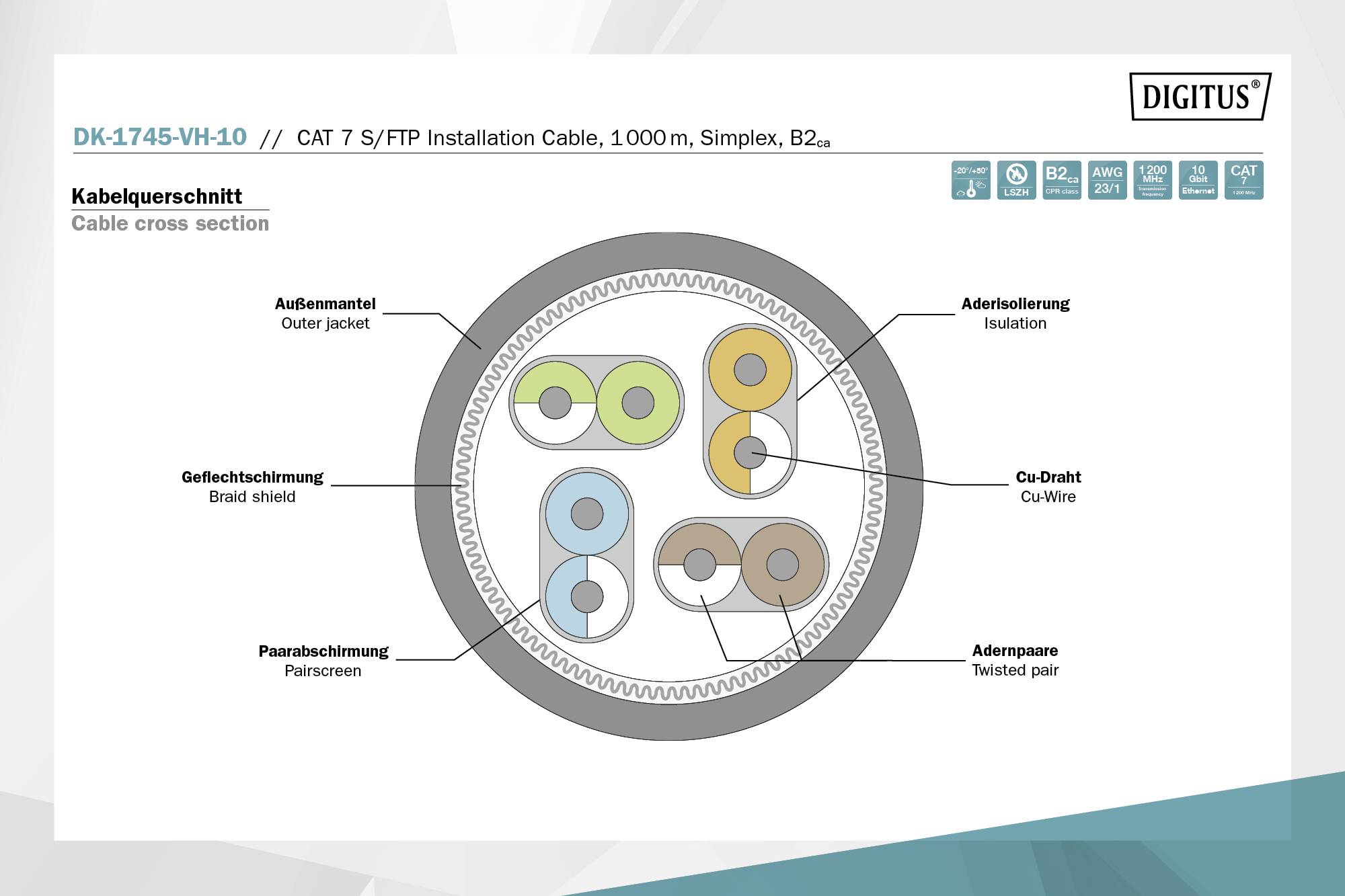

Cross-section of a CAT 7 S/FTP installation cable. Shows outer sheath, insulation, braided shielding, foil shielding, and conductor pairs.

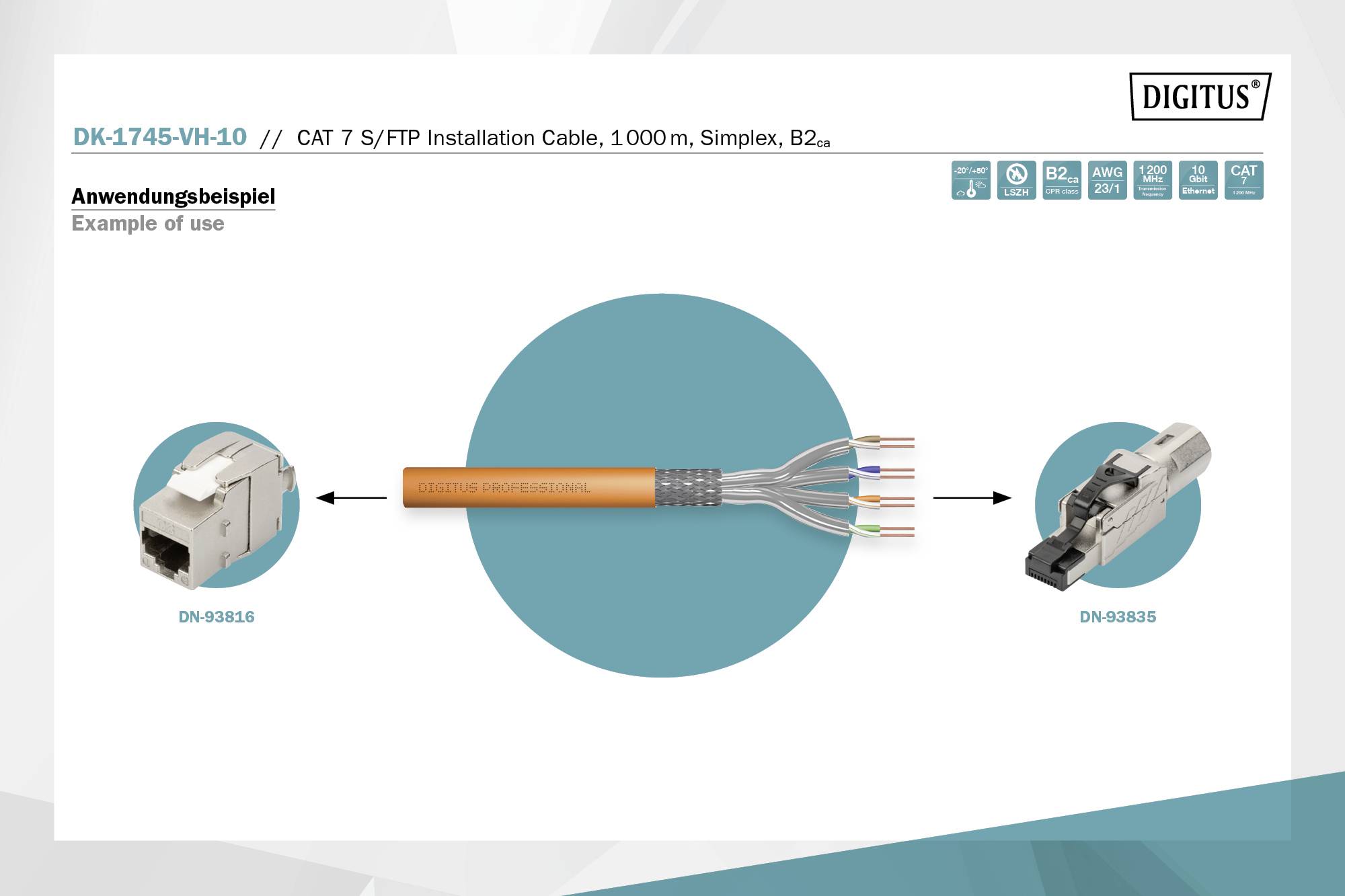

'Example of a CAT 7 S/FTP installation cable application: Connector (DN-93816) on the left, cable centre, plug (DN-93835) on the right.'

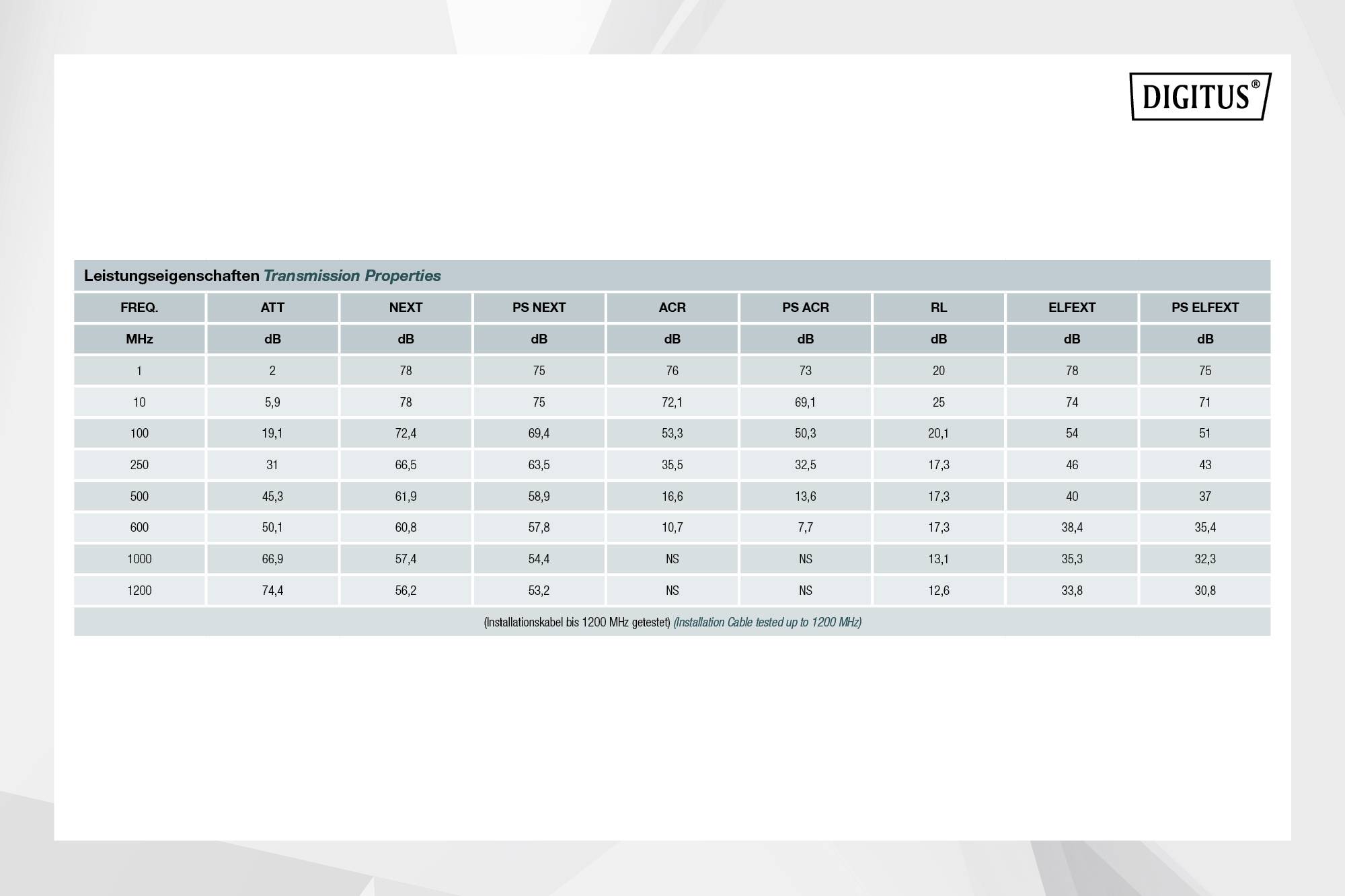

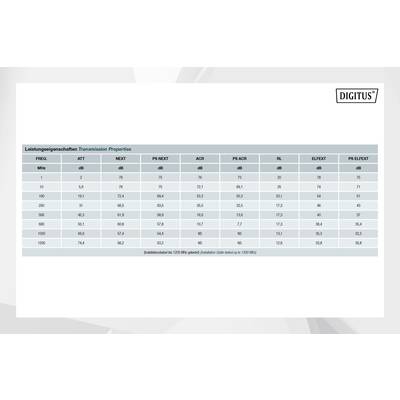

'Table of Performance Parameters: Frequency (MHz), ATT (dB), NEXT (dB), PS NEXT (dB), ACR (dB), PS ACR (dB), RL (dB), Effect (dB), PS Effect (dB).'

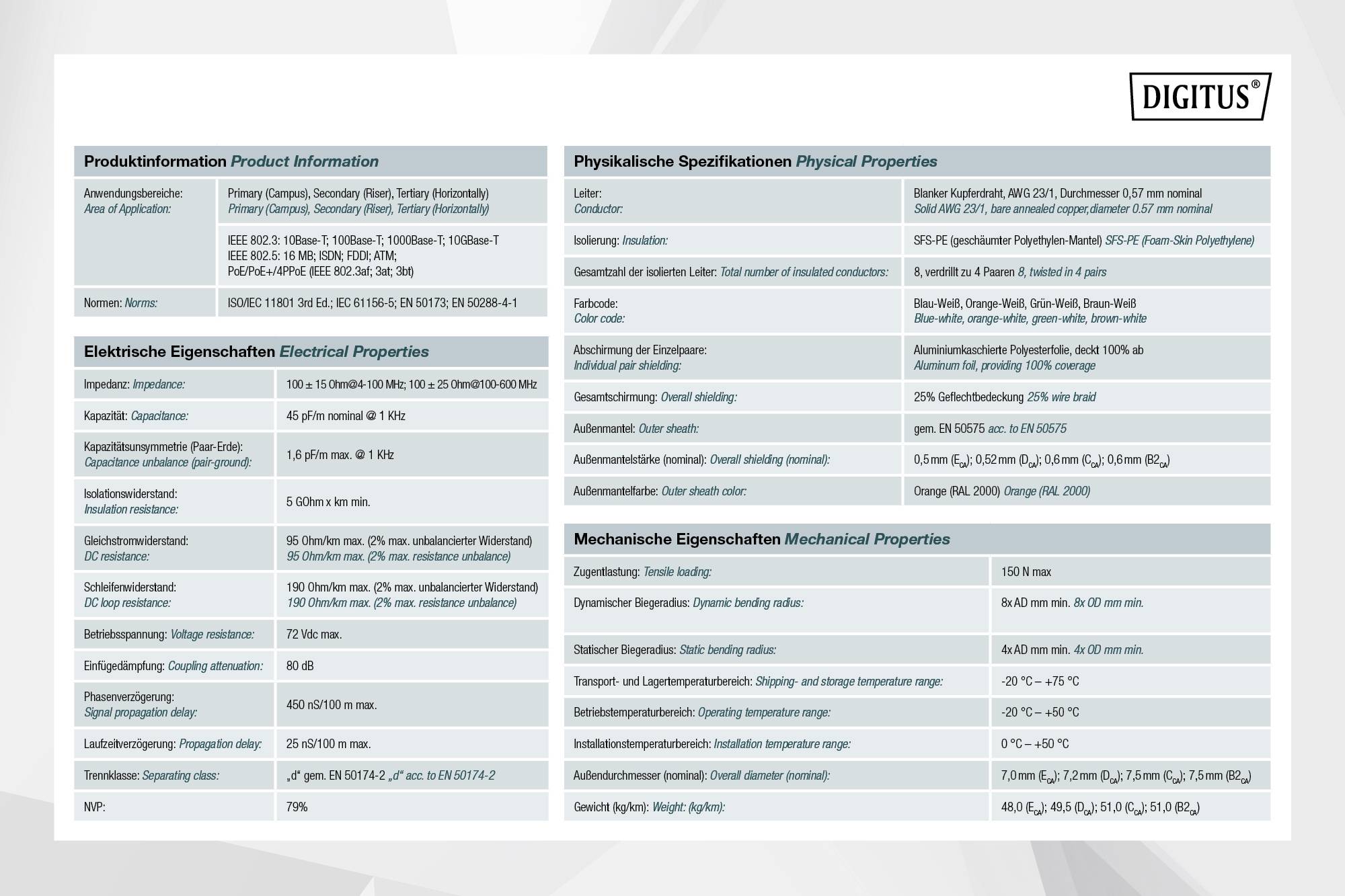

'Digitus' Product Data Sheet, containing information on application possibilities, physical and electrical properties, and mechanical data.

1/13

Product type

Electrical wiring

Specification

CAT 7

Shielding

S/FTP

Cable type

S/FTP

Cable features

Single shield

Recess-mount

Halogen-free

fixable

Simplex

double shielding

Metal foil shield

Flame-retardant

for broadband cable junction boxes

for console port (router/switch)

for conduit fitting

Braided shield

Common shield

Shielded

Solid wire

Twin shield

PE coating

Round

low flue gas emission

round wire

Self-extinguishing

Rigid

rigid core

twisted pairs

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Digitus Cat. 7 S/FTP laying cable, 1000 m, simplex, B2B

10 Gbit Ethernet
1200 MHz transmission frequency
Permanent Link certified
PoE Power over Ethernet support
BauPVO Class B2ca (check the DOP for classification)

Technical specifications

Product type: Electrical wiring

: CAT 7

: S/FTP

Cable type: S/FTP

Cable features: Single shield
Recess-mount
Halogen-free
fixable
Simplex
double shielding
Metal foil shield
Flame-retardant
for broadband cable junction boxes
for console port (router/switch)
for conduit fitting
Braided shield
Common shield
Shielded
Solid wire
Twin shield
PE coating
Round
low flue gas emission
round wire
Self-extinguishing
Rigid
rigid core
twisted pairs
Show more

Outside Ø: 7.5 mm

Width: 7.5 mm

Height: 7.5 mm

Factory colour: Orange

Max. frequency: 1200 MHz

Content: 1000 m

AWG max.: 23

Packaged: Yes

Sold per metre: Yes

Manufacturer part #: DK-1745-VH-10

Type: DK-1745-VH-10

Insulation material: Polyurethane (PE)

Min. temperature range (flexible installation): -20 °C

Max. temperature range (flexible installation): 50 °C

Min. temperature range (fixed installation): -20 °C

Max. temperature range (fixed installation): 50 °C

Halogen-free: Yes

Max. length sold by the metre: 1000 m

Twisted pair cabling (part 1): Yes (1)

Documents & Downloads

Datasheet

Datasheet 3124582 Digitus DK-1745-VH-10 Electrical wiring CAT 7 S/FTP Orange 1000 m

User & Safety Instructions

User & Safety Instructions 3124582 Digitus DK-1745-VH-10 Electrical wiring CAT 7 S/FTP Orange 1000 m

Description

The Digitus CAT 7 laying cable is designed for use in structured data processing center and the building wiring according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is extremely suitable for the transmission of analogue and digital data and supports POE and POE+. The shield structure is made up of single shielded pairs with a tin-plated copper braid, which ensures excellent shielding and electrical values.

This text is machine translated.

Features

Conductor: Plain copper wire, AWG 23/1
System(s) for the evaluation and verification of performance stability: System 3
Insulation: SFS-PE (foamed polyethylene sheath)
Total number of insulated conductors: 8, twisted to 4 pairs
Colour code: Blue-white, orange-white, green-white, brown-white
Shielding of individual pairs: Aluminium laminated polyester film, covers 100%
Overall shielding: Copper braid
Outer sheath: ECA to B2ca gem EN 50575; LSZH
Outer sheath thickness (nominal): 0.50 mm (ECA); 0.52 mm (DCA); 0.60 mm (Cca); 0.60 (B2ca)
Colour orange (RAL 2008)
Mechanical properties:
Strain relief max. 150N
Dynamic bend radius 8x AD mm min.
Static bending radius 4x AD mm min.
Transport and storage temperature range -20 °C to +60 °C.
Operating temperature range: -20 °C to +50 °C
Installation temperature range -0°C to +50°C.
External Diameter Simplex (nominal): 7.0 mm (ECA); 7.2 mm (DCA); 7.5 mm (Cca); 7.5 mm (B2ca)
Weight (kg/km): 49.5 kg (ECA); 51 kg (DCA), 53 kg (Cca); 53 kg (B2ca)
Electrical properties:
Impedance: 100±15 ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
Capacity: 45 pF/m nominal @ 1 KHz
Unbalance of capacity (pair ground): 1.6 pF/m max. @ 1 KHz
Insulation resistance 5 GOhm x km min.
DC resistance: Max. 95 Ohm/km (2% max. unbalanced resistance)
Loop impedance: 190 x ohm/km (2% max. unbalanced resistance)
Operating voltage 72 Vdc max.
Outer sheath: DCA-s2 d1 gem EN 50575; LSZH
CA-Type 1b coupling damping
Phase delay 450 nS/100 m max.
Delay time 10 nS/100 m max.
Separation class "d" after EN 50174-2
NVP 79%
Assortment: Twisted pair installation cable
Category: CAT 7
Shielding: S-FTP, pairs in metal film and braid shielded
B2ca
Length: 1000 m
Colour: orange.
Cable setup 4 x 2 AWG 23/1, solid twisted pair
Sheath LSOH

Description

Features

Conductor: Plain copper wire, AWG 23/1
System(s) for the evaluation and verification of performance stability: System 3
Insulation: SFS-PE (foamed polyethylene sheath)
Total number of insulated conductors: 8, twisted to 4 pairs
Colour code: Blue-white, orange-white, green-white, brown-white
Shielding of individual pairs: Aluminium laminated polyester film, covers 100%
Overall shielding: Copper braid
Outer sheath: ECA to B2ca gem EN 50575; LSZH
Outer sheath thickness (nominal): 0.50 mm (ECA); 0.52 mm (DCA); 0.60 mm (Cca); 0.60 (B2ca)
Colour orange (RAL 2008)
Mechanical properties:
Strain relief max. 150N
Dynamic bend radius 8x AD mm min.
Static bending radius 4x AD mm min.
Transport and storage temperature range -20 °C to +60 °C.
Operating temperature range: -20 °C to +50 °C
Installation temperature range -0°C to +50°C.
External Diameter Simplex (nominal): 7.0 mm (ECA); 7.2 mm (DCA); 7.5 mm (Cca); 7.5 mm (B2ca)
Weight (kg/km): 49.5 kg (ECA); 51 kg (DCA), 53 kg (Cca); 53 kg (B2ca)
Electrical properties:
Impedance: 100±15 ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
Capacity: 45 pF/m nominal @ 1 KHz
Unbalance of capacity (pair ground): 1.6 pF/m max. @ 1 KHz
Insulation resistance 5 GOhm x km min.
DC resistance: Max. 95 Ohm/km (2% max. unbalanced resistance)
Loop impedance: 190 x ohm/km (2% max. unbalanced resistance)
Operating voltage 72 Vdc max.
Outer sheath: DCA-s2 d1 gem EN 50575; LSZH
CA-Type 1b coupling damping
Phase delay 450 nS/100 m max.
Delay time 10 nS/100 m max.
Separation class "d" after EN 50174-2
NVP 79%
Assortment: Twisted pair installation cable
Category: CAT 7
Shielding: S-FTP, pairs in metal film and braid shielded
B2ca
Length: 1000 m
Colour: orange.
Cable setup 4 x 2 AWG 23/1, solid twisted pair
Sheath LSOH
