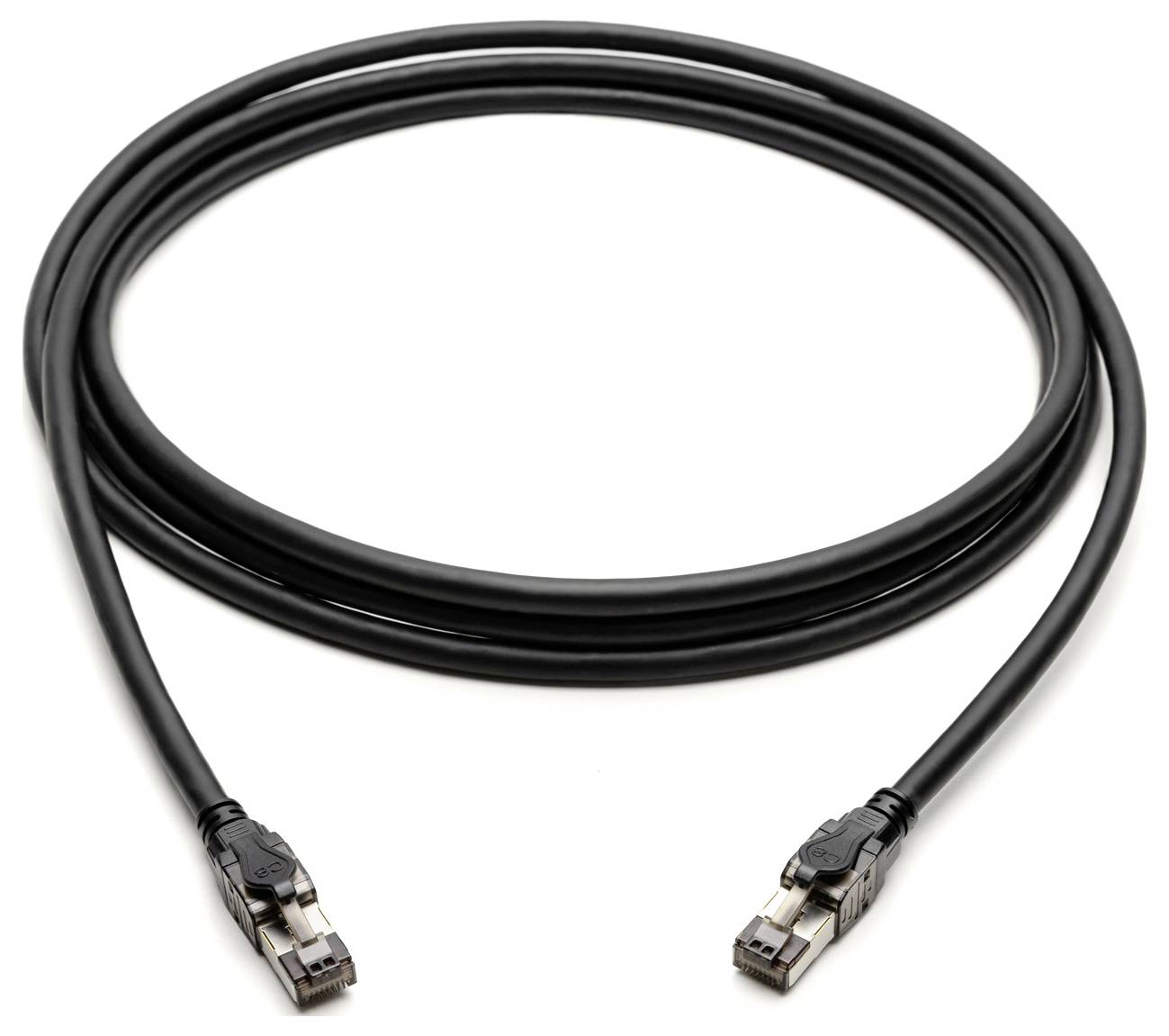

Digitus DK-1843-005-10 RJ45 Patch cable CAT 8.1 0.5 m Black 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

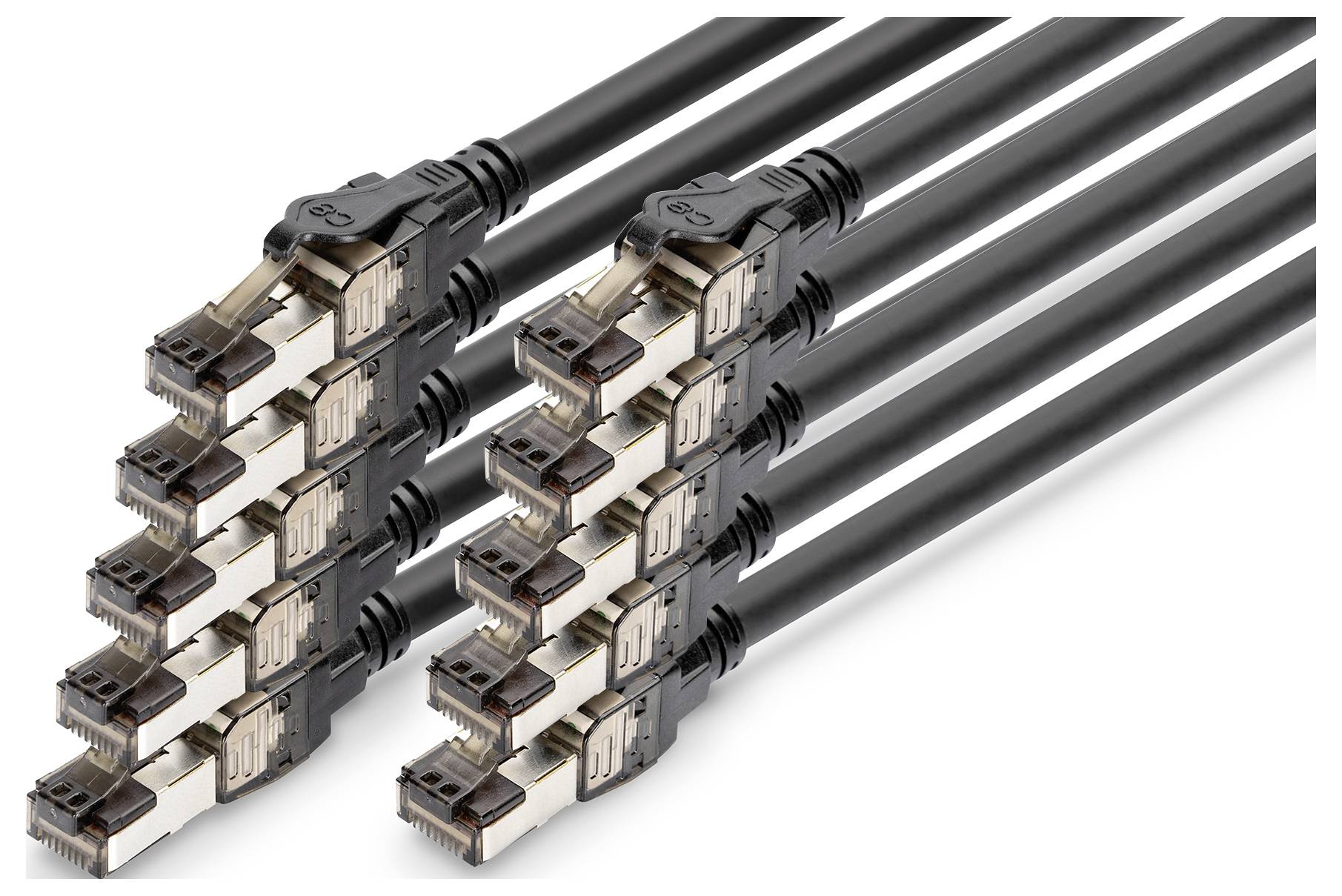

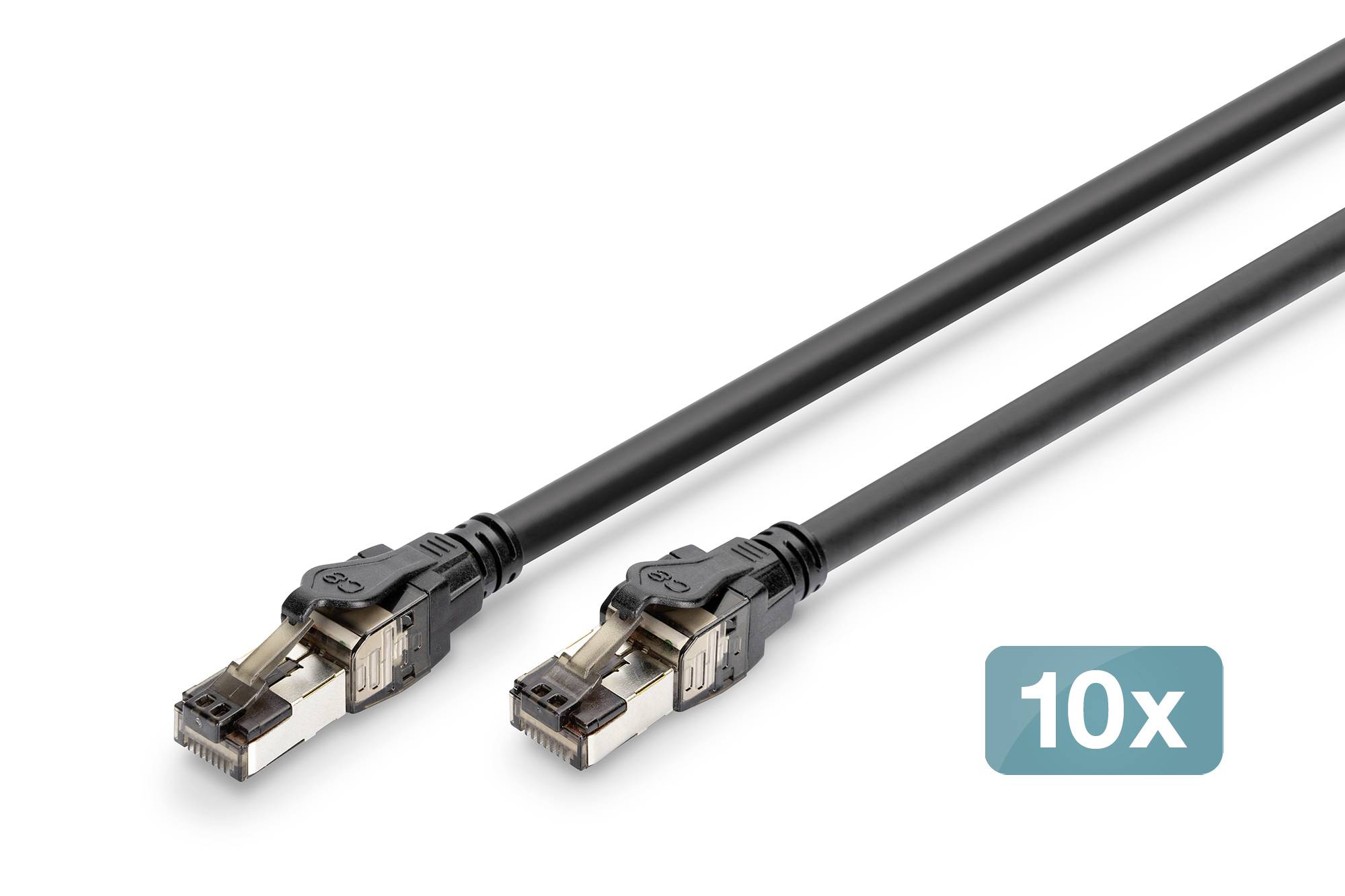

Digitus CAT 8.1 S/FTP Patch Cable, 0.5 m, 10 pcs
- • Highest performance: The CAT 8.1 patch cable with connector supports data rates up to 40 Gbps at 2000 MHz for maximum network performance

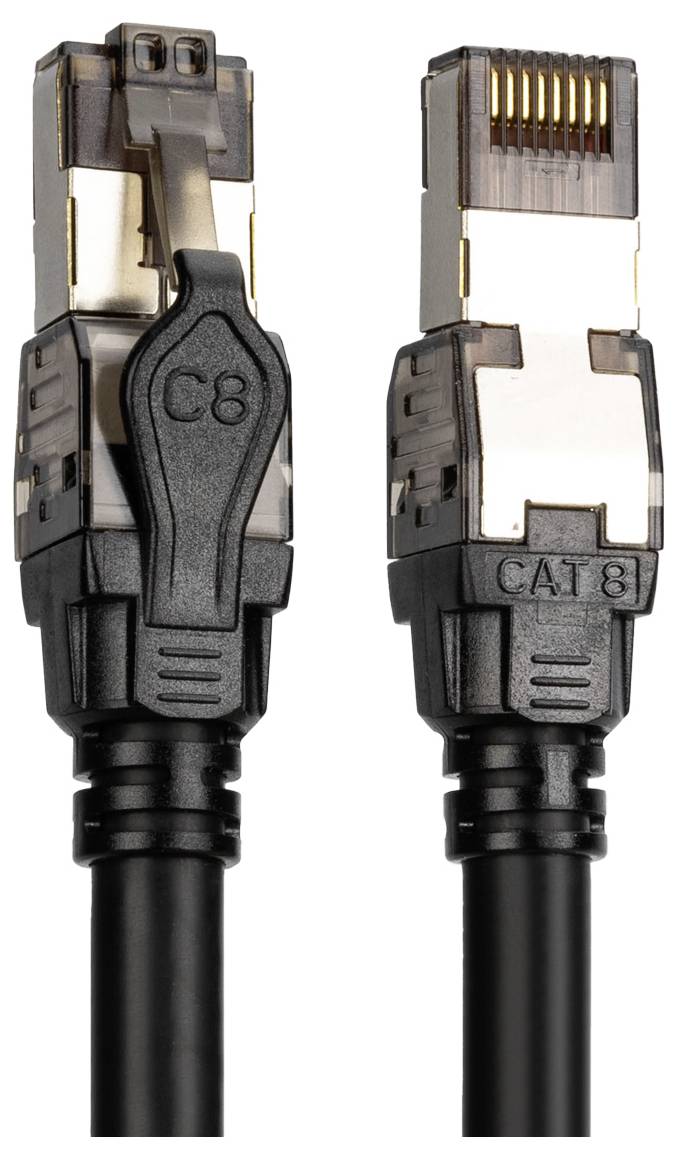

- • New connector: RJ45 connector with integrated PCB for improved signal integrity and long-term stability
- • Future-proof compatibility: Ideal for high-speed data centers, server rooms and industrial applications
- • Supports IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++ type 3 & type 4) standards
Technical specifications
- • Assignment: 1:1
- • Assortment: Twisted pair patch cable
- • Category: CAT 8.1
- • Shielding: S-FTP, pairs in metal foil and mesh shielded
- • Length: 0.5 m.
- • Colour: Black
- • Cable setup: 4 x 2 AWG 24/7, twisted pair
- • Sheath: LSOH
- • Slim version: False
- • Flat version: False
- • 2 x RJ45 connector (PCB)
- • RJ45 plug connector 3 μ Nominal flash gold plated over 60 μ Nickel-primed contact pins
- • Insulation FO-PE (foamed polyethylene)
- • Total diameter 8.0 mm ± 0.2 mm
- • Bend radius 15x OD
- • WIRING STANDARD EIA/TIA 586B
- • Colour code orange x white, green x white, blue x white, brown x white
- Pin assignment 1:1
- • Contact resistance 750 mating cycles
- • Contact resistance 30 mΩ Maximum
- • Unbalanced resistance 3% Maximum
- • Insulation strength 2500 VDC for 3 seconds
- • Uninsulated resistance 150 MΩ/km minimum
- • Operating temperature -20 °C to +60 °C.
- • NVP 72%
- • IEC 60332-1 flame resistance
- • Smoke emission IEC 61034
- • Typical applications IEEE 802.3 Ethernet (10/100/1000BASE-T)
- • PoE according to IEEE 802.3af/at/bt (PoE+, PoE++ type 3 & 4)
- • STANDARDS ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-5
- Cable design
Round
- Cable length
0.5 m
- Version
Patch cable
- Factory colour
Black
- Type A
RJ45 plug
- Type B
RJ45 plug
- No. of A connectors
1 x
- No. of B connections
1 x
- Cable use
Networks
RJ45
- Connector version
straight
- Connection type
RJ45
CAT 8.1
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3815349 Digitus DK-1843-005-10 RJ45 Patch cable CAT 8.1 0.5 m Black 1 pc(s)
Description
The Digitus® Category 8.1 Class I patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 8.1 standard. They guarantee that the cable installation meets the ISO & EN channel specification and offer excellent performance in the Digitus® CAT 8.1 cabling. The power has been tested up to 2,000 MHz, including performance features such as close-up crosstalk ("NEXT"). The Digitus® patch cables have been specially developed to meet all requirements in the various application areas. Each cable is equipped with a molded kink protection sleeve with strain relief. The bushing also has a locking lever protection, which prevents the cable from getting caught and the break of the locking lever from the plug.
