Buy Digitus DK-1843-005 RJ45 Patch cable CAT 8.1 S/FTP 0.5 m Black Colour-coded, Shielded, multi-core, incl. bend relief 1 p

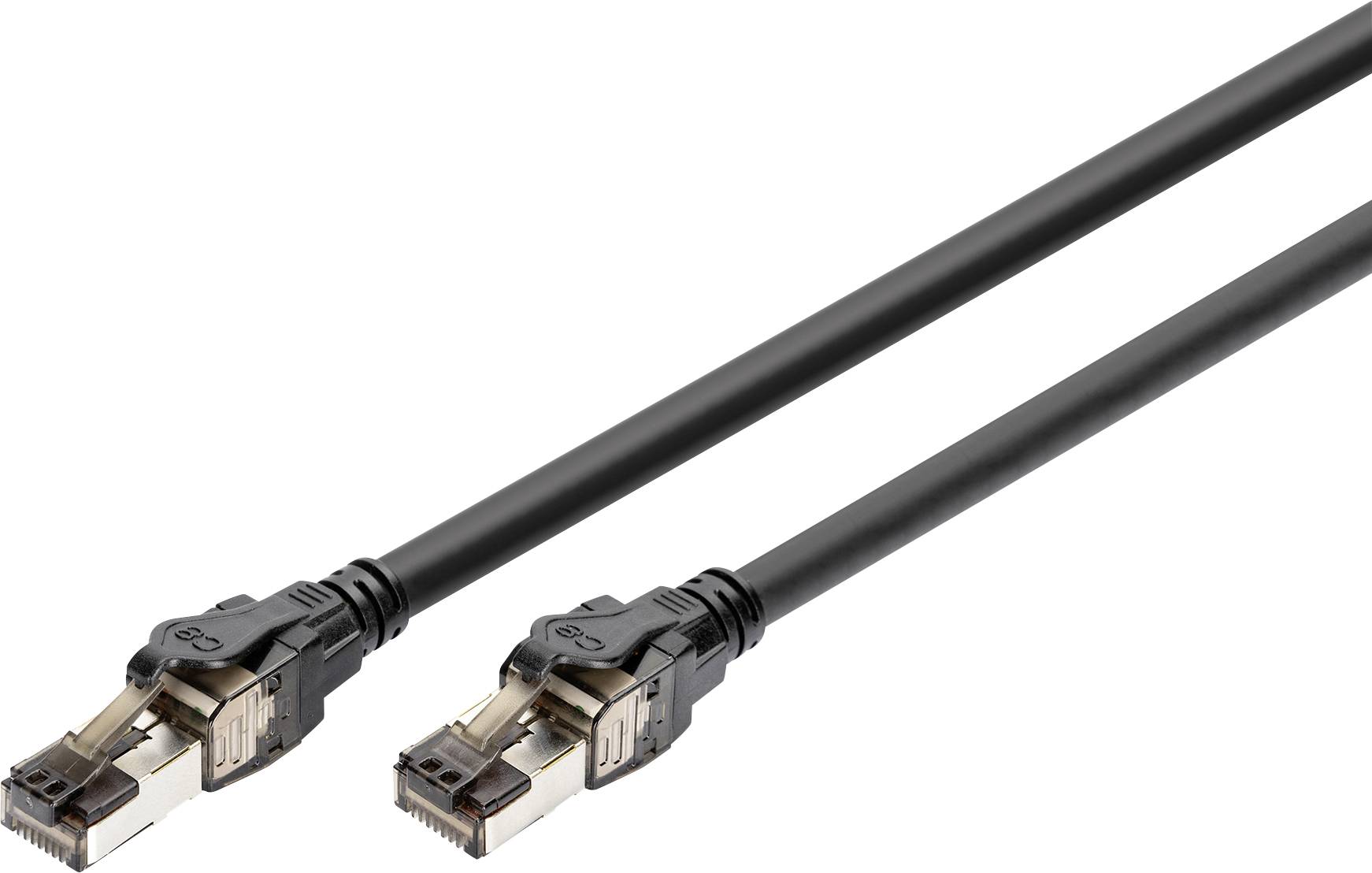

Two black network cables with metal connectors at the ends, used for data transmission between devices.

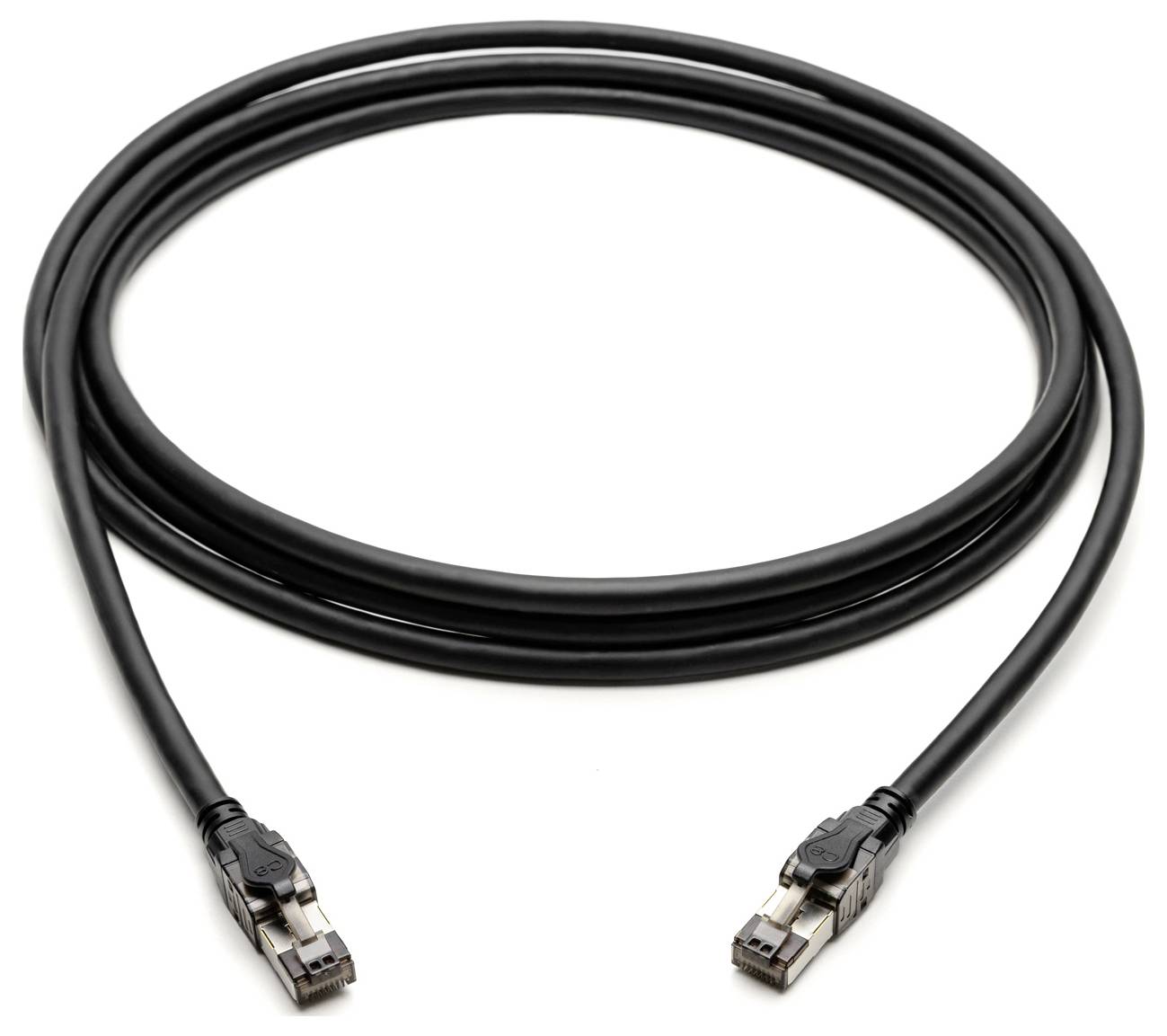

Black Ethernet cable with two RJ45 connectors, laid in a loop.

Digitus DK-1843-005 RJ45 Patch cable CAT 8.1 S/FTP 0.5 m Black Colour-coded, Shielded, multi-core, incl. bend relief 1 p-2

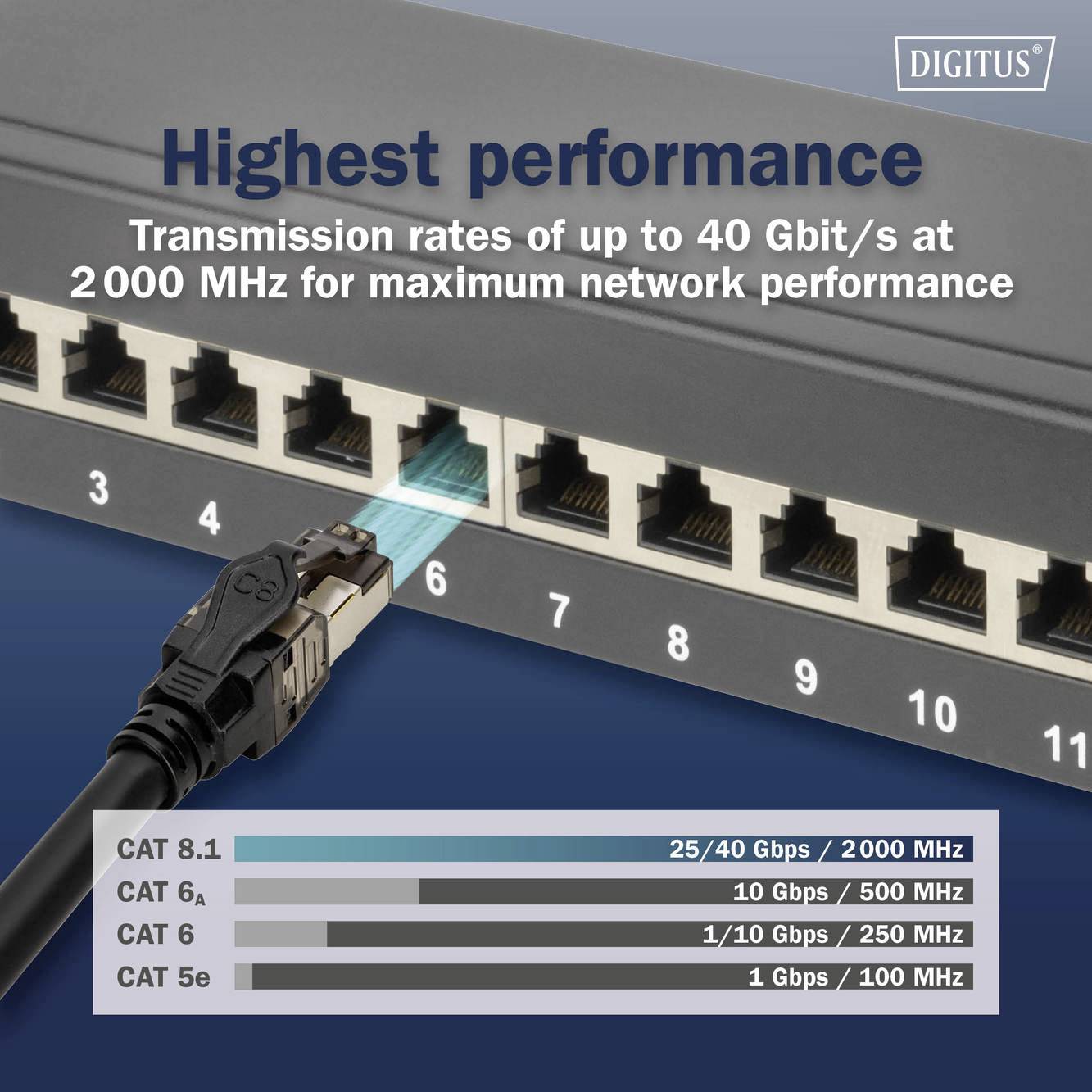

Network switch with an inserted LAN cable. Text: 'Highest performance', transmission rates up to 40 Gbit/s at 2000 MHz. Diagram shows performance of categories CAT 8.1, CAT 8.2, CAT 6, CAT 5e.

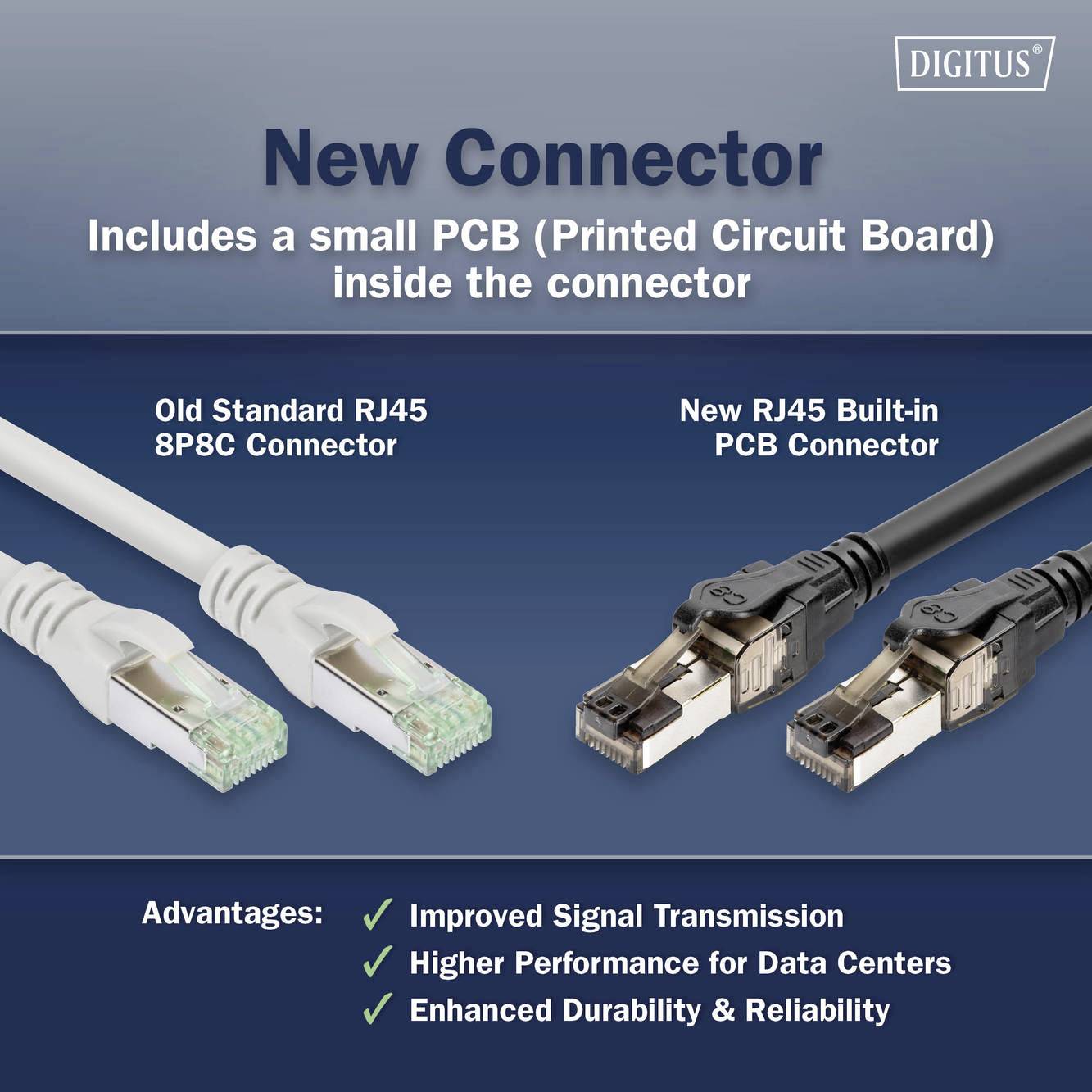

Two RJ45 plugs side by side: on the left, an old design without PCB, on the right, a new version with integrated PCB. Advantages: improved signal transmission, higher performance for data centres.

'Optimal Signal Stability' describes the benefits of PCB technology for minimising signal losses, with illustrations of desktop, router, switch, server, gaming and smart TV.

1/6

Product type

Patch cable

Specification

CAT 8.1

Shielding

S/FTP

Connection type

RJ45

Cable length

0.5 m

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus CAT 8.1 S-FTP Patch Cable, Cu, LSZH AWG 24/7, Length 0.5 m, Colour black

Highlights & Details

Highest performance: The CAT 8.1 patch cable with connector supports transfer rates of up to 40 Gbit/s at 2000 MHz for maximum network performance
New connector: RJ45 connector with integrated PCB for improved signal integrity and long-term stability
Future-proof compatibility: Ideal for high-speed data centers, server rooms and industrial applications
Supports the standards IEEE 802.3af (PoE), 802.3at (PoE+) and 802.3at (PoE++ type 3 & type 4)

Technical specifications

2 x RJ45 connector (PCB)
RJ45-plug connector 3 μ nominal flash gold-plated over 60 μ Nickel-primed contact pins
Total diameter 8.0 mm ± 0.2 mm
Contact resistance 750 mating cycles
Contact resistance 30 mΩ Maximum
Unbalanced resistance 3% Maximum
Insulation strength 2500 VDC for 3 seconds
Uninsulated resistance 150 MΩ/km minimum
Operating temperature -20 C to +60 °C
NVP 72%
IEC 60332-1 flame resistance
Smoke emission IEC 61034

Product type: Patch cable

: CAT 8.1

: S/FTP

Connection type: RJ45

No. of A connectors: 1 x

Type A: RJ45 plug

No. of B connections: 1 x

Type B: RJ45 plug

Cable length: 0.5 m

Factory colour: Black

Connector version: straight

Cable features: Colour-coded
Shielded
multi-core
incl. bend relief

Cable use: Networks

Version: Cable

Cable design: Round

: Copper

LAN transfer rate: 40000 MBit/s

Halogen-free: Yes

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3409827 Digitus DK-1843-005 RJ45 Patch cable CAT 8.1 S/FTP 0.5 m Black Colour-coded, Shielded, multi-core, incl. bend relief 1 p

Description

The Digitus® Category 8.1 Class I patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 8.1 standard. They guarantee that the cable installation meets the ISO & EN channel specification and offer excellent performance in the Digitus® CAT 8.1 cabling. The power has been tested up to 2,000 MHz, including performance features such as close-up crosstalk ("NEXT"). The Digitus® patch cables have been specially developed to meet all requirements in the various application areas. Each cable is equipped with a molded kink protection sleeve with strain relief. The bushing also has a locking lever protection, which prevents the cable from getting caught and the break of the locking lever from the plug.

This text is machine translated.
