Digitus DK-SCEC66-0010 DK-SCEC66-0010 PV cable extension 6 mm² Cable length 1 m
EAN:
Part number:
Item no:
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
Only 10 Piece(s) available

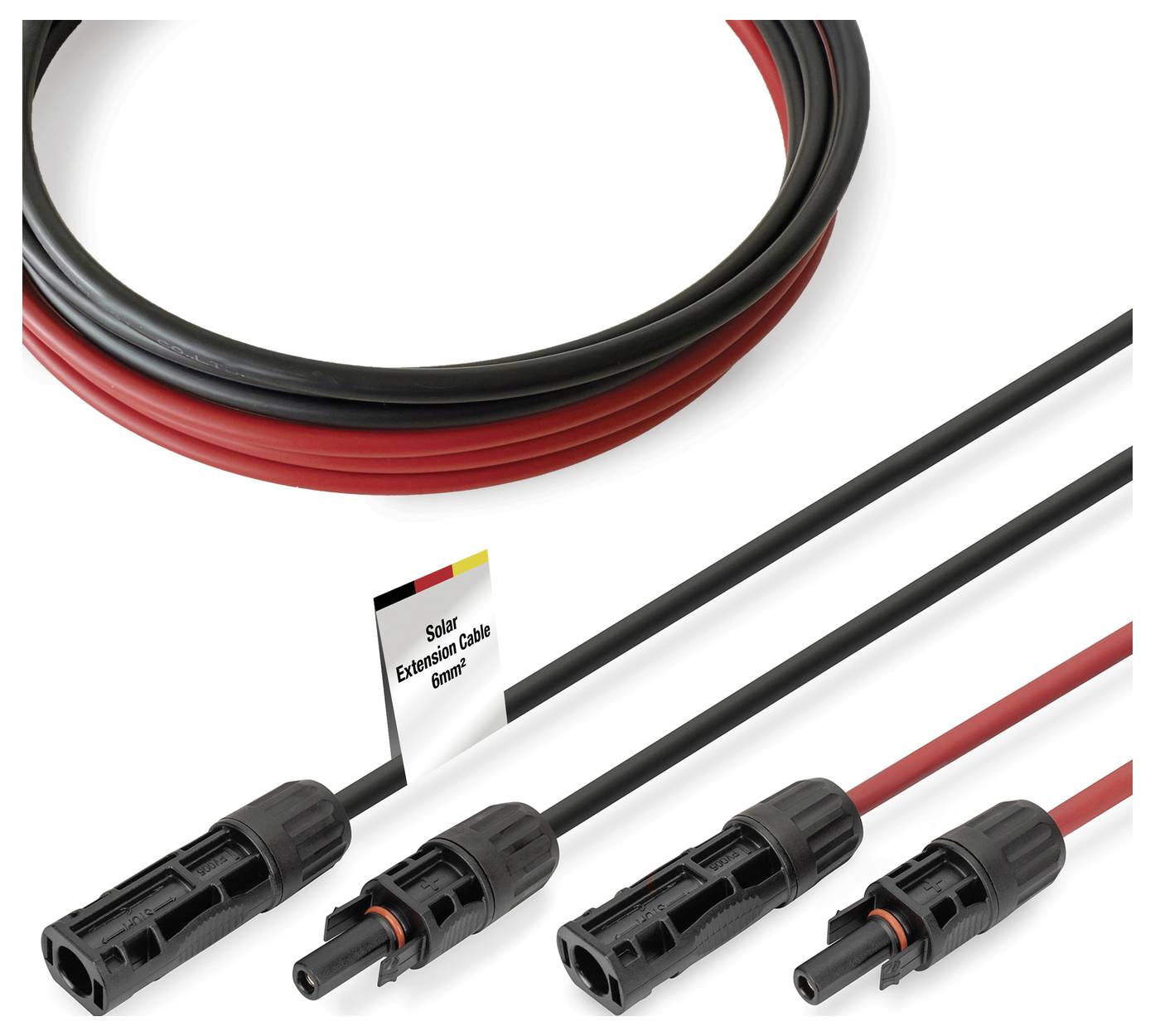

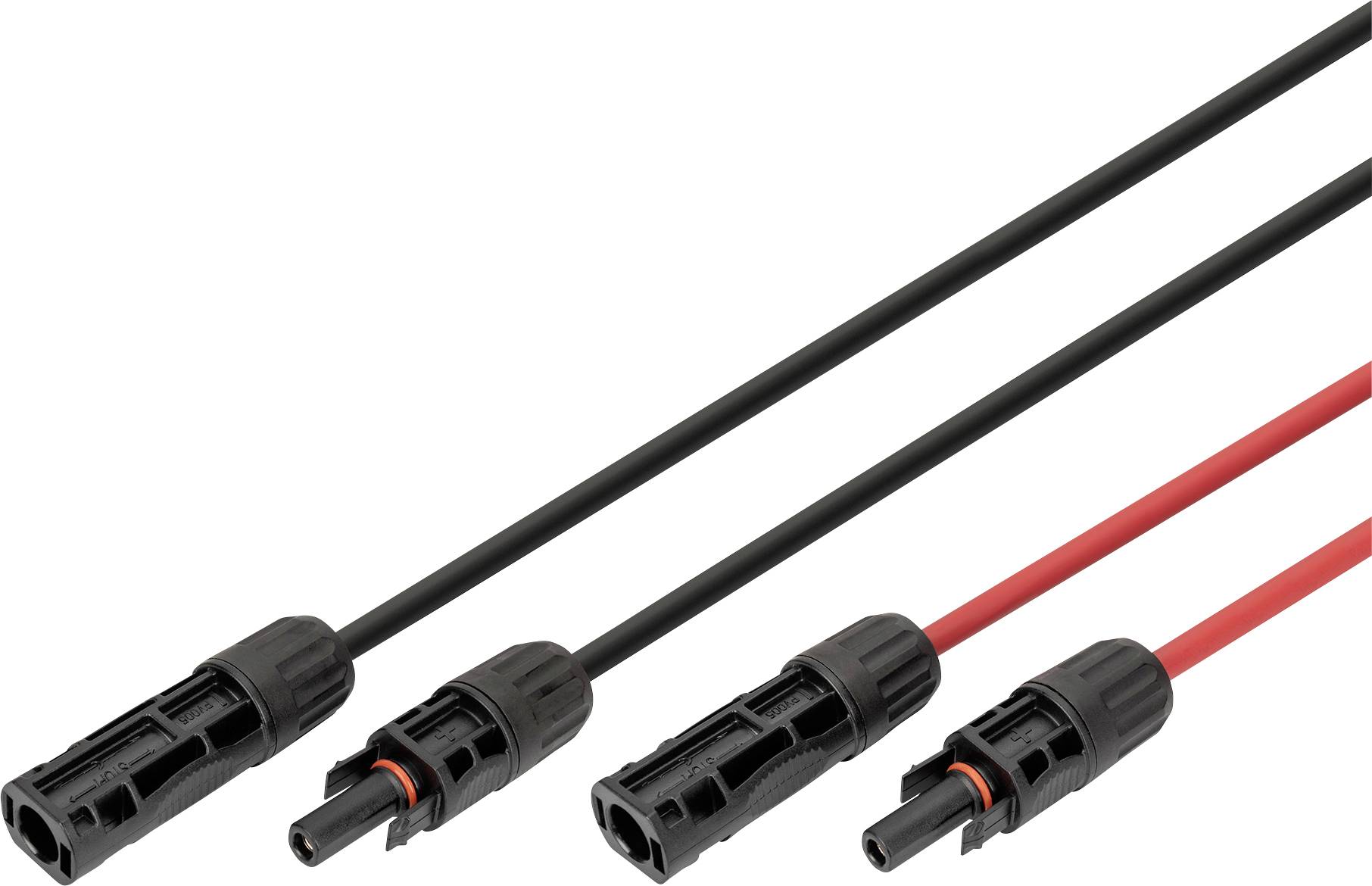

Digitus solar power cable extension 1 m, 6 mm², MC4 connector, PV cable 1500 V DC, UV-resistant & weather-proof, 2 cable, 1x black, 1x red
Highlights & Details
- High conductivity and corrosion protection – tin-plated copper conductors with 6 mm² cross-section
- Fast, safe, tool-free – thanks to pre-assembled MC4 connectors can be connected in a few simple steps
- Suitable for high voltage – Thanks to a voltage tolerance of up to 1500 V DC, the Ideal solar cable is suitable for modern high voltage PV systems
- High temperature resistance – suitable for temperature ranges from -40°C to +85°C.
- Fire safety – The cable jacket is flame retardant according to UL94 V-0 and thus contributes to fire protection
- Approved for international use – Meets the standards CE and EN 50618, EN 60332-1-2 (ECA), EN 62852:2015 certified
- Flexible cable design - easy to lay, even with narrow radii
- Weather proof & durable - suitable for durable outdoor use
- High efficiency – low contact resistance (≤ 0.5 Ω) ensures minimum power loss
Technical specifications
- Length: 1 m
- Wire cross-section: 6mm²
- Voltage tolerance: Up to 1500 V DC/1000 V AC
- Nominal current 30A
- Conductor construction TS 56/0,285±0.01
- Wire diameter 2.4mm
- Insulation diameter 3.8mm ±0.1mm
- External diameter 5.5mm ±0.2mm
- Temperature range -40°C to +85°C.
- Contact resistance 0.509 Ω
- Insulation resistance: 580MΩ
- bam
- Voltage resistance: AC 6.5kV / DC 15kV (5 minutes)
- Spark testing: 7kV
- Product type
PV cable extension
- Cable length
1 m
- Cross section per core
6 mm²
- Factory colour
Red
Black
- Cross section
6 mm²
- Version
Cable
- Cable use
PC
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3450987 Digitus DK-SCEC66-0010 DK-SCEC66-0010 PV cable extension 6 mm² Cable length 1 m
Description
This high-quality solar cable for extension with pre-mounted MC4 connectors at both ends is designed especially for use in Photovoltaic-systems. With a conductor cross-section of 6 mm², a length of 1 m and a dielectric strength of up to 1500 V DC, Ideal is suitable for connection between solar modules, inverters or other PV components. The cable consists of a tin-plated copper conductor, which ensures optimum power transmission and reliable corrosion protection. The robust XLPO insulation and PA66 sheath provide excellent protection against UV radiation, moisture, ozone and mechanical loads. Through the pre-installed MC4 connectors the cable is immediately ready to use and can be installed easily – Ideal for DIY solar projects or professional PV-installations. With an operating temperature range of -40 °C to +85 °C, flame-retardant properties (UL94 V-0) and a contact resistance of ≤ 0.5 Ω, this cable guarantees maximum safety, efficiency and long life - even in demanding weather conditions.
This text is machine translated.
This text is machine translated.
Features
- Conductor material: Tin-plated copper wire
- Insulation material XLPO
- Sheath material: XLPO
- Plug material: PPE, PA 66, halogen-free
- CE EN 50618, EN 60332-1-2 (ECA), EN 62852:2015, UL94 V-0 standard & certificates
- Jacket color: 1x black, 1x red
- Connection 1:MC4-plug
- Connection 2:MC4-socket
- IP 65/68 certified
