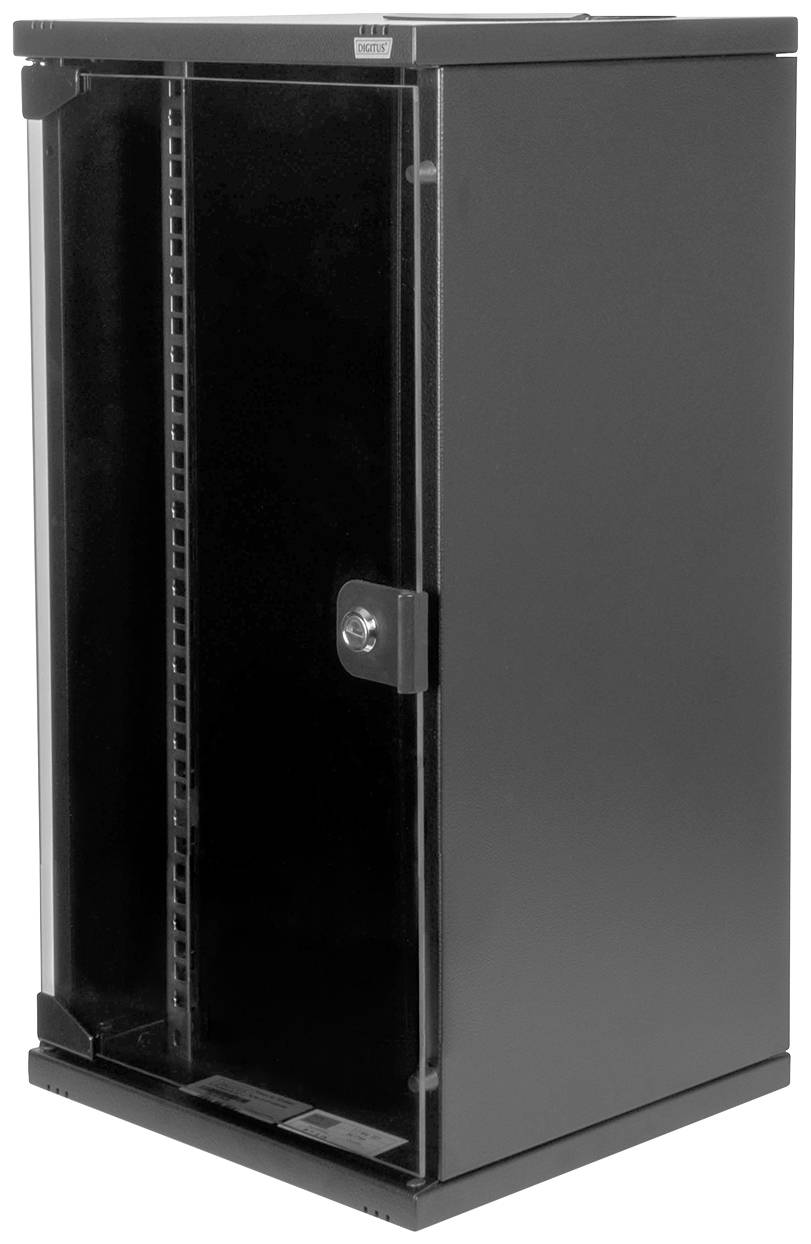

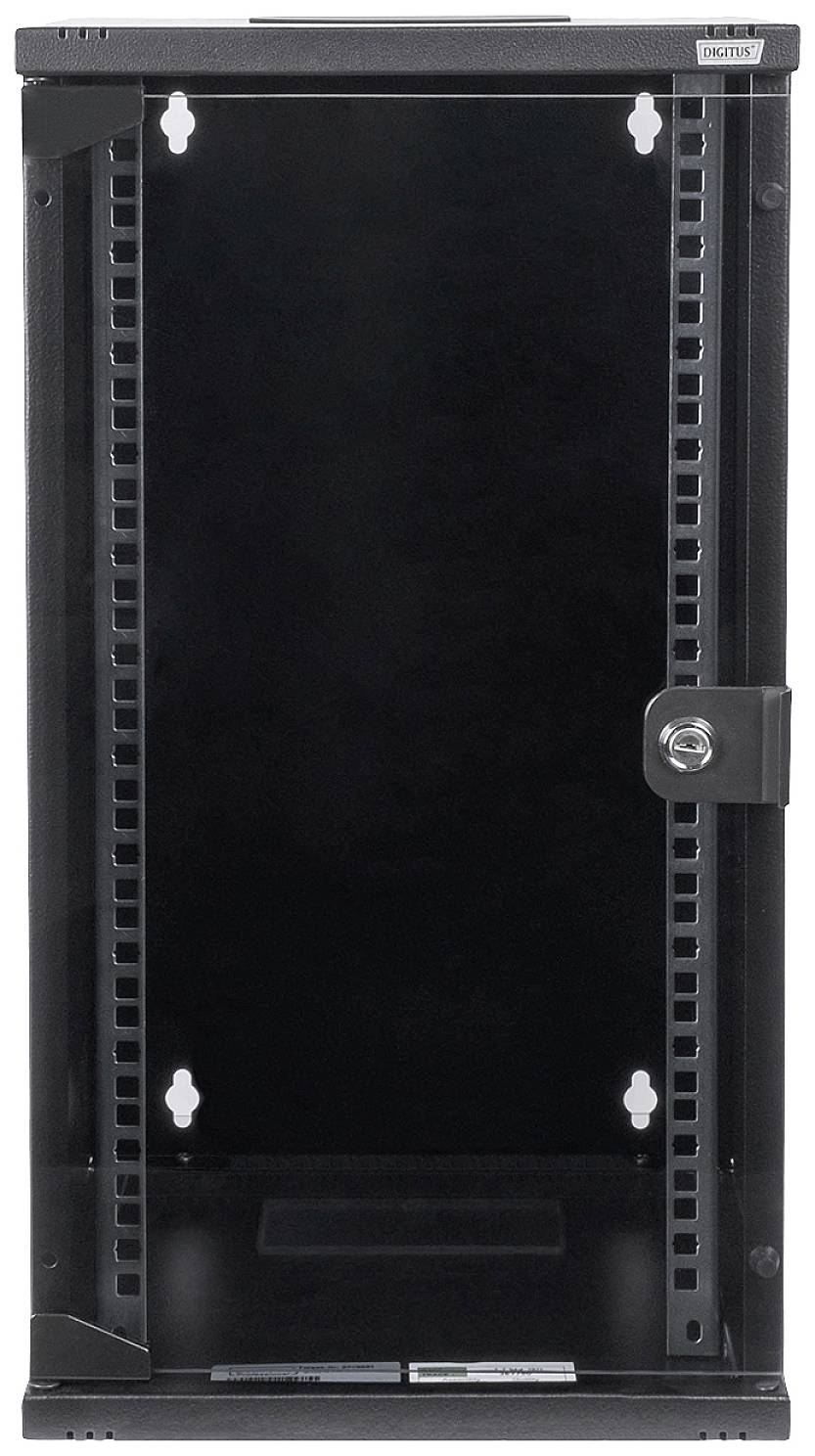

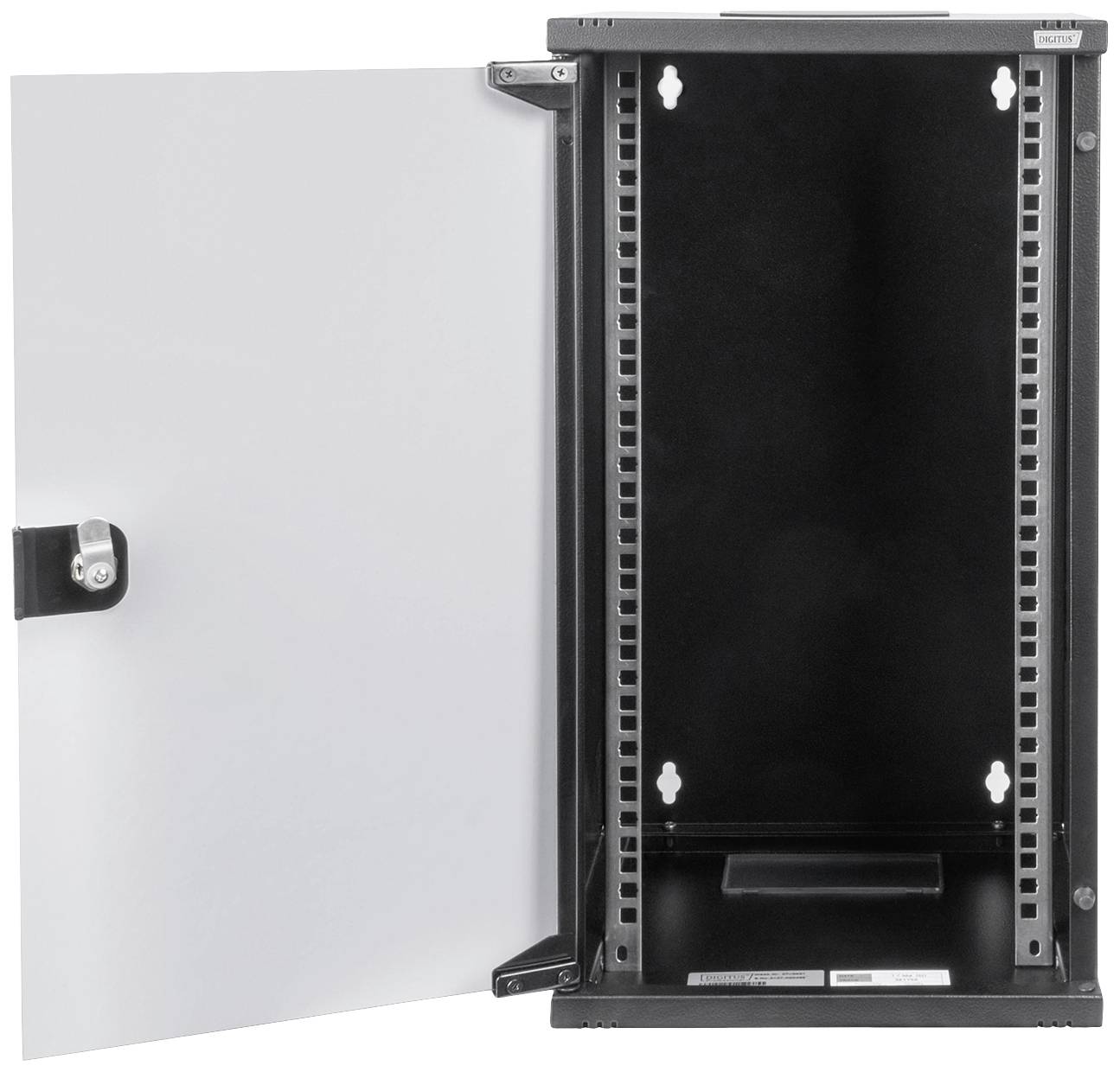

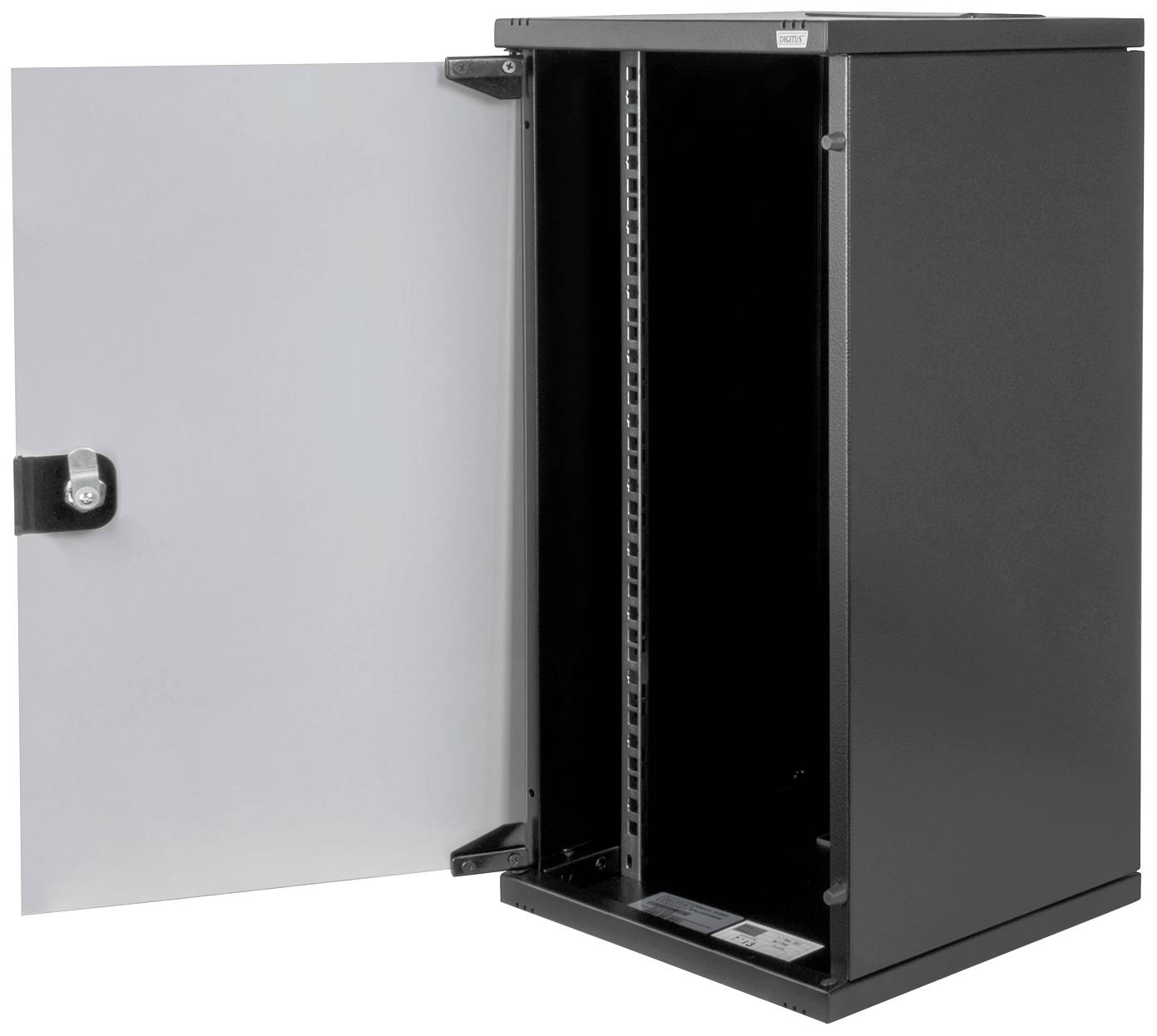

Digitus DN-10-12U-B 10" wall cabinet (W x H x D) 312 x 592 x 300 mm 12 U Black (RAL 9005)
EAN:
Part number:
Item no:
Digitus 254 mm (10") 12U wall housing 592x312x300 mm, color black (RAL 9005)
Highlights & Details
- Protection type IP20
- Lockable safety glass door
- 200° door opening angle
- 1-point locking on the front door
- 254 mm (10") profile rails mounted on the front inside the cabinet, galvanized
- 254 mm (10") profile rails are adjustable in depth
- 1.1 - 1.5 strong sheet steel with a high load capacity, powder-coated
- Cable input with brush strip in the roof and with plastic cover in the floor
- Ventilation slots for active and passive ventilation
- Installation depth for components max. 240 mm
- IP protection class IP20
- Color: Black, RAL 9005
- Depth: 300 mm
- Front door: Glass door, single-wing
- HEY: 12
- Carry load: 30 kg
- Mounted: Yes
- Cabinet type: Wall housing
- Width 312 mm
Technical specifications
- Product type
10" wall cabinet
- Rack unit
12 U
- Width
312 mm
- Height
592 mm
- Depth
300 mm
- Material
Steel
Safety glass
- Dim
(W x H x D) 312 x 592 x 300 mm
- Weight
18.5 kg
- Factory colour
Black (RAL 9005)
- Rack size
254 mm (10")
- Wireless charging
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2380163 Digitus DN-10-12U-B 10" wall cabinet (W x H x D) 312 x 592 x 300 mm 12 U Black (RAL 9005)
Description
Digitus
The small 10" network wall housing stands out with its compact dimensions at full suitability for structured IT cabling - ideal for home or small office environments
A lockable glass door protects the office or home network from unauthorized access, yet still enables the visual control of Internet router, NAS server or network switch
Optimal integration in the house cabling - through the cable entries in the floor and roof power and network cables can be inserted from below as well as from above into the mini-rack
The profile rails can be attached in 2 different positions - the steel housing can be connected via the earthing bolt with the equipotential bonding of the house cabling
Various IT components such as patch panels, LAN & PoE switches, socket strips as well as cable management solutions and shelves from Digitus are available for the 10-inch form factor (254 mm)
The 254 mm (10”) wall housings are made of a robust steel construction. The cable entry openings in the roof and floor offer the best possibilities for a proper cable management. The compact housing is therefore ideal for all common IT and telecommunications applications, especially in limited space and private households.
This text is machine translated.
The small 10" network wall housing stands out with its compact dimensions at full suitability for structured IT cabling - ideal for home or small office environments
A lockable glass door protects the office or home network from unauthorized access, yet still enables the visual control of Internet router, NAS server or network switch
Optimal integration in the house cabling - through the cable entries in the floor and roof power and network cables can be inserted from below as well as from above into the mini-rack
The profile rails can be attached in 2 different positions - the steel housing can be connected via the earthing bolt with the equipotential bonding of the house cabling
Various IT components such as patch panels, LAN & PoE switches, socket strips as well as cable management solutions and shelves from Digitus are available for the 10-inch form factor (254 mm)
The 254 mm (10”) wall housings are made of a robust steel construction. The cable entry openings in the roof and floor offer the best possibilities for a proper cable management. The compact housing is therefore ideal for all common IT and telecommunications applications, especially in limited space and private households.
This text is machine translated.
