Buy Digitus DN-10135 Network card 2.5 GBit/s PCI-Express

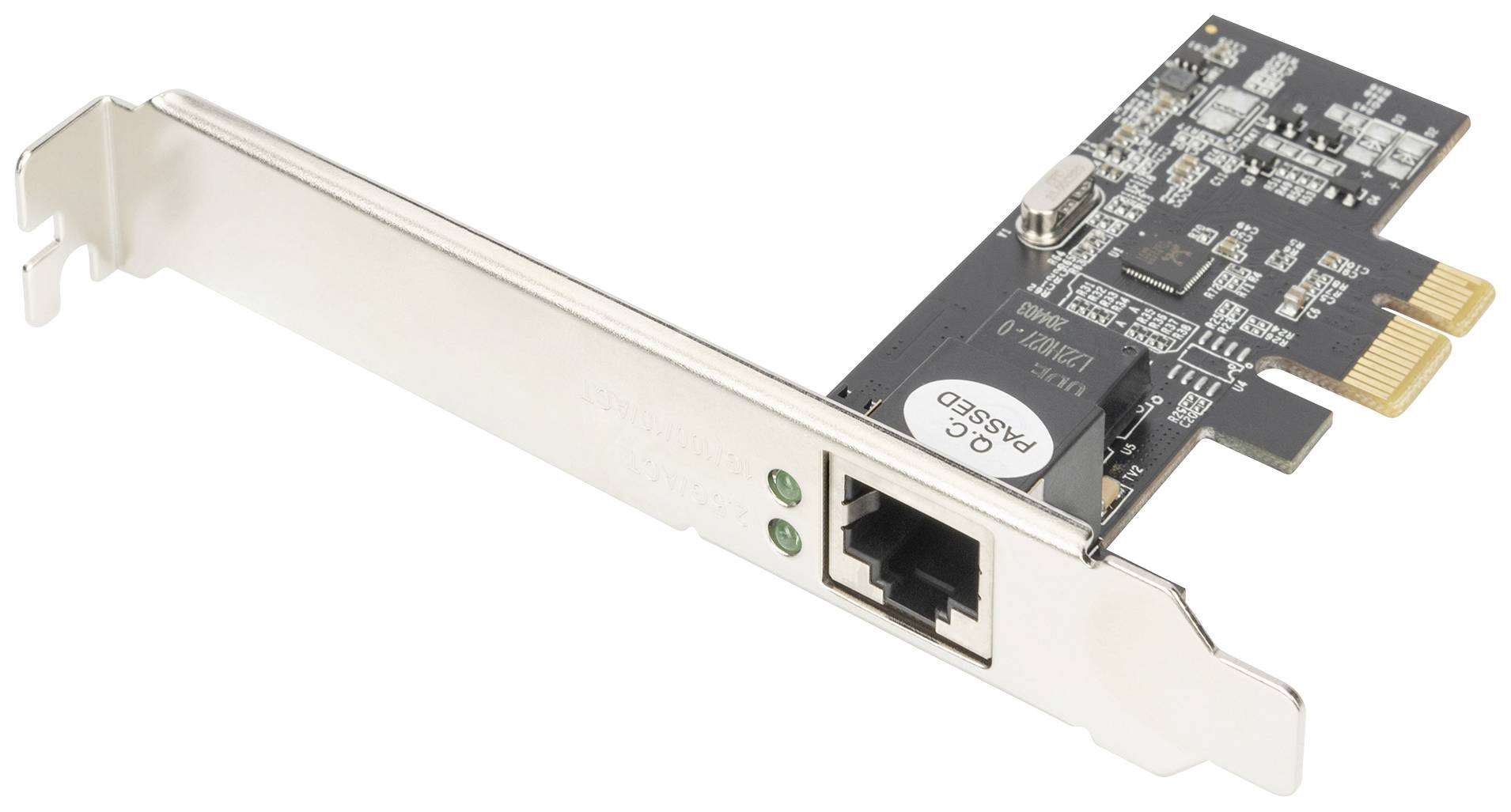

Network card in PCIe format with Ethernet port and green LED indicators, suitable for computer connections in an internal network.

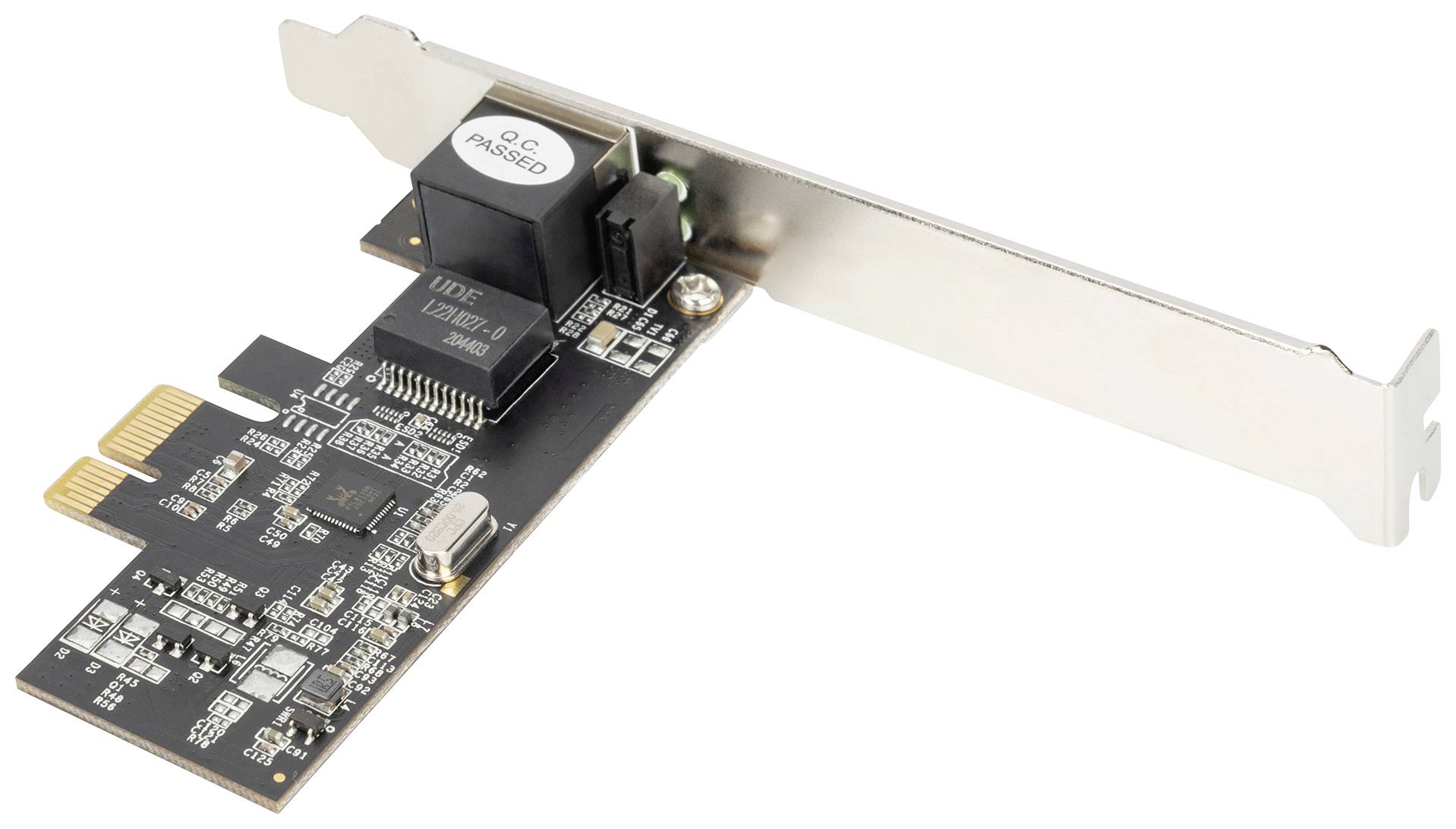

A PCIe expansion card with an IDE interface and multiple electronic components on the circuit board. It is used to expand the capabilities of a PC.

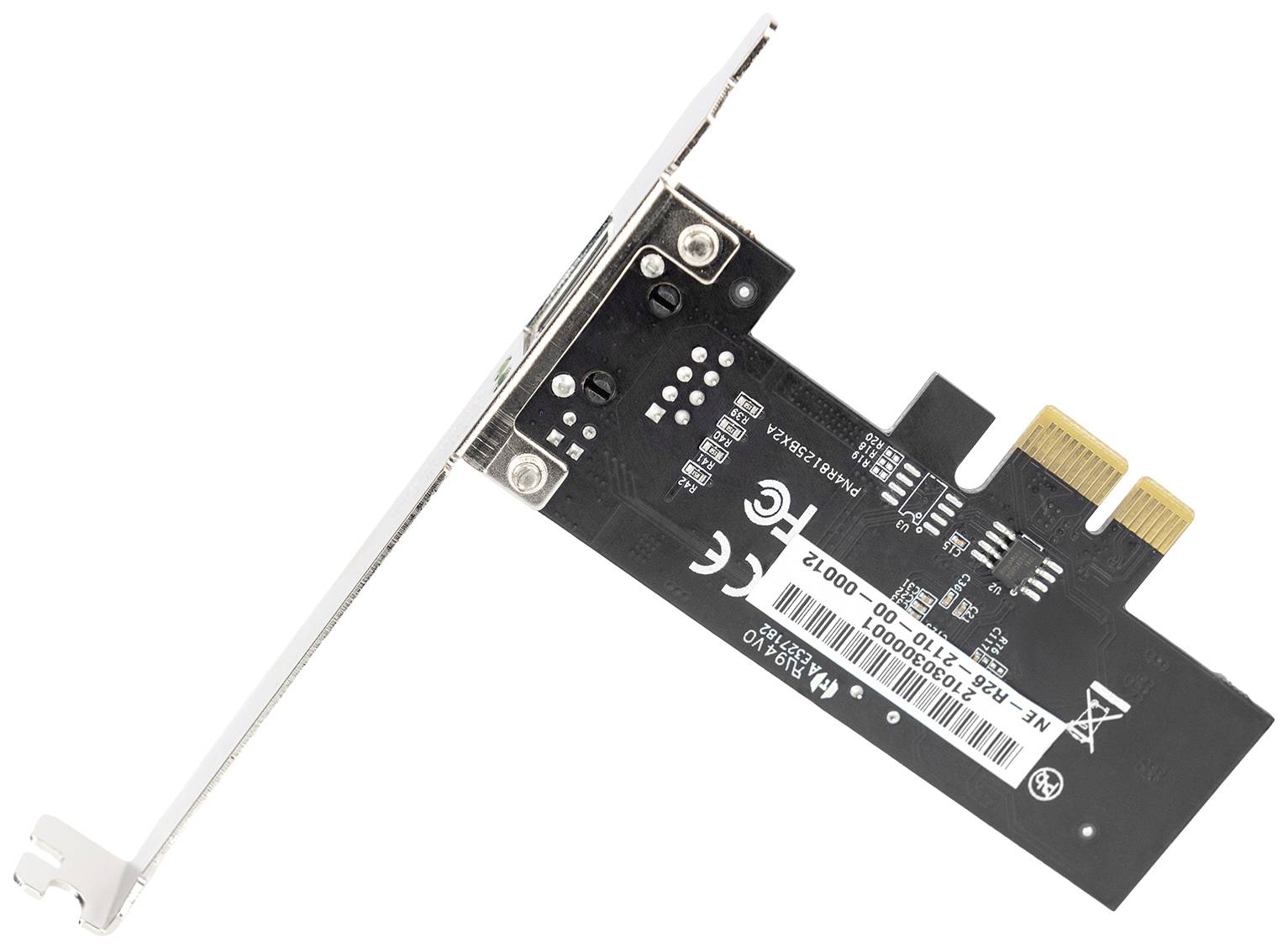

A PCIe network card with a metal bracket. It shows the expansion slot and integrated circuits used for network connectivity.

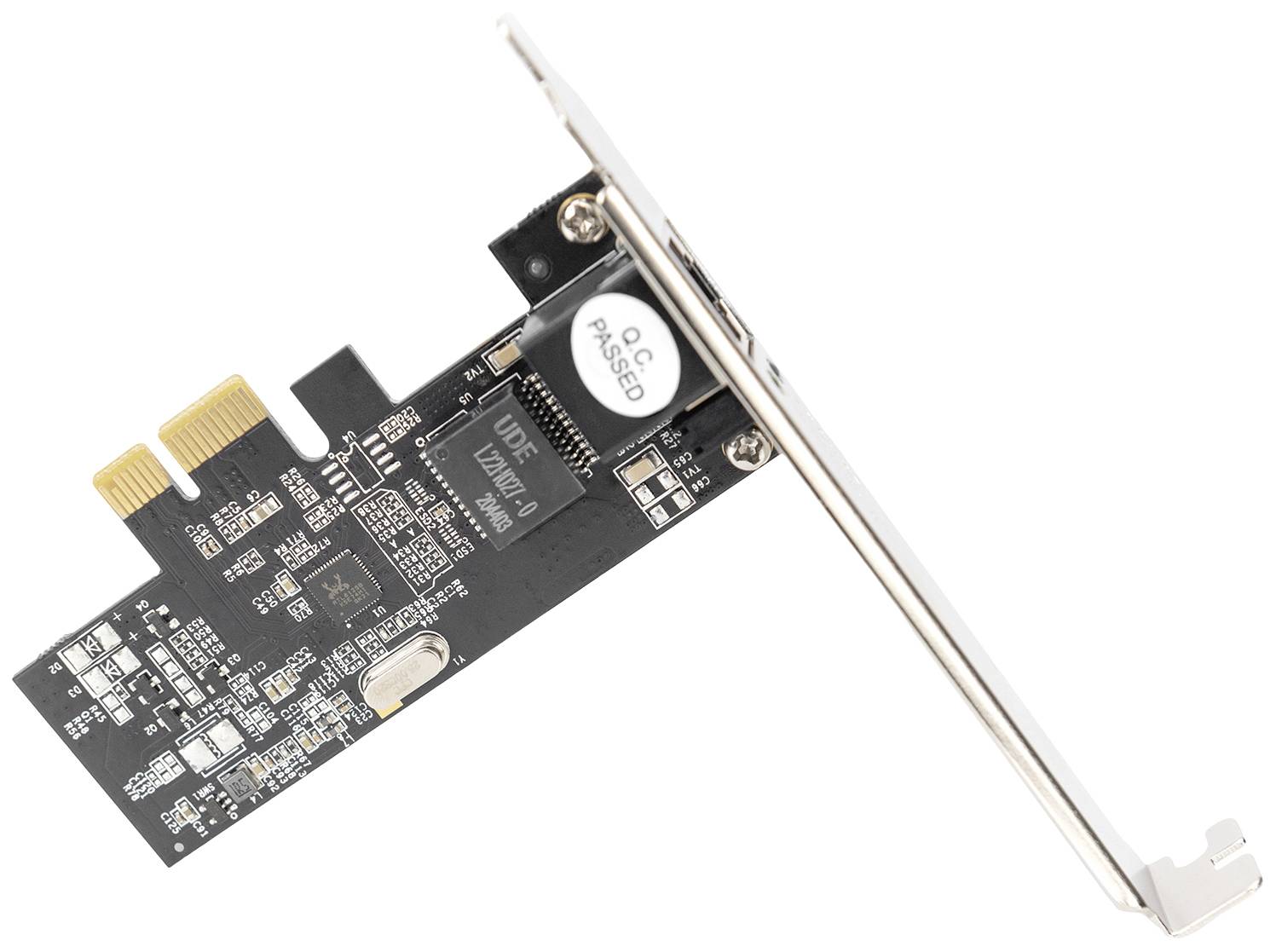

A PCIe expansion card with electronic components and a plug connector, used to extend computer functionality.

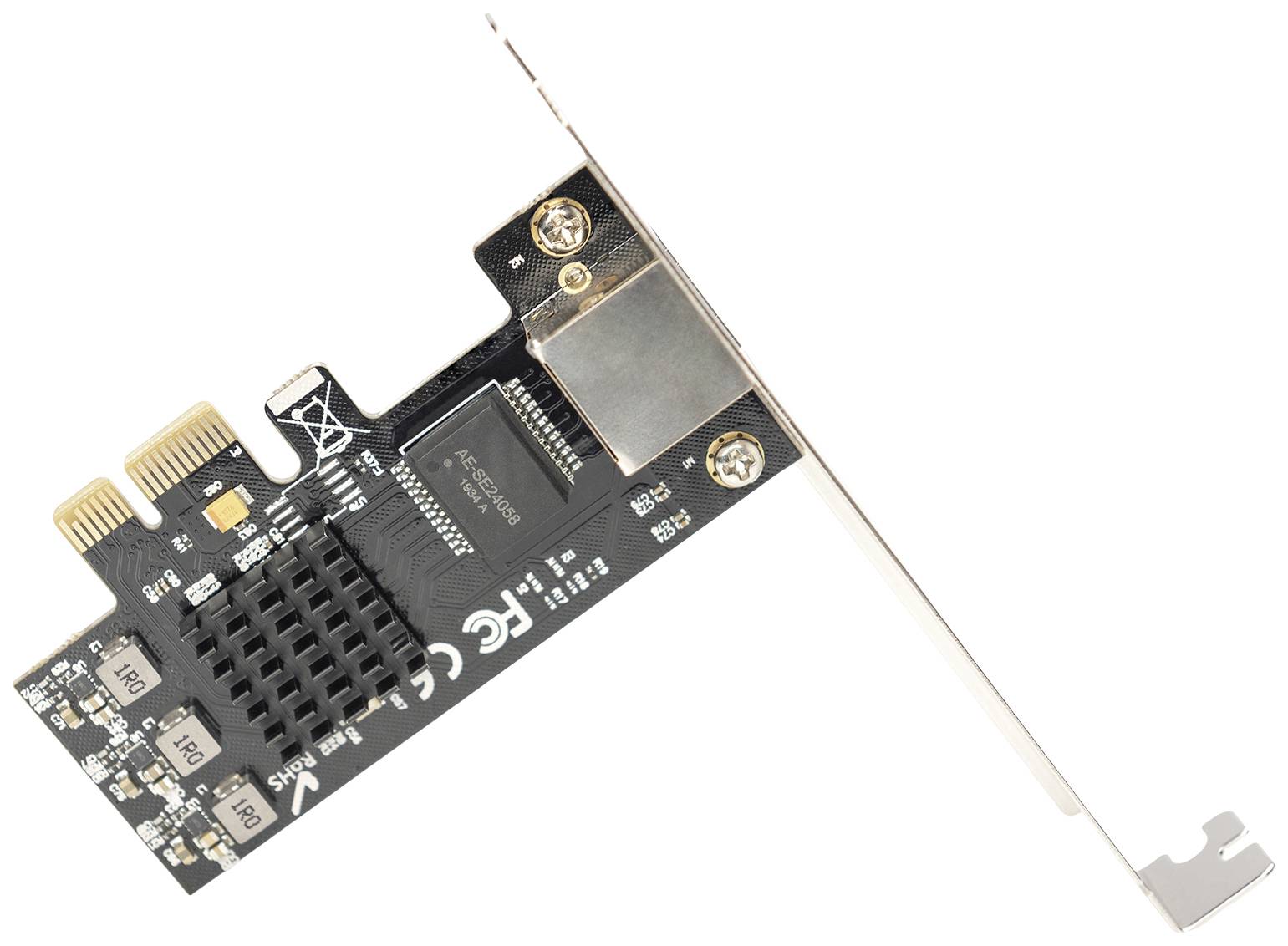

A PCIe network card designed for installation in a computer shows chips and connection points on the circuit board.

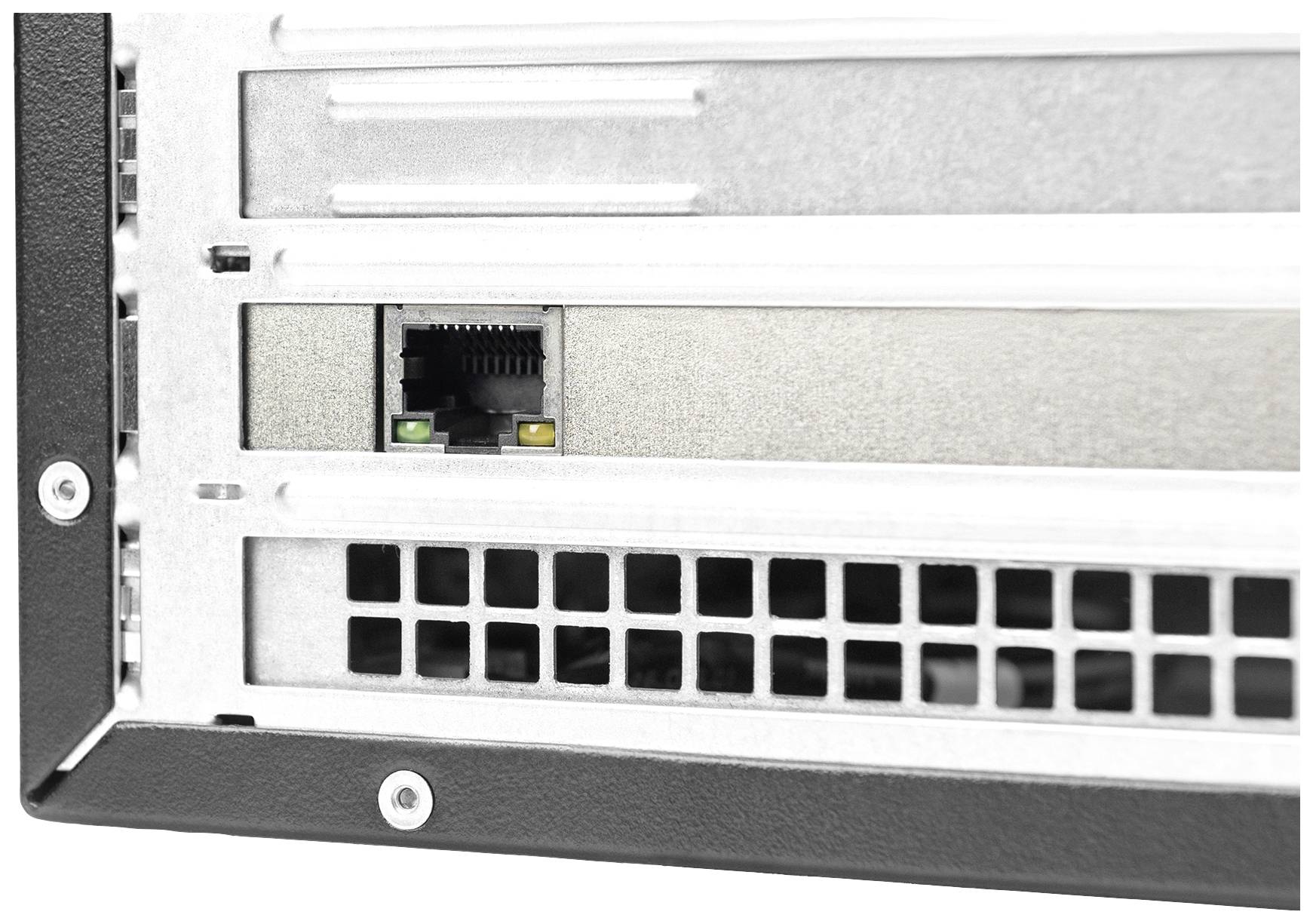

Close-up of the rear of a server with a LAN connection and ventilation grille.

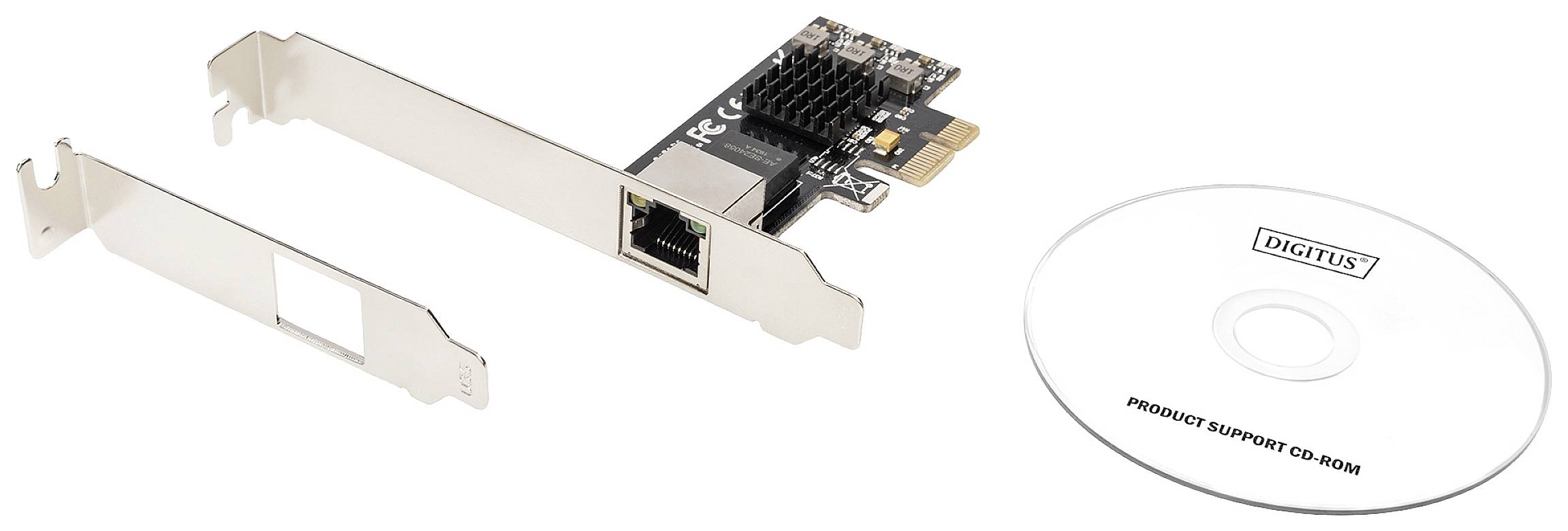

A PCIe network card with a heatsink and Ethernet port, alongside two metal blanking plates and a driver CD labelled 'Digitus'.

'Gigabit Ethernet PCI Express Network Card 2.5 G (4-Speed)', compatible with CAT 5e or higher, 10/100/2,500 Base-T, WOL, 2.5 Gbps.

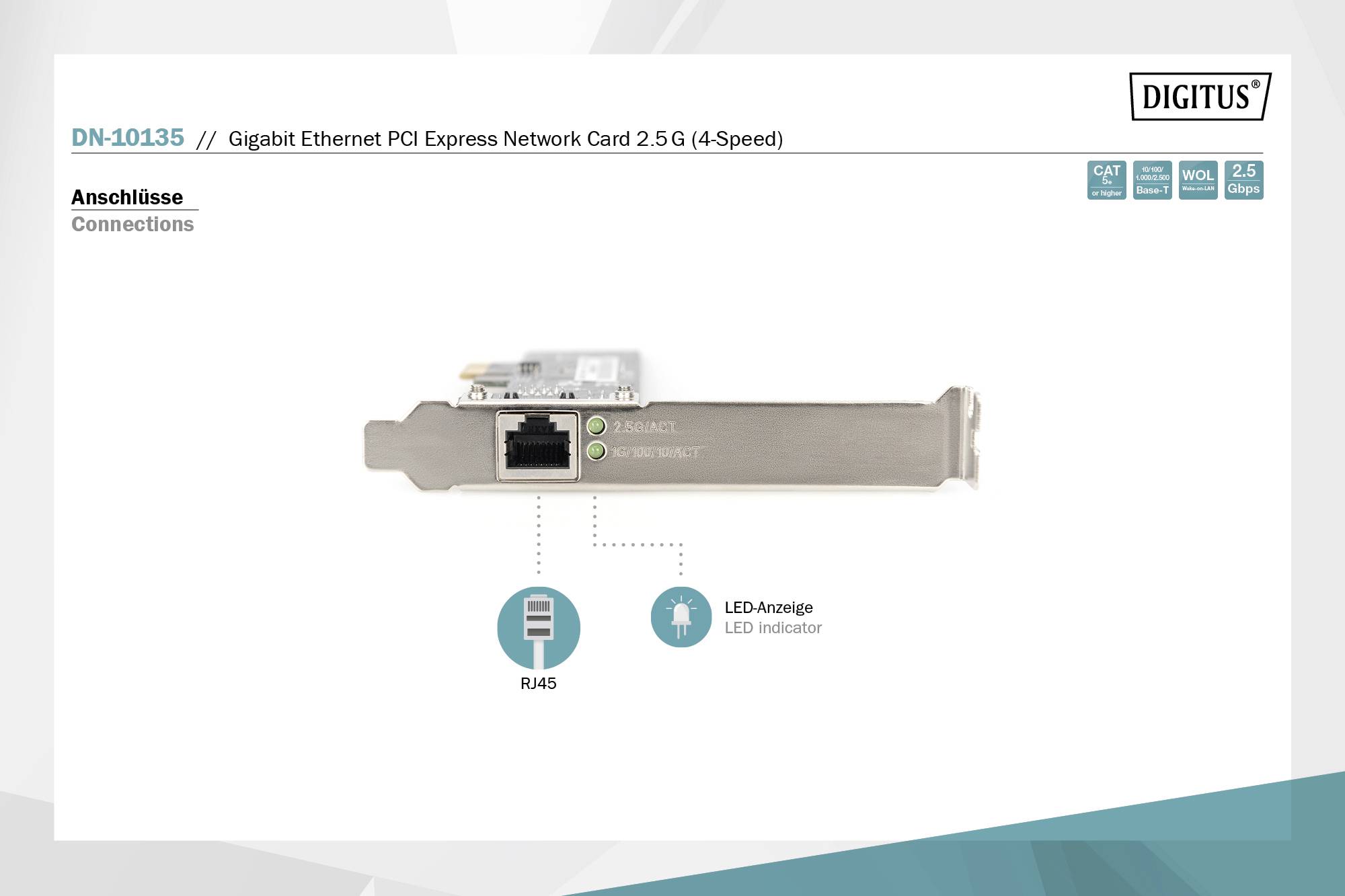

The illustration shows a PCI Express network card with an RJ45 port and LED indicator for network connection.

1/9

Unavailable

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

2.5 Gigabit Ethernet PCI Express card 2.5G Ethernet NIC (CHIPSET:RTL8125B)

Highlights & Details

Gigabit data transfer at up to 2500 Mbps (2.5G)Supported network standards: IEEE802.3, IEEE802.3u & IEEE802.3abideal for streaming and gaming applications with high data rates

Technical specifications

1 x Gigabit LAN (RJ45) connectionSupports 10/100/1000/2500 Mbps networks with automatic detectionComplies with the IEEE802.3, IEEE802.3u & IEEE802.3ab specificationSupports full duplex flow control IEEE802.3xChipset: Realtek RTL8125B - 2500Base-T Ethernet controllerSupports Auto MDI/MDIX crossoverSupports Auto MDI/MDIX crossoverCompliant with PCI Express specification 2.1Supports Wake-on-LAN (WOL)Supports IEEE802.1q VLAN taggingLED power indicator: Active / data traffic / 2.5G data trafficSupported operating systems: Windows 7/8/10 (32/64Bit), Windows Server 2008 R2/2012 R2/2016, Linux 4 and higherOperating temperature: 5°C to 50°C.Operating humidity: 20% - 80%Dimensions (WxDxH) 12 x 9.8 x 2.2 cmWeight 35.2 g

Product type: Network card

Interfaces: PCI-Express

No. of Gigabit LANs: 1 x

No. of LAN ports: 1 x

Transfer rate: 2.5 GBit/s

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s
2500 MBit/s

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2528906 Digitus DN-10135 Network card 2.5 GBit/s PCI-Express

Description

This Digitus PCIe Gigabit network card ideal for high resolution streaming applications. It supports the IEEE802.3u specification for Fast Ethernet and the IEEE802.3ab specification for Gigabit Ethernet with up to 2.5 Gbps via the LAN interfaces (RJ45). In addition, full duplex flow control IEEE802.3x is supported as well as Wake-on-LAN. The card can be used for slots with full height and, in addition, a low-profile slot cover for half height is included in the delivery.

This text is machine translated.

Features

Supports full duplex flow control IEEE802.3xSupports IEEE802.1q VLAN taggingSupports Wake-on-LANAdditional to low-profile slot bracket for use in narrow housings

Scope of delivery

1 x Gigabit Ethernet PCI Express network card 2.5G1 x low-profile slot bracket1 x QIG
