Buy Digitus DN-1019 Wall cabinet (W x H x D) 350 x 550 x 350 mm 10 U Grey-white (RAL 7035)

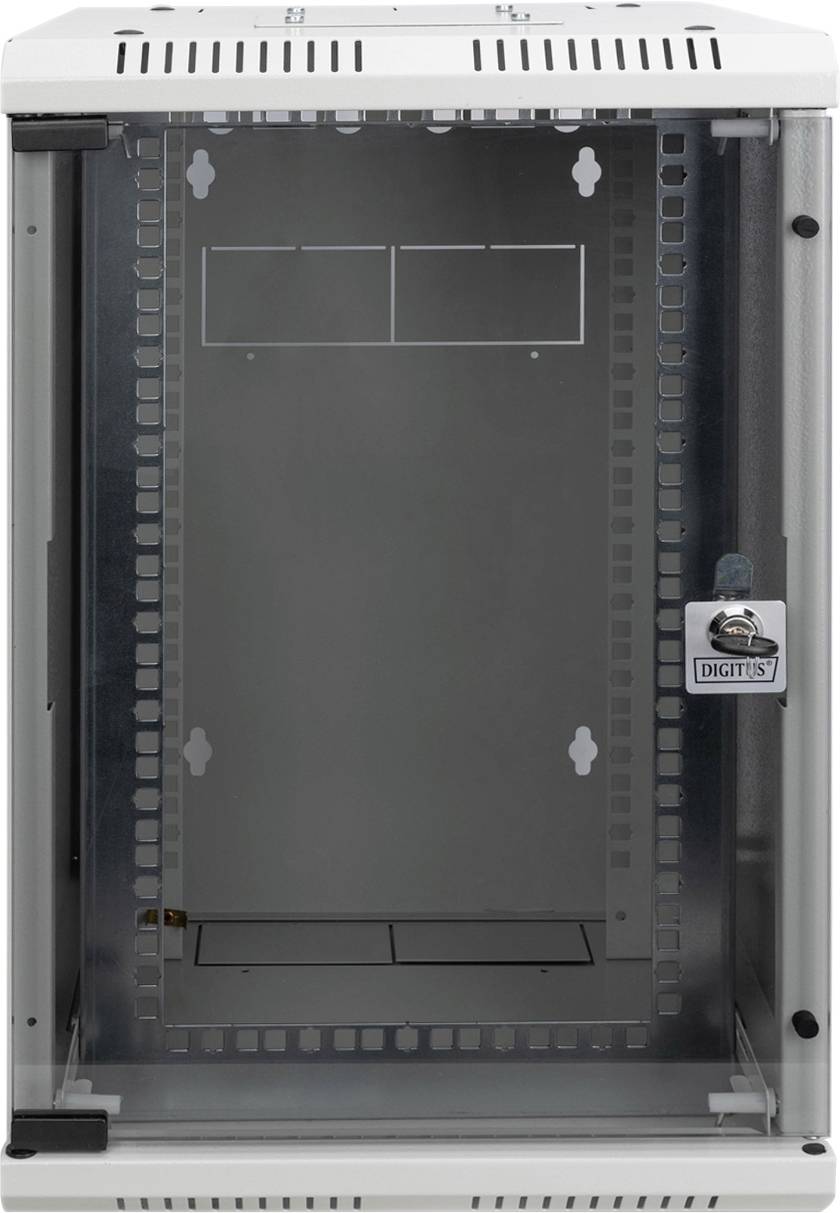

Metal cabinet with glass sliding door and a lock on the right side, empty.

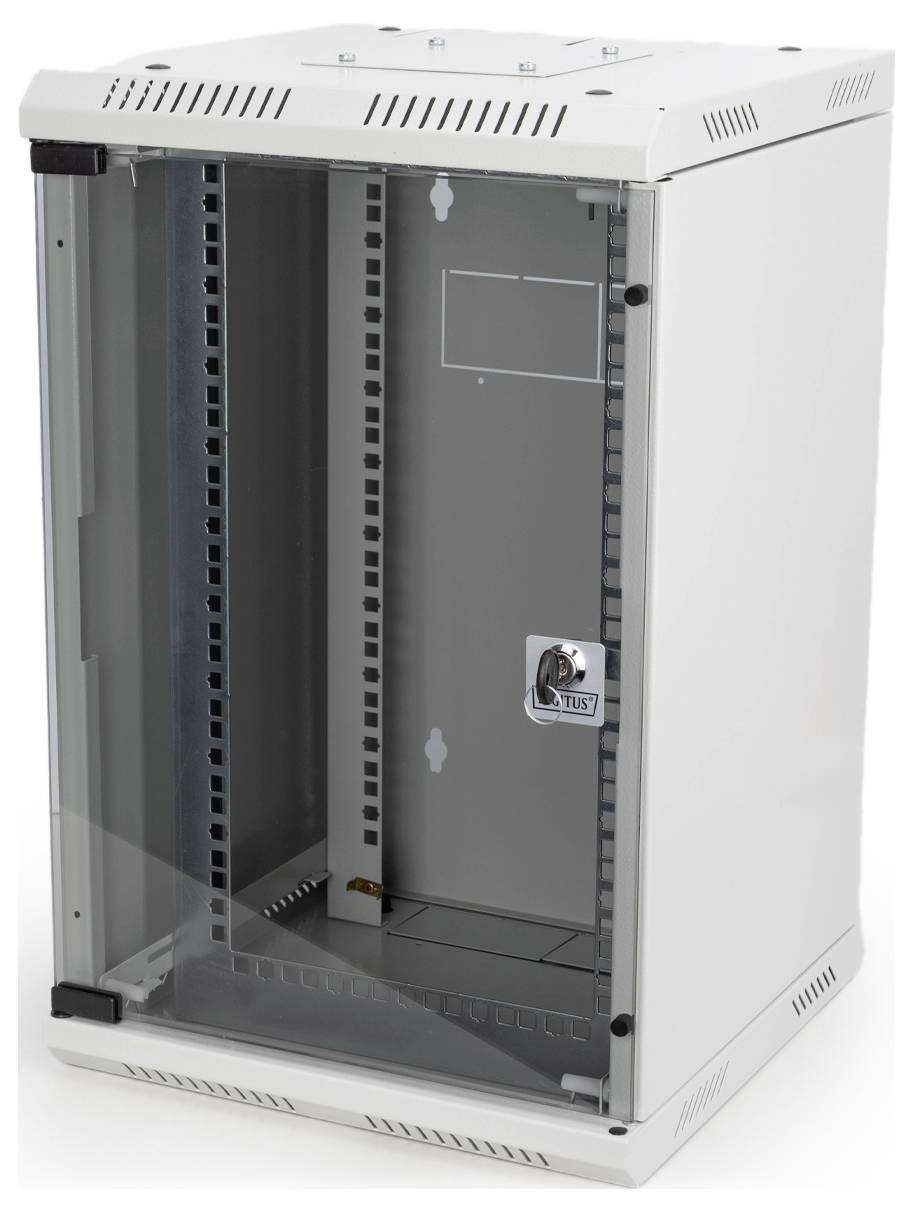

A blank, white IT network cabinet with a glass door and metal lock, suitable for storing network devices or servers.

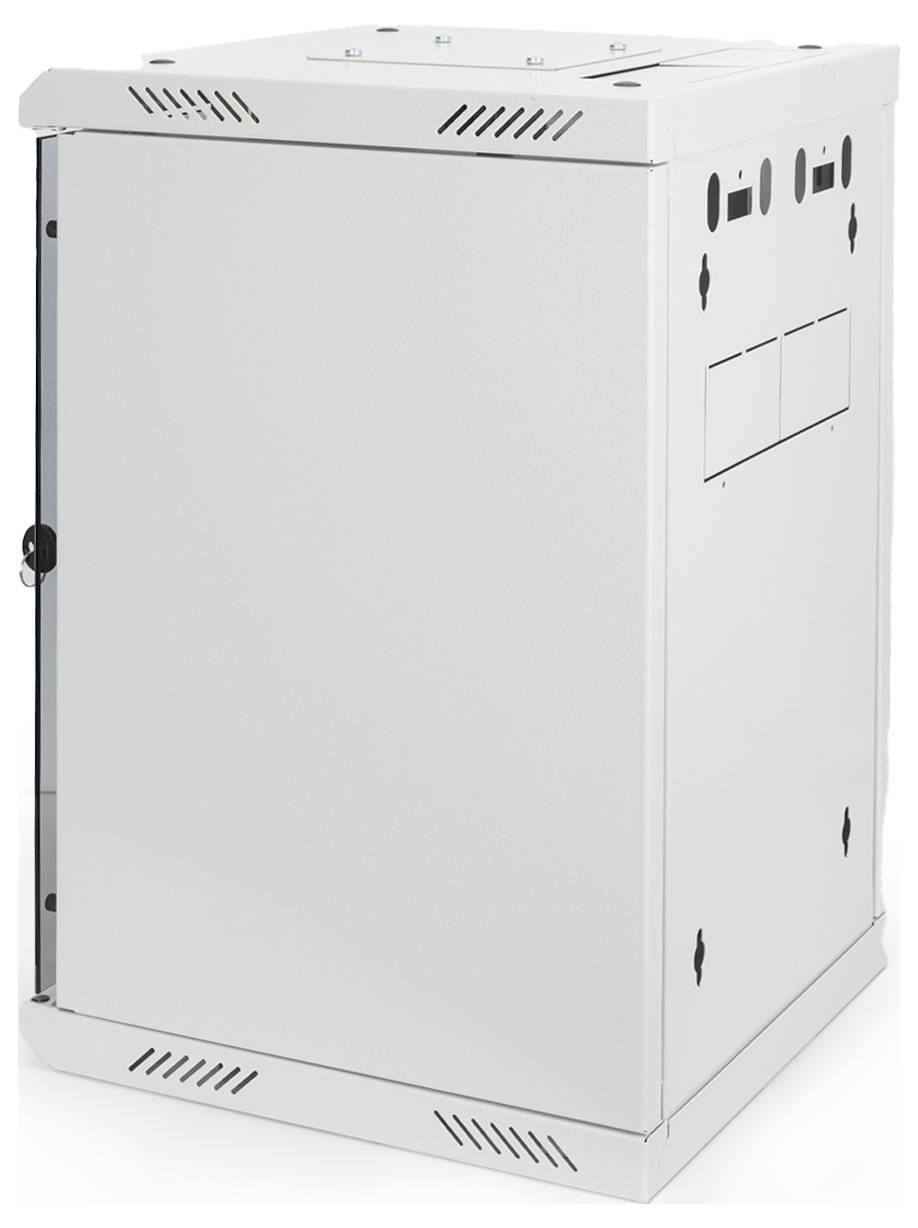

A white metal cabinet with ventilation slots, likely used for storing electronic components.

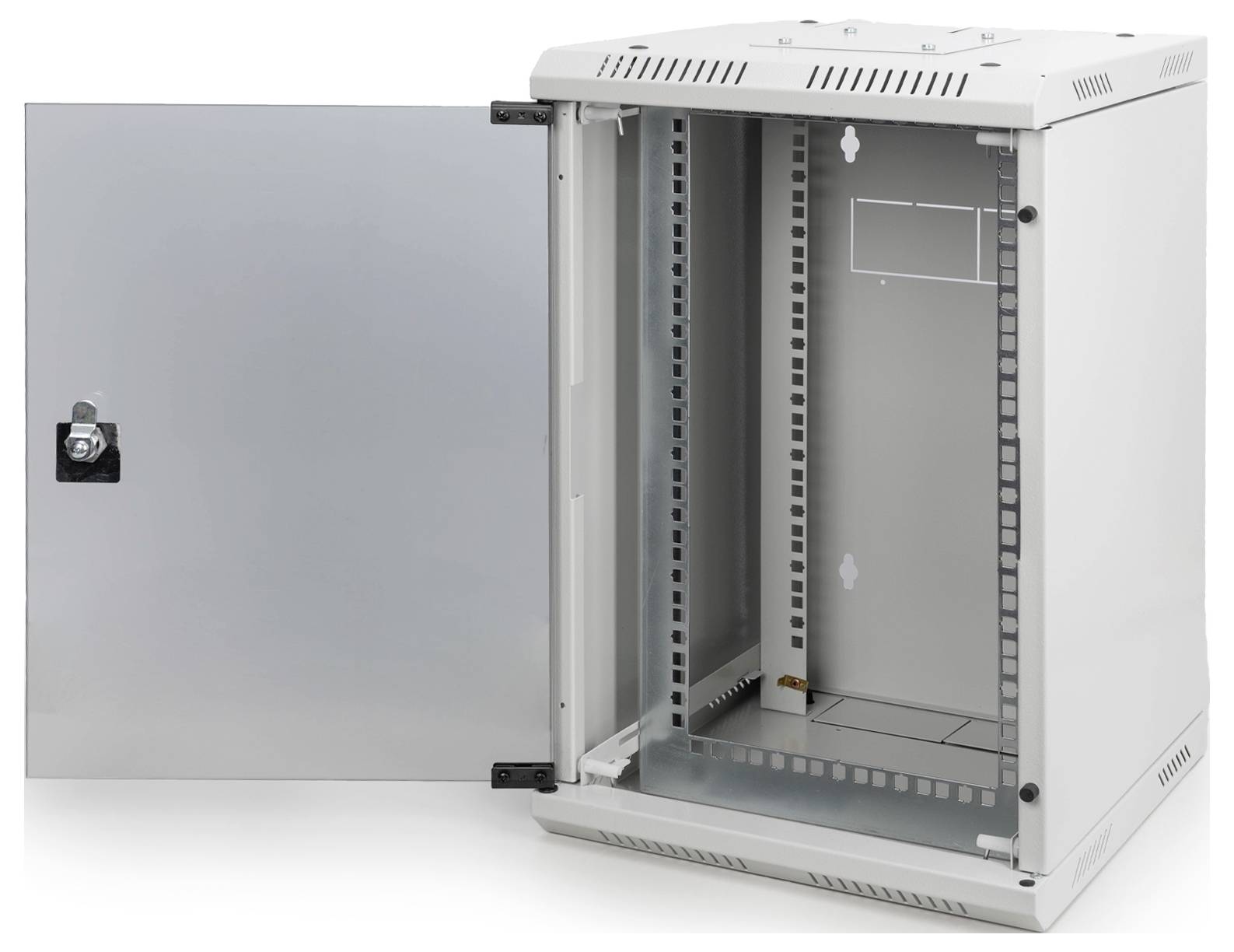

A grey, open metal network wall cabinet with ventilation slots at the top, viewed from the front.

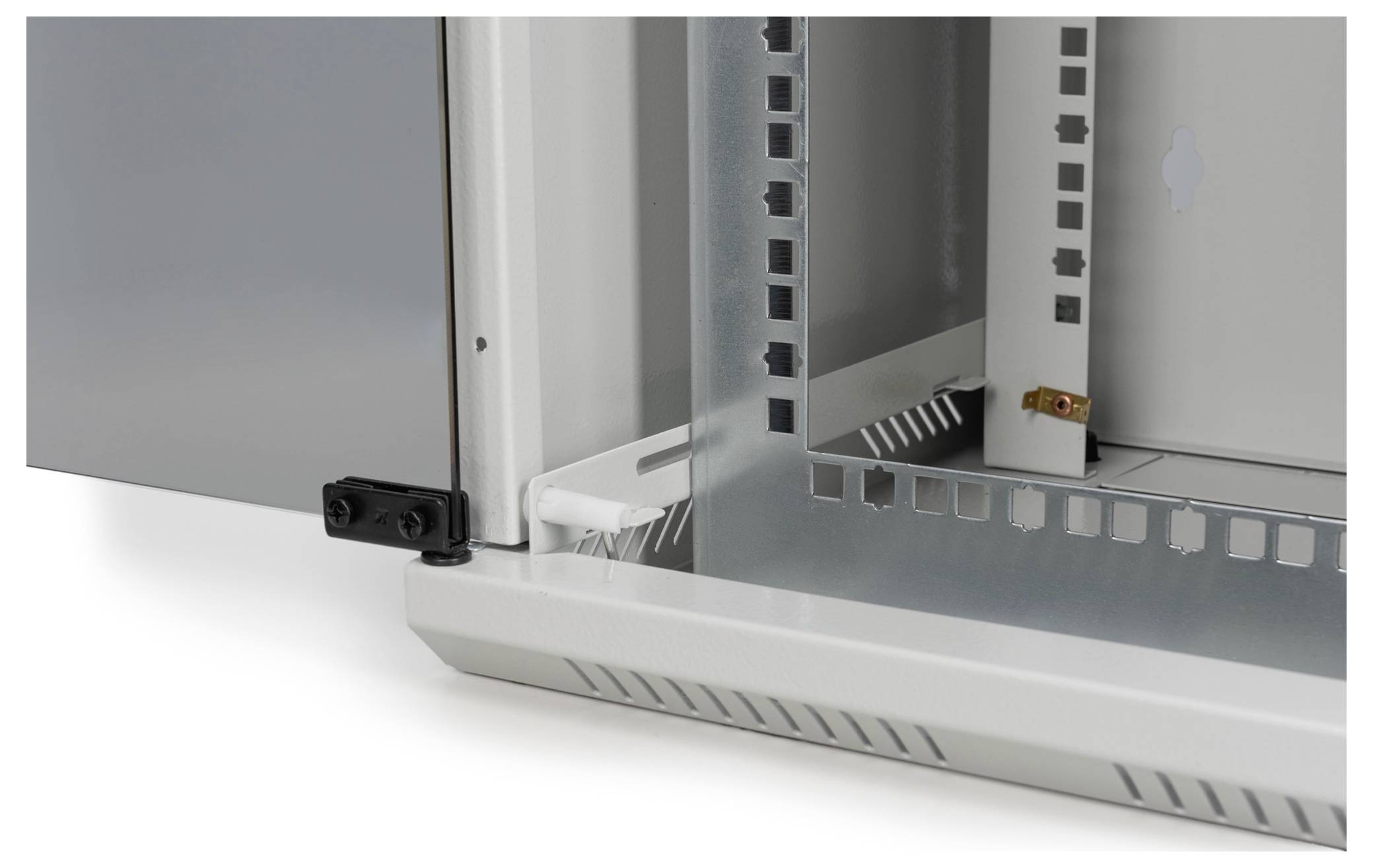

Close-up of an open metal cabinet with hinges and ventilation slots. It reveals interior details of a technical device.

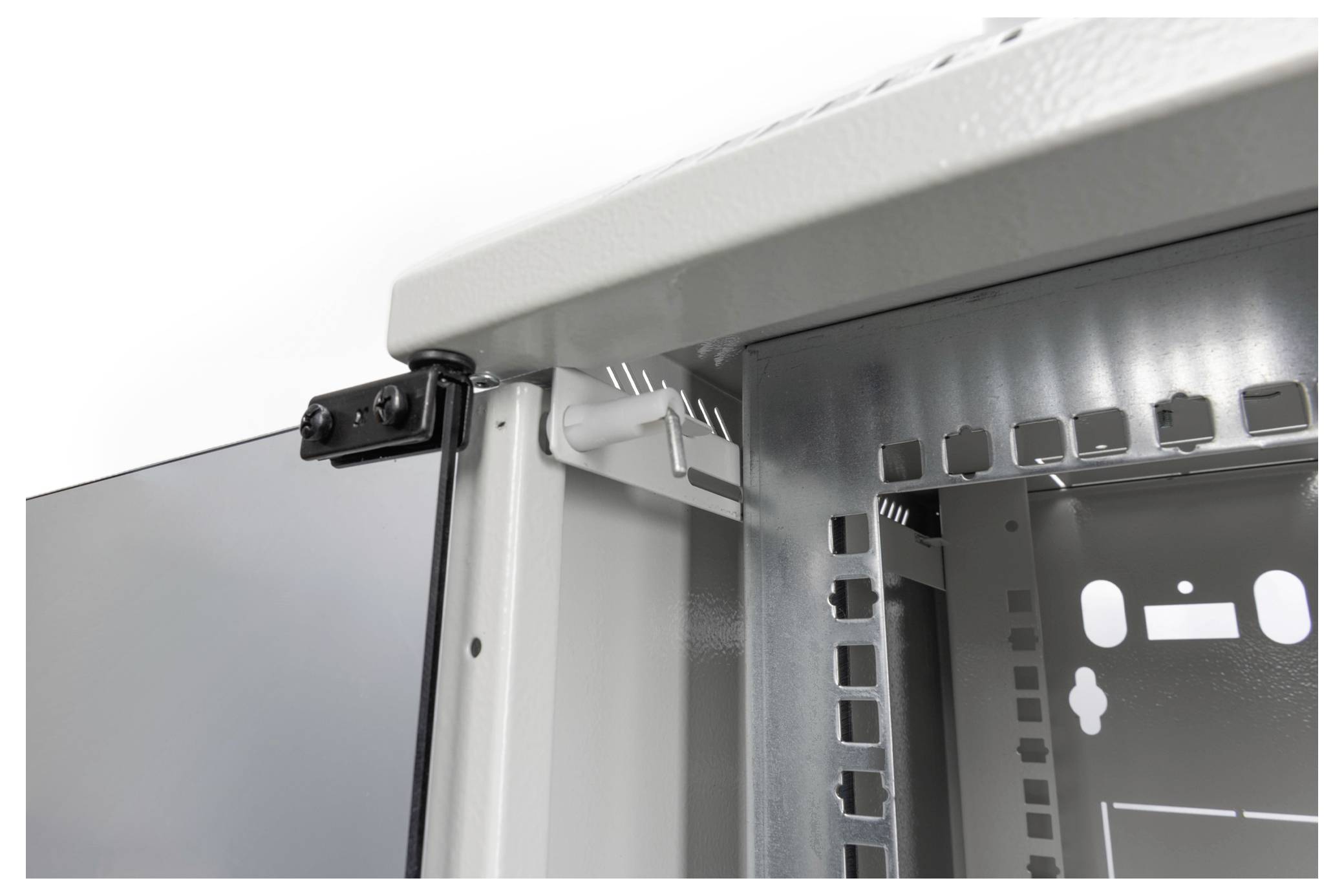

Close-up of a white metal cabinet frame with a glass insert. Hinges and rectangular openings are visible.

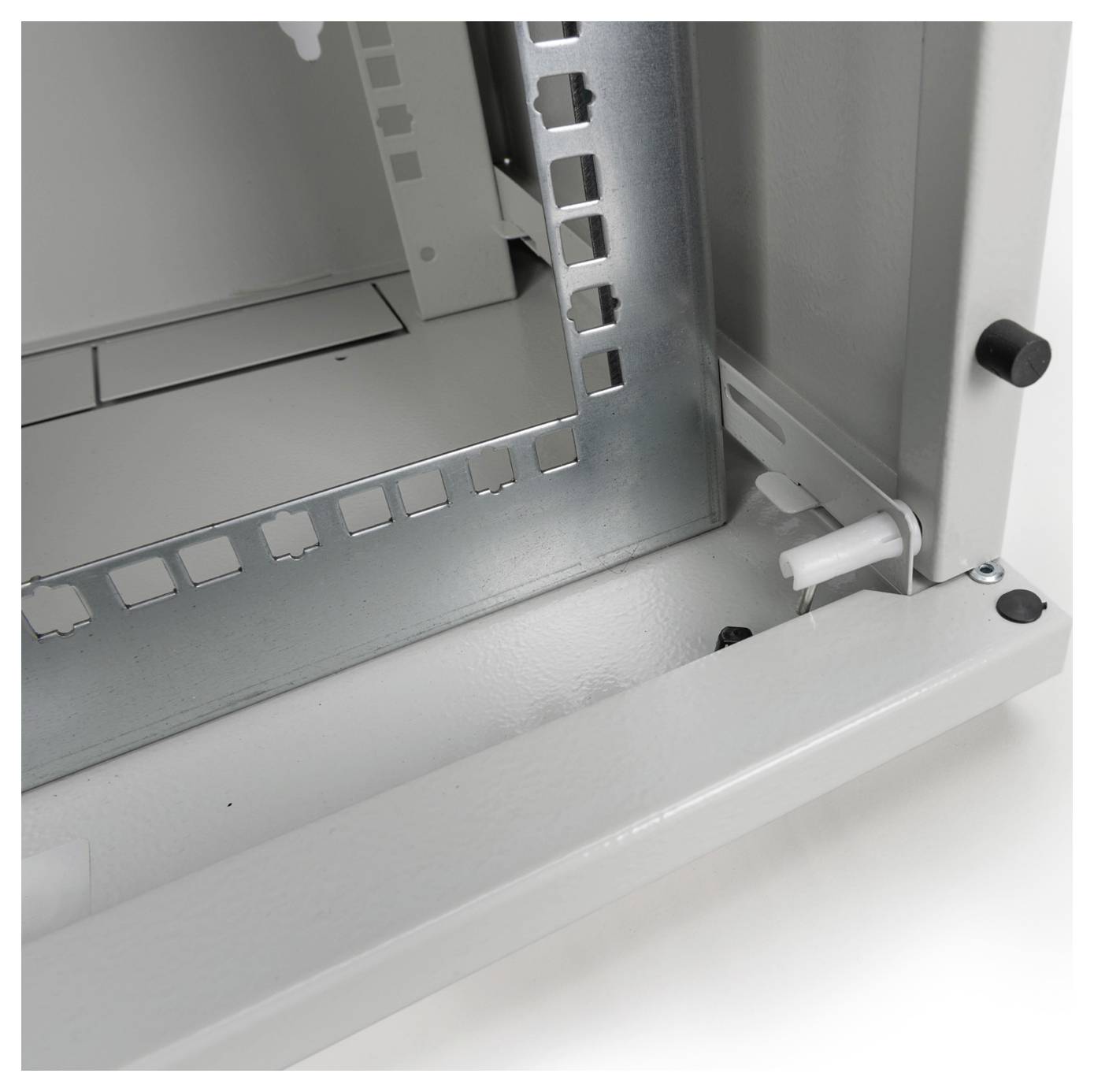

A grey metal cabinet with a door slightly ajar. Interior frames and mounting elements are visible inside.

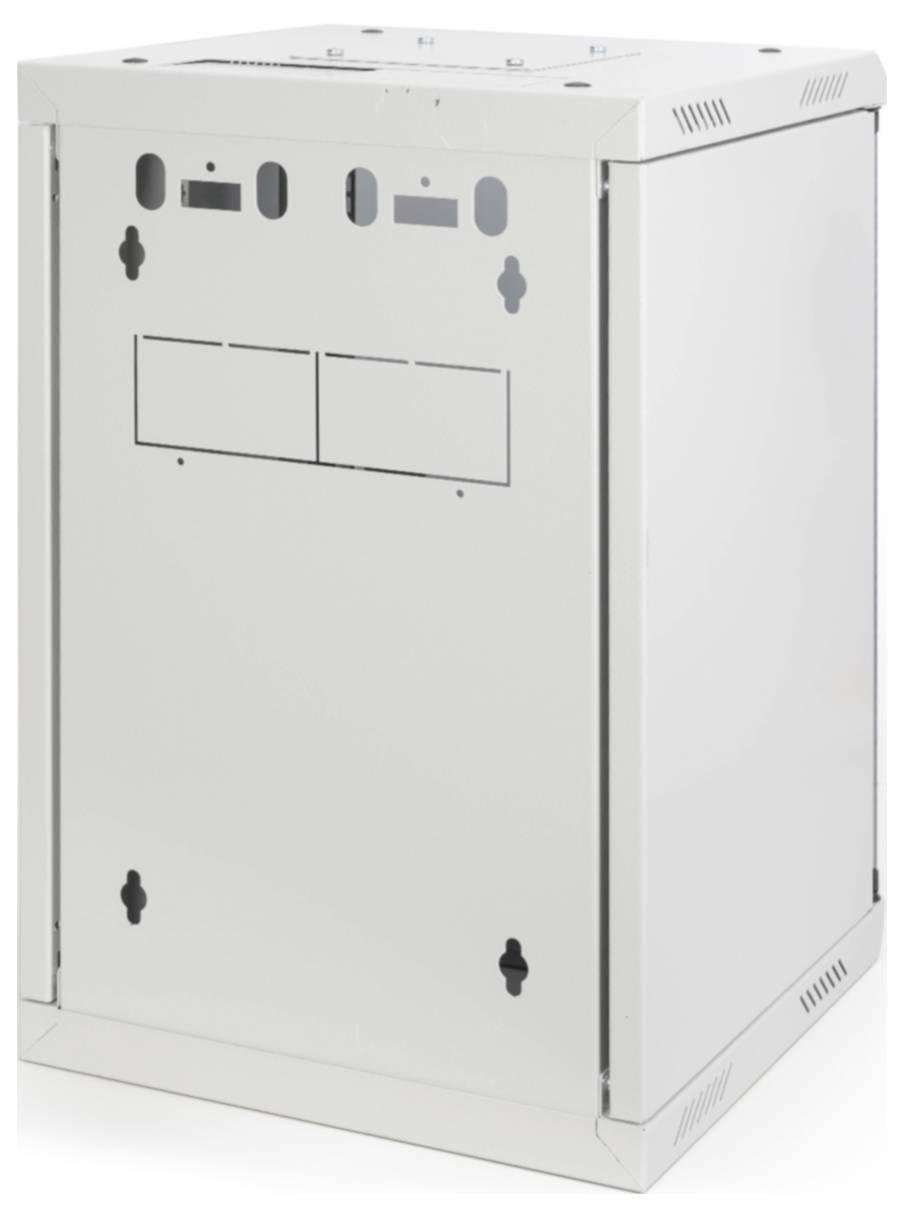

Freestanding white metal cabinet with multiple ventilation slots and recesses, potentially for electronic equipment or cabling.

Large, unlabelled brown cardboard box sealed with tape, standing upright on a white background.

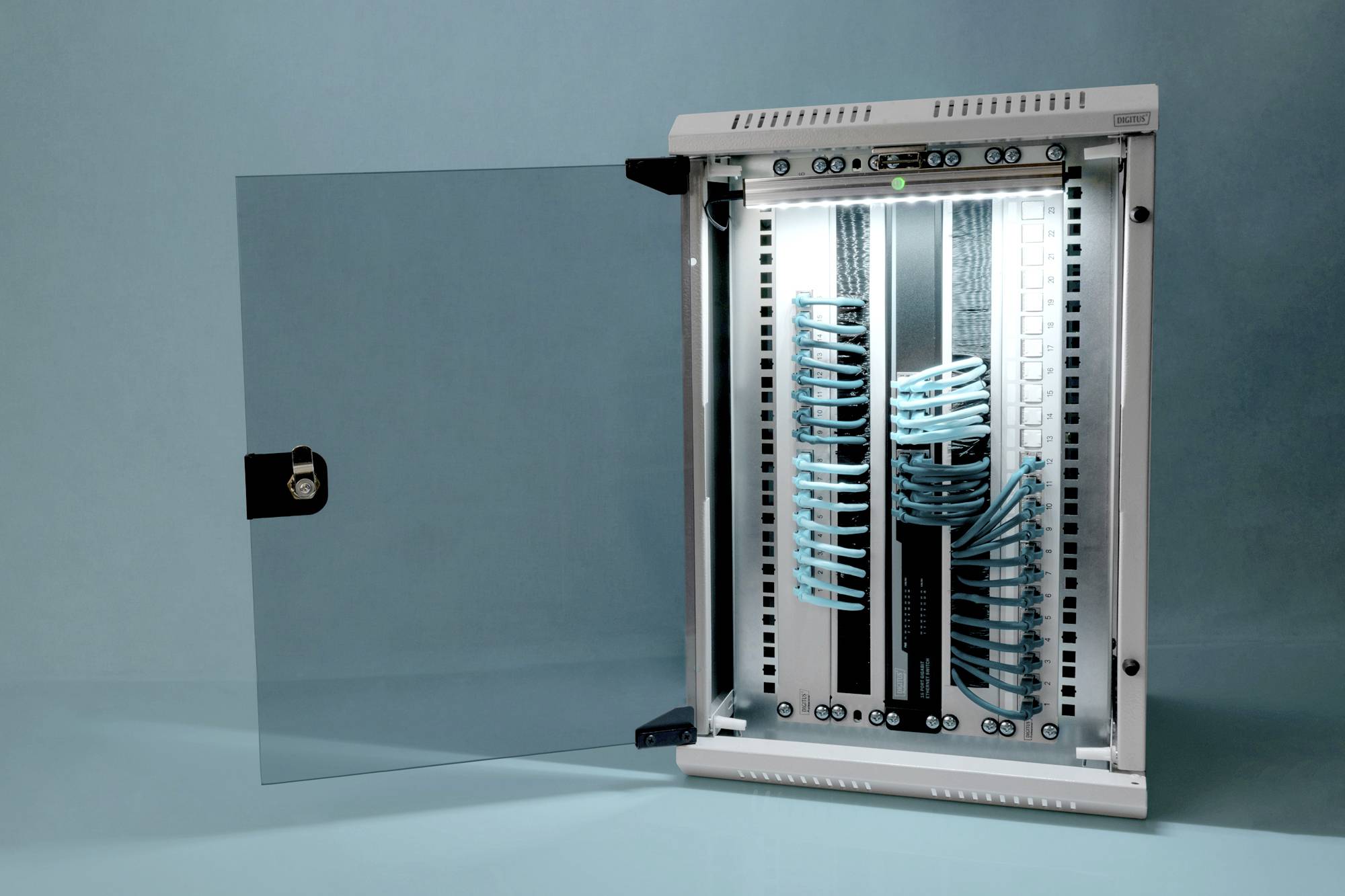

'Open server cabinet with neatly laid blue network cables connected to patch panels, against a blue background.'

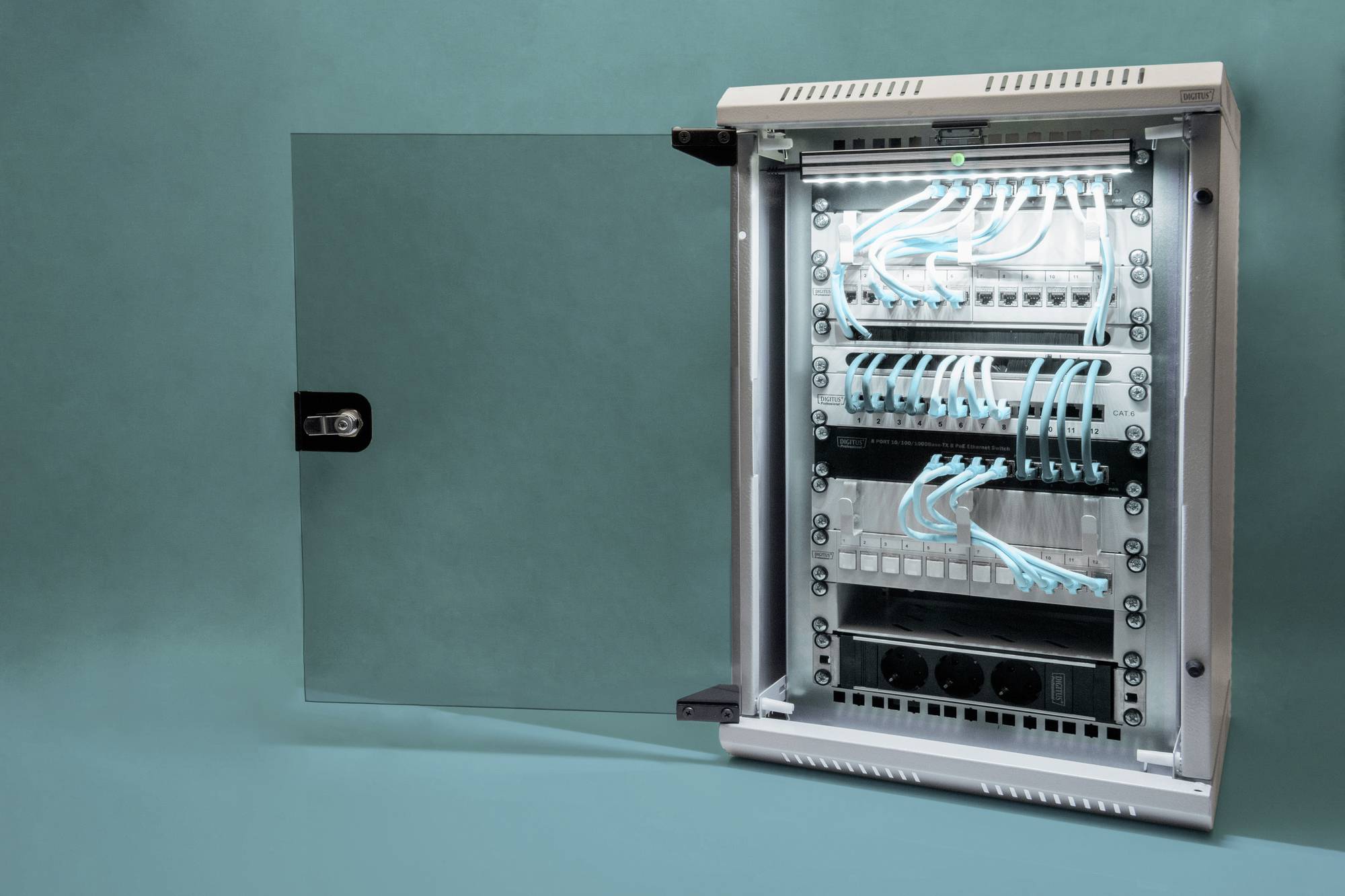

Open electrical cabinet with multiple rows of cables and circuits, all neatly arranged, against a blue background.

1/11

Datasheet (PDF)

Unavailable

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus 10" / 19" network cabinet for wall mounting, 10HE / 5HE, combination wall housing, color gray (RAL 7035)

Highlights & Details

Housing can be used for 254 mm (10") or 482.6 mm (19") applications
Very compact casing
Easy to install in your office building
Provides proper cable management
254 mm (10") 10HE horizontal; 482.6 mm (19") 5HE vertical
Additional 10" (254 mm) 10HE profile hole in rear area
Removable side panels
Including brush strips and cover plate for fan cut-out

Technical specifications

Product type: Wall cabinet

Rack unit: 10 U

Width: 350 mm

Height: 550 mm

Depth: 350 mm

Material: Steel
Safety glass

Dim: (W x H x D) 350 x 550 x 350 mm

Weight: 11.5

Factory colour: Grey-white (RAL 7035)

Rack size: 254 mm (10")

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2229118 Digitus DN-1019 Wall cabinet (W x H x D) 350 x 550 x 350 mm 10 U Grey-white (RAL 7035)

User & Safety Instructions

User & Safety Instructions 2229118 Digitus DN-1019 Wall cabinet (W x H x D) 350 x 550 x 350 mm 10 U Grey-white (RAL 7035)

Description

With a circular profile frame installed on the front, the wall housing offers the possibility of horizontal mounting of 254 mm (10") components (10 height units) as well as alternatively a vertical mounting of 482.6 mm (19") components (5 height units). The front profile frame is adjustable depth. Furthermore, there is a profile hole integrated in the cabinet frame in the rear area for the attachment of further components with 254 mm (10") dimensions. The housing is made of a robust steel construction. The cable entry openings in the roof, floor and rear offer the best possibilities for a tidy cable management. The compact housing is thus ideal for all common IT and telecommunications applications, especially in limited space and private households.

This text is machine translated.
