Digitus DN-14001-1 Network tester Compatible with: CAT 3, CAT 5, CAT 6, CAT 7a
EAN:
Part number:
Item no:
Digitus Network Tester & Cable Tester - PoE-Tester - Scan Automatic - RJ45 RJ11 ISDN BNC - LAN network cable Coax cable
Highlights & Details
- With the cable tester you can easily check whether you have performed your network cabling correctly and immediately recognize if you have not placed an Ethernet cable correctly
- In addition to the pure continuity test, it is also possible to test whether two wires have been swapped or cause a short circuit - thanks to the remote unit also with already installed laying cables
- Depending on the situation, you can switch between the manual test and an automatic loop test that systematically tests one wire at a time and then starts again from the beginning
- The PoE tester shows you whether a PoE signal is present at a port or a network socket and which PoE mode it is - the PoE Finder is compatible with the PoE standards AF & at
- The test device is suitable for all network cables from Cat 3 & coax BNC via Cat 5 & Cat 6 to Cat 7A as well as UAE, TAE & telephone cable and helps, for example, with the cable installation for your DSL connection
Technical specifications
- Product dimensions (main unit): 80 x 55 x 25 mm (H x W x D)
- Product dimensions (remote): 80 x 25 x 25 mm (H x W x D)
- Product dimensions (hard case): 46 x 180 x 120 mm (H x W x D)
- Product type
Network tester
- Compatible with
CAT 3
CAT 5
CAT 6
CAT 7a
- Factory colour
Grey
- Weight
0.258
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2335602 Digitus DN-14001-1 Network tester Compatible with: CAT 3, CAT 5, CAT 6, CAT 7a
Description
The LAN tester enables an easy identification of the correct pin assignment of 10Base-T, 10Base-2, RJ45/TM11 modular cables as well as 258A, TIA-568A/568B and Token Ring cables, etc., by comparing the outgoing cable end with the corresponding receiving cable end. With the remote tester you can test cables that are installed in a different location, for example in wall distributors or patch fields. Easy identification of the cabling is guaranteed.
This text is machine translated.
This text is machine translated.

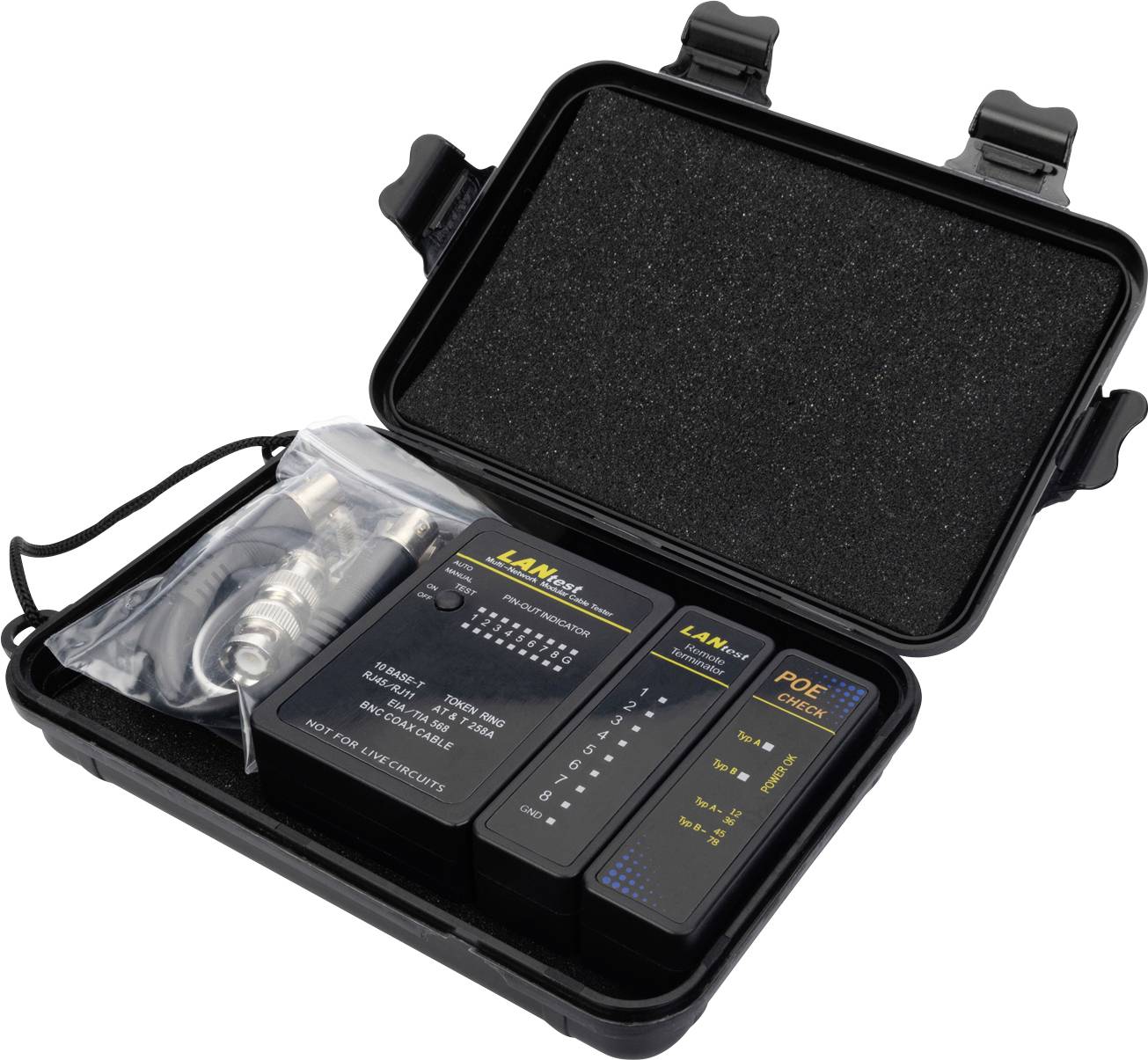

Scope of delivery

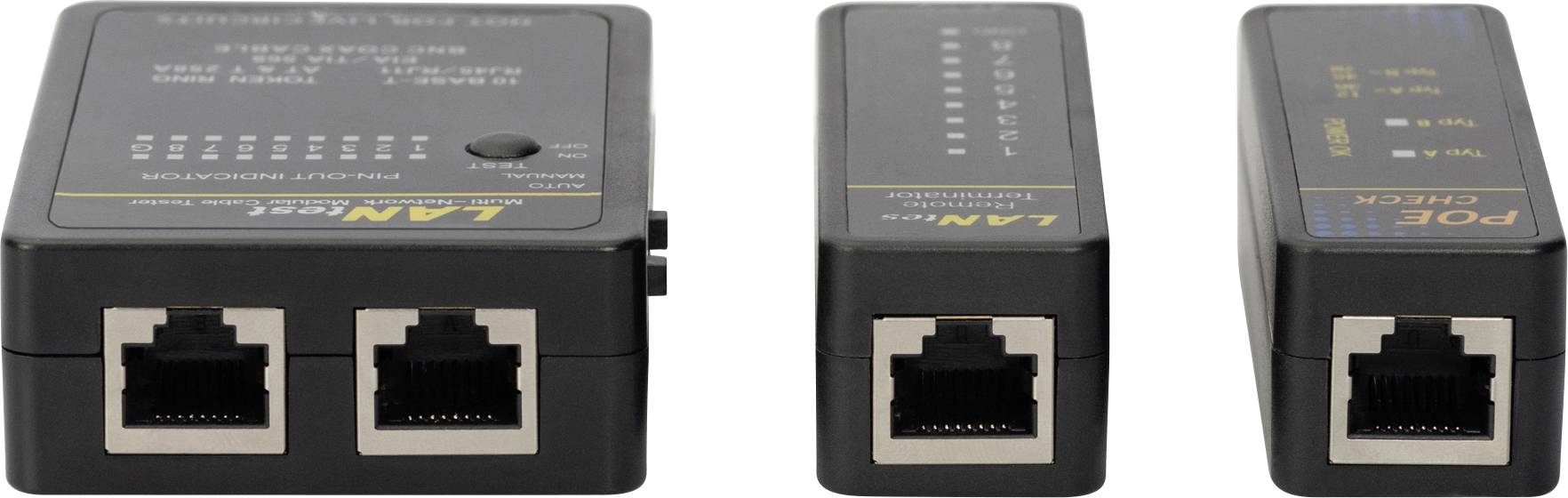

- 1x main unit
- 1x remote device
- 1x PoE tester
- 2x BNC adapter cable
- 1x BNC plug/plug adapter
- 3x RJ45 to RJ11 adapter
- 1x user manual.
- 1x hard shell case
