Buy Digitus DN-170074 UPS system 1000 VA

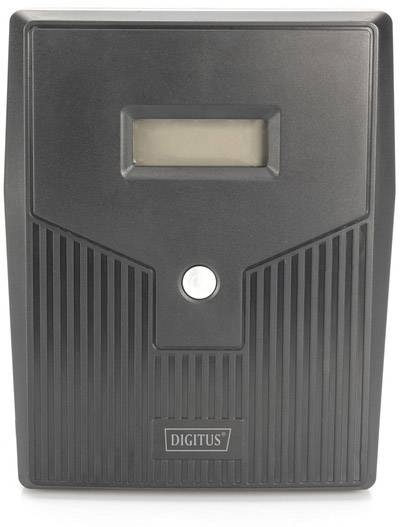

Black uninterruptible power supply (UPS) with display and ventilation slots, used in server rooms or offices.

Black Digitus card reader with display and button in the centre. Front view with structured design.

1/2

Fast track dispatch on Tue, 21 Jul

2 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 109.24 / piece)

€ 109.24

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Digitus DN-170074 Line-Interactive UPS, 1000VA/600W 12V/7Ah x2 battery, 4x CEE 7/7, AVR, USB, RS232, RJ11/RJ45, LCD display

Step-up/down converter to stabilize the voltage
Fast bridging time in case of power failures
Compact housing for space-saving installation in your IT infrastructure
Fast charging time
Produces a low noise level below 40 dB

Technical specifications

Product type: UPS system

Nominal power: 1000 VA

No. of outputs: 4 x

of which battery-buffered: 4

Output: PG socket

Features: Alarm
LCD
Serial port
USB port

Type: DN-170074

Width: 150 mm

Height: 162 mm

Depth: 338 mm

Weight: 7.8 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1881632 Digitus DN-170074 UPS system 1000 VA

Description

The DIGITUS Line-Interactive UPS systems come with a compact size and excellent microprocessor control, which guarantees high reliability. With their user-friendly handling, they offer high performance and security for your business and office computer systems against data loss and damage. Features such as overload, discharge and overload protection, a cold-start function and energy-saving features as well as an acoustic alarm system are just a few of the advantages of the DIGITUS Line-Interactive UPS systems.

This text is machine translated.

Features

Excellent microprocessor control guarantees high reliability in the event of a power failure
Automatic restart while the voltage is restored
Cold start function
Connection: 4x earthing contact socket outlets, 2x RJ45, 1x RS232, 1x USB 2.0 type B.
Input voltage 230 VAC
Voltage range 162-290 VAC
Frequency range 50 Hz (auto sensing)
Output voltage 230 VAC ± 10%
AC regulation (battery mode): 10%
Capacity 1000 VA/600 W.
Frequency range (battery mode): 50 Hz ± 1%
Typical transfer time: 2-6 ms
Waveform (battery mode): Simulated sine wave
Battery 12V/7Ah x 2
Typical recharge time: 6-8 hours to restore 90% of capacity
Alarm sounds: Battery mode (sounds every 10 seconds), low battery status (sounds every second), overload (sounds every 0.5 seconds), error (sounds continuously)
Humidity 0-95% RH @ 0 °C to +40 °C (non-condensing)
Noise level: Less than 40 dB
Step-up/down converter to stabilize the voltage
LCD screen
With overload, discharge and overload protection
Dimensions (H x W x D) 162 x 150 x 338 mm
Weight: 7.8 kg
