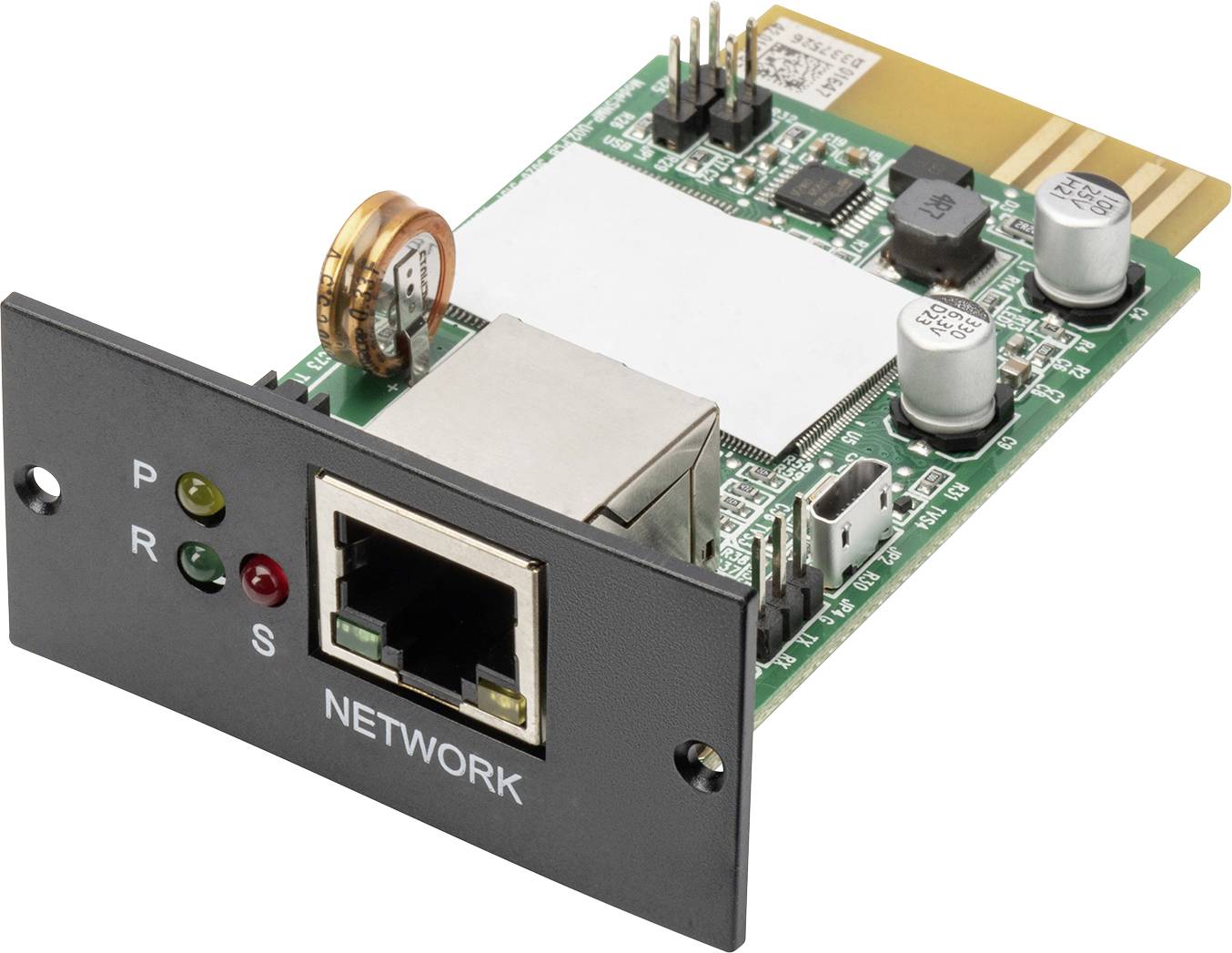

Network adapter card with Ethernet port, LED indicators and electronic components. Used for network connectivity of devices.

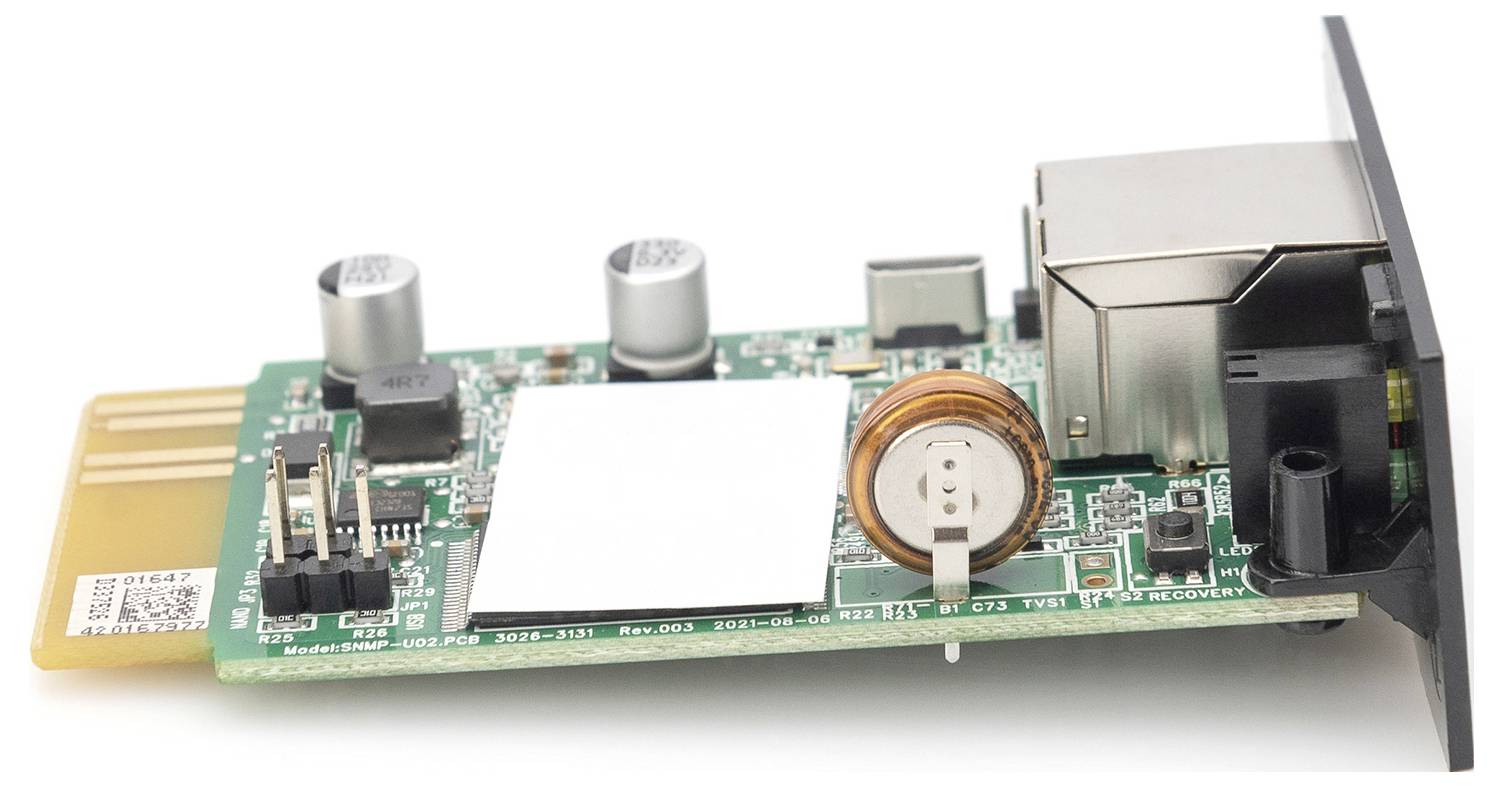

Network card with circuit board and electronic components, including connectors and Ethernet port, shown from the side.

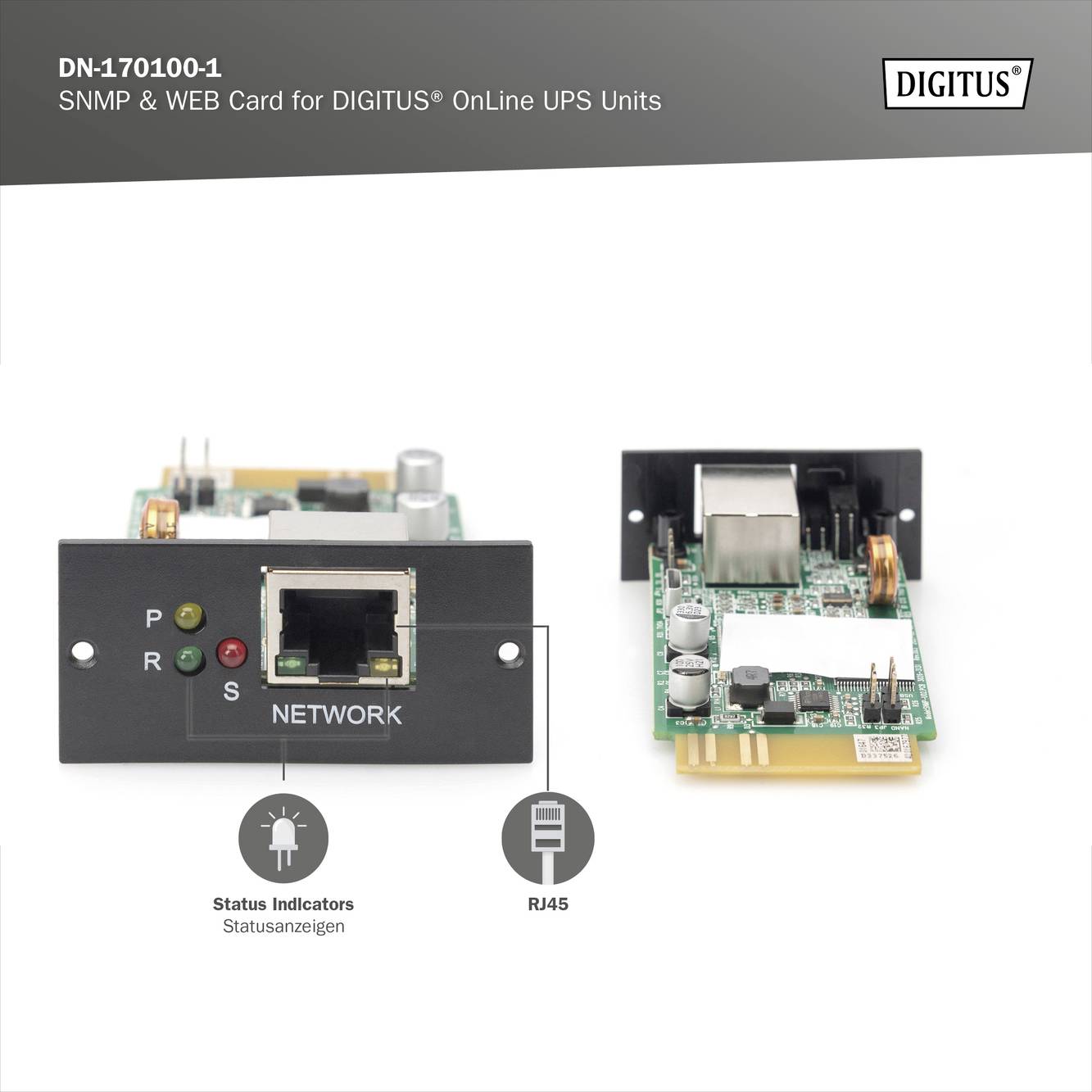

'Digitus SNMP & WEB Card' for online UPS units, with RJ45 connection and status indicators for network monitoring.

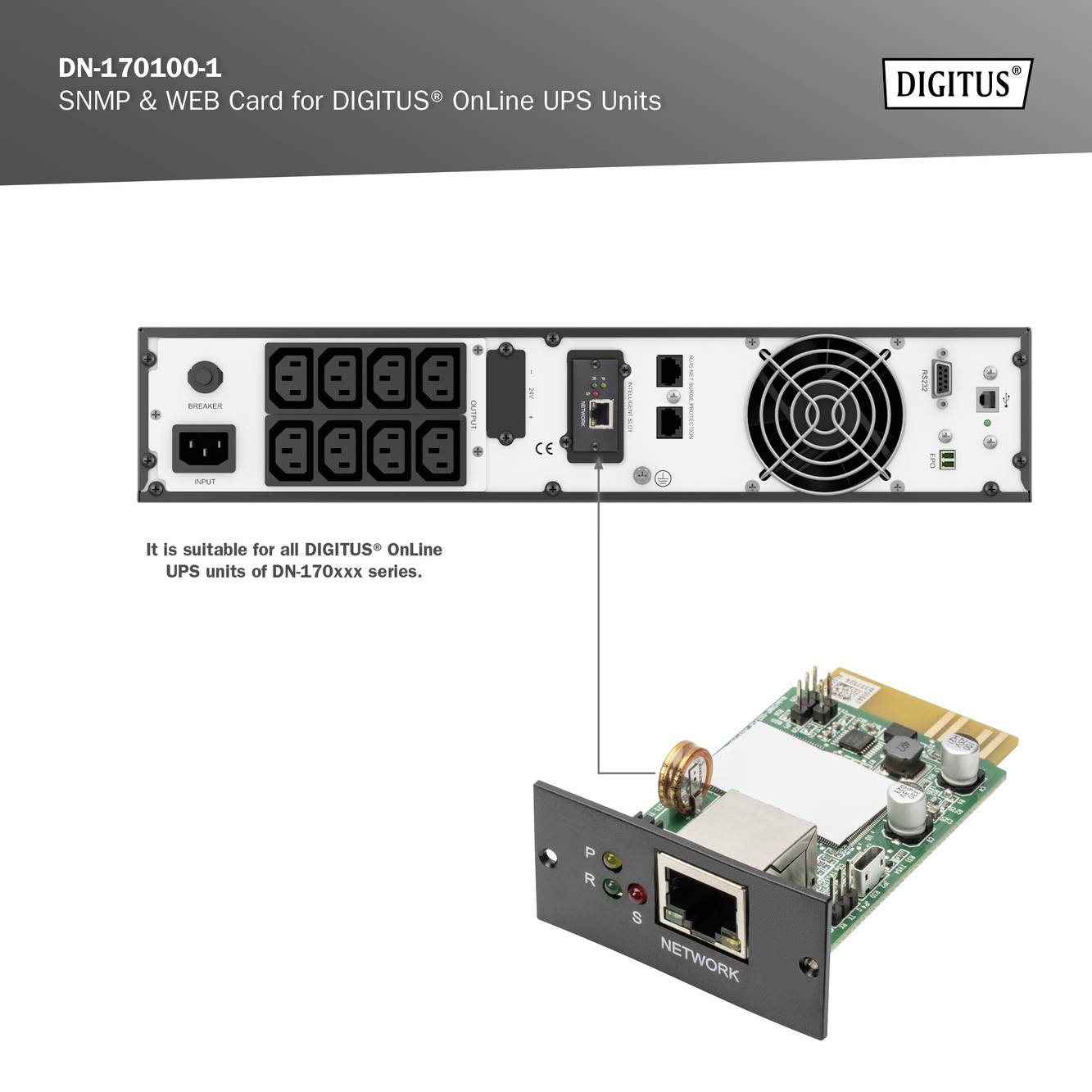

Rear view of a UPS card with multiple connectors and fan; it is suitable for all DIGITUS online UPS devices of the DN-170xx series.

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus SNMP & WEB card for Digitus® online UPS systems

Highlights & Details

Plug-and-Play Installation
Planning shutdown/start-up/reboot of the UPS remotely
Secure authentication

Technical specifications

Allows the control and monitoring of multiple UPS units via RJ45 connection
Dynamic real-time graphs of UPS data (voltage, frequency, charging and battery status)
Warning signals via acoustic alarm, transmission, mobile messenger, e-mail and SNMP traps
Historical data logs are stored in the central PC database
Password security protection and remote control
Interface: High-speed asynchronous serial RS232 interface for communication with the UPS
Network protocol: TCP/IP, UDP, SNMP, SSL, Telnet, HTTP, SMTP, DHCP, DNS, ETC.
LED-display: Power, status, operation, LAN 10/100M link/active
CPU ARM 300MHz 32-bit
SDRAM: 64M BYTE SDRAM
Flash 128M byte NAND flash
LAN PORT 10/100M UTP
Input power 8 V
Power consumption: Max. 3 W
Dimensions (LxWxH) mm: 81x 52x 26

Product type: UPS interface card

No. of outputs: 1 x

Features: Network interface card

Dim: (W x H x D) 26 x 52 x 81 mm

Weight: 0.13 kg

Width: 26 mm

Height: 52 mm

Depth: 81 mm

Type: DN-170100-1

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2997750 Digitus DN-170100-1 UPS interface card

Description

The Digitus SNMP card is an optional solution for controlling and monitoring connected online UPS systems. If the SNMP card is integrated, the user can access the UPS from anywhere over the Internet. The solution enables certain critical tasks to be performed, such as planned shutdowns and startups. Auto shutdown software helps protect servers and workstations from data loss caused by power outages. The storage of measurements and alarm events makes it possible to track the operating history of the UPS. It is suitable for all Digitus® Online UPS systems of the DN-170xxx series.

This text is machine translated.

Features

Automatic sending of individual mails for notification of incidents.
User-friendly web interface

Scope of delivery

1 x SNMP card for online UPS-systems
