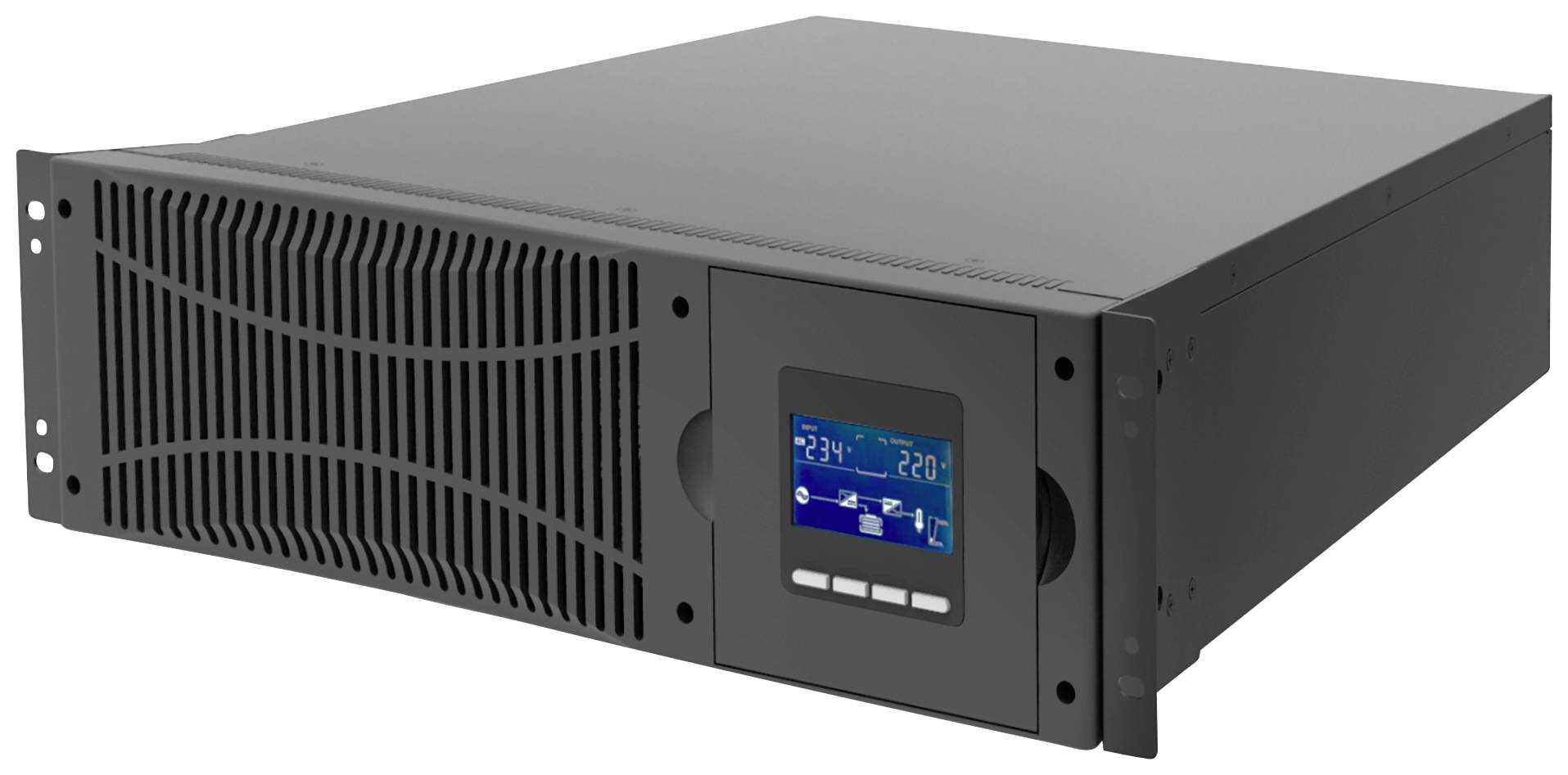

Black server enclosure with digital display on the front panel, showing temperature and performance data.

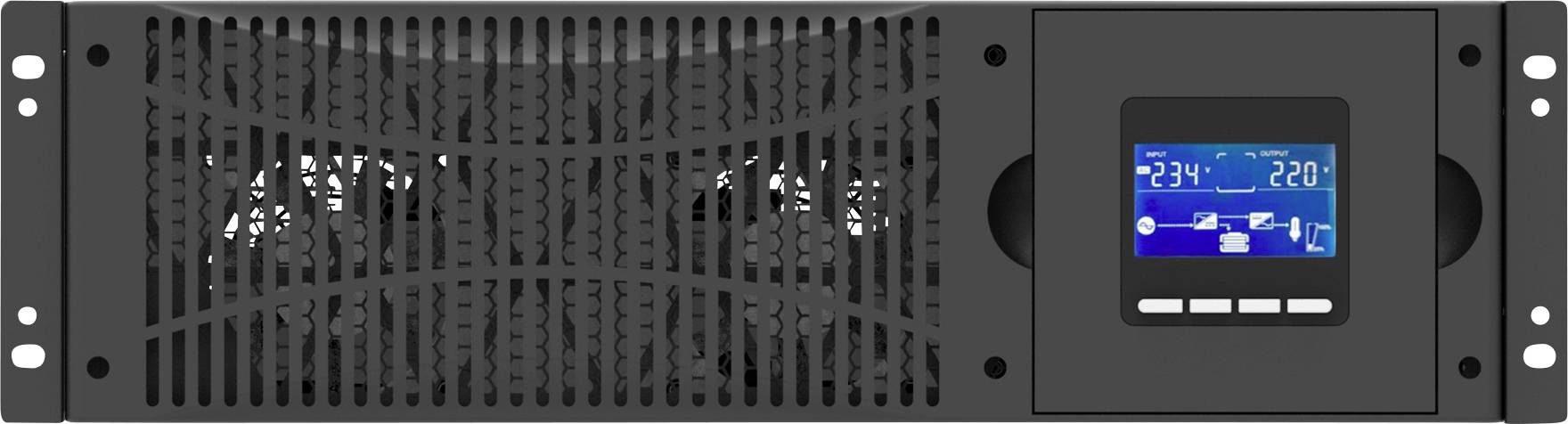

Black rack-mounted server with a blue digital display on the right side showing values '234V' and '220V'. Power management device.

1/2

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus Online UPS module, 10000VA/10000W 2U

Highlights & Details

High output power factor at 1.0PF (efficiency up to 94.0%)
Online double conversion (microprocessor-controlled)
N+X parallel redundancy
Versatile built-in communication interfaces (RS232/USB, parallel port, SNMP card slot)
Rack/tower convertible design
Powerful integrated charger with 3-stage fan speed control
Adjustable charging current
Supports a cold start
Hot-swap: Battery can be replaced during operation
Rotating LCD screen with multi-function parameter settings & function image

Technical specifications

Output voltage : 208/220/230/240 VAC (adjustable)
Input voltage 120 - 276 VAC
Capacity: 10 kVA / 10 kW
Frequency range 45 -66 Hz
Nominal frequency 50 Hz/60 Hz (automatic detection)
Bypass voltage range: 220vac max: 10%, 15%, 20% or 25%, default: 25% / 230VAC max: 10%, 15% or 20%, default +20% / 240Vac max: +10% or 15%, default +15%
Bypass frequency range: ±1%, ±2%, ±4%, ±5%, ±10%
Harmonic distortion (line mode): Less than or equal to 3% (100% linear load, input THDV less than or equal to 1%), less than or equal to 5% (100% non-linear load, input THDV less than or equal to 1%)
Power factor: Greater than or equal to 0.99
Current regulation: ±1%
Output effective power: ±1.0%
Frequency accuracy ±0.1%
Overload capacity: 105%-110% (10min), 110%-130% (1min), greater than or equal to 130% (200ms)
Crest factor: 3:1
External battery 12 V / 9 Ah
Number of batteries: 16 /18 /20 pieces (adjustable)
Charging current(A): 1 A (standard unit); Max. Current 10 A (long-term unit)
Charging time: 6-8 hours for up to 90% of total capacity
Switching time between normal and battery mode - 0ms
Switching time between inverter and bypass - 0ms, enabling: Less than 15 ms (50Hz), less than 13.33 ms (60Hz)
Waveform (battery mode): Sine wave only
Efficiency in normal condition: Greater than 93.5%
Display: LCD + LED, can be rotated by 90° depending on the type of installation
Operating temperature 0°C ~ 40°C & 12% per 5°C (max. 50°C)
Volume: Less than 55 dBA @ 1 meter
Communication interfaces: RS232/USB, parallel interface, communication slot
Hot-swap: Battery can be replaced during operation
Protection class: IP20

Product type: UPS system

Nominal power: 10000 VA

No. of outputs: 1 x

with surge protection: 1

of which battery-buffered: 1

Output: Parallel
RS232
USB
USB 2.0 port B

Features: 2U
Alarm
LCD
Serial port
USB port
Active filter

Bridging time normal load: 18

Bridging time, max load: 10.8 min

Type: DN-170107

Width: 440 mm

Height: 86.5 mm

Depth: 620 mm

Weight: 15800 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2378044 Digitus DN-170107 UPS system 10000 VA

Description

The parallel redundant online UPS is an ideal backup solution for your demanding power requirements and offers high reliability in various industrial applications.

Digitus DIGITUS® Online UPS systems are highly reliable solutions designed to protect sensitive devices in industrial applications from power interruptions. They are equipped with microprocessor control to ensure maximum performance and safety. Up to 4 devices can be connected in parallel to increase power redundancy. The UPS can be connected to suitable external battery modules. The high power factor, wide input voltage range and powerful charger make the system the most demanding. The intelligent charging modes and fan speed control increase the life and reliability of the UPS. With the help of the LCD display all parameter settings of the uninterruptible power supply can be configured, so the DIGITUS® UPS is a valuable addition to your IT infrastructure. An SNMP adapter for remote access to the UPS system is available as an option.
