Digitus DN-170108 UPS battery pack
EAN:
Part number:
Item no:
Digitus DN-170108 UPS battery pack
Highlights & Details
- Rack / tower convertible design
- Hot swappable - battery can be replaced during operation
- Supports fast backup time extension with increasing capacity requirements
- Easy installation - user replaceable batteries
- Supports cold-start function
Technical specifications
- Battery voltage ±120 VDC
- Capacity (standard unit): 12 V / 9 Ah
- Quantity of built-in rechargeable batteries: 20 pieces
- Batteries in series: 10 (per battery module)
- Battery type: Lead-acid battery
- Typical charging time: 6 - 8 hours to restore 90% of full capacity
- Operating temperature: 20°C to + 25°C.
- Operating humidity: 0 - 90 %

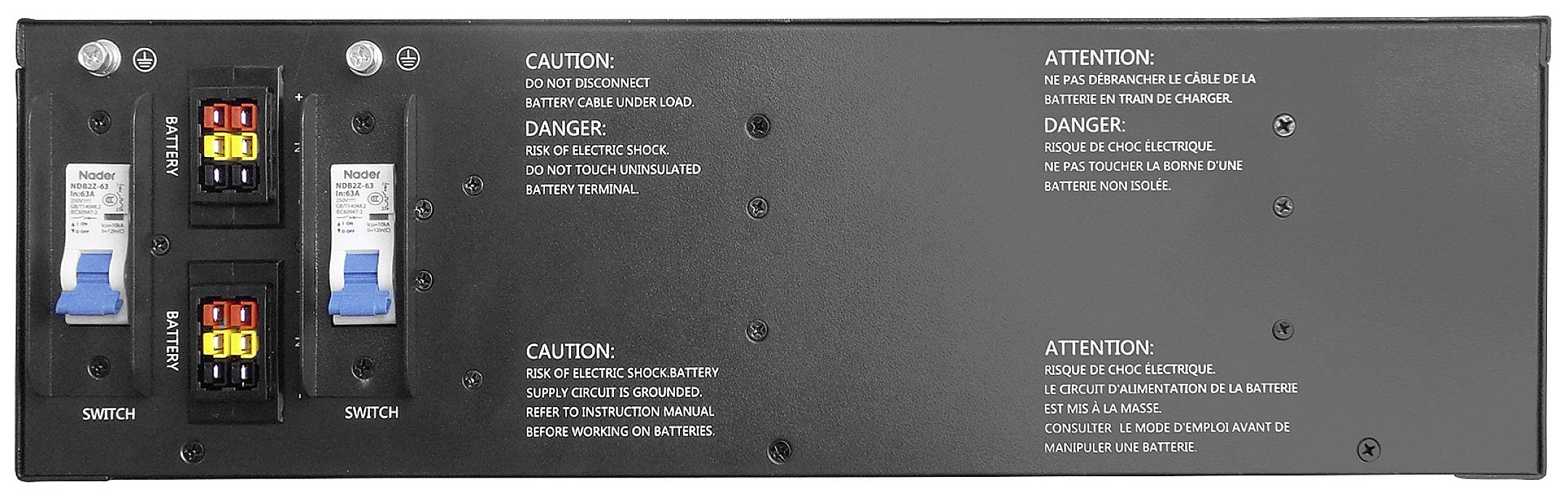

- Terminal connections on the back
- Product type
UPS battery pack
- No. of outputs
2 x
- with surge protection
2
- Type
DN-170108
- Width
443 mm
- Height
131 mm
- Depth
585 mm
- Weight
65 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2377882 Digitus DN-170108 UPS battery pack
Description
A solution that increases the operational capability of intelligent UPS systems to protect IT devices with medium to high loads
Digitus DIGITUS® UPS battery modules ensure that UPS systems used in high-demand environments continue to reliably supply power to connected devices during power interruptions. A maximum of 4 battery modules can be connected to increase the operating time of the connected IT devices. It is ensured that the systems are protected with uninterruptible power supply during battery replacement. The external battery packs can provide for a fast increase of the bridging time as demand increases.
This text is machine translated.
Digitus DIGITUS® UPS battery modules ensure that UPS systems used in high-demand environments continue to reliably supply power to connected devices during power interruptions. A maximum of 4 battery modules can be connected to increase the operating time of the connected IT devices. It is ensured that the systems are protected with uninterruptible power supply during battery replacement. The external battery packs can provide for a fast increase of the bridging time as demand increases.
This text is machine translated.
Features
- Battery module can be installed in a 19" rack or as a tower with pedestal
- Hot swappable battery can be replaced during operation
- Compatible with online UPSs: DN-170106 & DN-170107
Scope of delivery
- External UPS battery pack for 6kVA and 10kVA UPS models (expansion module)
- User manual
Hints
Compatible with online UPSs: DN-170106 & DN-170107
