Digitus DN-170109 UPS DIN rail
EAN:
Part number:
Item no:
Digitus UPS mounting kit for 19" network/ server cabinets (mounting rail)
Highlights & Details
- Digitus compatible 1K 10K
- Allows easy installation of UPS systems on profile rails
- Supports mounting of UPS systems with 3HE or 2HE height
- Suitable for depths from 468.5 mm to 1000 mm
Technical specifications
- Colour: Silver.
- Product type
UPS DIN rail
- Type
DN-170109
- Width
65 mm
- Height
85 mm
- Depth
496 mm
- Weight
2770 g
- Wireless charging
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2378045 Digitus DN-170109 UPS DIN rail
Description

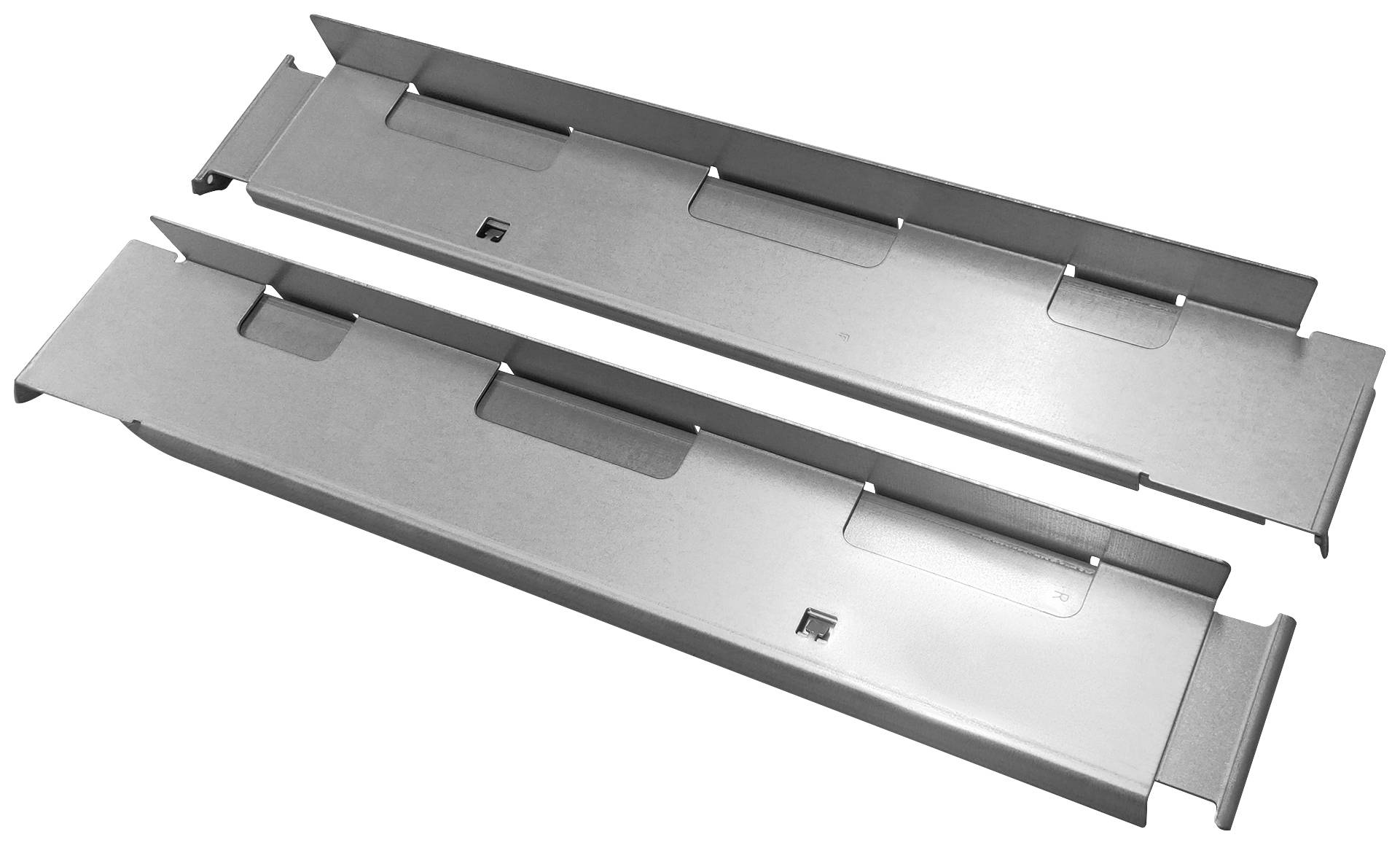

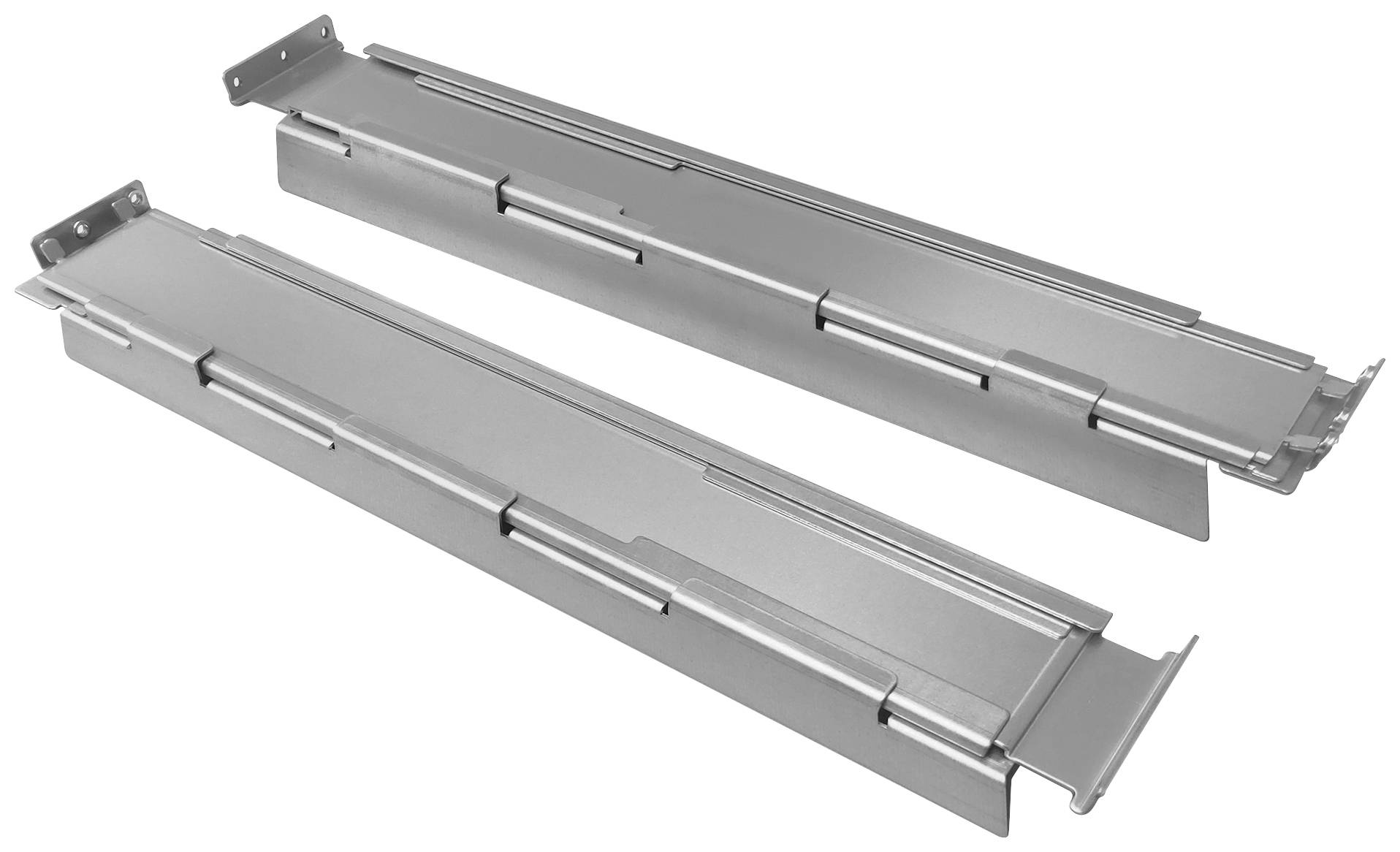

Rail kit for 1K~10K UPS (2U or 3U) with package
The mounting kit enables the easy installation of online UPS systems in 19" network / server cabinets
This mounting kit allows UPS systems to be installed in Digitus DIGITAL® 483 mm (19") network or server cabinets. Digitus 2 or 3U power supplies can be installed, compatible with the DIGITUS® Online UPS systems (1K-10K). It is mounted on 4 profiled rails of the 19" cabinet.
This text is machine translated.
Features
- For fixed installation on the four 483 mm (19") profile rails
- 1 piece consists of two parts (internal and external profile system)
- Variable for the following depths: 468.5 mm to 1000 mm
Scope of delivery
- Ups mounting kit for 19" network/server cabinets
- User manual
