Digitus DN-170123 UPS battery pack 3000 VA
EAN:
Part number:
Item no:
Digitus DN-170123 UPS battery pack 3000 VA
Highlights & Details
- Rack / Tower convertible design
- Hot-swappable - battery can be exchanged during operation
- Supports fast extension of the backup time with increasing capacity requirement
- Easy to install - user-replaceable batteries
- Supports a cold start function
Technical specifications
- Compatible with Online-UPS: DN-170096
- Battery voltage ±82.5 VDC
- Capacity (standard unit): 12 V / 9 Ah
- Quantity of built-in rechargeable batteries: 12 pieces
- Batteries in series: 6 (per battery module)
- Battery type: Lead-acid battery
- Typical charge time: 12 hours to restore 90% of full capacity
- Operating temperature: 20°C to + 25°C.
- Operating humidity: 0 - 90%

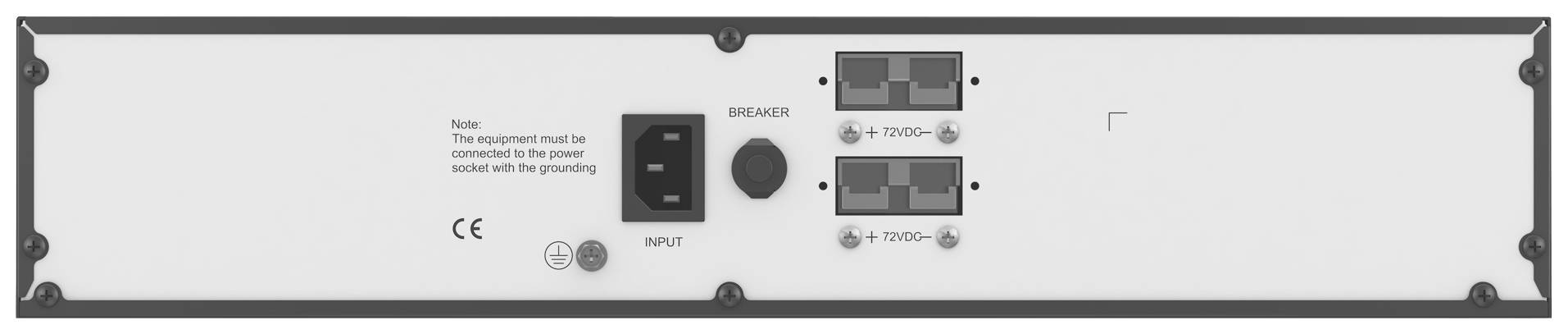

- Terminal connections: Rear side
- IEC 60320 C14 insert
- Installation: Rack
- Output: 1500VA – 3000VA
- Inch Form Factor (IEC 60297): 482.6 mm (19")
- Product type
UPS battery pack
- Nominal power
3000 VA
- Features
1U
- Type
DN-170123
- Width
440 mm
- Height
710 mm
- Depth
86.5 mm
- Weight
41100 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3046097 Digitus DN-170123 UPS battery pack 3000 VA
Description
The Digitus® UPS battery modules ensure that UPS systems used in high-end environments continue to provide reliable power to connected equipment during power interruptions. A maximum of 4 battery modules can be connected to increase the operating time of the connected IT devices. It is ensured that systems are protected with uninterruptible power supply during battery replacement. The external battery packs can provide for a quick increase of the bridging time in case of increasing need.
This text is machine translated.
This text is machine translated.
Features
- Easy to install - user-replaceable batteries
- Supports a cold start function
- Battery module can be installed in a 19" rack or as a tower with stand
- Hot-swappable battery can be replaced during operation
Scope of delivery
- 1 x external battery pack for 3 kVA models (expansion module)
- 1x user manual
- 1 x AC connection cable
- 1 x battery connection cable
