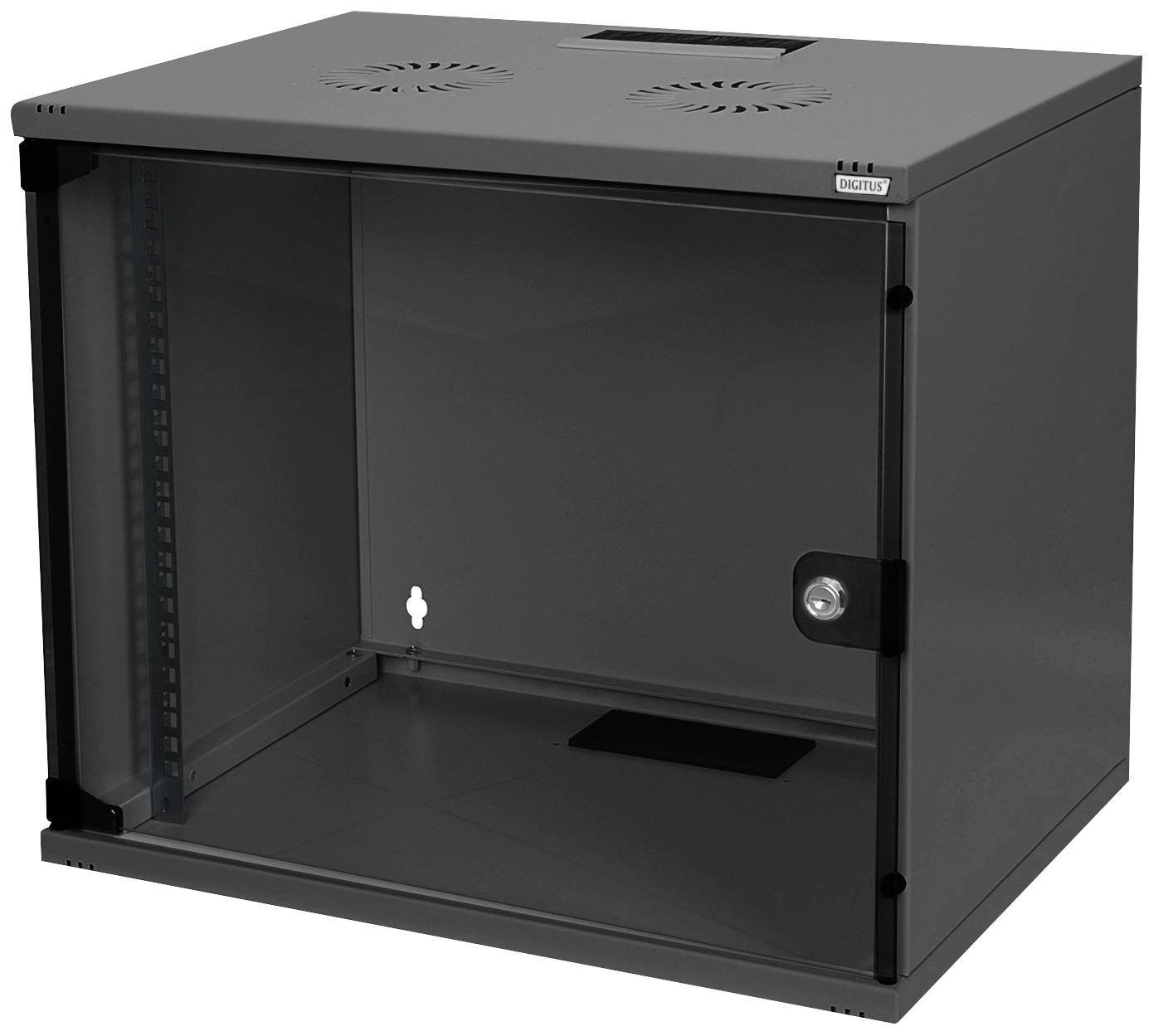

Digitus DN-19 07-U-S-SW 19" wall cabinet (W x H x D) 540 x 370 x 400 mm 7 U Black (RAL 9005)
EAN:
Part number:
Item no:
7HE wall housing, SOHO, unassembled 370x540x400 mm, glass door, black (RAL 9005)
Highlights & Details
- Network wall housing with 7 height units from 1.1 - 1.5 mm robust sheet steel with high load capacity, powder-coatedUnassembled delivery of the server rack in the flat pack ensures cost and space efficiencyVentilation slots for active as well as passive ventilation in the network wall cabinet
Technical specifications
- Width 540 mmColor: Black, RAL 9005Front door: Glass door, single-wingHEY: 7Cabinet type: Wall housingSide walls: On both sidesDepth: 400 mm60 kg load capacityIP protection class IP20Mounted: no.
- Product type
19" wall cabinet
- Rack unit
7 U
- Width
540 mm
- Height
370 mm
- Depth
400 mm
- Material
Steel plate
Glass
Glass (clear)
- Dim
(W x H x D) 540 x 370 x 400 mm
- Weight
13800 g
- Factory colour
Black (RAL 9005)
- Rack size
483 mm (19")
- Wireless charging
No
- Product type description
WandGehäuse
- UKCA
yes
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2528899 Digitus DN-19 07-U-S-SW 19" wall cabinet (W x H x D) 540 x 370 x 400 mm 7 U Black (RAL 9005)
Description
The unmounted SOHO wall housings are made of a robust steel sheet construction. The housings have been specially designed to save space and costs. Supplied unassembled in a flat pack. Wall mounting is simple and can be done quickly. The wall housing is ideal for all common IT and telecommunications applications due to its flexibility.
This text is machine translated.
This text is machine translated.
Features
- 483 mm (19") profile rails on the front of the 19" rack, adjustable depthCable feed at the bottom of the 7HE network housing with plastic cover, top with brush strip
