Buy Digitus DN-19-07U-S-PD 19" wall cabinet (W x H x D) 540 x 370 x 400 mm 7 U Grey-white (RAL 7035)

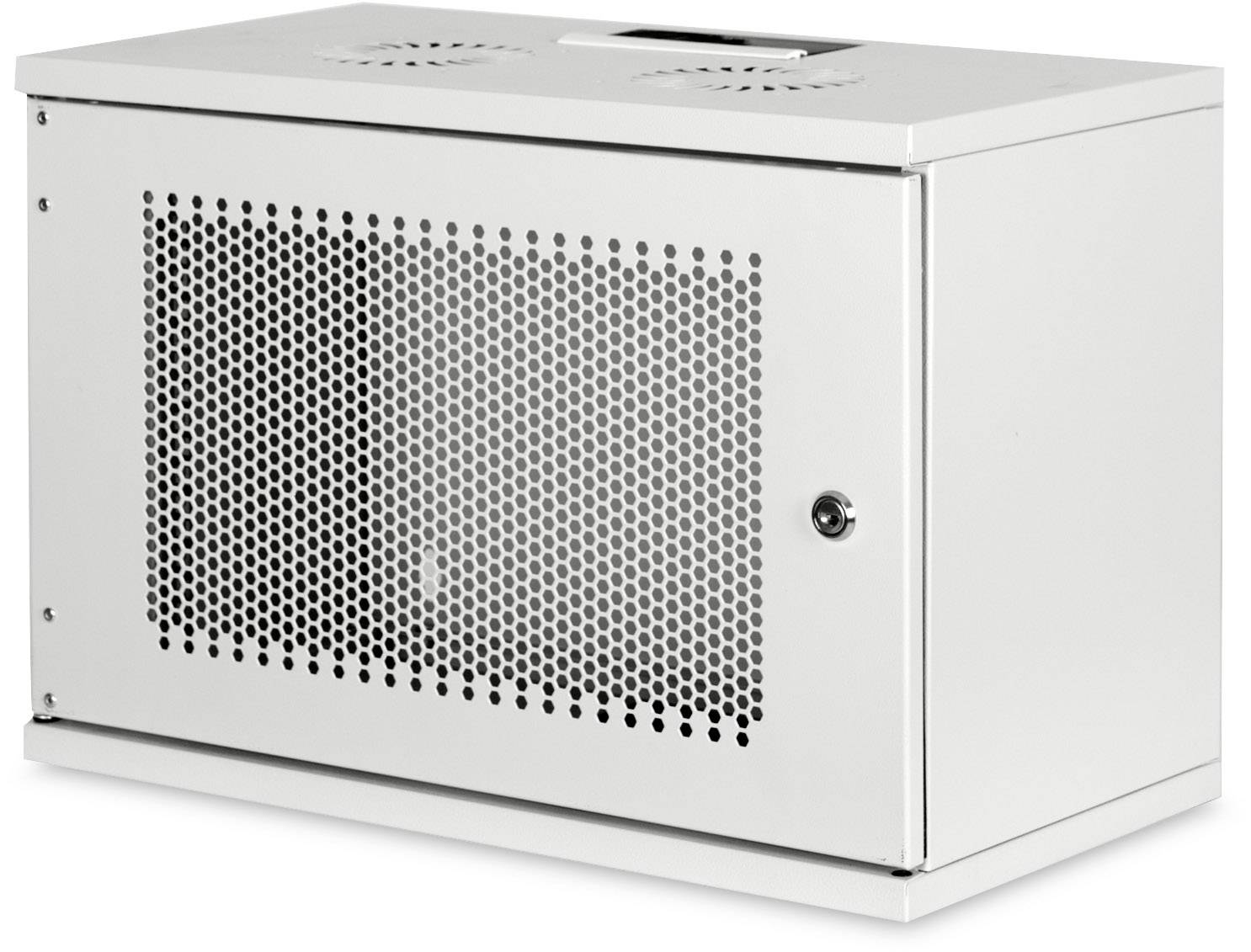

White rectangular metal box with perforated front and key lock on the side. Designed for ventilation and security.<br><br>Note: The translation is already in British English, so no significant changes were needed.

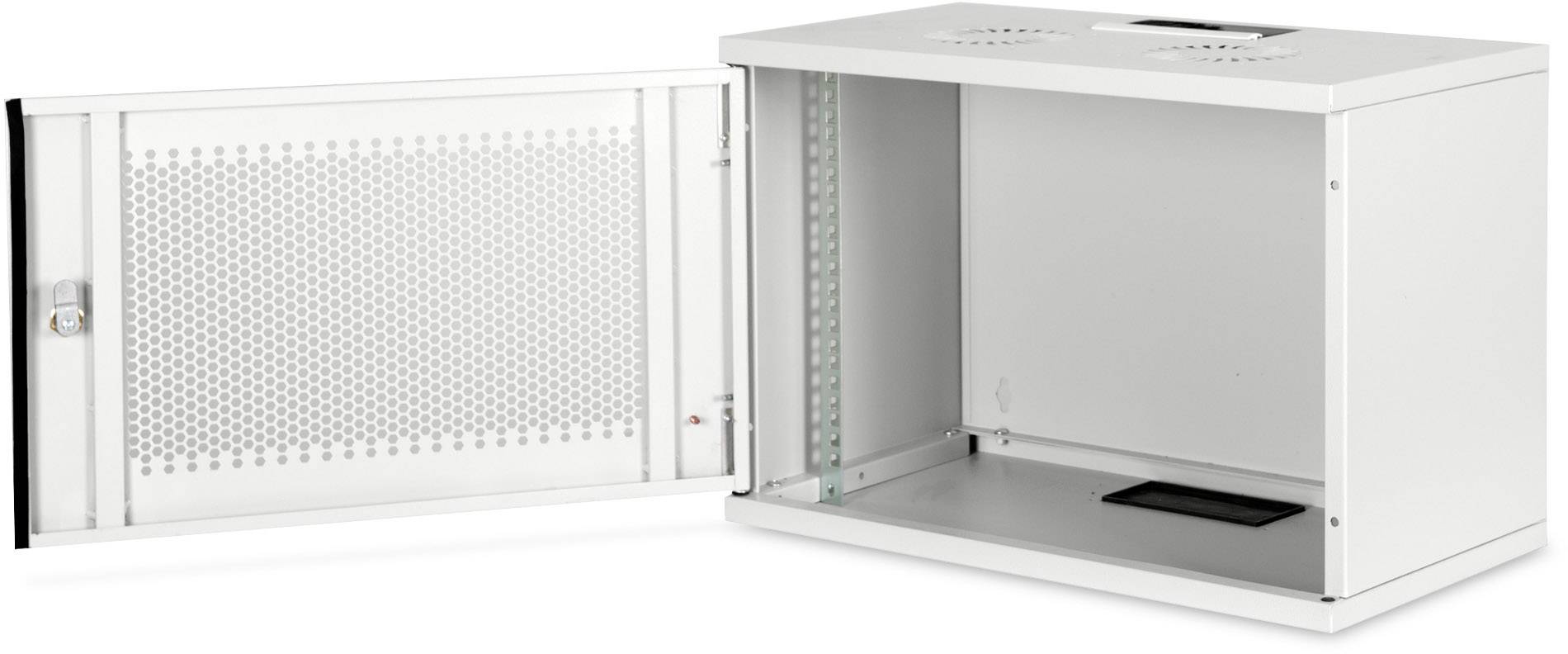

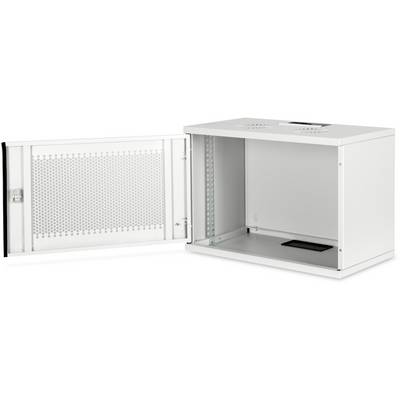

An open, white wall-mounted cabinet with ventilation slots and a lock. The door is open, revealing an empty interior for device installation.

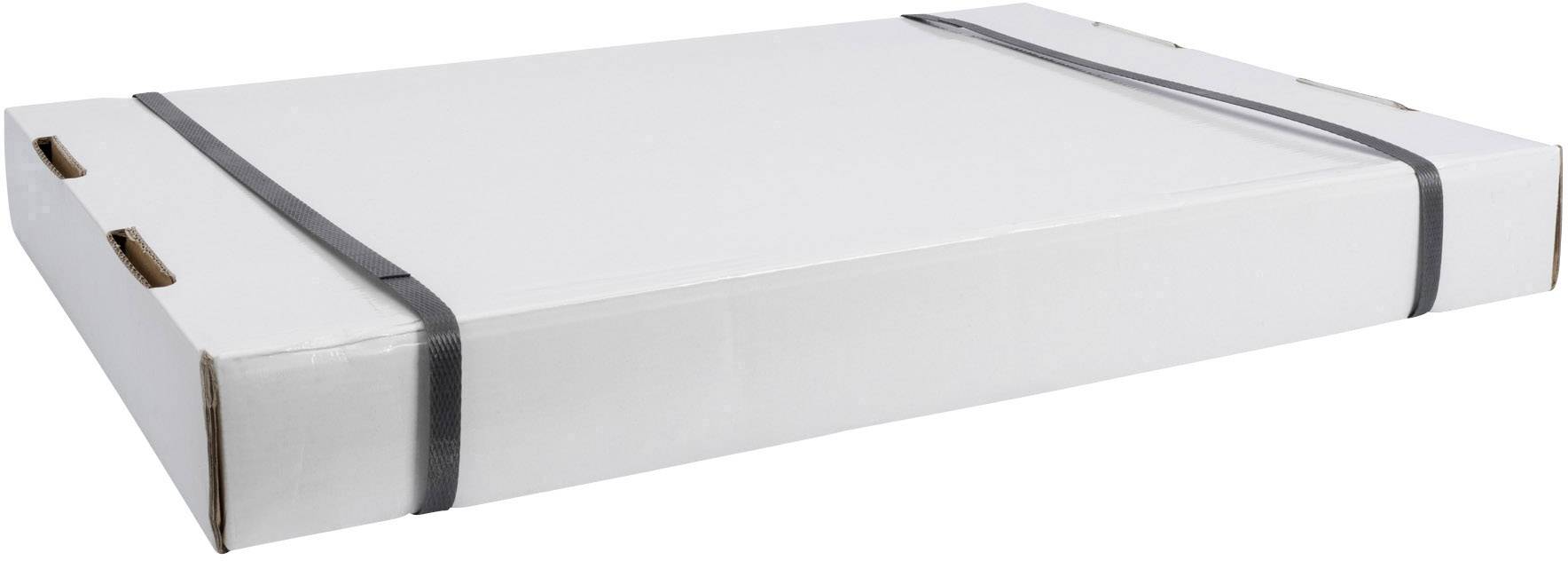

A white, flat cardboard packaging with black straps, lying on a neutral background.

1/3

Datasheet (PDF)

Unavailable

23 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus 19 inch network cabinet wall mounting 7 HE - SOHO - perforated door - 370x540x400 mm - gray

Highlights & Details

Unassembled delivery in a flat pack ensures cost and space efficiency
Optimum ventilation
Lockable perforated steel front door ensures safety

Technical specifications

Mounting level: Front
Design of the mounting rail: L-shaped
Number of doors: 1
Type of ventilation: Passive
Width 540 mm
Height: 370 mm
Depth: 400 mm
19" (482.6 mm) pitch
Number of height units (HE): 7
With roof panel: Yes
With grounding: No.
With front door: Yes
With rear door: No.
With side walls: Yes
With base: No.
Material: Steel
Finish: Powder-coated
Colour: grey
Design: With fixed frame
RAL number: 7035
Dismountable: Yes
Protection class (IP): IP20

Product type: 19" wall cabinet

Rack unit: 7 U

Width: 540 mm

Height: 370 mm

Depth: 400 mm

Material: Steel plate

Dim: (W x H x D) 540 x 370 x 400 mm

Weight: 10600 g

Factory colour: Grey-white (RAL 7035)

Rack size: 483 mm (19")

Wireless charging: No

UKCA: yes

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 1934508 Digitus DN-19-07U-S-PD 19" wall cabinet (W x H x D) 540 x 370 x 400 mm 7 U Grey-white (RAL 7035)

User & Safety Instructions

User & Safety Instructions 1934508 Digitus DN-19-07U-S-PD 19" wall cabinet (W x H x D) 540 x 370 x 400 mm 7 U Grey-white (RAL 7035)

Description

The unmounted SOHO wall housings are made of a robust steel sheet construction. The housings have been specially designed to save space and costs. Supplied unassembled in a flat pack. Wall mounting is simple and can be done quickly. Due to their flexibility, the wall housings are ideal for all common IT and telecommunication applications.
