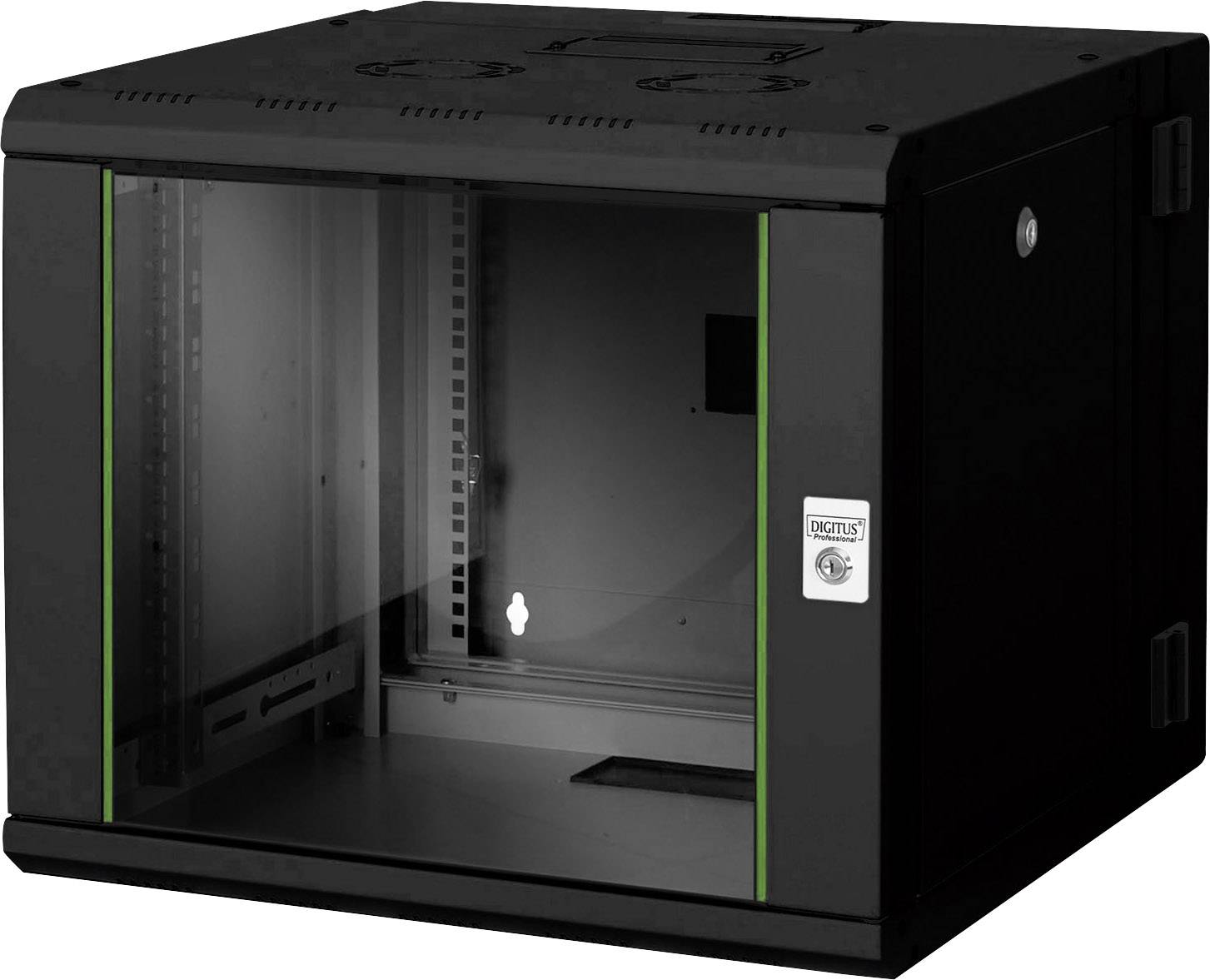

Digitus DN-19 09-U-3-SW 19" wall cabinet (W x H x D) 600 x 509 x 600 mm 9 U Black, Black (RAL 9005)
EAN:
Part number:
Item no:
Datasheet (PDF)
19" server rack cabinet wall mounting 20U, unique series, two-piece, swivel, 509x600x600 mm, black
Highlights & Details
- Robust steel construction for a stable wall mounting
- Lockable safety glass door with steel frames
- Side panels are detachable and closed
Technical specifications
- Color: Black, RAL 9005
- HE: 9
- Carry load: 100 kg
- Dimensions (HxWxD) 509 mm, 600 mm, 600 mm
- Cabinet type: Wall housing
- Front door: Glass door
- Width 600 mm
- Depth: 600 mm
- Product type
19" wall cabinet
- Rack unit
9 U
- Width
600 mm
- Height
509 mm
- Depth
600 mm
- Material
Steel plate
Glass
Glass (clear)
- Dim
(W x H x D) 600 x 509 x 600 mm
- Weight
36000 g
- Factory colour
Black
Black (RAL 9005)
- Rack size
483 mm (19")
- Type
Server rack cabinet wall cabinet
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1934549 Digitus DN-19 09-U-3-SW 19" wall cabinet (W x H x D) 600 x 509 x 600 mm 9 U Black, Black (RAL 9005)
User & Safety Instructions
User & Safety Instructions 1934549 Digitus DN-19 09-U-3-SW 19" wall cabinet (W x H x D) 600 x 509 x 600 mm 9 U Black, Black (RAL 9005)
Description
The Unique series wall enclosures are designed for easy installation of active and fit network components, along with clean cabling. Each cabinet is made of steel sheet up to 1.5 mm thick and provides a robust steel construction for a very good stability. The coloring is done by powder coating in the colors gray (RAL 7035) and black (RAL 9005). Wall mounting is simple and can be done quickly. Optionally, the housings can also be installed free-standing with separately available leveling feet or rollers. The doors and the side walls can be easily dismantled, a door stop can be changed. The roof is prepared for the intake of a fan module for active ventilation. Each wall housing contains a pair (2 pieces) of 483 mm (19") mounting rails inside. These are galvanized, marked with the height unit (can be counted in both directions) and can be adjusted in depth. The rear frame also has a 483 mm (19") hole. Cable management is an important aspect of the installation. There is a retractable cable inlet with foam rubber seal in the roof of each cabinet. The rear panel and the floor are equipped with punched cable inlets with plastic cover. In addition, the rear frame is equipped with brush strips at the top and bottom. A widely available portfolio of accessories for cable routing, shelves, etc. helps to meet many requirements of daily practice.
This text is machine translated.
This text is machine translated.
Features
- Protection class: IP20
- Lockable safety glass door with steel frames
- 210° door opening angle
- Housing is connected with rear frame by separate lock (incl. separate key)
- 102° swiveling angle of the housing from the frame
- 1-point locking on the front door
- Side panels are detachable and closed
- 483 mm (19”) profile rails mounted on the front inside the cabinet, galvanized
- 483 mm (19") profile rails are adjustable in depth and marked with the height unit
- Rear frame with 483 mm (19") holes
- Max. Installation depth 440 mm
- Cable feed at rear and bottom with plastic cover and top with sliding cover
- Rear frame with brush strip for cable entry at the top and bottom
- Roof is prepared to accommodate a fan element (punched-out slots)
- Ventilation slots for active and passive ventilation
- Various ground points in the cabinet for installation components
- Incl. Installation kit (screws, cage nuts, washers)
- Supplied fully assembled
