Buy Digitus DN-19 09U-6/6-EC-SW 19" wall cabinet (W x H x D) 600 x 505 x 600 mm 9 U Black, Black (matt), Black (RAL 9005)

A black server rack with a glass door and green accents, featuring ventilation fans on top and a lockable latch, suitable for IT equipment.

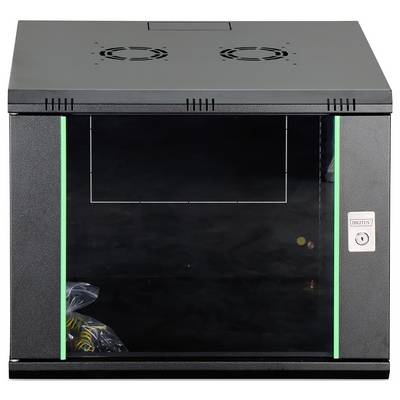

A black wall-mounted server rack with a transparent door and locks, featuring green LED lighting along the edges.

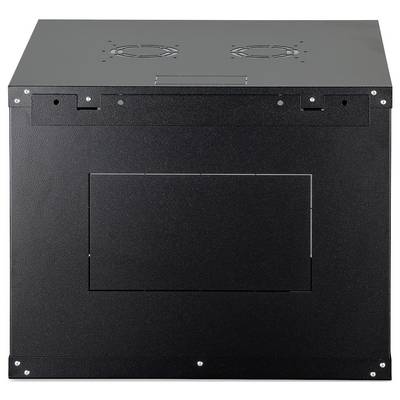

Black, rectangular electronic device with a flat top and ventilation holes. The device has a plain front with no visible controls or indicators.

An open black server rack with a glass door, showing empty interior space and a plastic bag containing screws or hardware inside.

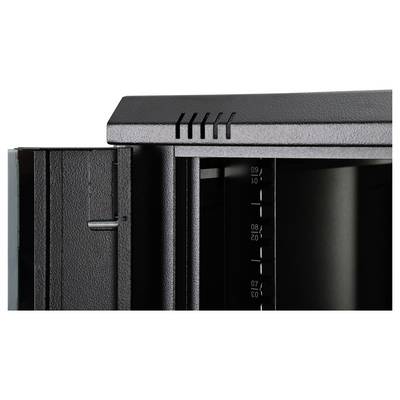

A partially open black metal cabinet with visible hinges and vent slots on the top edge.

A close-up of a black server rack with a partially open side panel, revealing interior slots. Green lighting accentuates the corner edge.

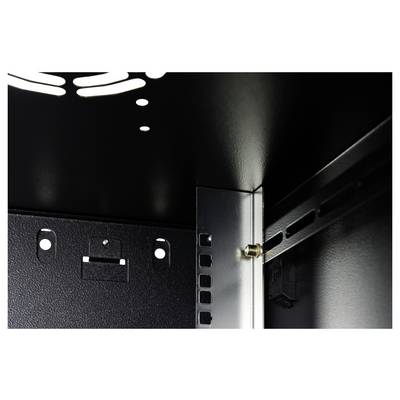

The image shows the interior corner of a metallic cabinet, highlighting the structural support with rivets and perforated panels for ventilation.

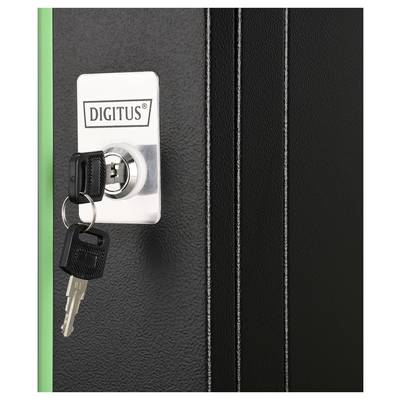

'Close-up of a locked black cabinet door with a pair of keys in the lock, labeled "Digitus".'

A black metal server cabinet with fans on the top, featuring a closed front and side panels, designed for housing network equipment.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 109.24 / piece)

€ 109.24

plus VAT.

Report legal concerns

Highlights & Details

9HE wall housing 505x600x600 mm, color black (RAL 9005)

The IT rack in 19-inch format has 9 U (height units) for mounting network and server installations as well as components for audio applications - the maximum installation depth is 45.9 cm
There are pre-punched openings in the floor, roof and rear wall for the cable feed, which can be opened as required - the safety glass door has an opening angle of 210°
With the removable side walls, the network splitter has a very good accessibility for the maintenance and installation of integrated IT components, such as patch field, switch or power strip

Technical specifications

Width 600 mm
Color: Black, RAL 9005
Front door: Glass door, single-wing
HE: 9
Cabinet type: Wall housing
Depth: 600 mm
60 kg load capacity
IP protection class IP20

Product type: 19" wall cabinet

Rack unit: 9 U

Width: 600 mm

Height: 505 mm

Depth: 600 mm

Material: Steel plate

Dim: (W x H x D) 600 x 505 x 600 mm

Weight: 19900 g

Factory colour: Black
Black (matt)
Black (RAL 9005)

Rack size: 483 mm (19")

Type: Server rack cabinet

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2380171 Digitus DN-19 09U-6/6-EC-SW 19" wall cabinet (W x H x D) 600 x 505 x 600 mm 9 U Black, Black (matt), Black (RAL 9005)

User & Safety Instructions

User & Safety Instructions 2380171 Digitus DN-19 09U-6/6-EC-SW 19" wall cabinet (W x H x D) 600 x 505 x 600 mm 9 U Black, Black (matt), Black (RAL 9005)

Description

The wall housings of the Dynamic Basic series are made of a robust steel sheet construction. The stability is increased by the welding points. The side panels are removable and the wall mounting is simple and can therefore be done quickly. Due to their flexibility, the wall housing is ideal for all common IT and telecommunication applications.

This text is machine translated.

Features

If the passive ventilation of the wall housing is not sufficient for devices such as routers, NAS, UPS, telecommunications system, a separately available fan module can be installed in the roof of the data cabinet
The door stop of the lockable front door can be changed from right to left as desired - ideal for the digital infrastructure in your company, home network or home office lockable safety glass door with steel frame
210° door opening angle
1-point locking on the front door
483 mm (19") profile rails mounted on the front and rear inside the cabinet, galvanized
483 mm (19") profile rails are adjustable in depth and marked with the height unit
0.8 - 1.2 mm robust sheet steel with high load capacity, powder-coated
Cable feed possible at rear, roof and floor (pre-punched openings)
Roof is prepared to accommodate a fan element (punched-out slots)
Ventilation slots for active and passive ventilation
4 earthing points (bottom, side panel and front door) with protective cap
