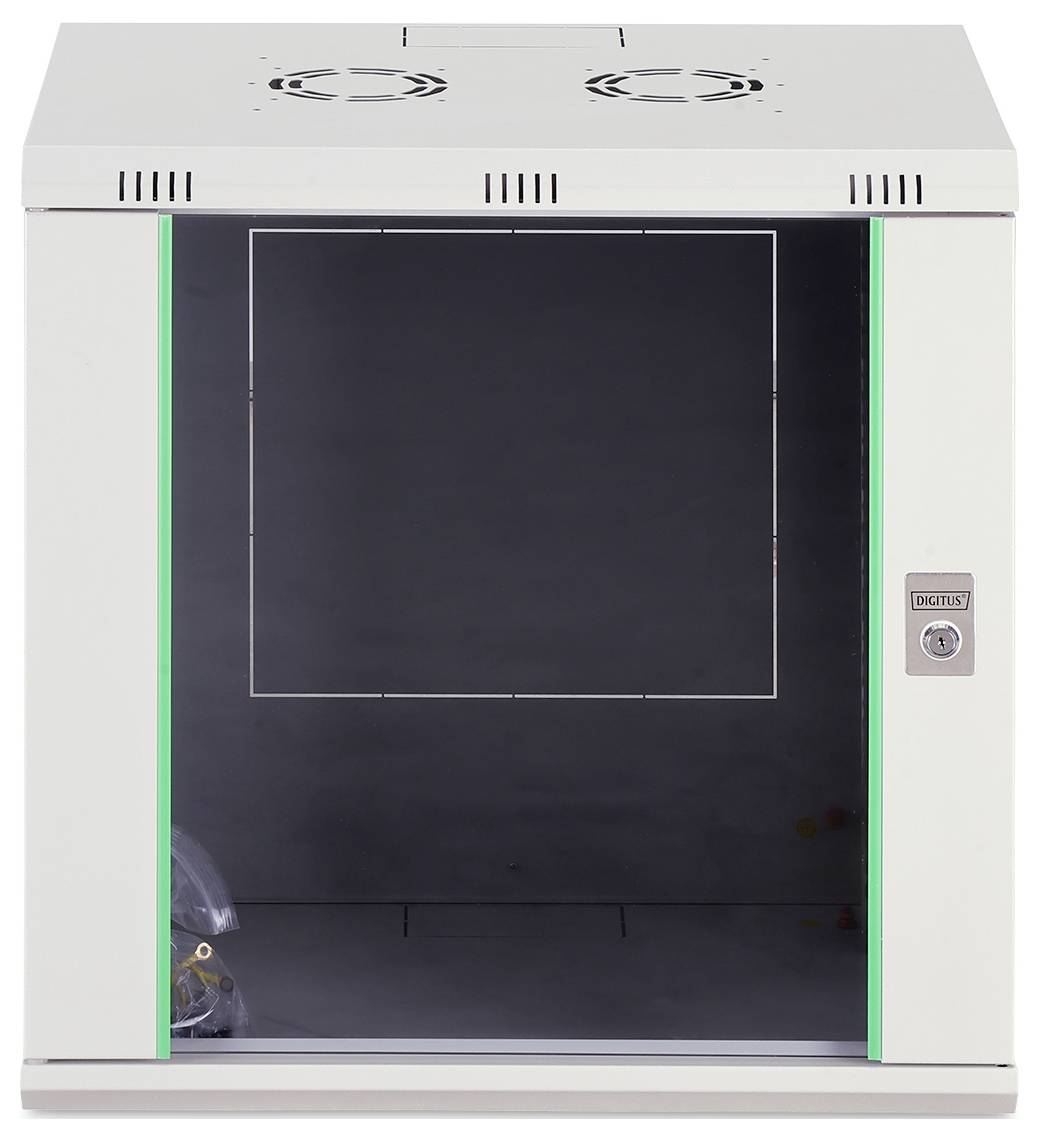

A white, rectangular electronic enclosure with a lock on the side and ventilation fans on top. It is open and appears unused.

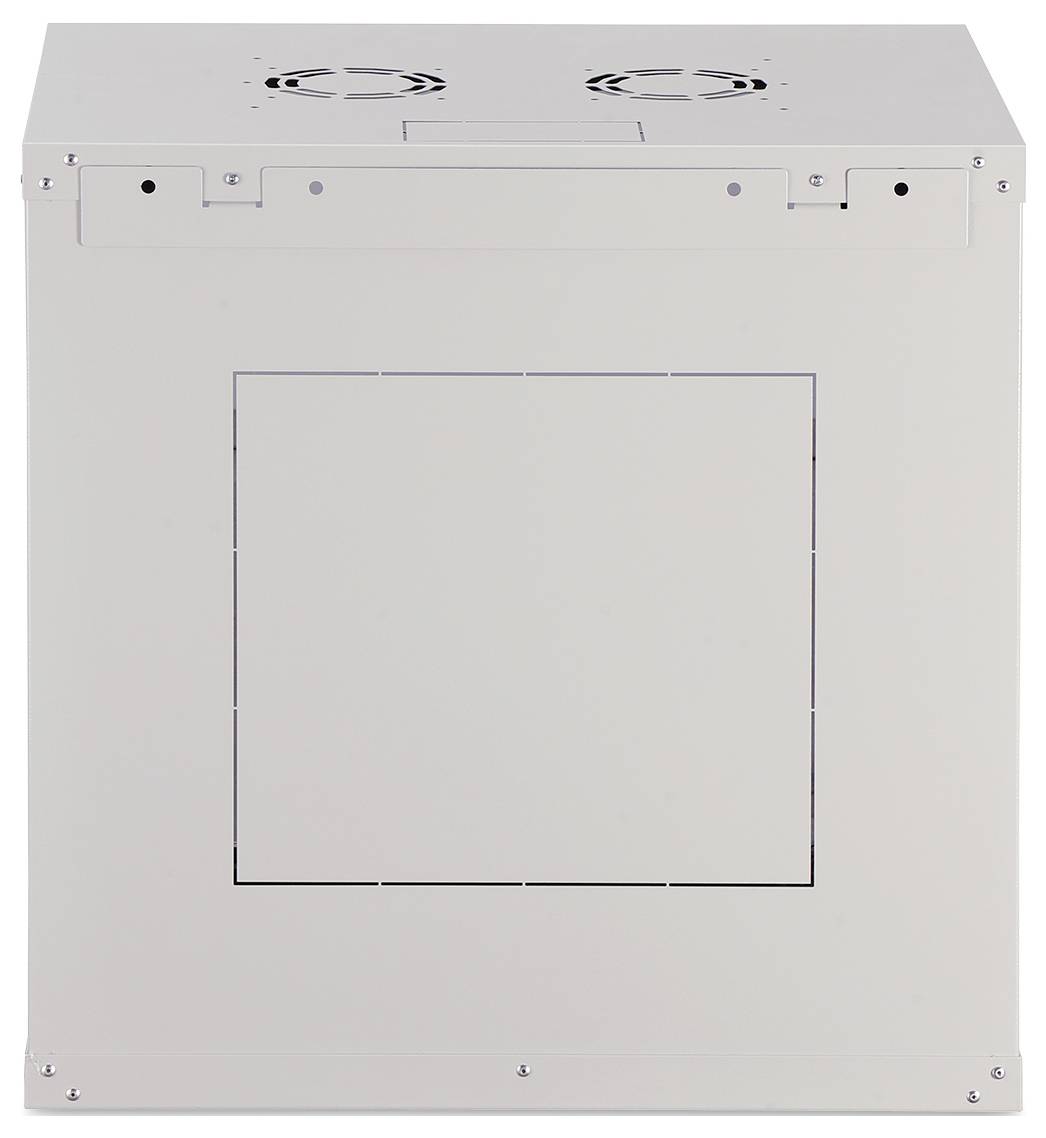

A rectangular metal server rack cabinet with ventilation fans on top, viewed from the front, showcasing a minimalist design.

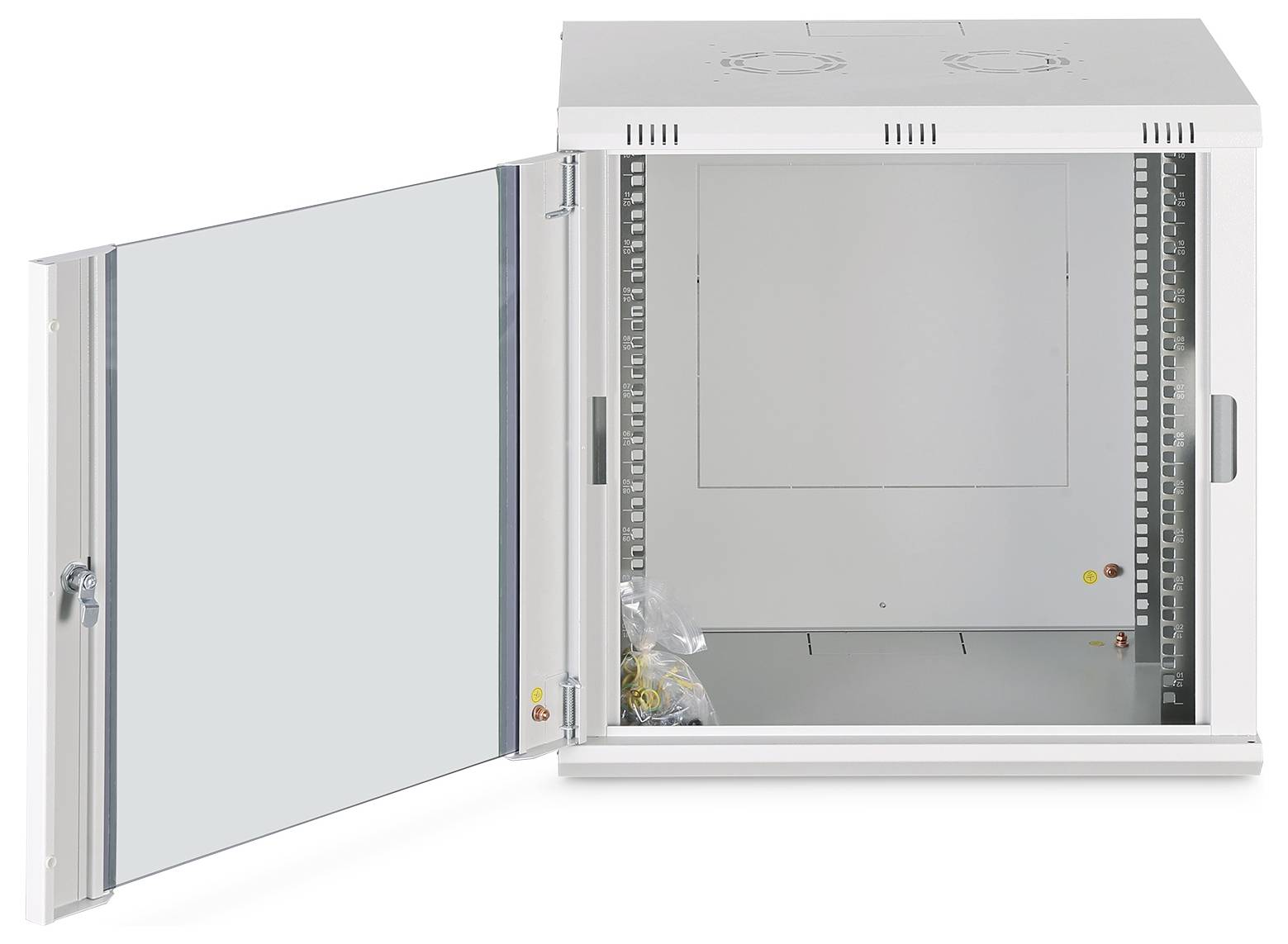

A white metal server rack cabinet with an open door, showing an empty interior and mounting rails, suitable for network equipment installation.

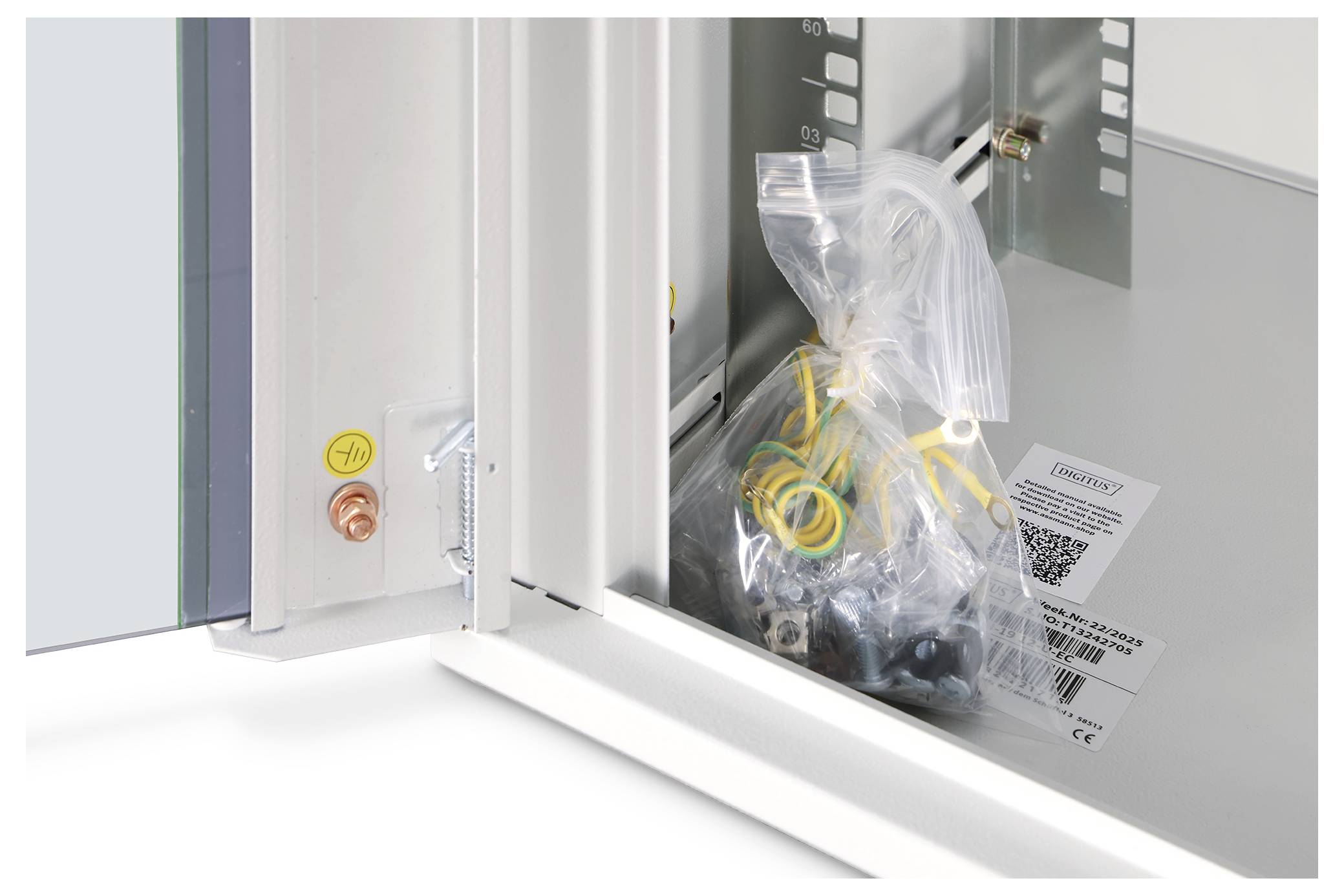

An open cabinet displays a plastic bag containing wires and components. A printed label with a QR code is beside the bag.

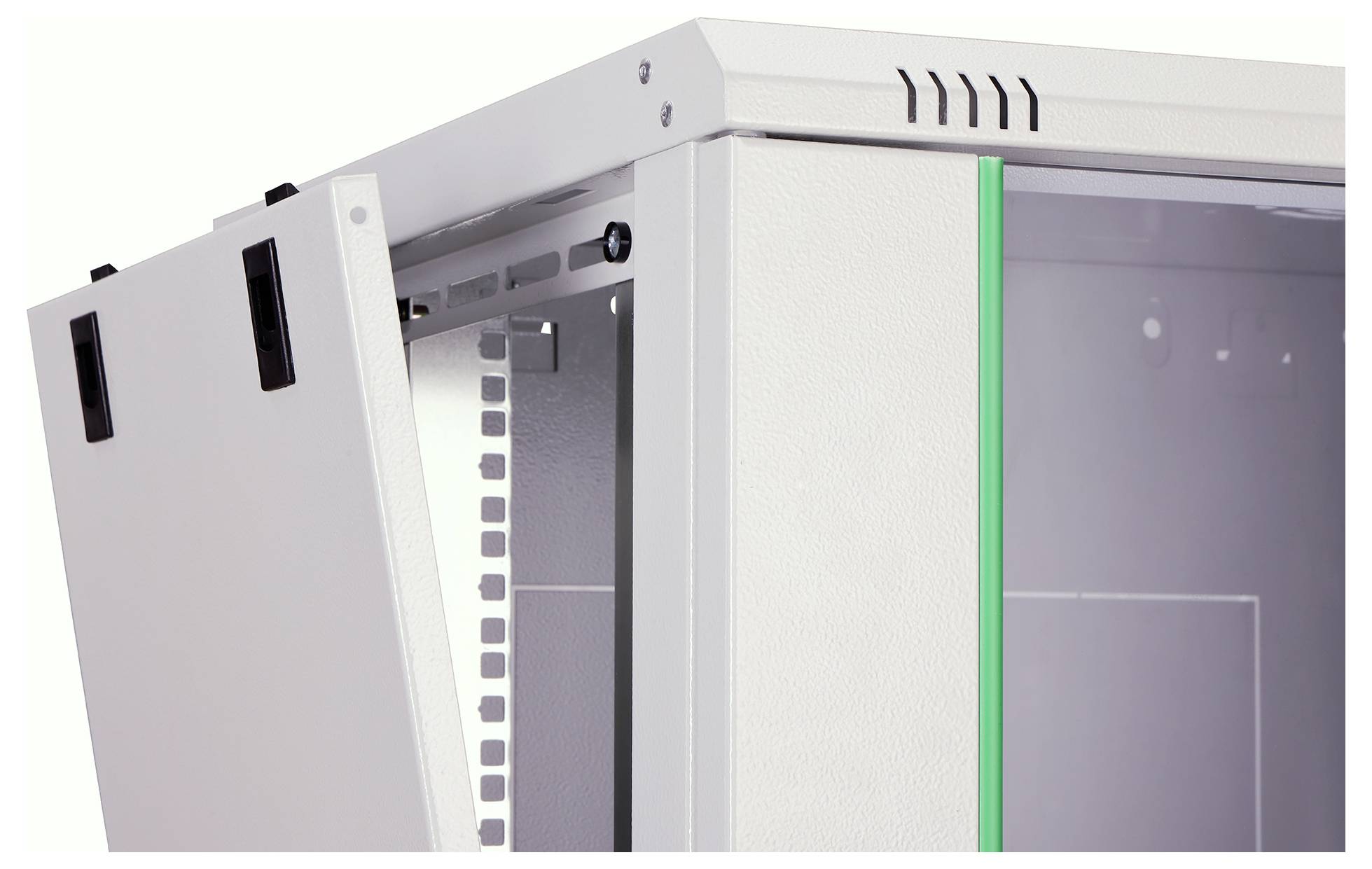

'Metal server rack with partially open door and green edge highlights inside, showing interior slots for equipment installation.'

The image shows the interior corner of a metal electrical enclosure, featuring a slotted mounting rail and a corner bolt securing components.

A white surface features a pattern of black, curved lines forming a circular shape with additional small dots around it.

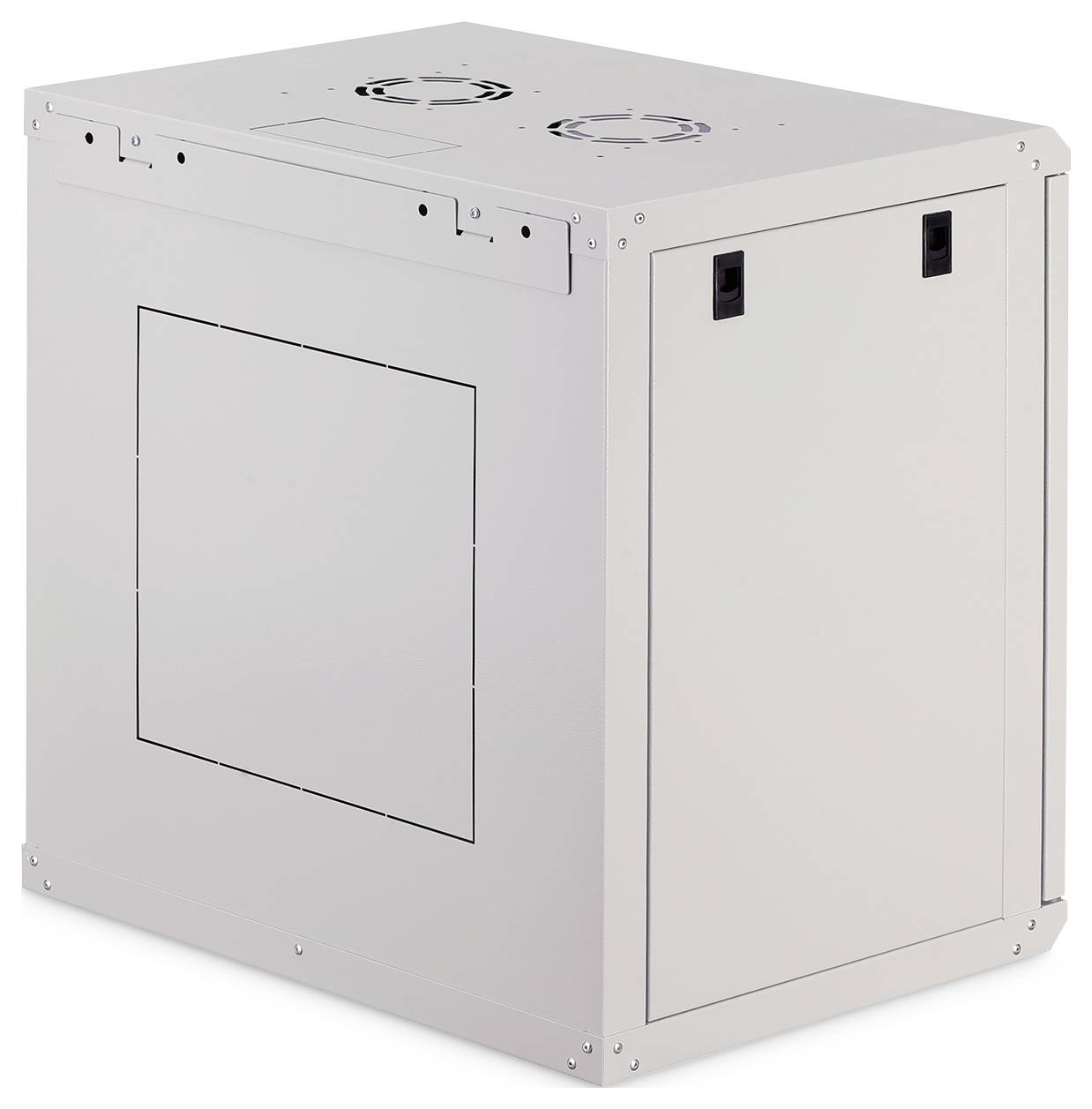

A simple, metal ventilation box with two round fans on top and latches on the front.

1/9

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

16 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 130.24 / piece)

€ 130.24

plus VAT.

14-day return policy included

Report legal concerns

Wall Mounting Cabinets Dynamic Basic Series - 600x450 mm (WxD)

Technical specifications

Product type: 19" wall cabinet

Rack unit: 12 U

Width: 600 mm

Height: 638 mm

Depth: 450 mm

Material: Safety glass
Steel

Dim: (W x H x D) 600 x 638 x 450 mm

Weight: 27.0 kg

Factory colour: Grey-white (RAL 7035)

Rack size: 483 mm (19")

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1389741 Digitus DN-19 12-U-EC 19" wall cabinet (W x H x D) 600 x 638 x 450 mm 12 U Grey-white (RAL 7035)

User & Safety Instructions

User & Safety Instructions 1389741 Digitus DN-19 12-U-EC 19" wall cabinet (W x H x D) 600 x 638 x 450 mm 12 U Grey-white (RAL 7035)

Description

The DIGITUS® Professional Wall Mounting Cabinets - Dynamic Basic Series are made of a robust steel sheet construction with a minimum of seams. Ideal for all current IT- and Telecommunication applications.

· 0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated
· Ventilation slots for active and passive ventilation and exhaustion
· Protection rating IP 20
· Safety-glass door, lockable
· Side sections detachable
· 483 mm (19") profile rails on the front side, adjustable in depth
· Distance between front profile rail and back door: approx. 360 mm
· 3 earthing points (bottom, side panel and front door)
· Cable entry on top and bottom
· Extensive range of accessories available

Features

Protection class: IP20
- Front door made of side metal struts with safety glass, 1-point locking
- Door stop can be changed easily
- 210° door opening angle

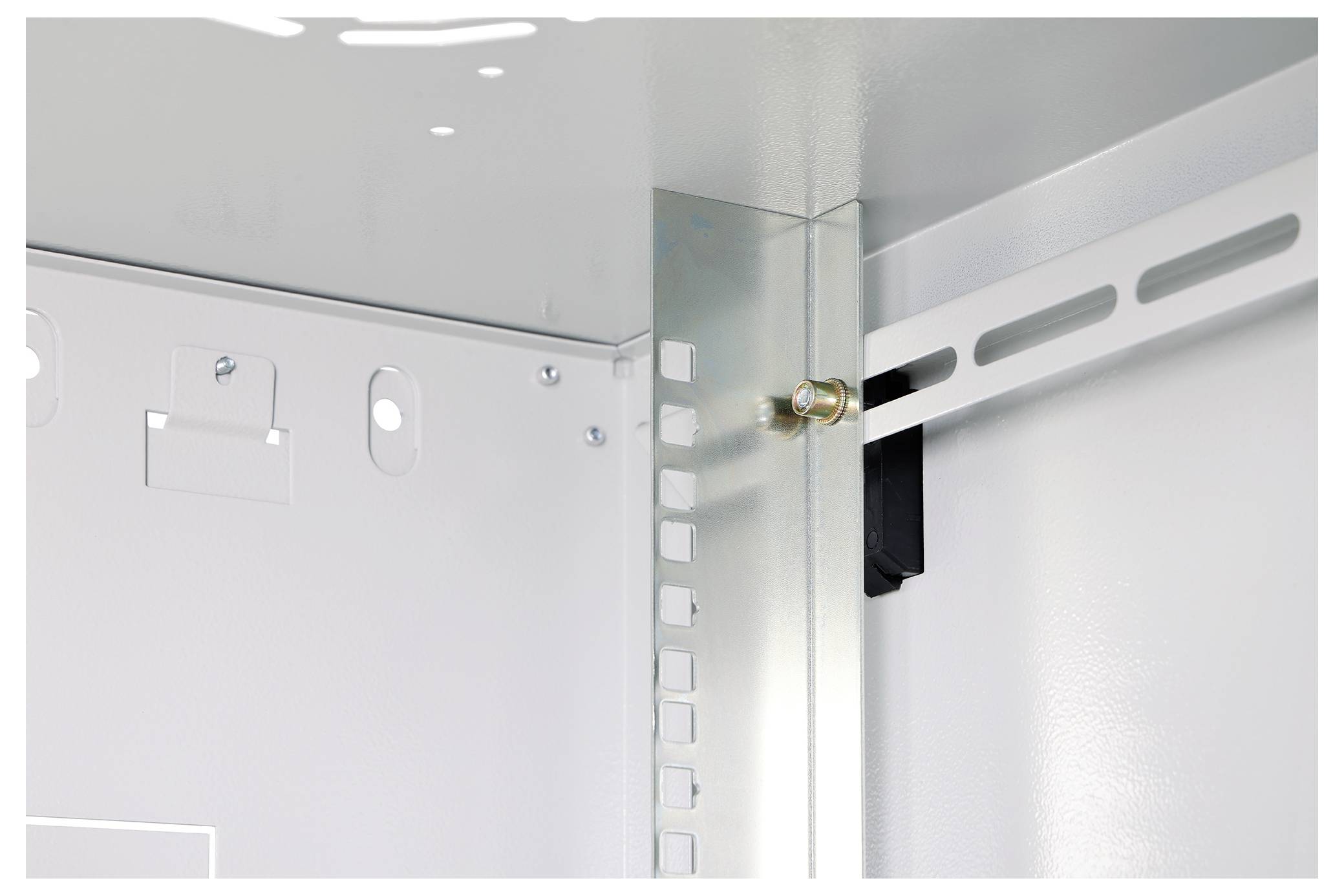

- 482.6 mm (19”) profile rails mounted on the front inside the cabinet, galvanized
- 600 mm deep housing with profile rails on the front and rear side
- 482.6 mm (19") profile rails are adjustable in depth and marked with the height unit
- Load capacity of 482.6 mm (19") rails: 60 kg
- Max. Mounting depth of 483 (19") accessories: 365 mm (450 mm deep wall housing);
459 mm (600 mm deep wall housing)
- Cable feed possible at rear, roof and floor (pre-punched openings)
- Rear dimensions. Knockouts (HxB in mm): 100x350 mm (7HE); 240x350 mm (9HE);
380x350 mm (12HE & 16HE)

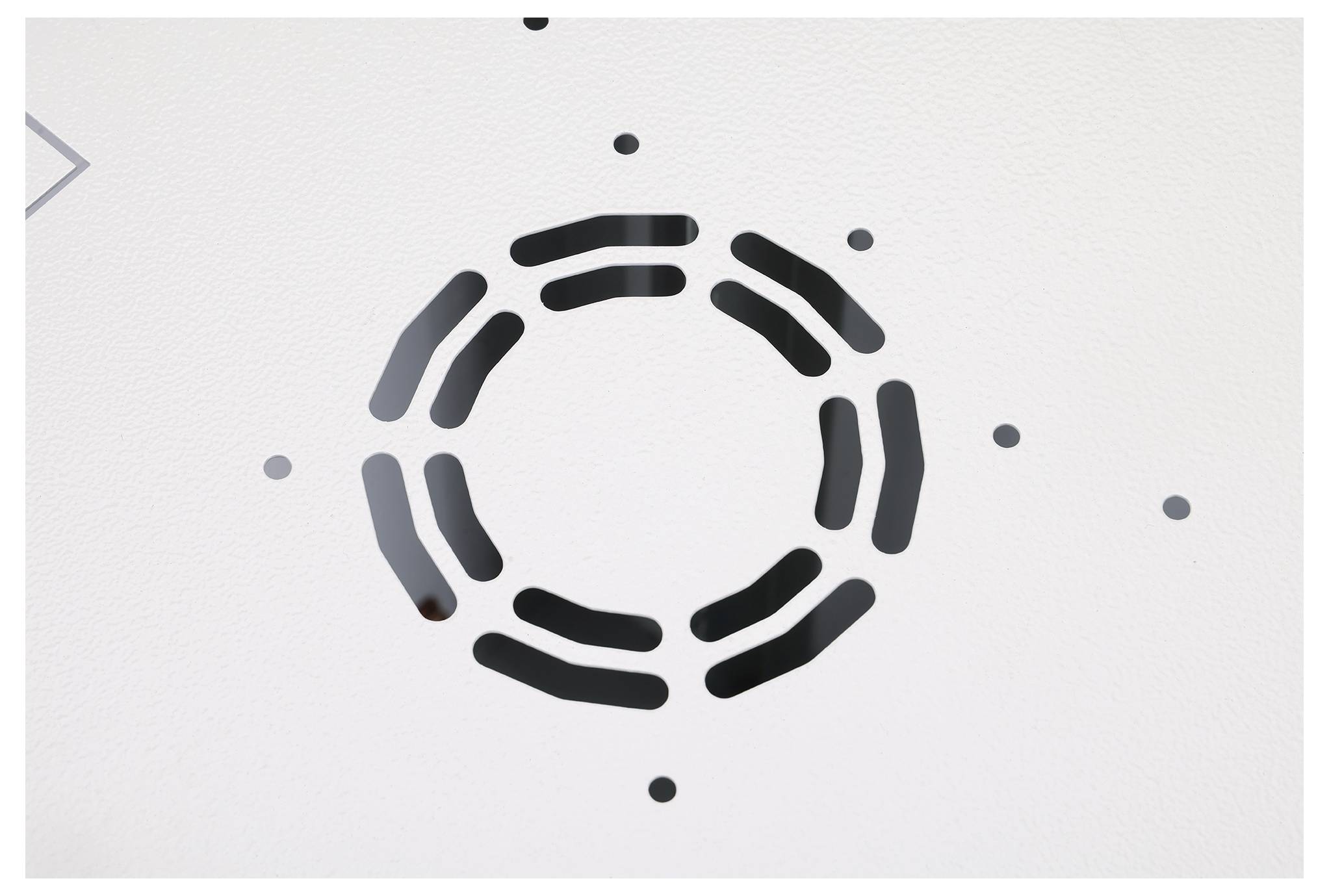

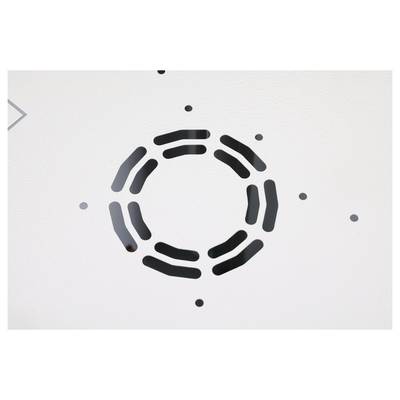

- Roof is prepared to accommodate a fan element (punched-out slots)
- ventilation slots for active and passive ventilation
- 5 earth points (1x bottom, 2x side panel and 2x front door)

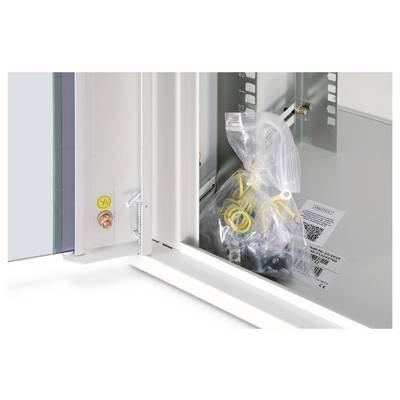

- Incl. Installation set (screws, cage nuts, washers)
- Supplied fully assembled
