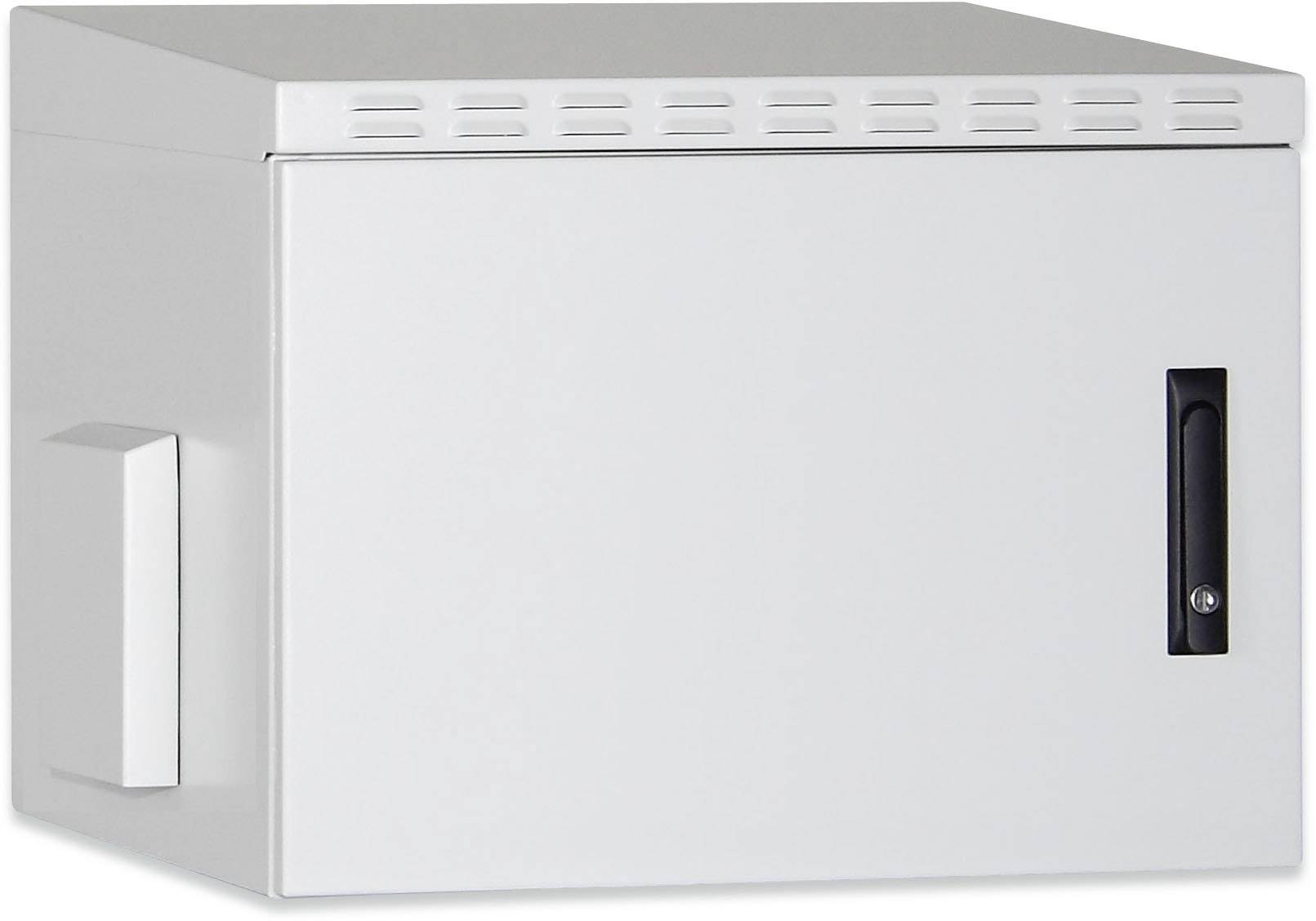

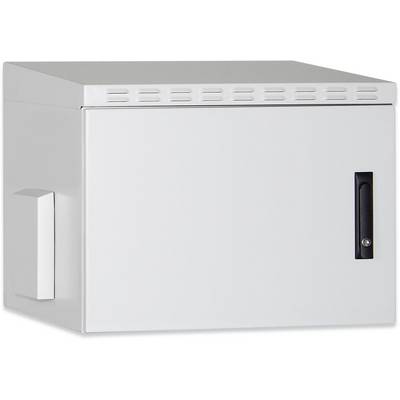

Digitus DN-19 16U-6/6-I-OD 19" wall cabinet (W x H x D) 600 x 891 x 600 mm 16 U Grey-white (RAL 7035)
EAN:
Part number:
Item no:
16 HE wall housing, outdoor, IP55 891 x 600 x 600 mm, color gray (RAL 7035)
Highlights & Details
- Protected against dust and water in harmful quantity (IP55)
- Abschliessbarem steel front door with pivot lever handle and 3-point lock system
- Front door with earth and two welded, the bar in U-shape as well as seal
Technical specifications
- Product type
19" wall cabinet
- Rack unit
16 U
- Width
600 mm
- Height
891 mm
- Depth
600 mm
- Material
Steel plate
- Dim
(W x H x D) 600 x 891 x 600 mm
- Weight
49 kg
- Factory colour
Grey-white (RAL 7035)
- Rack size
483 mm (19")
- Wireless charging
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1604556 Digitus DN-19 16U-6/6-I-OD 19" wall cabinet (W x H x D) 600 x 891 x 600 mm 16 U Grey-white (RAL 7035)
Description
The 483 mm (19") IP55 outdoor wall housing for industrial applications. They are based on the EN 60529 compliant IP55 protection class and are therefore protected against water and dust penetration. The ventilation units and filter installations are based on the protection class IP54. Best performance offers the wall housing by, among other things, the 3-point locking system with abschliessbarem pivot lever grip and insulated cable inputs. Integrated ventilation filter housing provides fresh air inlet (protection against water and dust penetration in accordance with IP54). Application areas are outdoor areas that are exposed to environmental effects (rain, dust, hail, snow, water).
This text is machine translated.
This text is machine translated.
Features
- Protection class IP55
- Lockable steel front door with pivot lever handle
- 140° door opening angle
- 3-point four fraternity of the front door

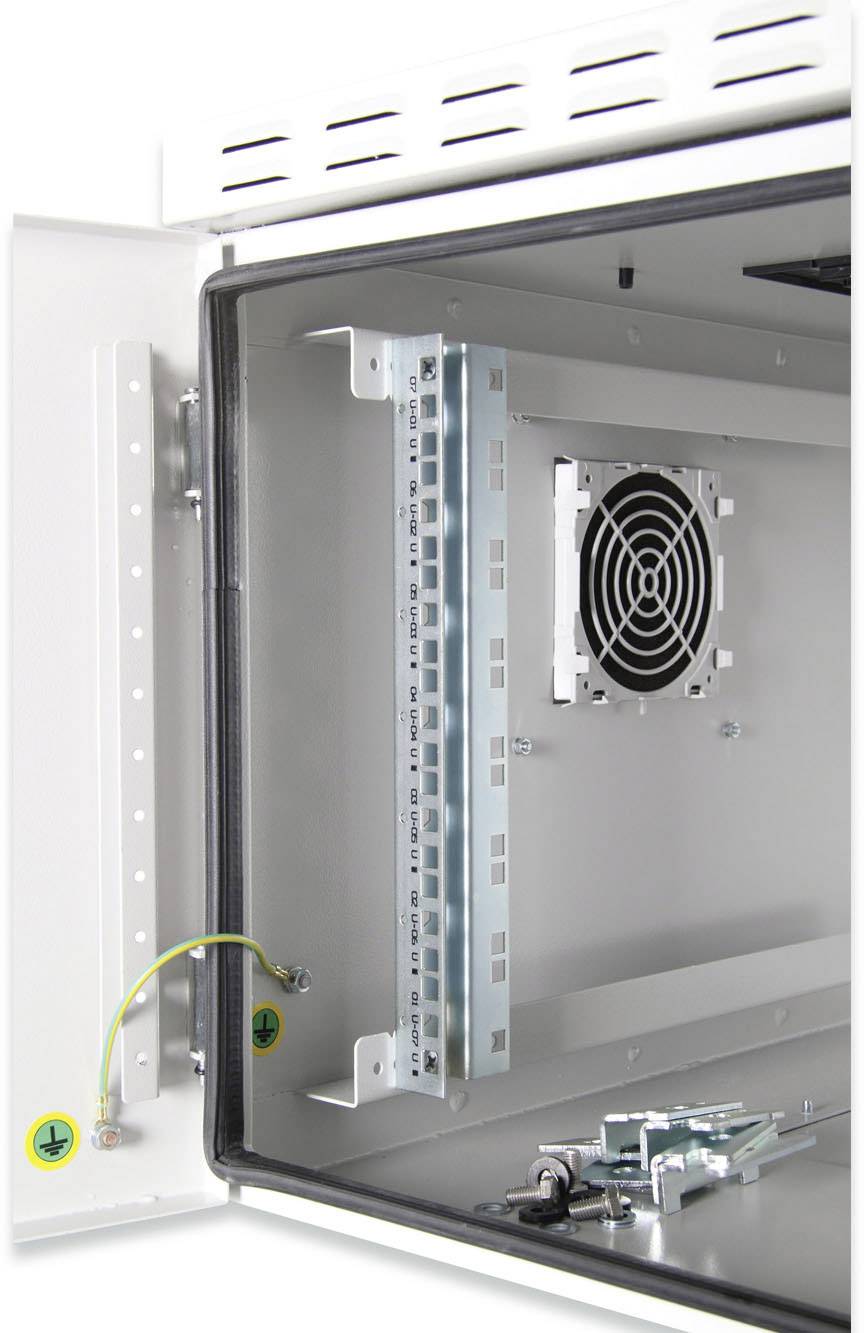

- Front door with earth and two welded, the bar in U-shape as well as seal
- 483 mm (19") profile rails mounted on the front side within the cabinet, galvanised
- 483 mm (19") profile rails are adjustable in depth and with marking the height unit fitted
- 1.5 mm robust steel sheet with high load capacity, powder-coated
- Individually welded housing for more stability

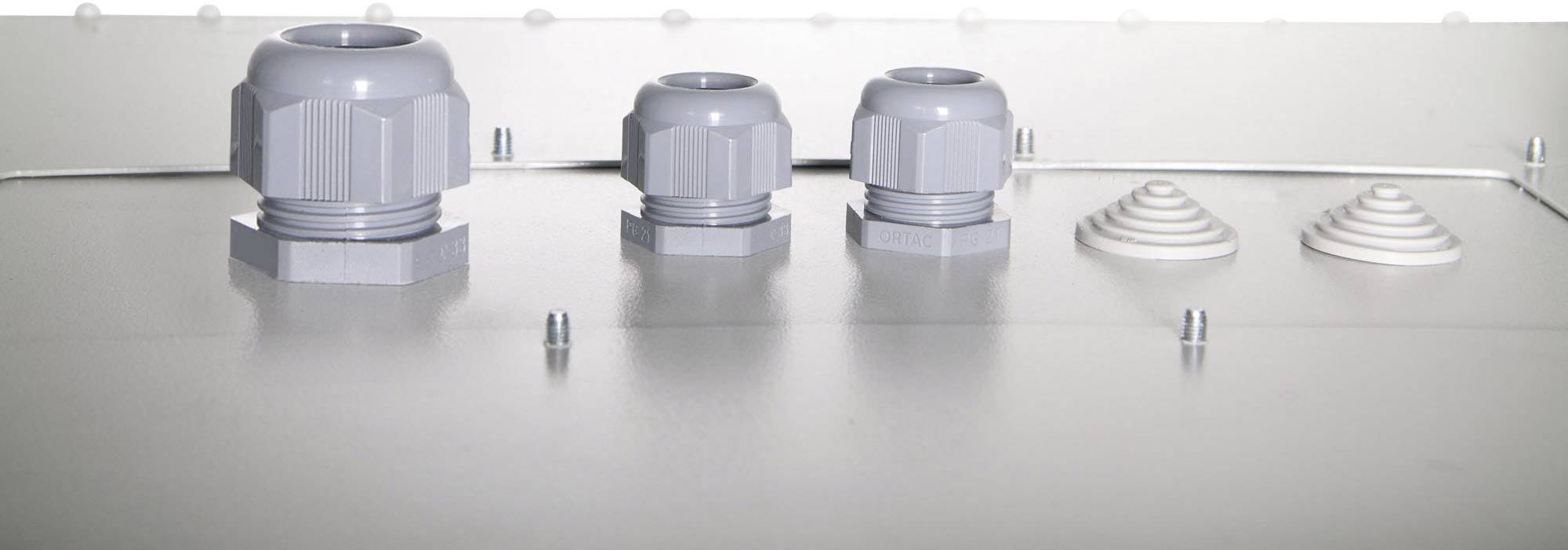

- Cable inputs in the floor: 2 x M32, 1 x M63, 2 x PVC blanking cap (28 mm diameter)
- Porch offers hot air discharge from the casing fan modules to be installed

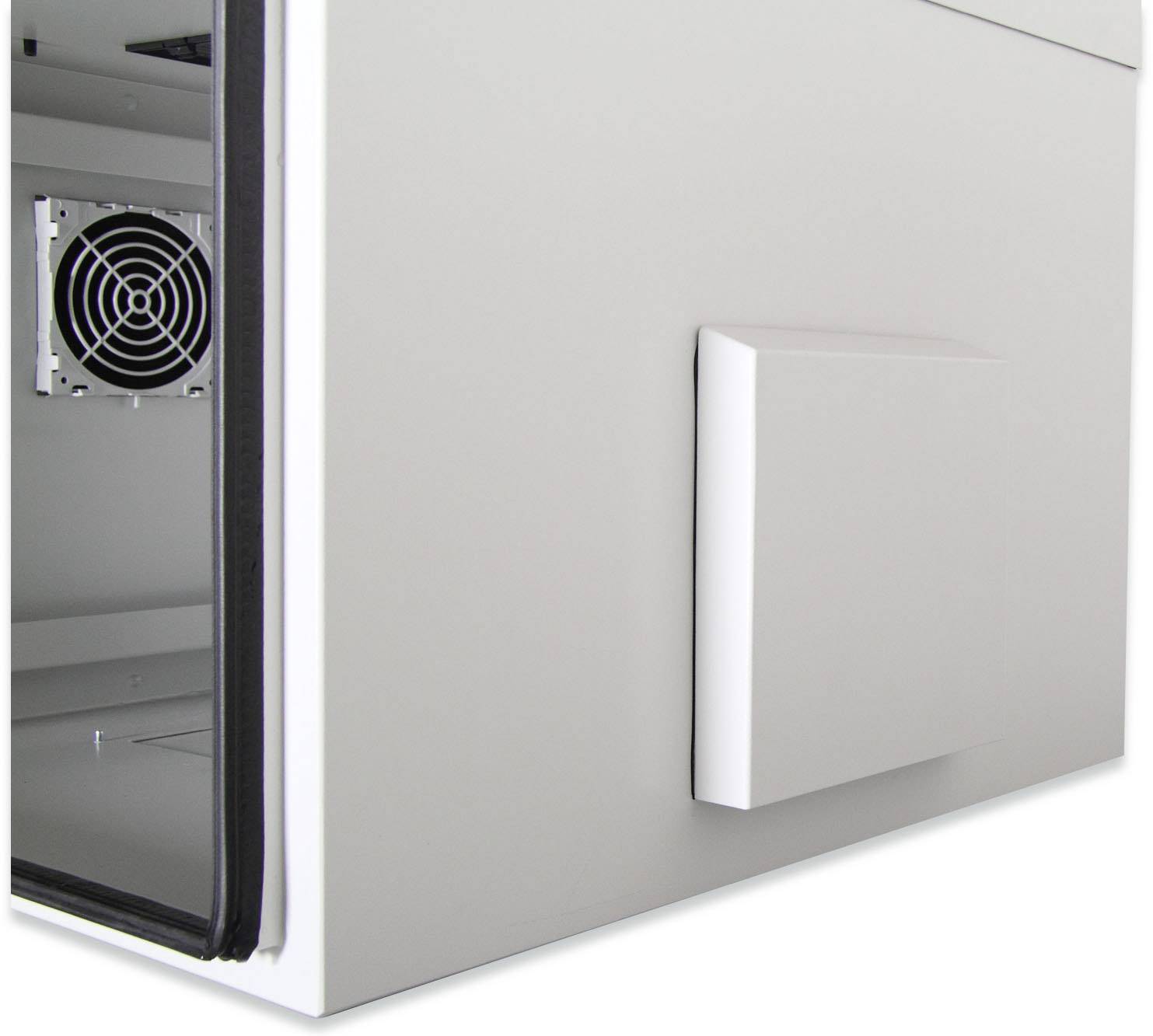

- Integrated ventilation filter housing provides fresh air inlet
- Includes 4 piece mounting bracket with 3 mm thickness for wall mounting as well as matching bolts and washers
- The mounting level: front
- Design of the profile rail: ended
- Ventilation type: passive
- With Roof sheet: yes
- With Grounding: yes
- With Front Door: yes
- With side walls: yes
- Design the surface: powder-coated
- Design: with hard frame
