Buy Digitus DN-19 20-U-3 19" wall cabinet (W x H x D) 600 x 982 x 610 mm 20 U Grey-white (RAL 7035)

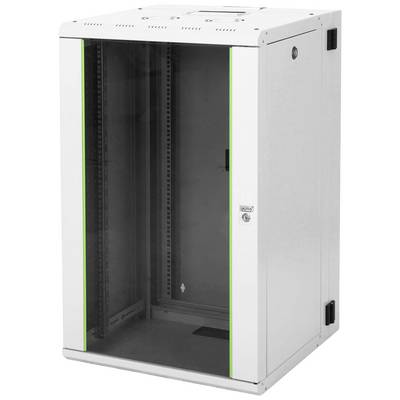

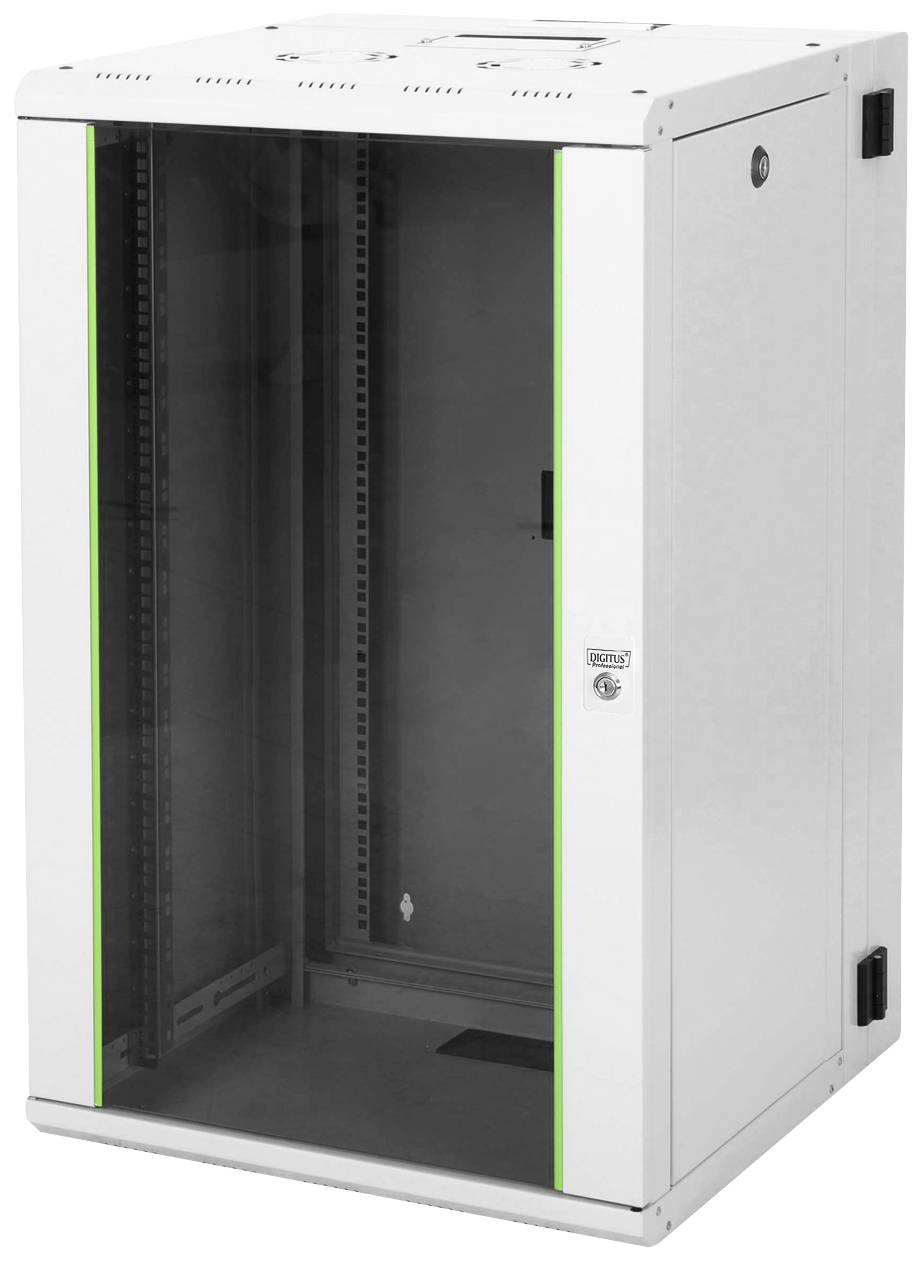

A blank, white, wall-mounted server cabinet with a glass door and green accents, suitable for housing IT equipment.

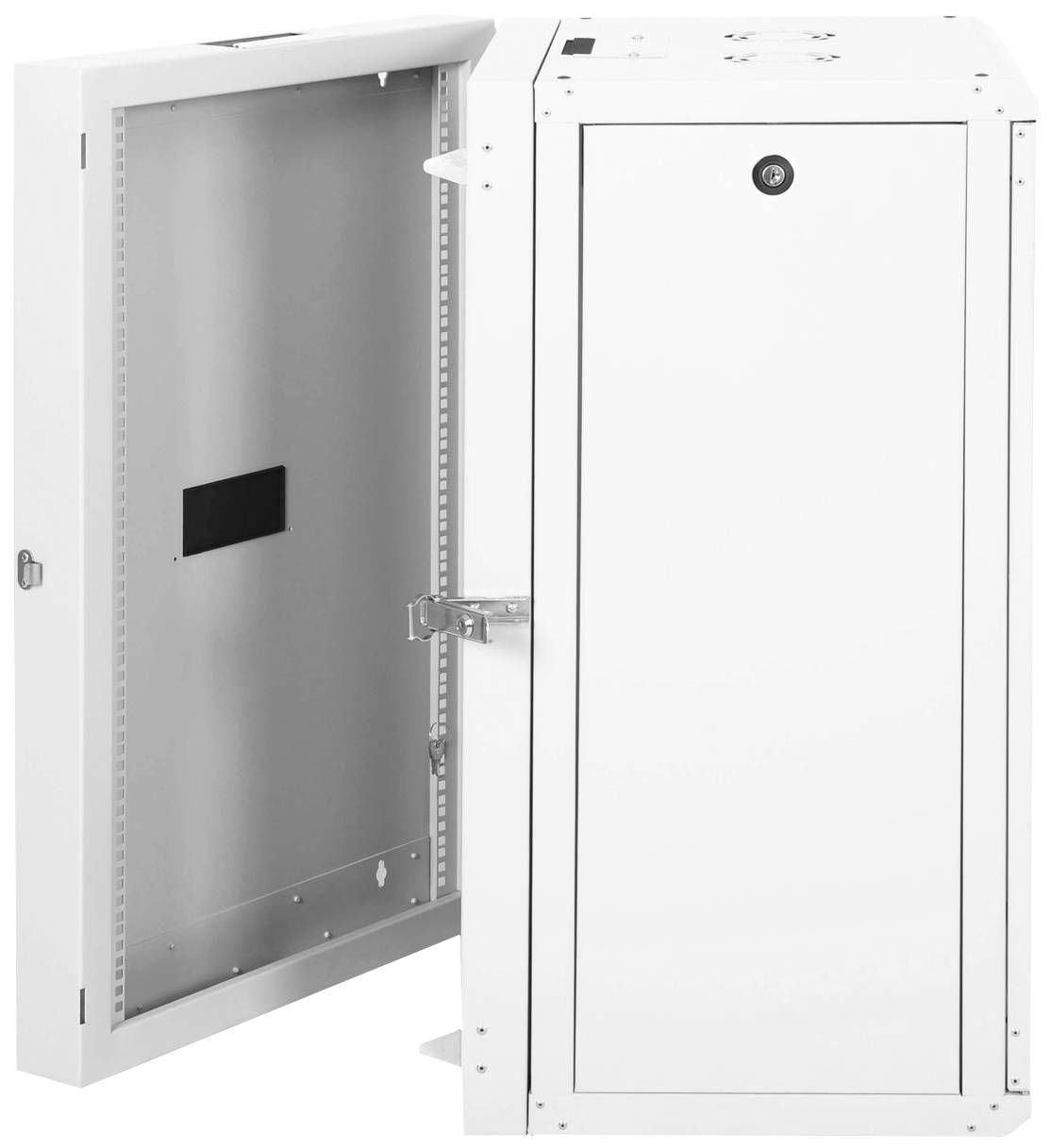

White wall cabinet with an open door showing its interior. Contains mounting devices for technical equipment. Ideal for server rooms.

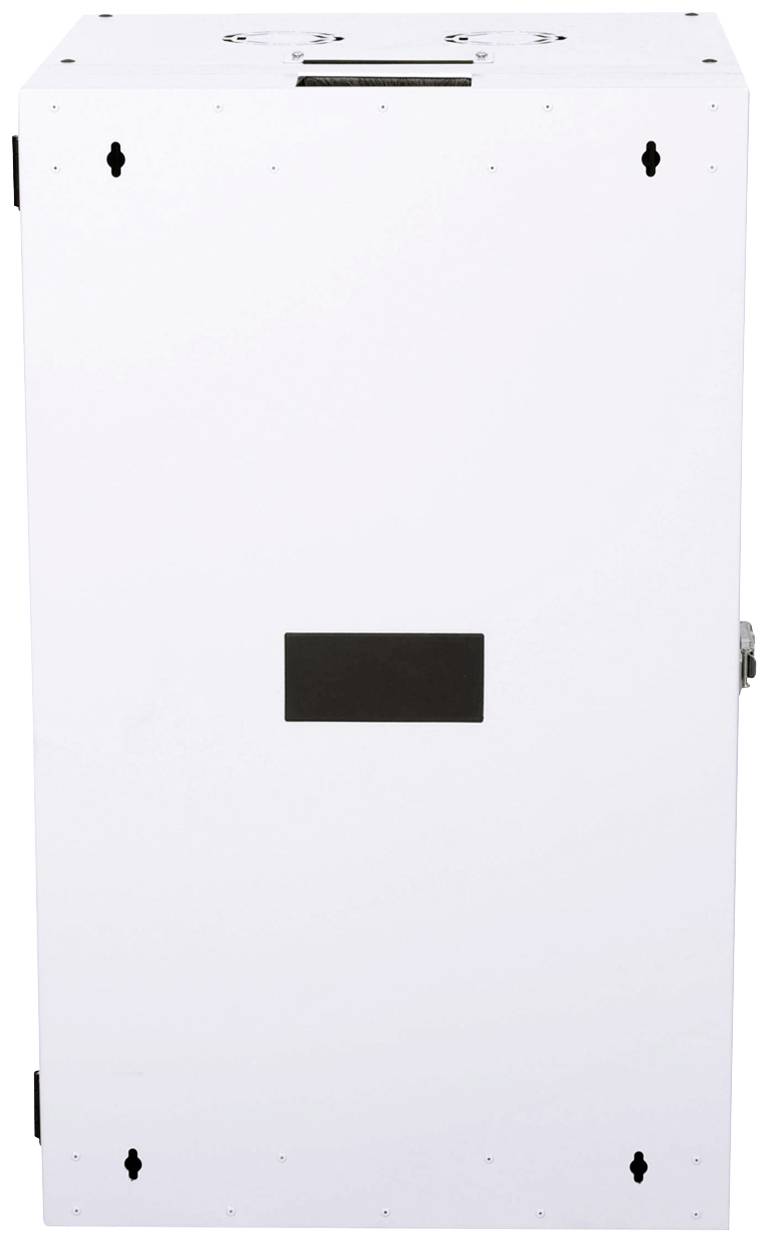

A white, rectangular metal box with black mounting points. Suitable for wall or ceiling mounting.

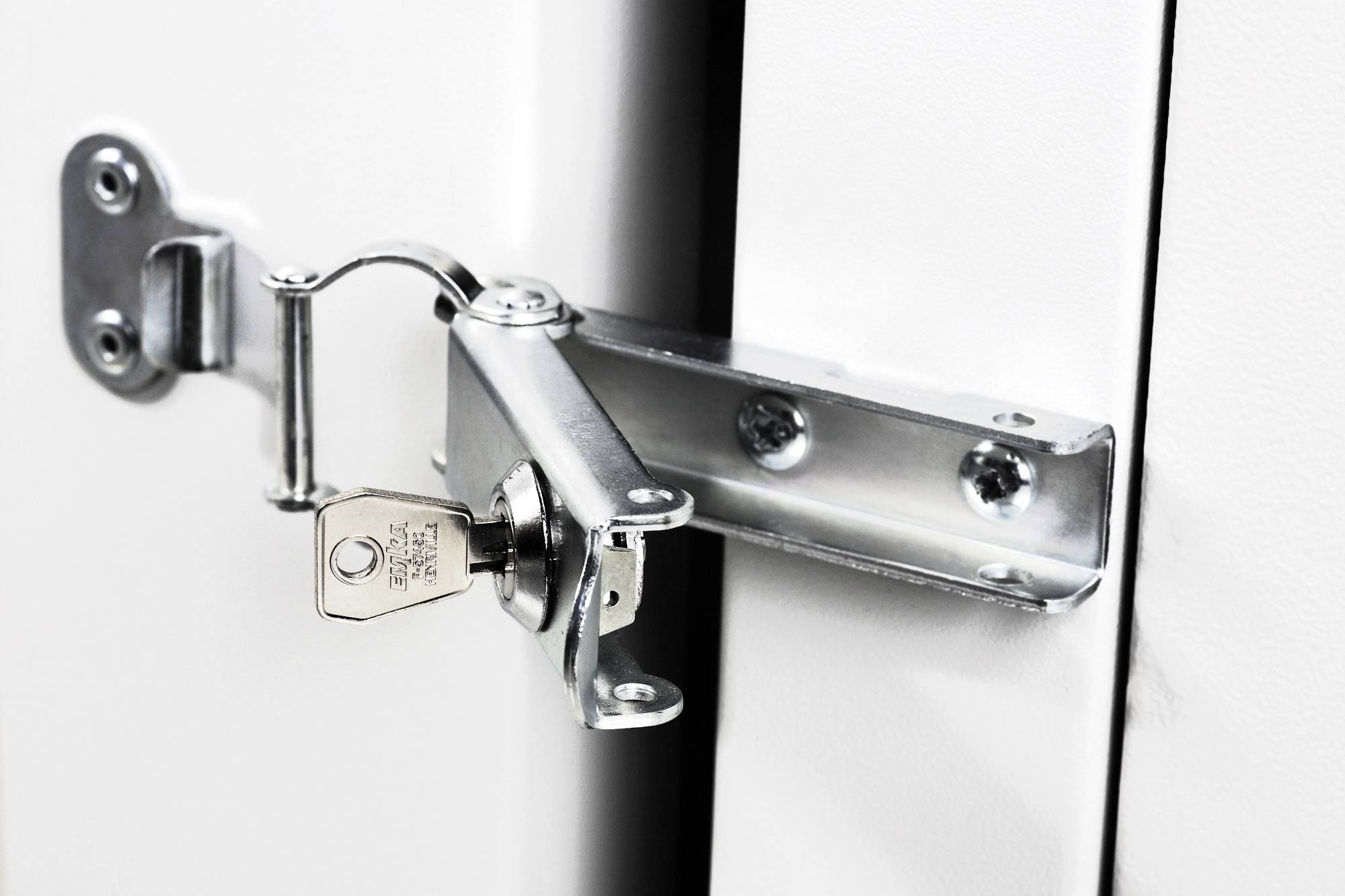

Metal hinge with a locking mechanism and key, mounted on a white door, symbolises security and closure.

1/4

Dispatches on Thu, 8 Oct

12 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 390.76 / piece)

€ 390.76

plus VAT.

14-day return policy included

Report legal concerns

Double section wall mounting cabinets

Highlights & Details

1.1 – 1.5 mm strong sheet steel with high load capacity, powder coated
Side sections detachable and lockable
Ventilation slots for active and passive ventilation and exhaustion
IP 40 rating
Safety-glass door with steel frame, lockable; optionally available with two openable doors
Double section lockable
483 mm (19") profile rails on the front side, adjustable in depth
Cable entry on top and bottom
Inclusive 8 pieces mounting set
Extensive range of accessories available

Technical specifications

Product type: 19" wall cabinet

Rack unit: 20 U

Width: 600 mm

Height: 982 mm

Depth: 610 mm

Material: Safety glass
Steel

Dim: (W x H x D) 600 x 982 x 610 mm

Weight: 56 kg

Factory colour: Grey-white (RAL 7035)

Rack size: 483 mm (19")

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 992366 Digitus DN-19 20-U-3 19" wall cabinet (W x H x D) 600 x 982 x 610 mm 20 U Grey-white (RAL 7035)

Description

The DIGITUS® Double section wall cabinets are made of a robust steel construction with a minimum of seams. The side sections are detachable and lockable. The double section simplifies the access and installation of 19" components. Due to their flexibility the cabinets are ideal for all current IT- and Telecommunication applications.

· 1.1 – 1.5 mm strong sheet steel with high load capacity, powder coated
· Side sections detachable and lockable
· Ventilation slots for active and passive ventilation and exhaustion
· IP 20 rating
· Lockable safety-glass door with steel frame
· Double section lockable
· 483 mm (19") profile rails on the front side, adjustable in depth
· Cable entry on top and bottom
· Inclusive 8 pieces mounting set
· Extensive range of accessories available

Features

Protection type IP20Lockable safety glass door with steel framesSwivel frame can be locked483 mm (19") profile rails on the front, adjustable depthCable feed from top and bottom Includes 8 x 19" mounting screws 100 kg load capacityCabinet type: Wall housingFront door: Glass door
