Buy Digitus DN-19 22u-6/6-1 19" server rack cabinet (W x H x D) 600 x 1164 x 600 mm 22 U Grey-white (RAL 7035)

A white server cabinet with a glass door and black handle, suitable for storing IT equipment in data centres.

A white, open server cabinet with a glass door on the left side, which is open.

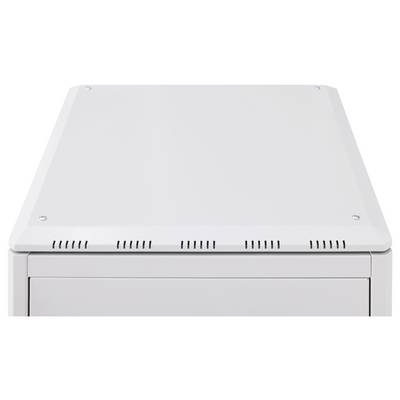

A plain, white metal enclosure with ventilation openings and screws at the corners, likely part of a technical device.

Electronics cabinet with an open door, showing an empty, rectangular enclosure without installed hardware, surrounded by metal struts.

Metal frame in an open electrical cabinet, prepared for the mounting of electronic devices or wiring.

Inside the electrical cabinet, a bag of cables lies on the right. Mounting rails are visible on the left. No devices are installed.

A rectangular, white technical module with a black brush seal and visible screws on the sides; surrounded by cable connections.

A grey, enclosed metal cabinet with a lockable door, suitable for storing electronic equipment.

An open, empty network server cabinet, suitable for housing IT equipment such as servers or network components.

A fridge in packaging on a wooden pallet. The cardboard box displays handling symbols and warning notices.

Interior view of an empty, metallic enclosure with a framed area in the centre; suitable for mounting electronic devices.

Empty server rack cabinet viewed from the inside, with visible mounting rails on the left and right.

Digitus DN-19 22u-6/6-1 19" server rack cabinet (W x H x D) 600 x 1164 x 600 mm 22 U Grey-white (RAL 7035)-13

1/14

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 424.37 / piece)

€ 424.37

plus VAT.

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

DIGITUS Network Cabinet Unique Series - 600x600 mm (WxD)

Highlights & Details

The DIGITUS® Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

Technical specifications

Product type: 19" server rack cabinet

Rack unit: 22 U

Width: 600 mm

Height: 1164 mm

Depth: 600 mm

Material: Safety glass
Steel

Dim: (W x H x D) 600 x 1164 x 600 mm

Weight: 47.9 kg

Factory colour: Grey-white (RAL 7035)

Rack size: 483 mm (19")

Product type description: Rack

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 703801 Digitus DN-19 22u-6/6-1 19" server rack cabinet (W x H x D) 600 x 1164 x 600 mm 22 U Grey-white (RAL 7035)

User & Safety Instructions

User & Safety Instructions 703801 Digitus DN-19 22u-6/6-1 19" server rack cabinet (W x H x D) 600 x 1164 x 600 mm 22 U Grey-white (RAL 7035)

Description

The Network Cabinet Unique Series was designed and produced for cabling and networking components. Several optimizations result in a perfect performance between quality and added value. Each cabinet is designed with strength, ease of use and aesthetics in mind.The front door consists of a complete metal frame with safety glass. The door stop can be changed easily from left to right. The lockable pivot lever is ready for profile half cylinders (adapter included). All side panels are lockable and detachable. Every cabinet is equipped with galvanized 483 mm (19”) profile rails, mounted left and right on the front and rear side. They are adjustable in depth and with height unit marking. The vertical cable management ducts are mounted on the front side (on cabinets from 800 mm width). Patch- and installation cables can be routed from the ducts into patch panels or equipment through the frequently positioned access slots. The roof is ready for the installation of a fan unit. All cabinets of the Unique Series are delivered completely mounted. They are available in various height units from 22U up to 47U and a width of 600 or 800 mm and a depth of 600, 800 or 1000 mm. Standard colors are grey (RAL 7035) and black (RAL 9005), other colors are available on request.

· Safety class rating IP20
· Complete metal frame front door with safety glass
· Lock system with pivot lever on front door (ready for profile half cylinder)
· Door stop is easy to change from left to right
· 120° door opening angle on front- and rear doors
· Single wing opening rear door
· 1-point-locking-mechanism on all doors
· Side panels are lockable and removable
· incl. 4 pieces of leveling feet already pre-configured under the cabinet
· 483 mm (19“) profile rails mounted on the front- and rear side inside of the cabinet, galvanized
· 483 mm (19“) profile rails are adjustable in depth and with height unit marking
· 1.5 mm strong steel sheet
· High frame rigidity due to special plate-curving-technique
· Sliding cable entry with rubber sealing on the base
· Special roof construction for fan unit
· Several earthing points for rack components
· Rack is completely mounted

Features

1.5 mm robust steel sheet with high load capacity, powder-coated
Side parts are removable and can be locked
Safety glass door with steel frame and swivel lever handle
Lockable Rucktur and side parts
483 mm (19") profile rails at the front and back, adjustable depth
Cable routing in the center of the floor through displacable sheet with rubber seal
Height-adjustable feet
Roof module for ventilation unit
Complies with IEC 297-1/2 (19" unit) and IEC 917-2-1 (metric unit)
2 keys for doors and side walls
Including 28 pieces of mounting screws

Scope of delivery

Cabinet
28 x mounting screws
2 x keys for door and side walls
Pedestals
Profile rails
Grommet
Displacable sheet with rubber seal
Brush strip
Front door with safety glass

Hints
