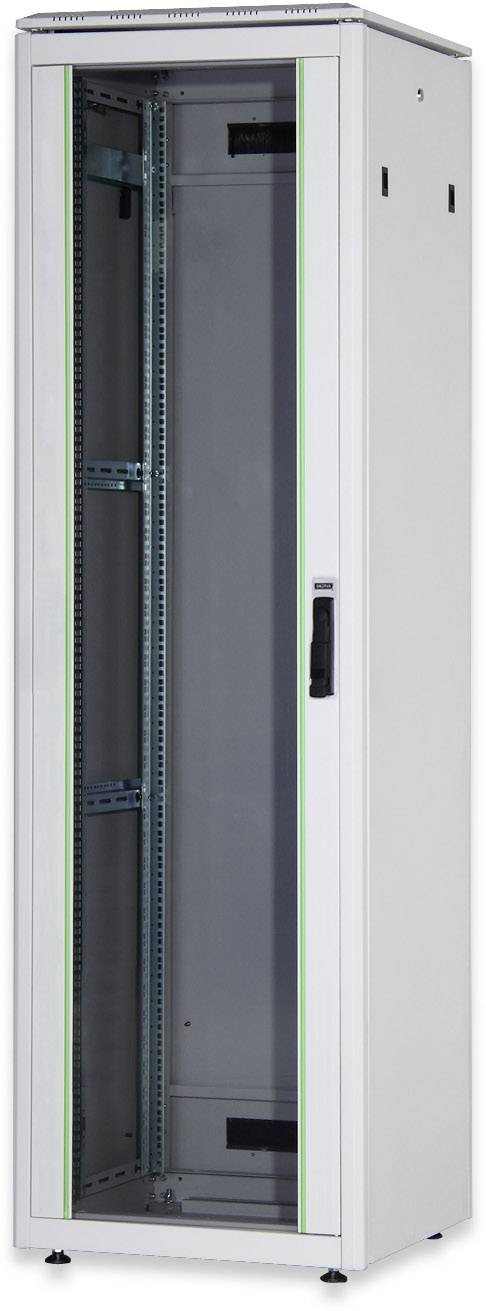

Digitus DN-19 36U-6/8-1 19" server rack cabinet (W x H x D) 600 x 1787 x 800 mm 36 U Grey-white (RAL 7035)
EAN:
Part number:
Item no:
36 HE network cabinets, unique series 1787 x 600 x 800 mm, color gray (RAL 7035)
Highlights & Details
- Roof with holder for a fan unit and attached cover
- Lockable swivel lever handle at the front door
- Aufschiebbarer cable inlet with foam rubber seal in the bottom
Technical specifications
- Product type
19" server rack cabinet
- Rack unit
36 U
- Width
600 mm
- Height
1787 mm
- Depth
800 mm
- Material
Steel plate
- Dim
(W x H x D) 600 x 1787 x 800 mm
- Weight
86.4 kg
- Factory colour
Grey-white (RAL 7035)
- Rack size
483 mm (19")
- Product type description
Rack
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1604529 Digitus DN-19 36U-6/8-1 19" server rack cabinet (W x H x D) 600 x 1787 x 800 mm 36 U Grey-white (RAL 7035)
Description
The network cabinet unique series was developed and produced for cabling and network components. Various optimizations lead to optimal performance in quality and added value. The cabinets are easy to use and aesthetically in its appearance. The front door consists of a complete metal frame with safety glass. The lockable swivel lever handle is prepared for the recording of profile semi-cylinders (adapter included). All side parts are lockable and can be easily removed. Each cabinet contains galvanized 483 mm (19") profile rails, front and rear mounted in the cabinet interior. They are adjustable depth and have a marking of the respective height unit. The vertical cable routing channels are in addition to the front Profile rails installed (for cabinets from 800 mm width). They offer a simple guide to patch and installation cables. The roof is prepared for accepting a fan unit. The completely mounted 483 mm (19") cabinets are in different units of 22 HE up to 47U and a width of 600 or 800 mm and a depth of 600, 800 or 1000 mm. Standard color gray (RAL 7035) and black (RAL 9005); other colors on request.
This text is machine translated.
This text is machine translated.
Features
- Protection class: IP20
- Front door from full metal frame with safety glass
- Locking system with pivot lever handle on front door (prepared for profile half cylinder)
- 120° door opening angle of the front and rear doors
- Single-leaf Rucktur
- Side parts are falling, and removable
- 1-point lock at all doors
- Incl. 4 Levelling Feet, which are already under the cabinet are attached
- 483 mm (19") profile rails at the front and back within the cabinet mounted, galvanised
- 483 mm (19") profile rails are adjustable in depth and with marking the height unit fitted
- 1.5 mm thick steel sheet
- High Frame stiffness by special sheet bending technology
- Built-in depth struts ensure stability
- Aufschiebbarer cable inlet with foam rubber seal in the bottom
- Cable inlet with brush strip at the top and bottom of the cabinet back
- Roof is prepared for the recording of a fan unit.
- Various grounding points in the cabinet for mounting components
- Supplied fully assembled
- Front and rear mounting level:
- Design of the profile rail: ended
- Number of doors: 2
- Ventilation type: passive
- Grid dimension: 482.6 mm (19")
- With Roof sheet: yes
- With Front Door: yes
- With rear door: yes
- With side walls: yes
- Design the surface: powder-coated
- Design: with hard frame
- Dismantling: yes
