Digitus DN-19-EARTH-L 19 inch Server rack cabinet PG kit Copper
EAN:
Part number:
Item no:
Datasheet (PDF)

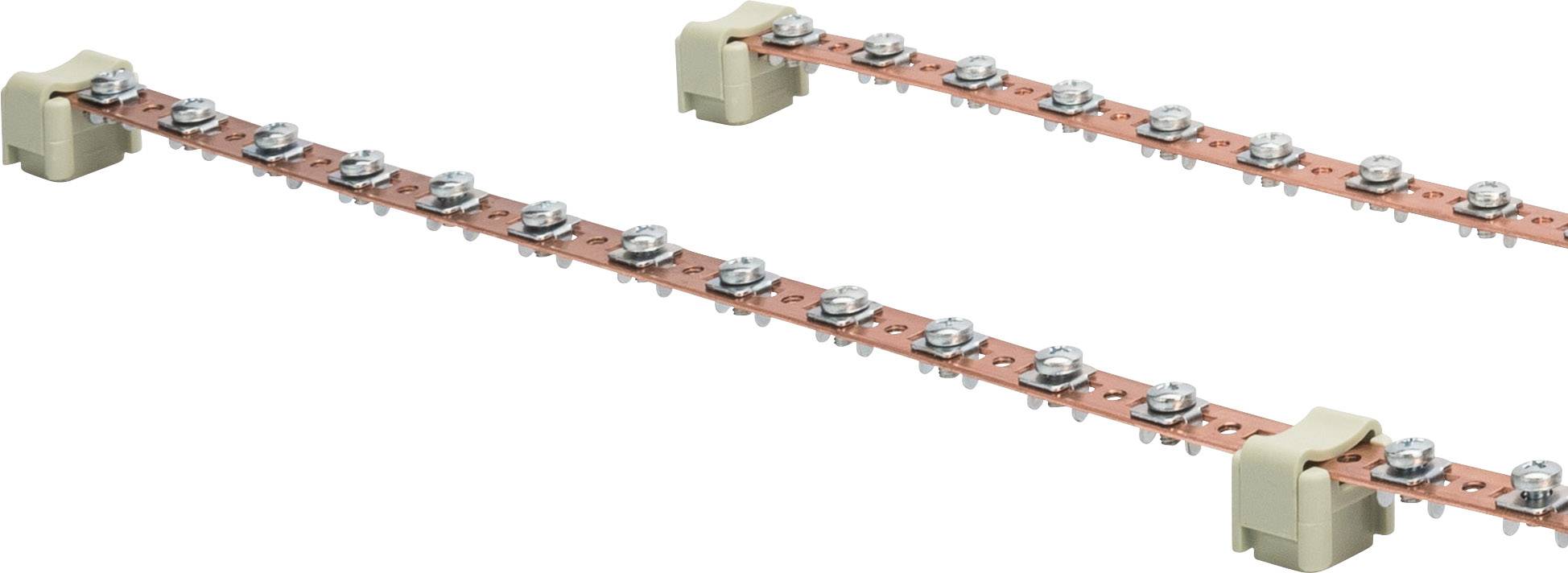

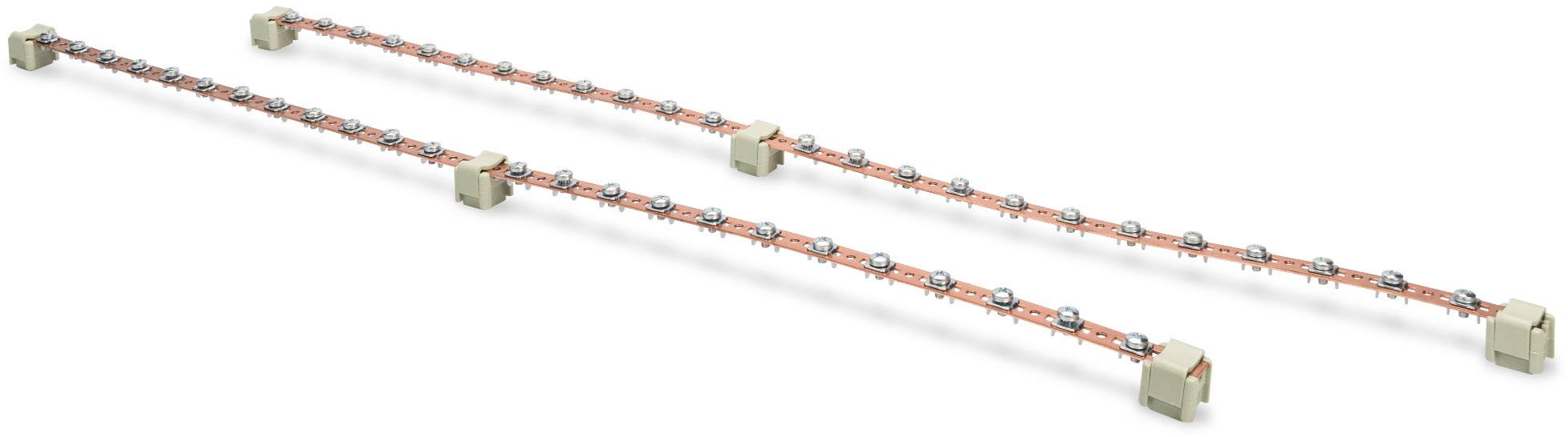

Potential expansion rail for network cabinets, 2 pcs., 820 mm, 2x 24 connection points, incl. earthing cables
Highlights & Details
- 2x 820 mm copper rail incl. connection earthing cable
- 24 connection points per copper rail
Technical specifications
- Product type
Server rack cabinet PG kit
- Suitable for server rack cabinet (inch)
19 inch
- Dim
(W x H x D) 770 x 20 x 25 mm
- Cable length
40 cm
- Material
Copper
- Content
1 pc(s)
- Factory colour
Copper
- Width
770 mm
- Height
20 mm
- Depth
25 mm
- Weight
0.633
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1934445 Digitus DN-19-EARTH-L 19 inch Server rack cabinet PG kit Copper
User & Safety Instructions
User & Safety Instructions 1934445 Digitus DN-19-EARTH-L 19 inch Server rack cabinet PG kit Copper
Description
The equipotential bonding rails can be easily mounted on the profile rails of your rack to connect the necessary components. Two versions are available: The short version (220 mm long) has a total of six connection points. The second version is a set consisting of two 820 mm long rails each with 24 connection points (a total of 48 pieces) with an additional short earthing cable for connecting the two rails.
This text is machine translated.
This text is machine translated.
Features
- Copper bus bar

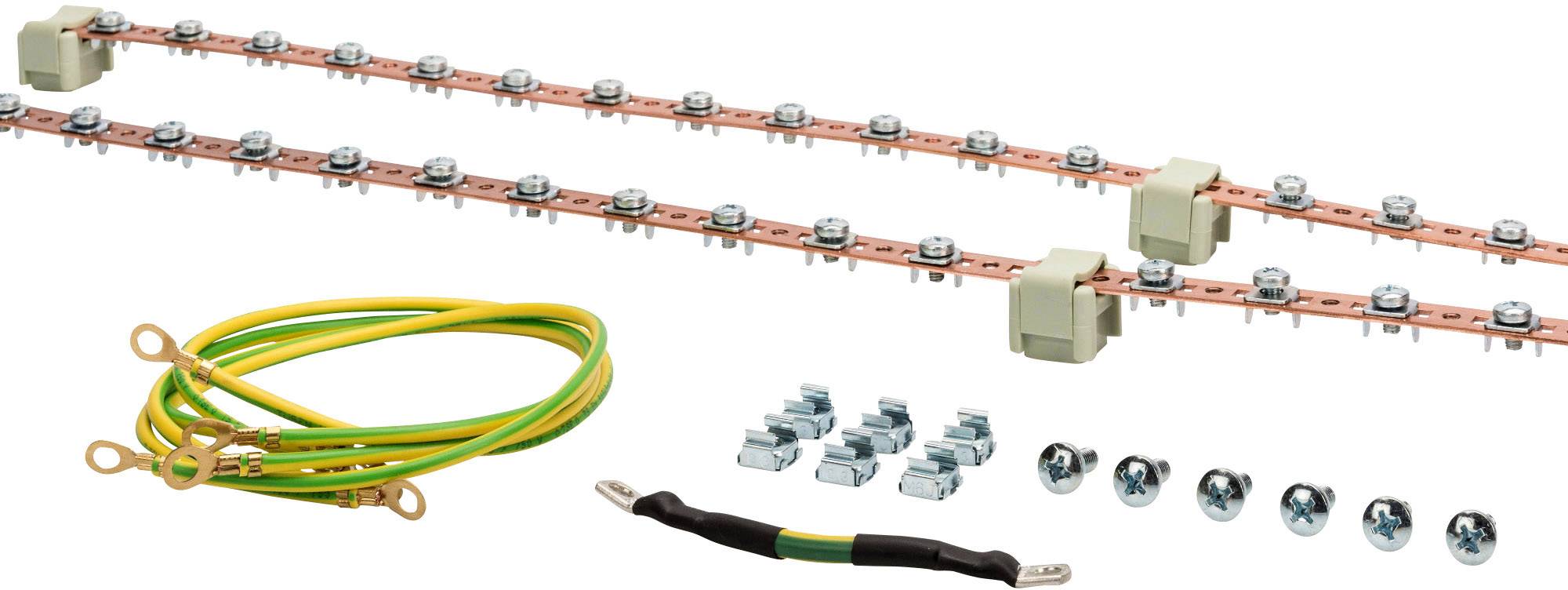

- Incl. 4x earth cable (diameter 4 mm, 40 cm length) and mounting material
