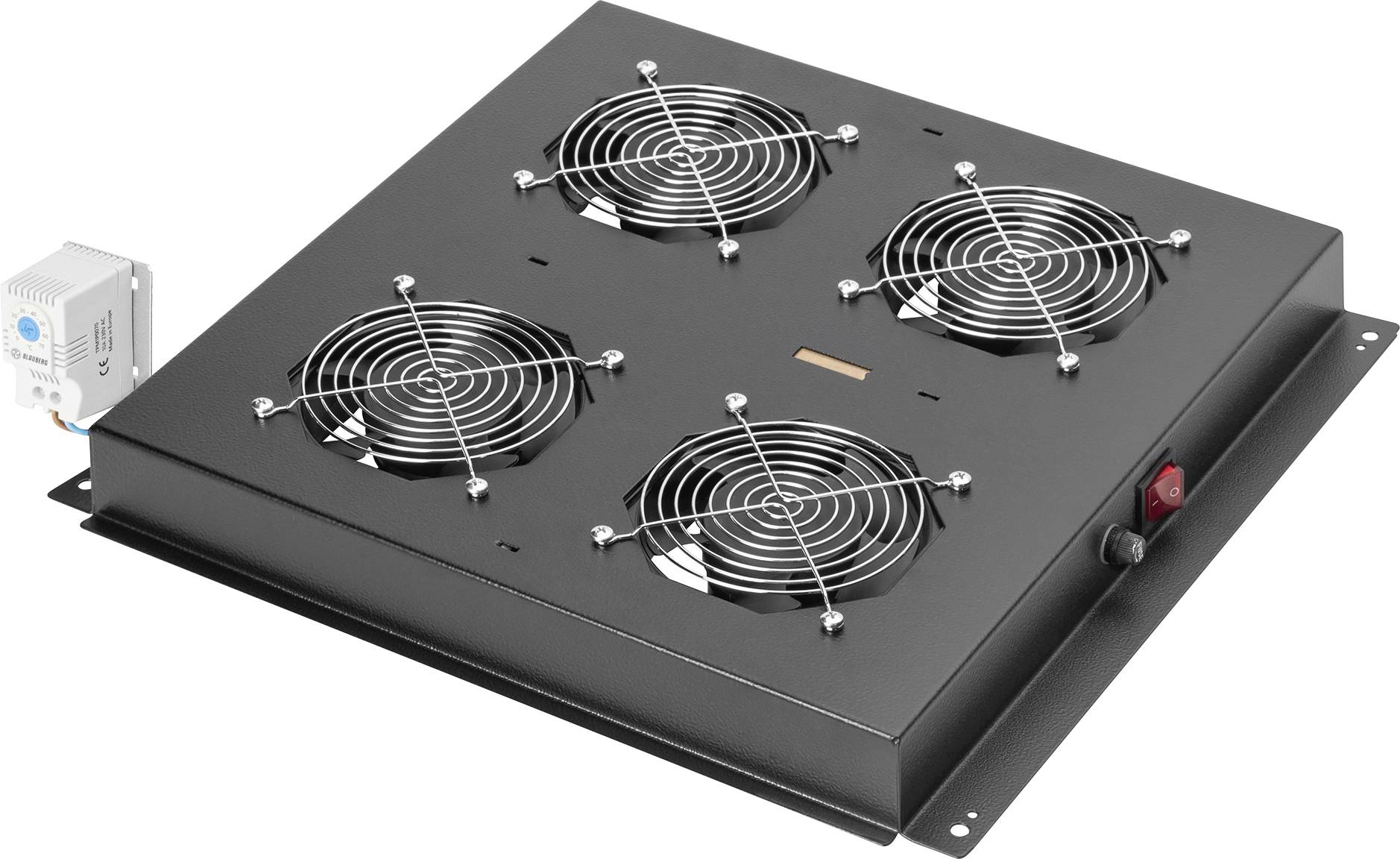

A black metal cooling unit with four fans in a grid layout, featuring a red switch on the side and a small gray control box attached.

A BlauBerg temperature controller displays settings from 0 to 70°C. It is wired and mounted, indicating use for ventilation control.

'Four black cooling fans mounted in a square metal tray, labeled with specifications, connected by wires to a small gray control unit on the side.'

Close-up of two cooling fans with metal grills on a black surface, showcasing the design and structure of the ventilation system.

A black cooling unit with four metal fans and a red switch on the side, designed for electronic equipment ventilation.

A black rectangular fan unit with four metal-covered fans and a red power switch on the side, used for cooling electronic equipment.

'Bottom view of a metal ceiling vent system with four circular fans, each protected by a metal grille.'

A temperature control device with a blue dial is mounted on a metal frame, indicating a system for regulating environmental conditions.

1/8

Datasheet (PDF)

Fast track dispatch on Wed, 9 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 138.65 / piece)

€ 138.65

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Roof fan unit for unique network and dynamic basic, 4 fan, thermostat, switch, 552 m³/h, color black (RAL 9005)

Highlights & Details

For installation in the roof module
Inclusive thermostat, adjustable from 0°C up to +35°C

Technical specifications

Air flow-rate: 9.2 m³/min.

Product type: Server rack cabinet fan

Features: Fixed
with switch

Suitable for server rack cabinet (inch): 19 inch

Rack unit: 1 U

Suitable for (cabinet depths): > 600 mm

Voltage (max.): 230 V AC

Dim: (W x H x D) 430 x 45 x 415 mm

Cable length: 1.80 m

No. of fans: 4 x

Noise level: 50 dB

Material: Metal

Content: 1 pc(s)

Factory colour: Black (RAL 9005)

Width: 430 mm

Height: 45 mm

Depth: 415 mm

Weight: 4.299

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1604532 Digitus DN-19 FAN-4-B-N 19 inch 4 x Server rack cabinet fan 1 U Fixed, with switch Suitable for (cabinet depths): > 600

User & Safety Instructions

User & Safety Instructions 1604532 Digitus DN-19 FAN-4-B-N 19 inch 4 x Server rack cabinet fan 1 U Fixed, with switch Suitable for (cabinet depths): > 600

Description

The roof fan units are suitable for all network cabinets with the unique series, as well as all network and server cabinets the dynamic basic series. They fit also in 483mm (19") cabinets with the unassembled series (EC). The installation in the roof module of the cabinet can be quickly and easily. A switch, as well as an adjustable thermostat, provide for optimal adjustment possibilities. The model is available in the standard colors gray (RAL 7035), as well as black (RAL 9005), with either two or four fans.
