Buy Digitus DN-19 ORG-42U-B 19 inch Cable bracket 42 U Suitable for (cabinet depths): > 300 mm Black, Black (RAL 9005)

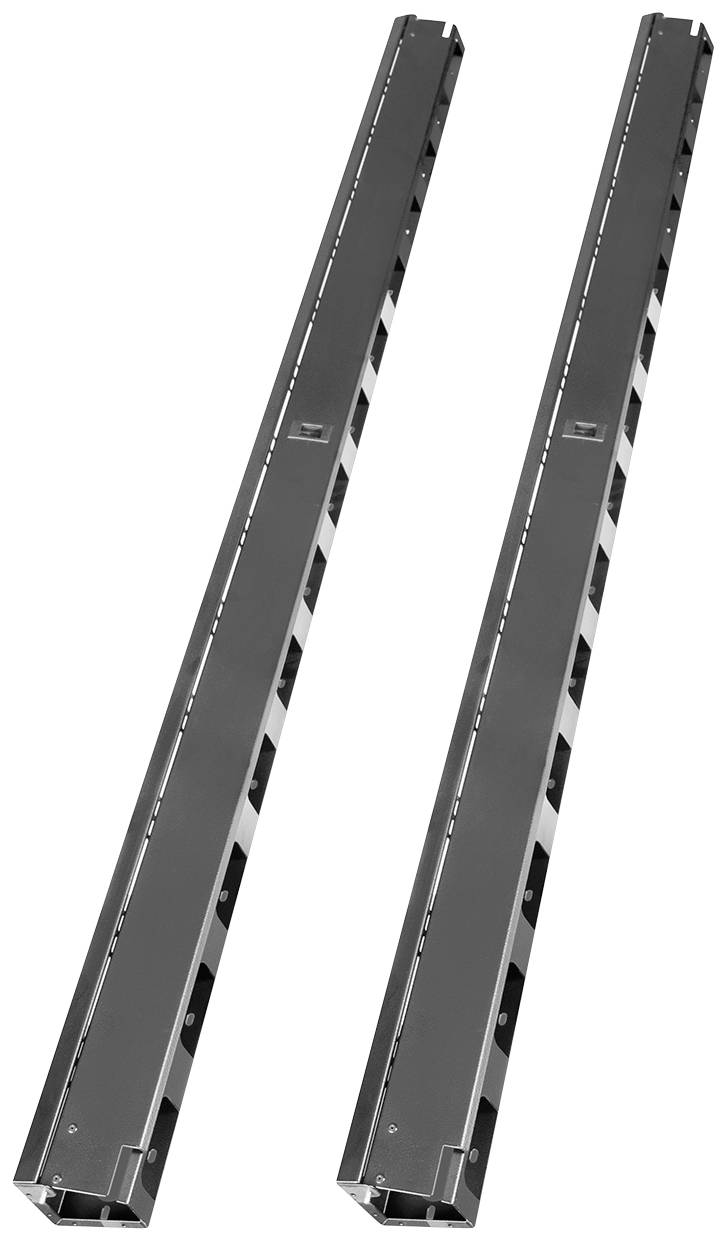

Two long, black metal struts with side apertures, arranged parallel to each other. They are components of a shelving system.

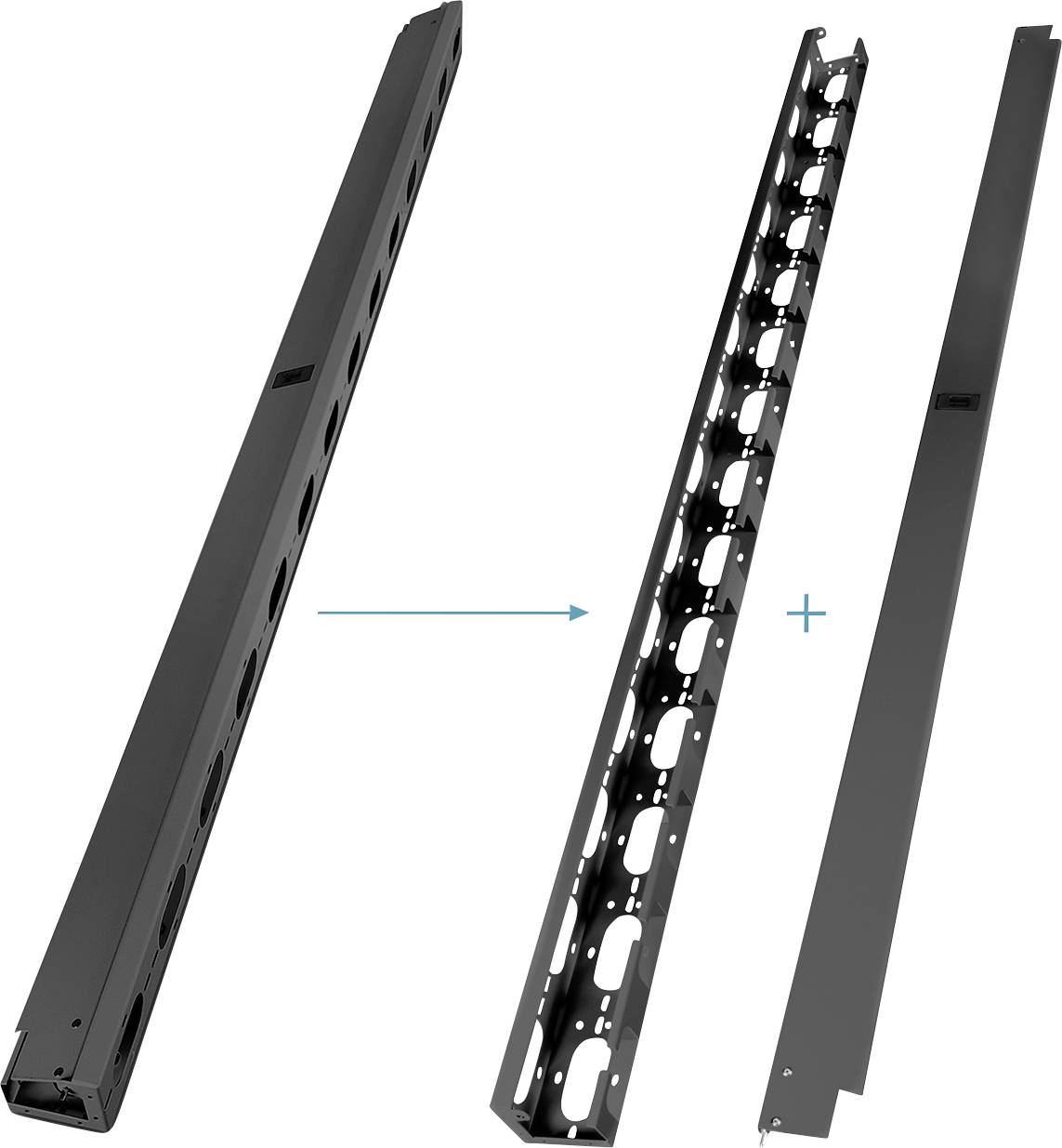

Three black metal components of a rack, including a mounted rack, a perforated bracket, and a cover, displayed separately from one another.

1/2

Unavailable

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

42HE vertical cable routing channels 1865x92x85 mm, set= 2 pieces, black (RAL 9005)

Easy installation in Digitus 42HE
Vertical, arranged cable routing next to the 482.6 mm (19") profile rails.
Several cable glands for cables coming from the rear or sides.

Technical specifications

Robust sheet steel
Incl. attachment material
Color: Black, RAL 9005
HEY 42

Product type: Cable bracket

Suitable for server rack cabinet (inch): 19 inch

Rack unit: 42 U

Suitable for (cabinet depths): > 300 mm

Dim: (W x H x D) 85 x 1865 x 92 mm

Material: Steel plate

Content: 1 pc(s)

Factory colour: Black
Black (RAL 9005)

Width: 85 mm

Height: 1865 mm

Depth: 92 mm

Weight: 14.300

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2380179 Digitus DN-19 ORG-42U-B 19 inch Cable bracket 42 U Suitable for (cabinet depths): > 300 mm Black, Black (RAL 9005)

Description

A clear, orderly cable routing is one of the most important aspects for an efficient cabinet configuration. Digitus DIGITAL® vertical cable ducts can be easily mounted to the side of the 482.6 mm (19") profile rails, providing enough space for any cabling. They have cable glands at the back and sides to allow you to pick up cables from any direction without any need. An opening and removable cover on the front serves as a screen to preserve the esthetic of the cabinet. The delivery takes place as a set of 2 cable channels so that every 42HE network or server cabinet starting from 800 mm width of DIGITUS® can be equipped Digitus optimally immediately. They can be connected at the front as well as at the back inside with the struts of the profile rails and thus enable flexible and structured cabling possibilities.

This text is machine translated.
