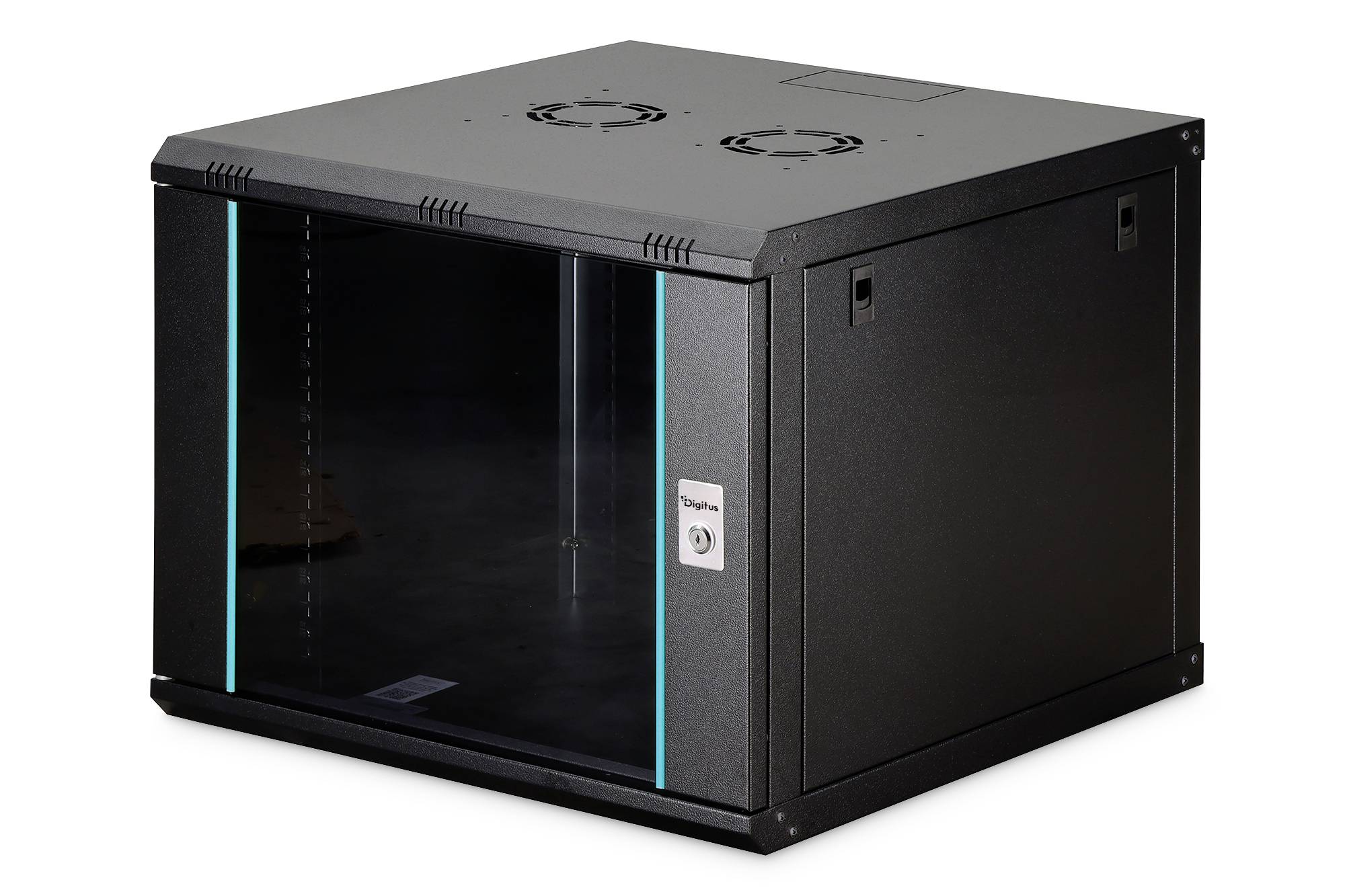

Black metal server cabinet with tinted glass front door and blue vertical light strips, shown closed on a white background.

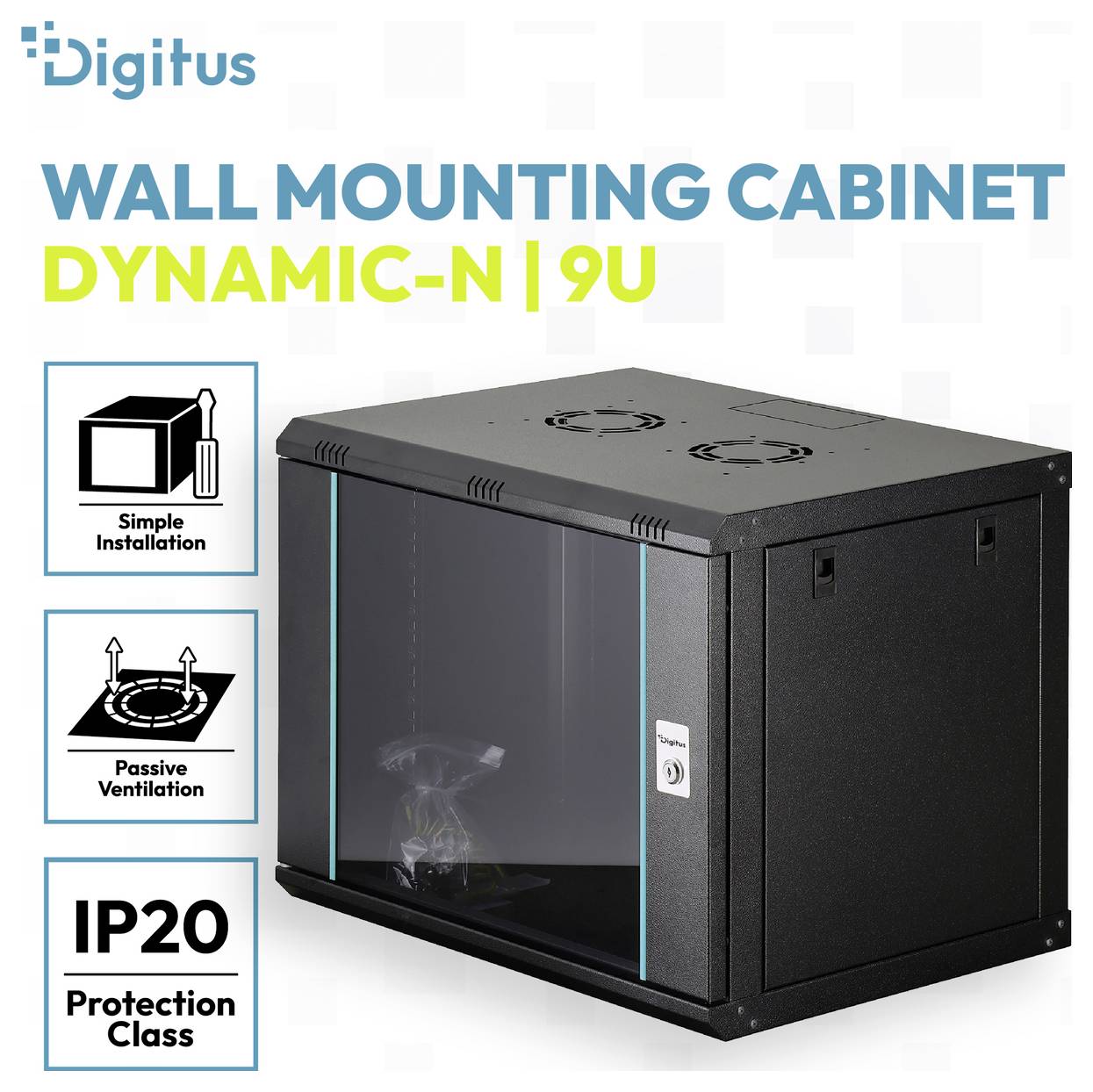

Product image of a Digitus wall-mounting cabinet Dynamic-N 9U, black with glass front door, showing simple installation, passive ventilation, and IP20 protection class.

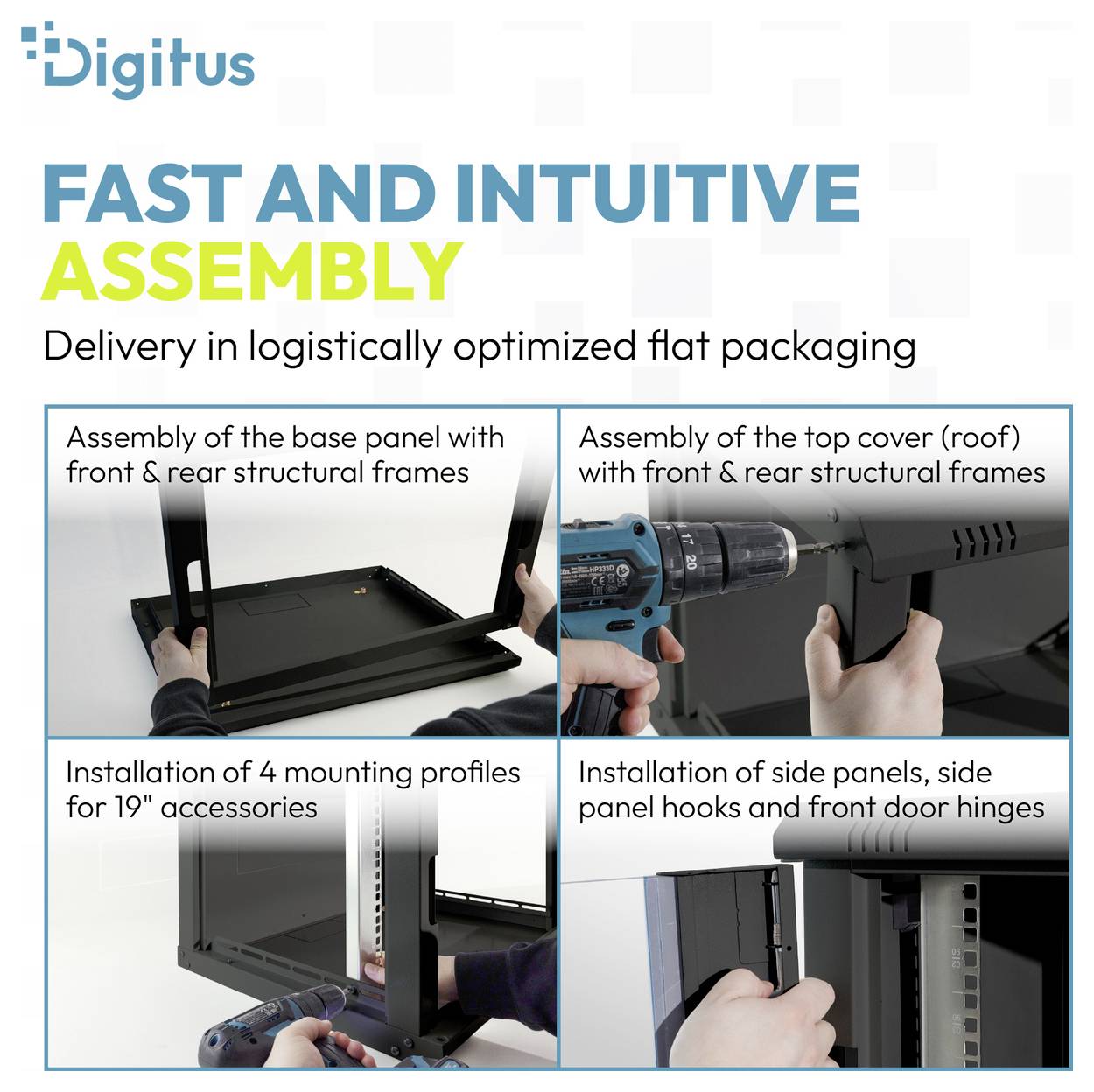

Digitus assembly guide showing fast, intuitive rack cabinet assembly in four steps: base panel, roof cover, mounting profiles, and side panels/door hinges.

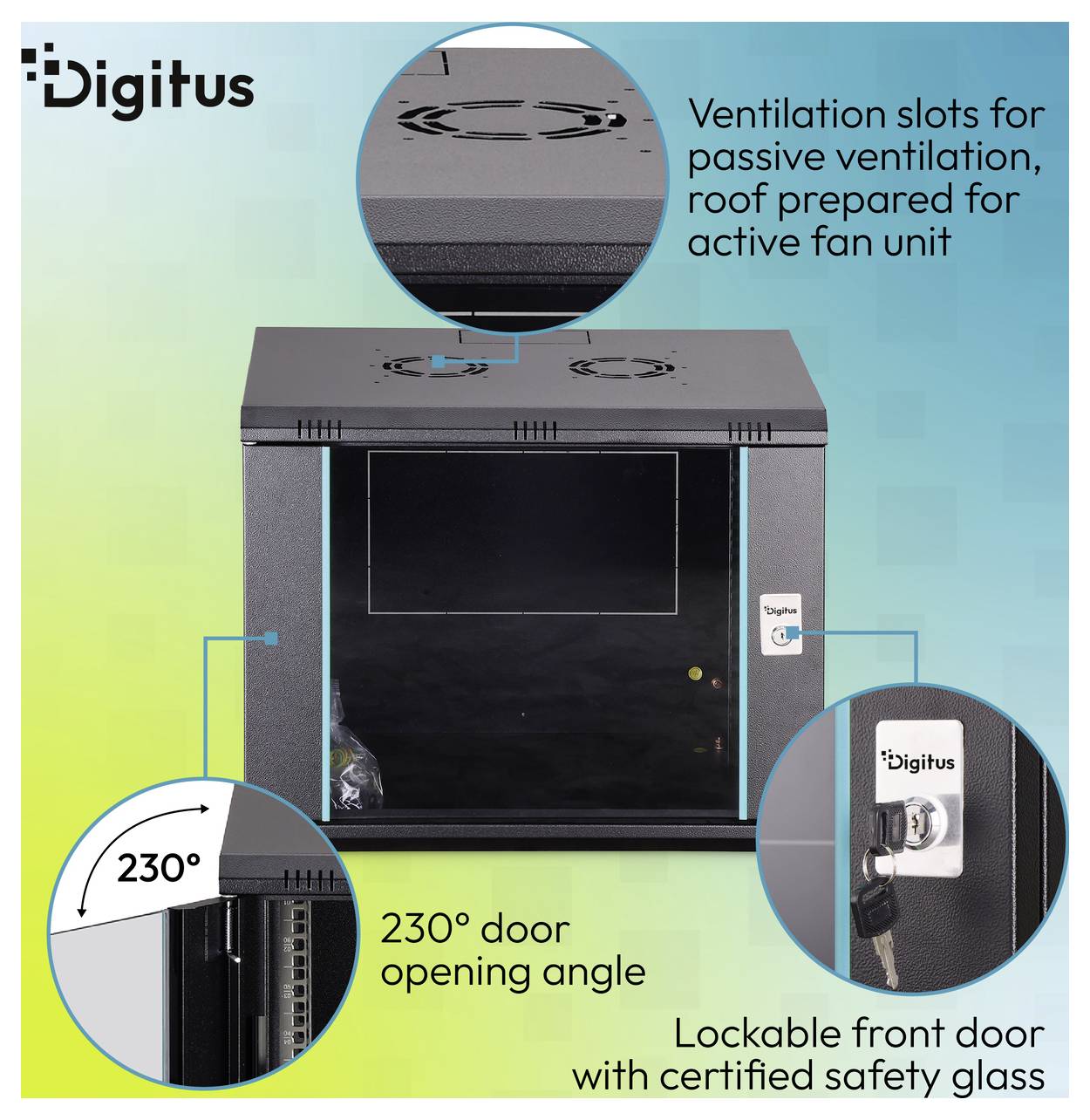

Digitus network cabinet with ventilated roof for passive or active fan cooling, 230° door opening angle, and lockable front door with safety glass.

Digitus 'Easy Wall Mounting' ad showing a wall-mounted housing; text says it's mounted in two steps: screw plate to wall, then connect housing.<br>

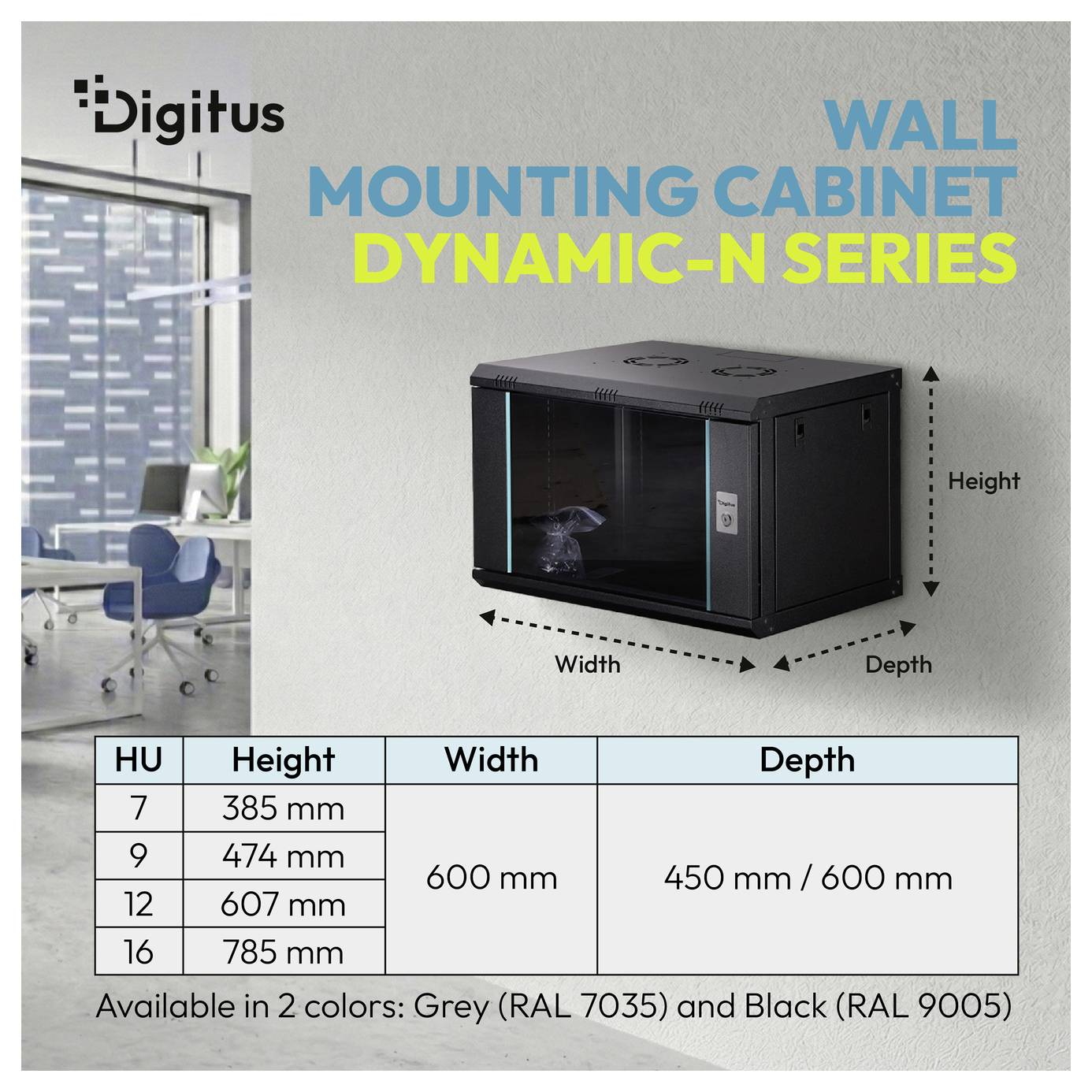

Product ad for Digitus wall mounting cabinet Dynamic-N series, showing a black cabinet with dimensions and size table; heights 385-785 mm, width 600 mm, depth 450/600 mm.

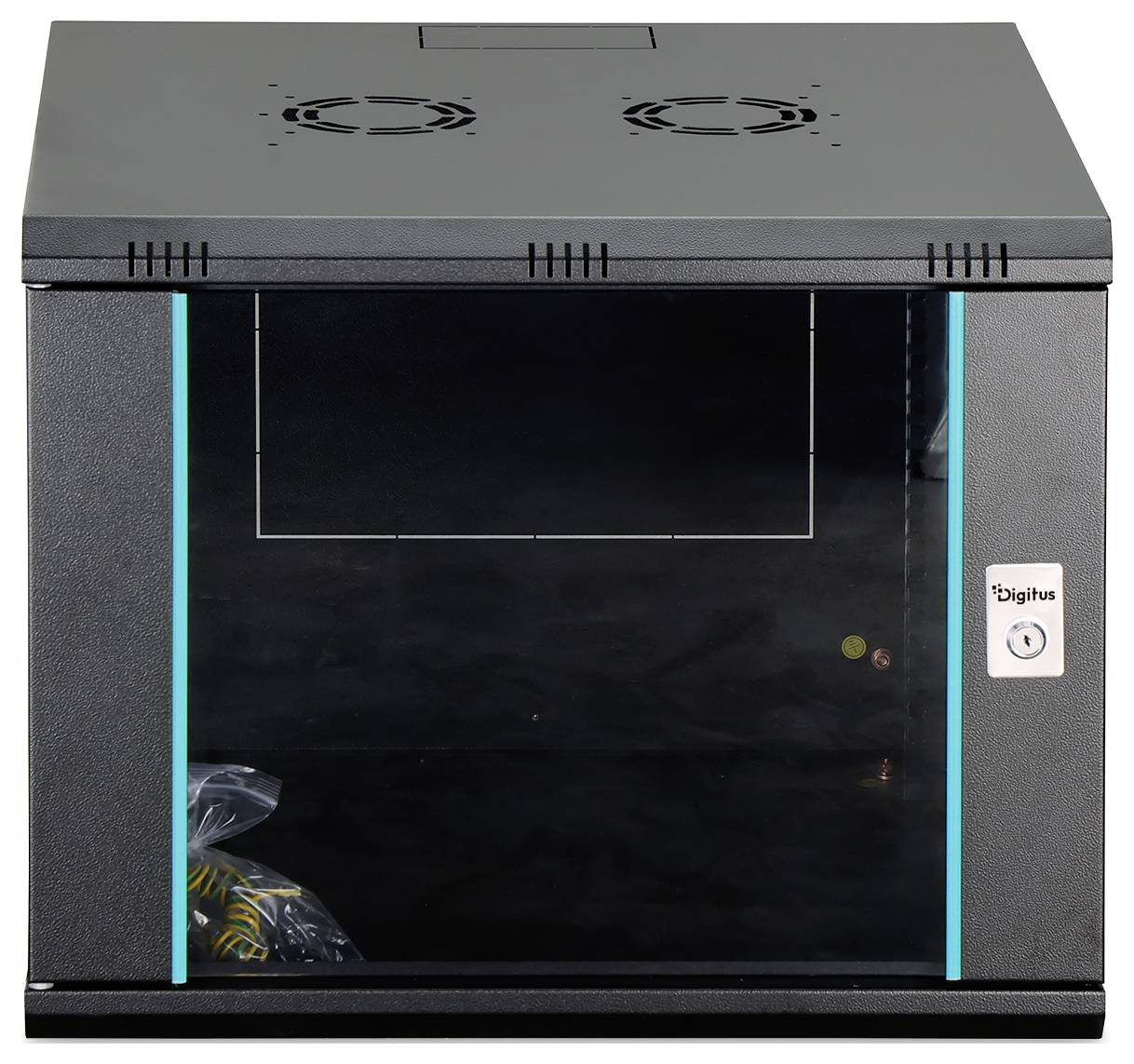

Black wall-mount equipment cabinet with glass front door, side vent openings, and lock, used for storing network or AV hardware.

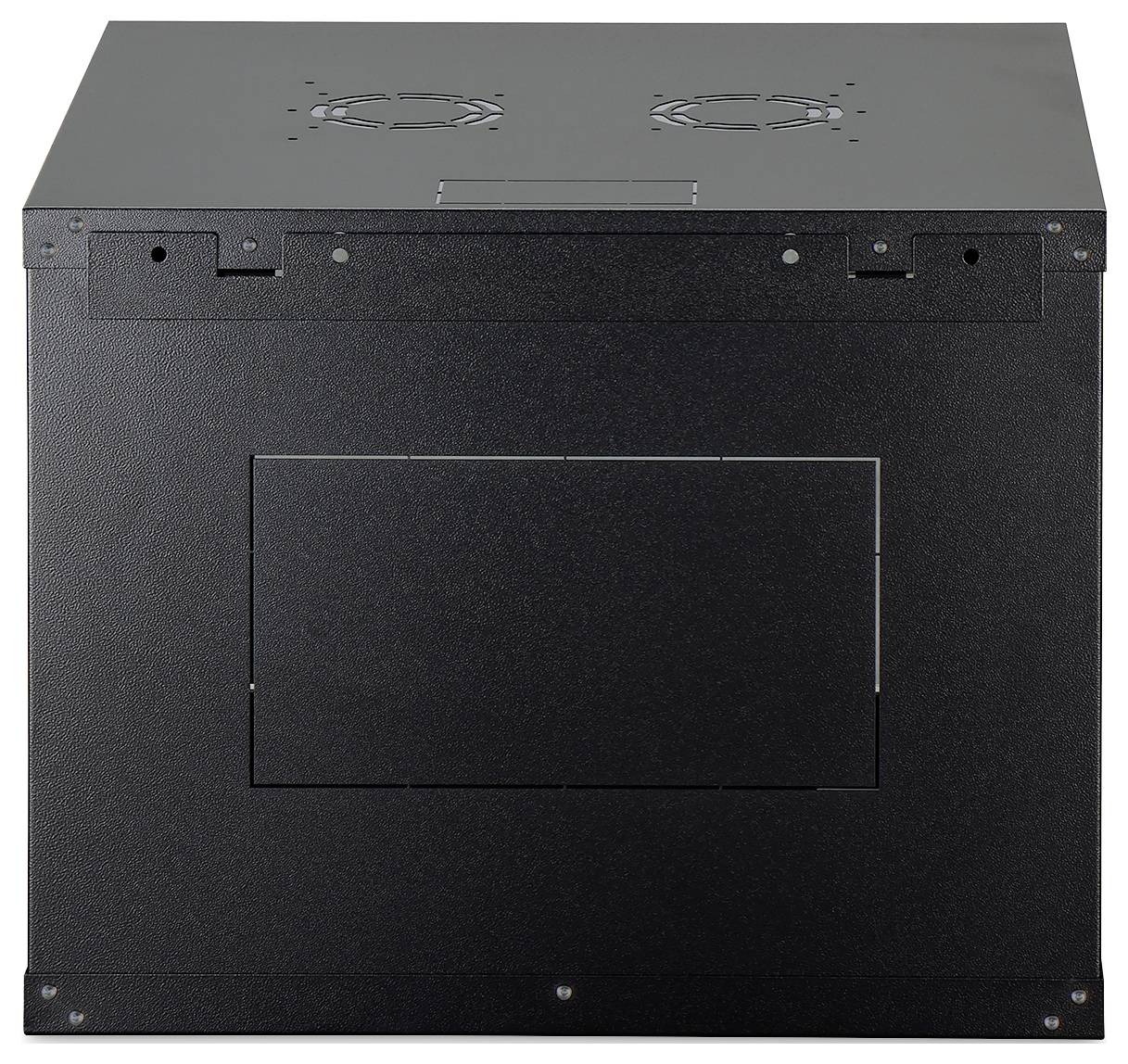

Black metal equipment cabinet with a front access panel and ventilation fans on top, shown against a white background.

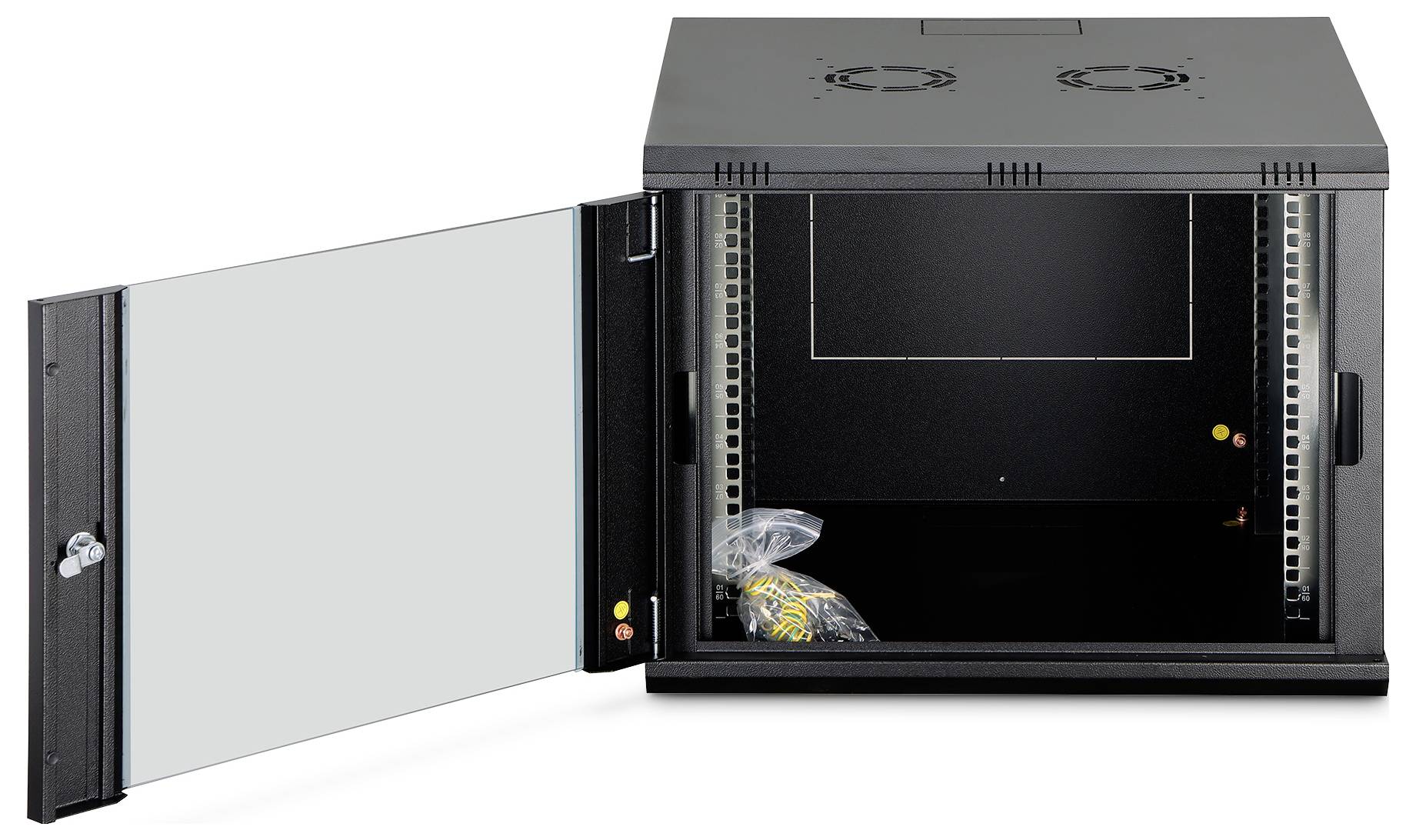

Open black wall-mounted equipment cabinet with glass door and internal cable bundle visible inside.

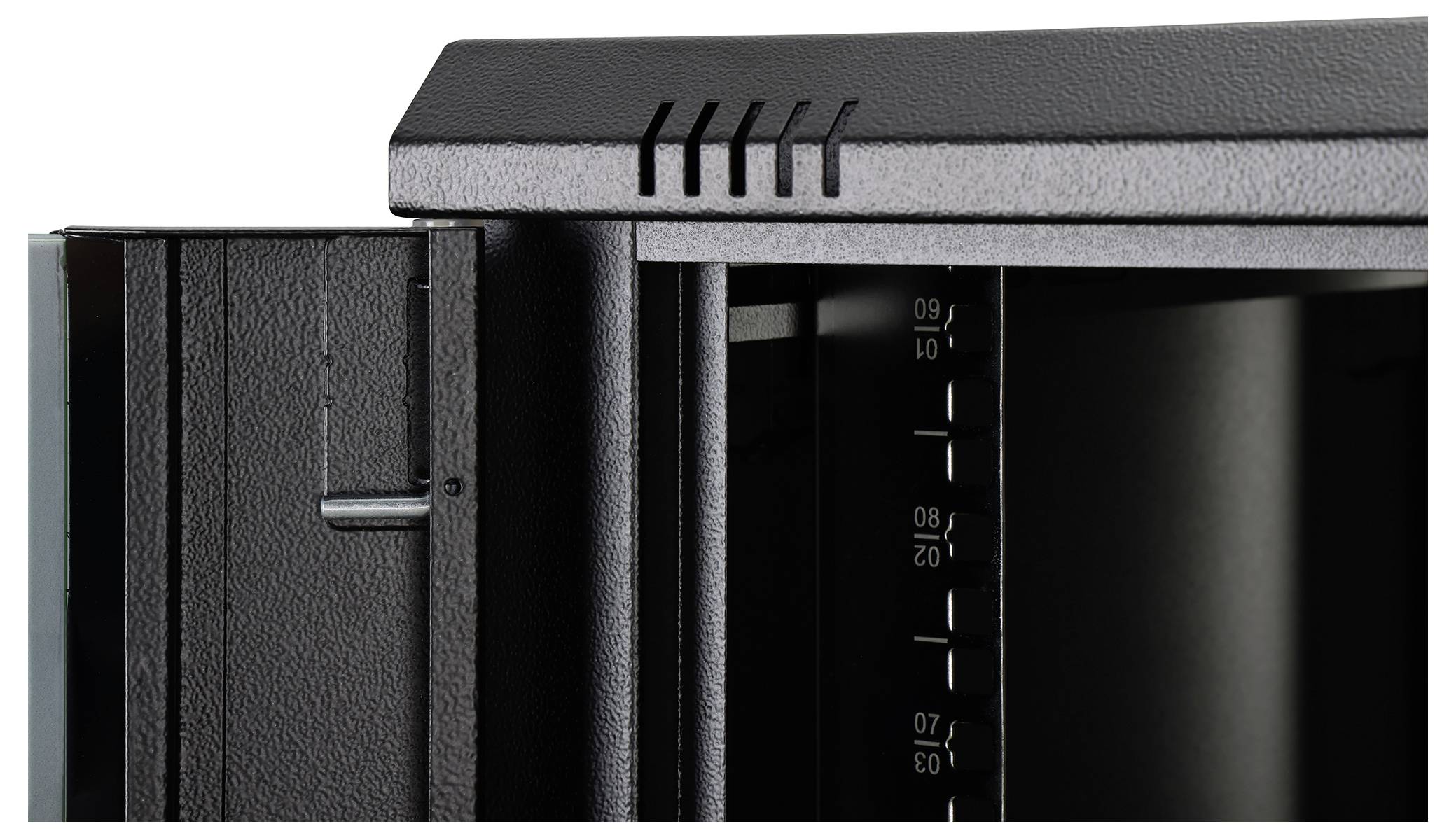

Close-up of a black metal cabinet or rack door partially open, showing interior height markings and a locking latch on the left side.

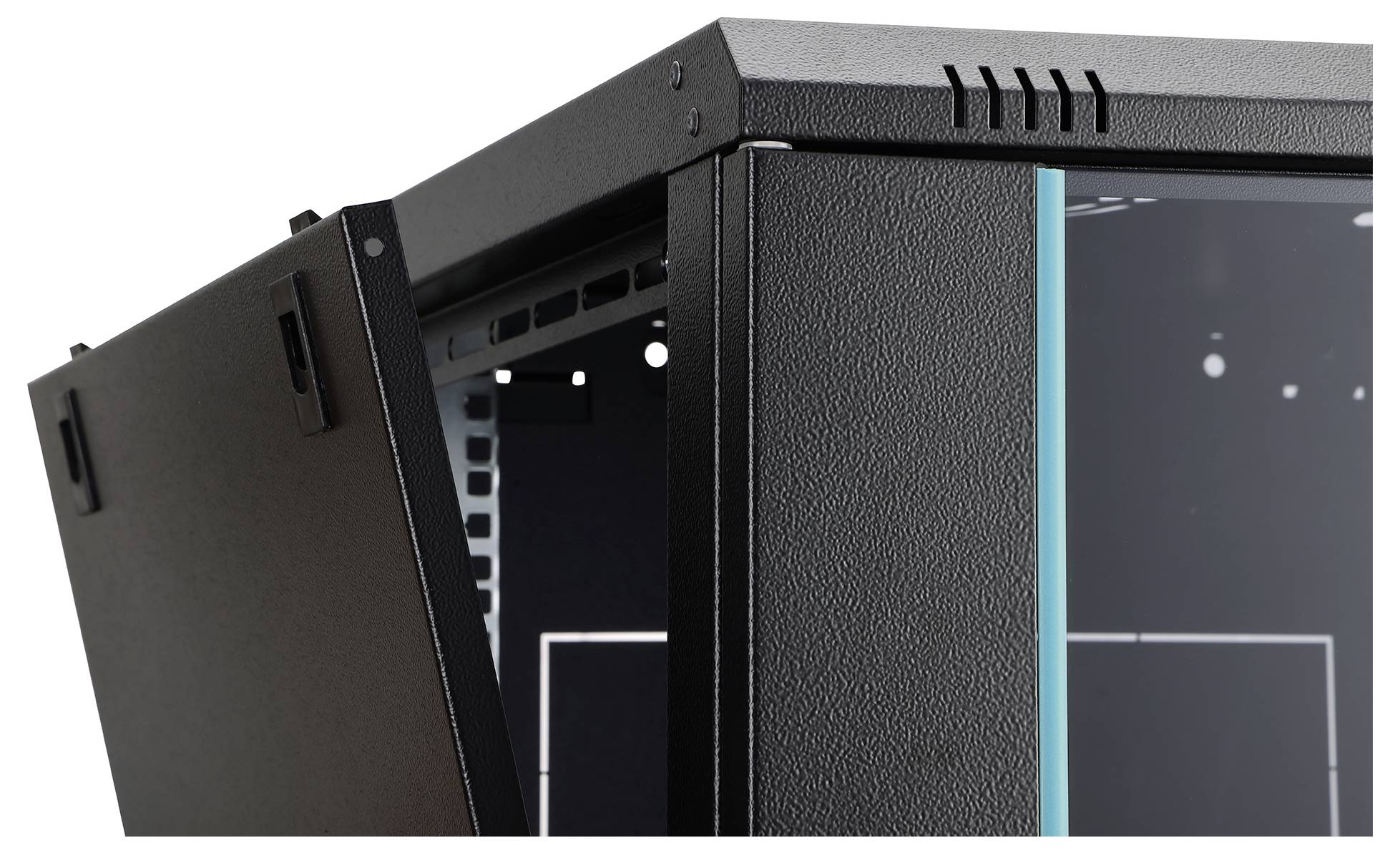

Close-up of a black server rack cabinet with an open side panel and glass front door, showing the frame and ventilation slots.

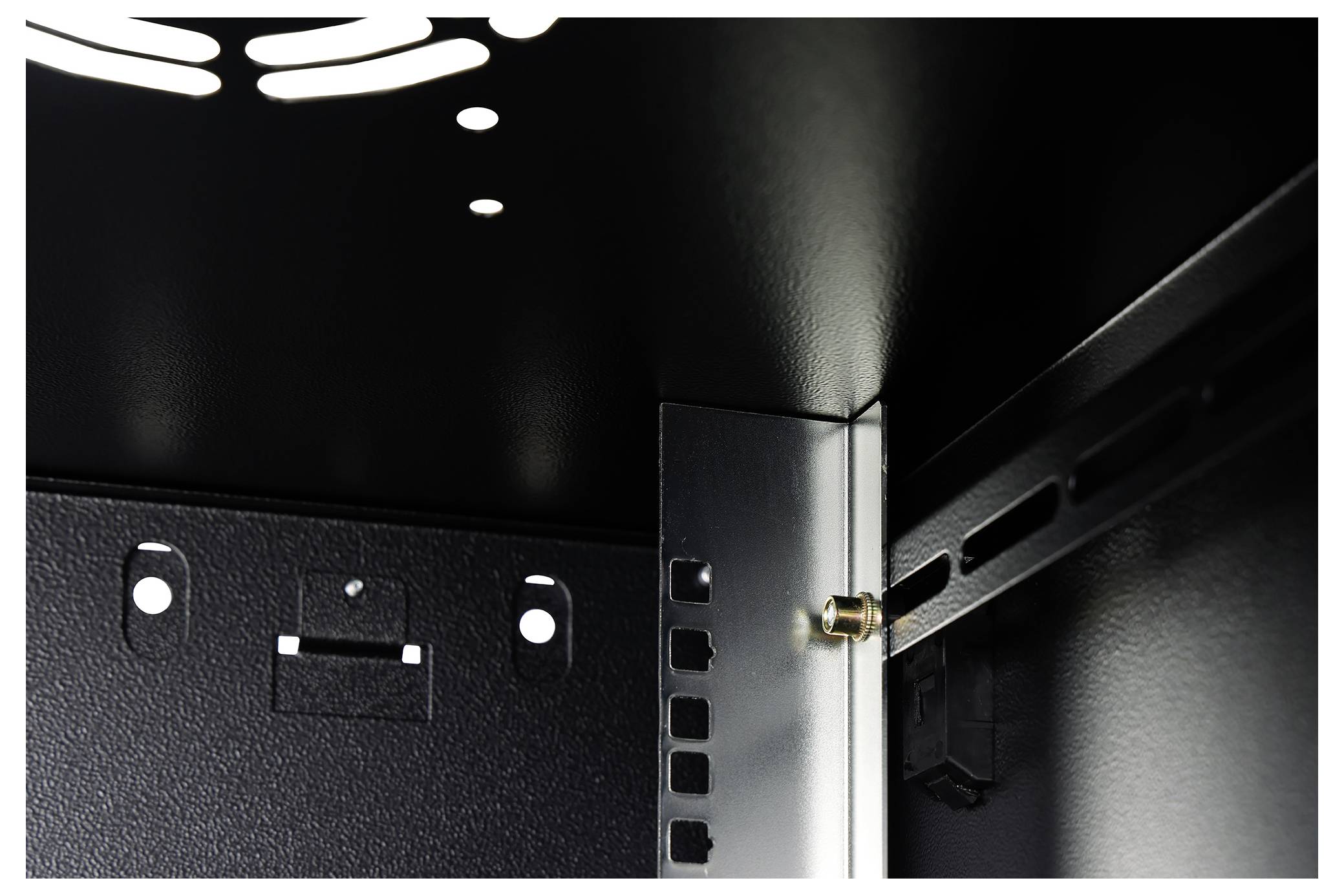

Close-up of a metal server cabinet interior showing a mounting rail, screws, and ventilation slots.<br>

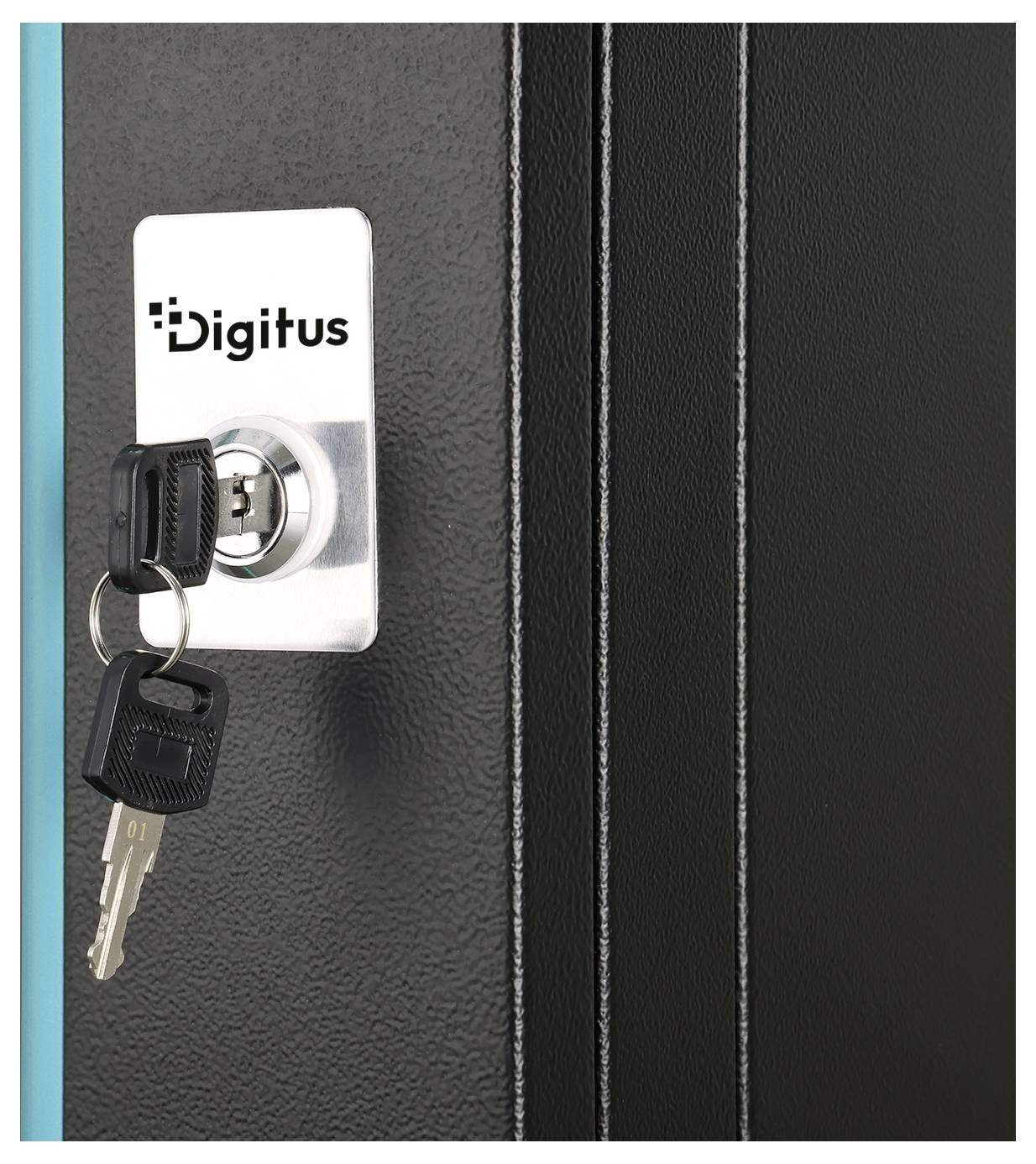

Close-up of a Digitus lock on a black cabinet or server rack door, with keys inserted and hanging from the lock.

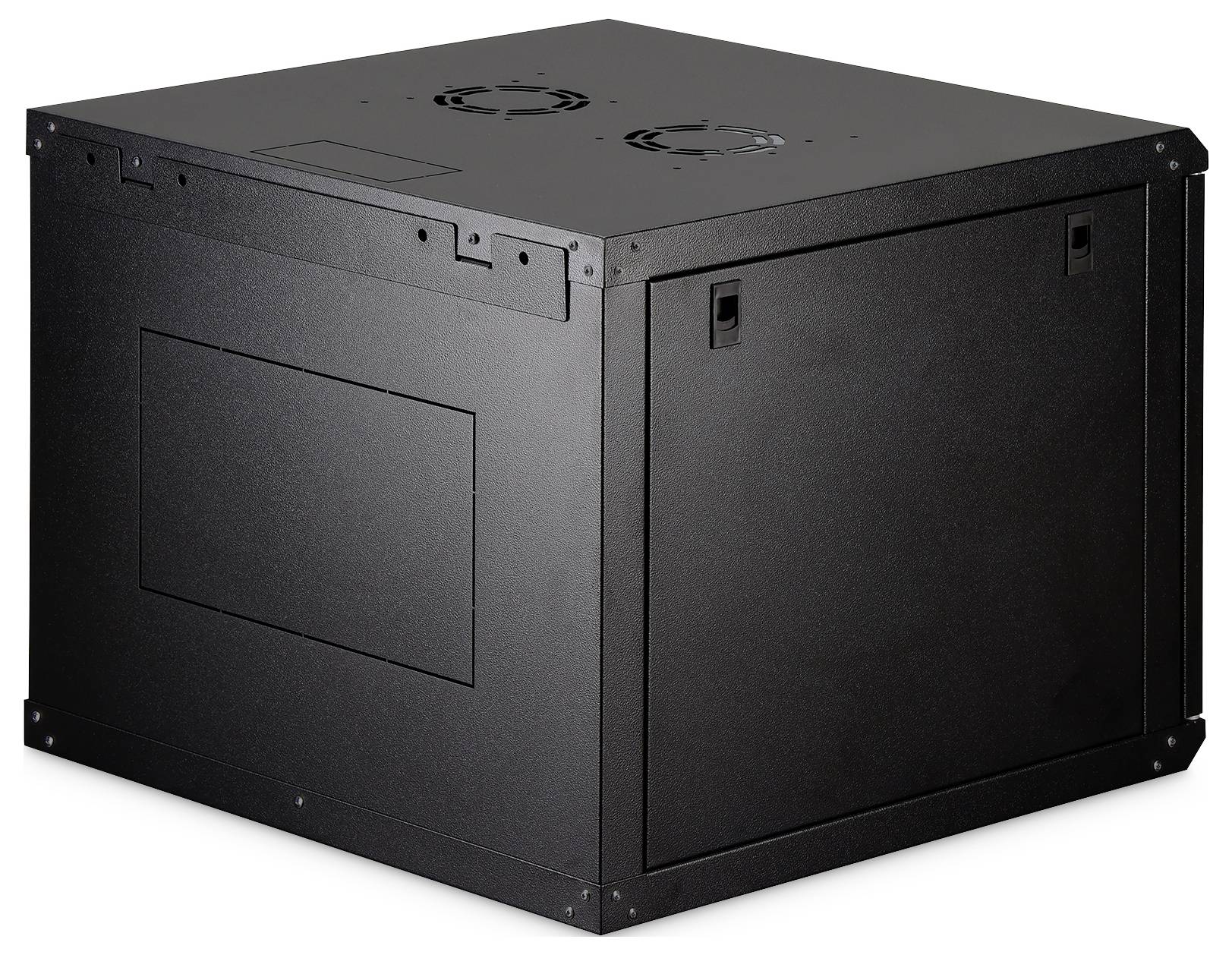

Black metal equipment rack cabinet with vented top and side access panels, shown in three-quarter view on a white background.

1/15

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus wall housing dynamic-N series - 600x600mm (WxD), unassembled, black

Highlights & Details

Optimum ventilation
Lockable safety glass door with steel frames
483 mm (19 ") rails on the front and rear inside the cabinet, galvanized
Supplied unassembled
Easy wall mounting thanks to the enclosed mounting plate

Technical specifications

Protection class: IP20
Lockable safety glass door with steel frames
230° door opening angle
1-point lock on the front door
483 mm (19 ") rails on the front and rear inside the cabinet, galvanized
483 mm (19 ") rails are adjustable in depth and provided with marking of the height unit
1.0 – 1.2 mm robust steel plate with a high load capacity, powder-coated

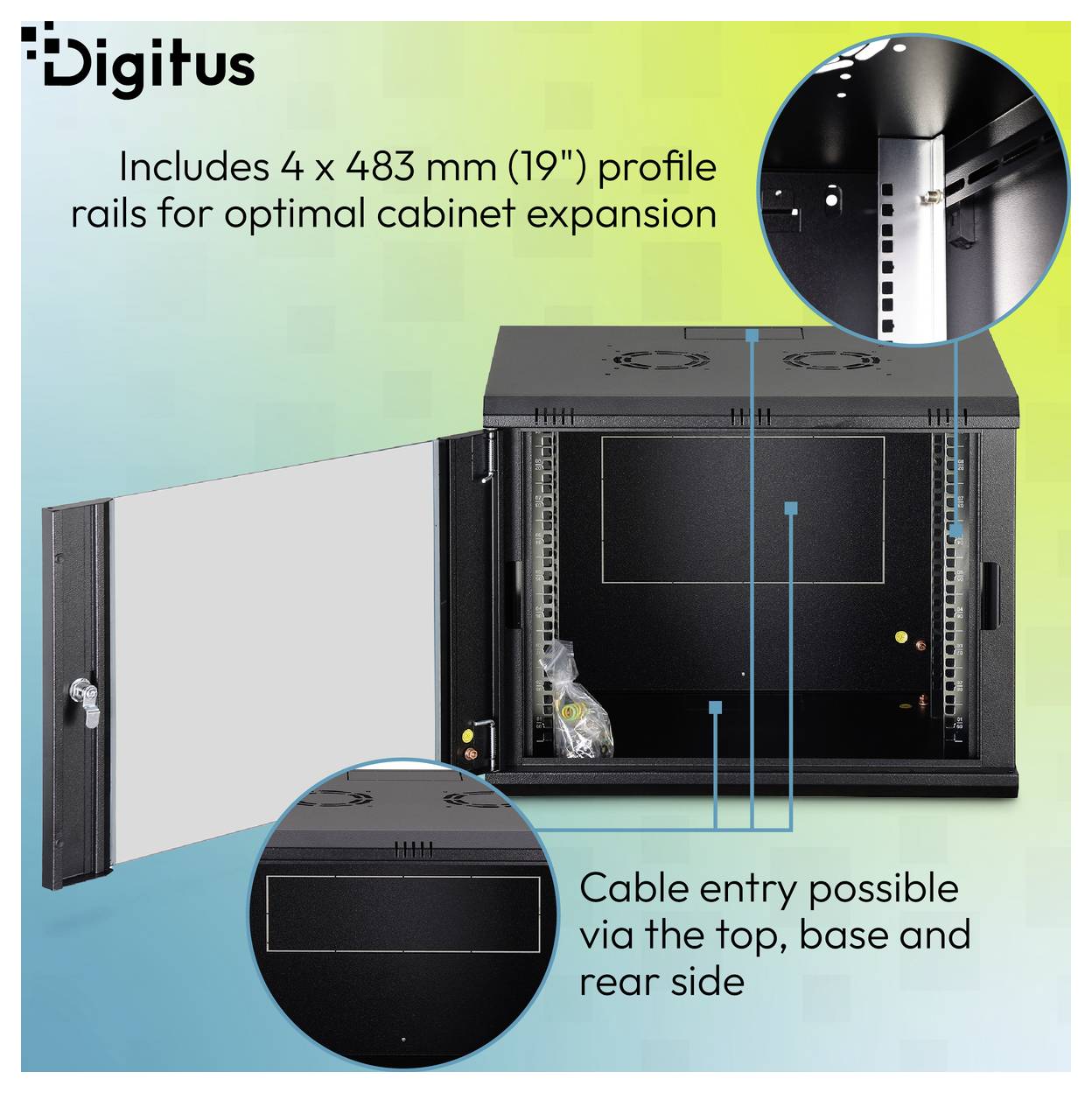

Cable routing possible at rear, roof and floor (pre-punched nicks)
Roof is prepared for receiving a fan element (punched pictures)
Ventilation slots for active and passive ventilation
4 earthing points (base, side part and front door) with protective cap
Mounting depth for components (standard Maximum) 369 - 470 mm

Product type: 19" server rack cabinet

Rack unit: 9 U

Material: Steel plate
Glass

Weight: 22000 g

Factory colour: Black
Black (RAL 9005)

Rack size: 483 mm (19")

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3763185 Digitus DN-37107 19" server rack cabinet 9 U Black, Black (RAL 9005)

Description

The network cabinets for wall mounting of the Dynamic-N series were developed for a simple and particularly cost-optimized network expansion. The roof, floor and rear wall of each cabinet are equipped with a pre-cut cable inlet. To accommodate a fan module, the roof chassis is also provided with a cut-out area. Two pair of galvanized, with height units readable in both directions 483 mm (19")-profile rails are installed in the interior. The depth of these can be adjusted. Each cabinet is a sturdy steel construction made of up to 1.2 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). Removable side panels as well as the lockable and removable front door improve accessibility. A door stop can be changed. The wall mounting is done in two simple steps: The mounting plate supplied is screwed to the wall and then connected to the housing. For a simplified logistics, the Dynamic-N series is supplied unassembled in a space-saving flat pack. The wall housing can be mounted quickly and easily using the supplied installation instructions.
